STEP 3. Check the trouble symptoms.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  Pattern  17  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P1238 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 4.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

STEP 4. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  Pattern  17  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P1238 set?

YES:

 Replace the troubleshooting.

NO:

 The procedure is complete.

DTC P1239: Engine RPM Plausibility

M11310100385USA0000010000

TECHNICAL DESCRIPTION
Compares  the  actual  engine  speed  calculated  from
the  crankshaft  position  sensor  signal  cycle  with  the
estimated engine speed calculated from the number
of the crankshaft position sensor signal pulses after a
lapse of the specified time.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-643

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

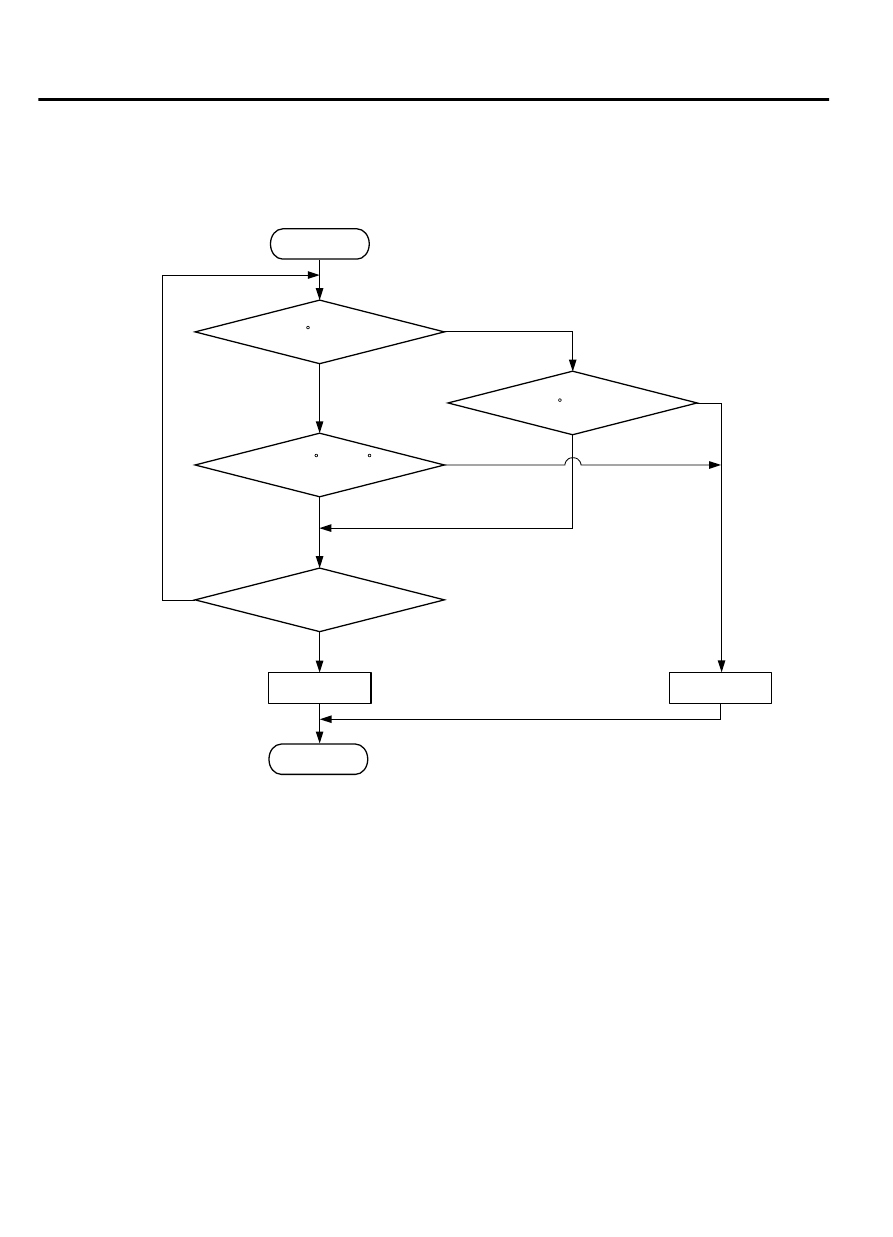

Logic Flow Chart

ZK604066 AA00

Start

End

No

No

No

Yes

Yes

Yes

Yes

No

Malfunction

Good

Continuous

failure for 0.5secs

|Ne (120 )-Ne (10 )|

>= 500rpm

Ne (120 ) >= 500rpm

Ne (10 ) > 1000rpm

Check Condition

｠

The  engine  speed  monitored  with  a  120  degree-
cycle pulse is 500 r/min or more.

Judgment Criterion

｠

The  difference  between  the  engine  speed
monitored  with  a  120  degree-cycle  pulse  and  the
engine  speed  monitored  with  a  10  degree-cycle
pulse is 500 r/min or more.

Check Condition

｠

The  engine  speed  monitored  with  a  120  degree-
cycle pulse is 500 r/min or less.

Judgment Criterion

｠

The  engine  speed  monitored  with  a  10  degree-
cycle pulse is 1,000 r/min or more.

OBD-II DRIVE CYCLE PATTERN
Refer  to  Diagnostic  Function  -  OBD-II  Drive  Cycle
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Crankshaft position sensor system failed.

｠

ECM failed.

13Ab-644

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

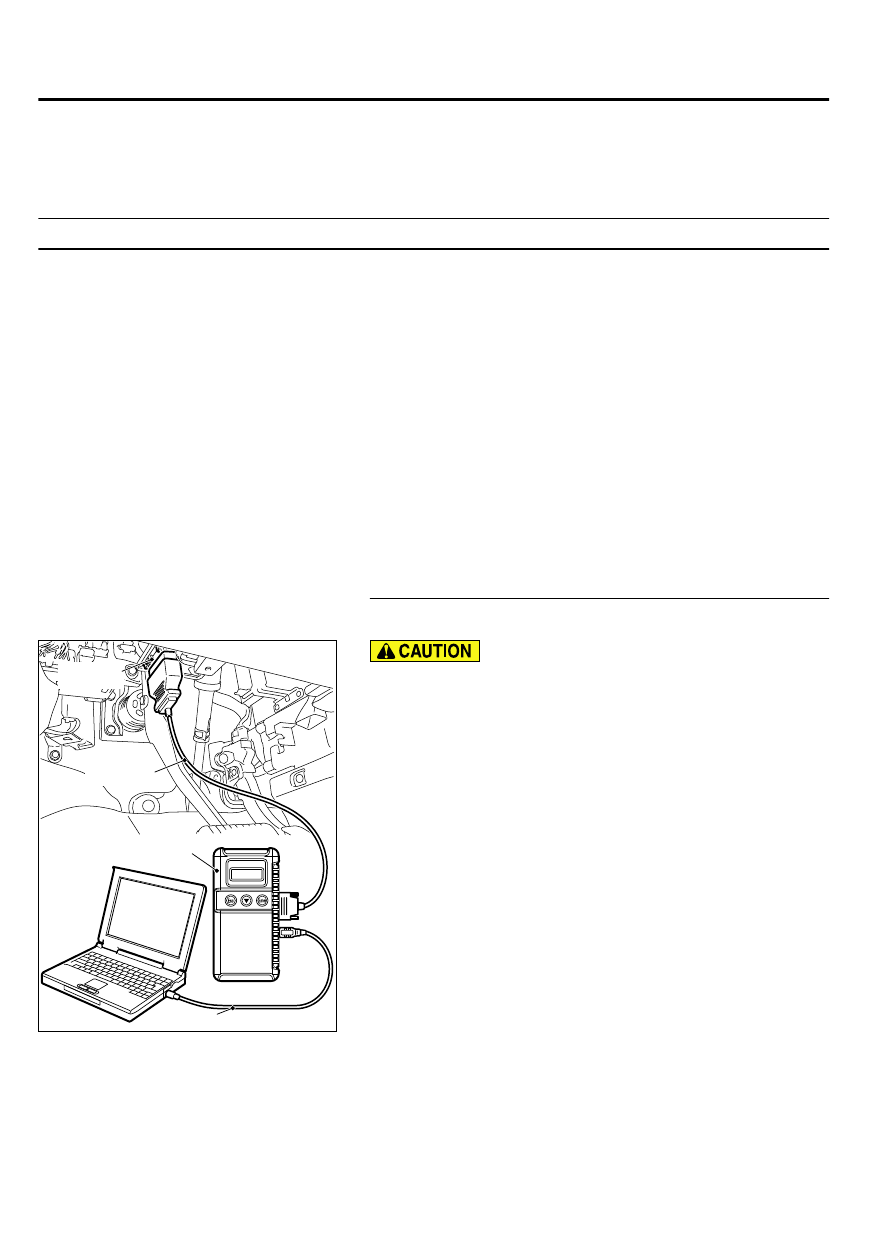

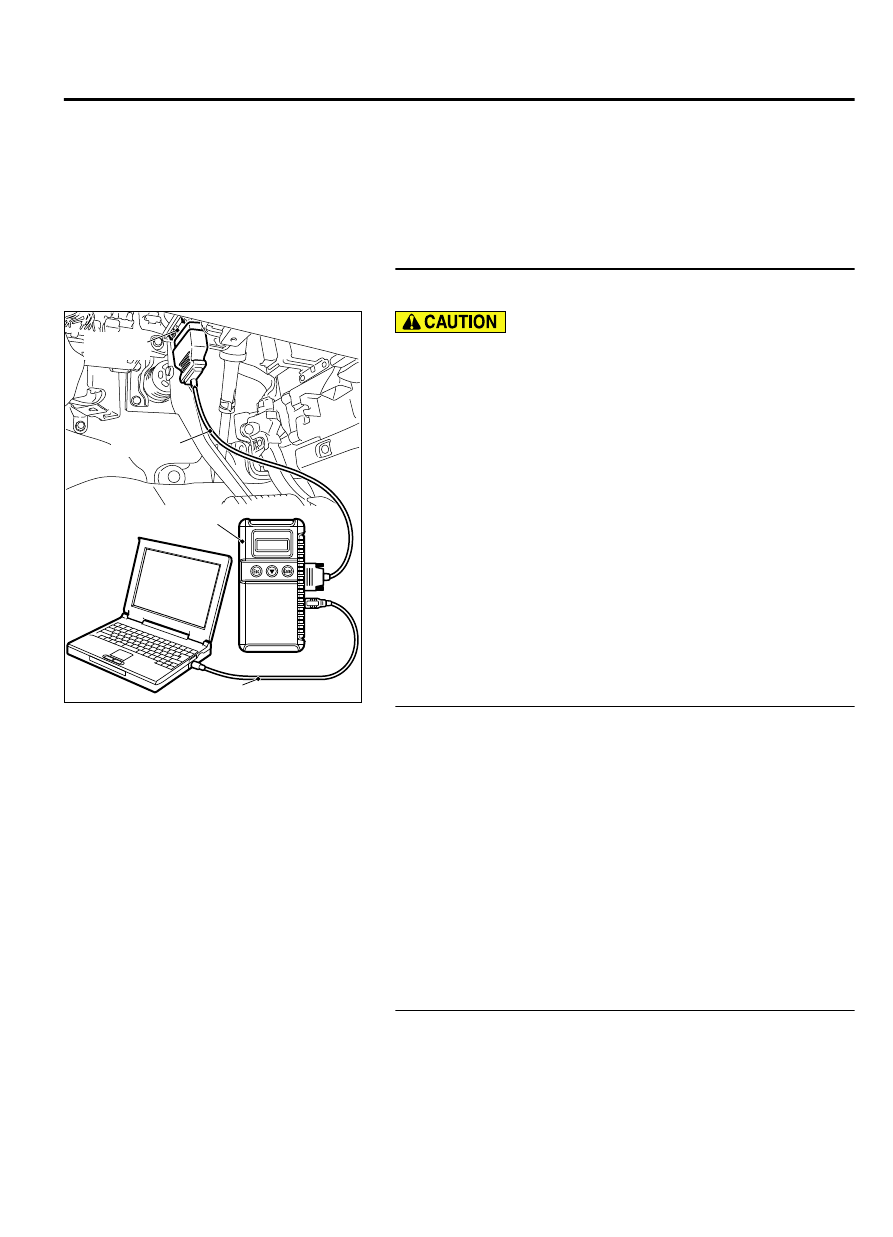

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Read the DTC.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code other than P1239 set?

YES:

 Refer to, Diagnostic Trouble Code Chart P.13Ab-44.

NO:

 Go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1)

Turn the ignition switch to the "ON" position.

(2)

After the DTC has been deleted, read the DTC again.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P1239 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 3.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

STEP 3. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  Pattern  17  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-645

DIAGNOSTIC TROUBLE CODE PROCEDURES

Q:Is DTC P1239 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

DTC P1240: Ignition Angle

M11310100386USA0000010000

TECHNICAL DESCRIPTION
Checks for an abnormal ignition timing retard angle
demand signal from the active stability control (ASC).

DTC SET CONDITIONS

Check Condition

｠

Ignition switch is "ON" position.

Judgment Criterion

｠

The  ignition  timing  retard  angle  demand  signal  is
not normal.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

ECM failed.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Read the DTC.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the ABS-DTC or ASC-DTC set?

YES:

 Refer to GROUP 35B, Anti-lock Braking System -

Diagnostic Trouble Code Chart P.35B-9Refer to GROUP
35C, Active Stability Control System - Diagnostic Trouble
Code Chart P.35C-11.

NO:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.
