Mitsubishi Outlander XL. Manual - part 354





ZK603251AA00

B-121 harness

connector:

component side

1

2

(3)

Check for the continuity between connector B-121 (terminal
No. 2) and ground.

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Go to Step 6.

NO:

 Repair it. Then go to Step 6.

STEP 6. Using scan tool MB991958, check actuator test item
21: Intake manifold tuning Solenoid.

(1)

Turn the ignition switch to the "ON" position.

(2)

Set scan tool MB991958 to the actuator test mode for item
21, Intake manifold tuning solenoid.

An operation sound should be heard and vibration should
be  felt  when  the  intake  manifold  tuning  solenoid  is
operated.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the solenoid operating properly?

YES:

 The inspection is complete.

NO:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-611

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P1020: Mitsubishi Innovative Valve Timing Electronic Control System (MIVEC)
Performance Problem

M11310100251USA0000010000

1

ZK602858

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

7

AA00

RED-BLA

CK

ENGINE
CONTROL
MODULE

B-107

(MU802767)

ENGINE OIL
PRESSURE
SWITCH

1

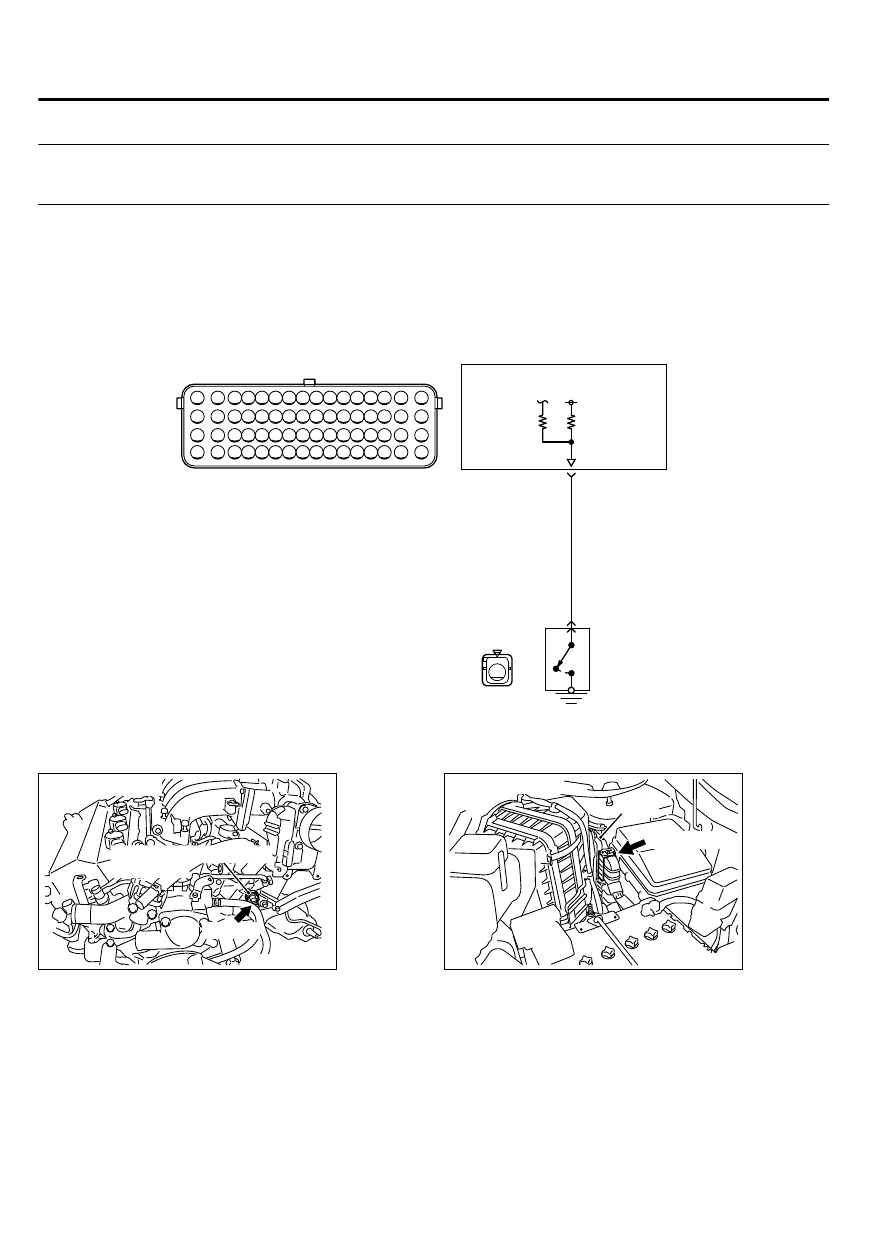

ENGINE OIL PRESSURE SWITCH CIRCUIT

B-10

OFF

ON

ZK603630AA00

Engine oil pressure switch
(for MIVEC)

Connector: B-107

B-107(B)

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



CIRCUIT OPERATION

A battery positive voltage is applied to the engine
oil pressure switch output terminal (terminal No. 1)
from the ECM (terminal No. 36) via the resistor in
the ECM.

TECHNICAL DESCRIPTION

The  engine  oil  pressure  switch  converts  the
existence of a engine oil pressure into a high/low
voltage, and inputs it into the ECM.

13Ab-612

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

When  the  engine  oil  control  valve  operates,  the
engine oil pressure in the MIVEC system rises. The
engine oil pressure switch opens, thus interrupting
the application of the battery positive voltage. As a
result, the output voltage of the engine oil pressure
switch will fluctuate between 0 and 12 volts.

The ECM checks whether the engine oil pressure
switch "OFF" or "ON" during driving.

DESCRIPTIONS OF MONITOR METHODS

Compare  engine  oil  pressure  switch  status  with
engine operating condition.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Not applicable

Sensor (The sensor below is determined to be
normal)

Not applicable

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-613

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

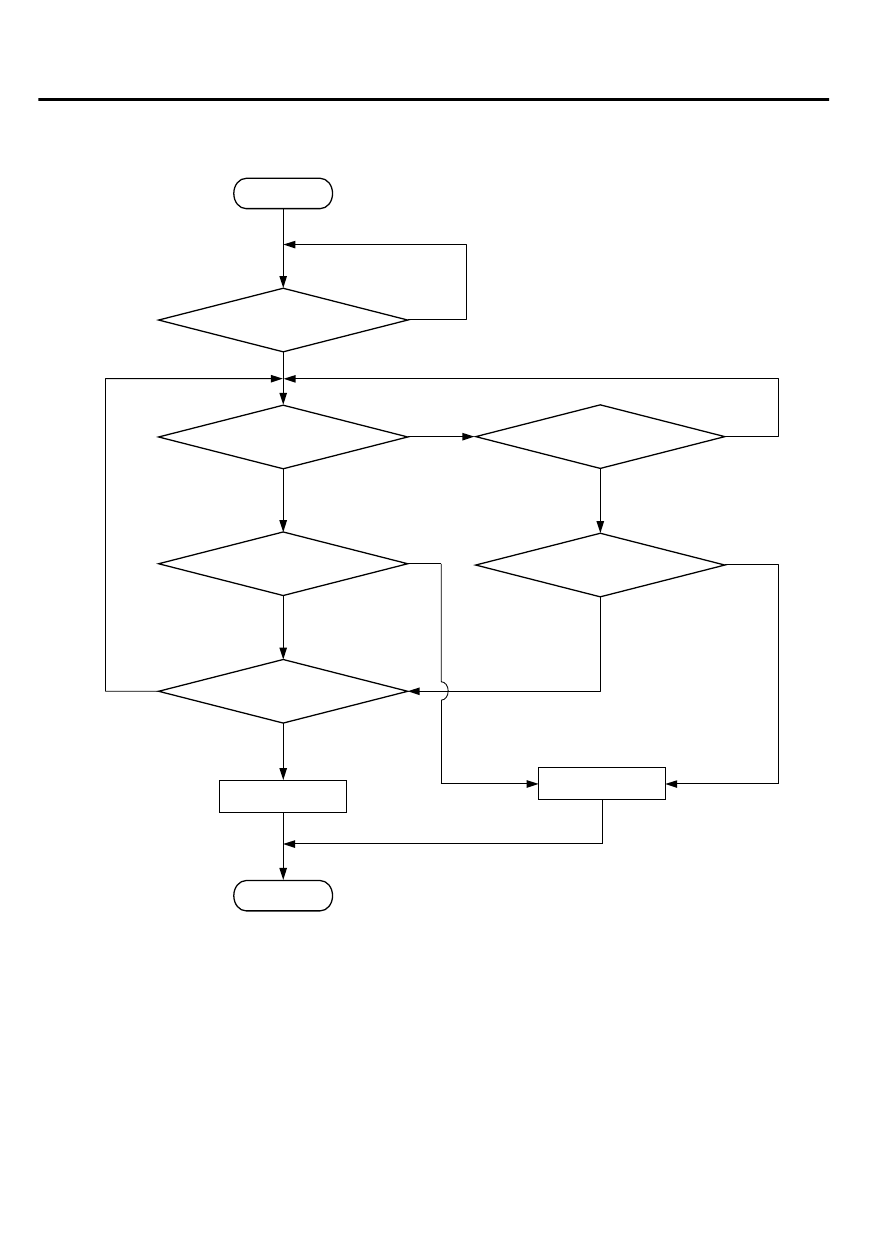

Logic Flow Chart

Malfunction

Yes

No

Yes

No

Yes

No

No

Good

AK603799

Monitoring
Conditions

Engine speed

< 4,250rpm

Oil pressure SW

: ON

Yes

Yes

Continuous

failure for 5sec

No

No

Yes

Start

End

AA00

Engine speed

> 5,188rpm

Oil pressure SW

: OFF

Check Conditions

Engine speed is less than 4,250 r/min.

Engine coolant temperature is 77°C or more.

Battery voltage is between 10 and 16.5 V.

30 seconds or more have passed since the engine
starting sequence was completed.

Judgment Criterion

Engine  oil  pressure  switch  has  been  OFF  for  5
seconds.

Check Conditions

Engine speed is more than 5,188 r/min.

Engine coolant temperature is 77°C or more.

Battery voltage is between 10 and 16.5 V.

30 seconds or more have passed since the engine
starting sequence was completed.

13Ab-614

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
