Q:Is DTC P0506 set?

YES:

Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 4.

NO:

The inspection is complete.

STEP 4. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic Function - OBD-II Drive Cycle - Pattern 20 P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0506 set?

YES:

Retry the troubleshooting.

NO:

The inspection is complete.

DTC P0507: Idle Control Sytem RPM Higher Than Expected

M11310100239USA0000010000

TECHNICAL DESCRIPTION

｠

The amount of air taken in during idling is regulated
by the opening and closing of the throttle valve.

｠

The ECM checks the difference between the actual
engine speed and the target engine speed.

DESCRIPTIONS OF MONITOR METHODS
Difference between actual and target idle speed is
over the specified value.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Misfire monitor

｠

Exhaust gas recirculation (EGR) system monitor

｠

Fuel system monitor

Sensor (The sensor below is determined to be
normal)

｠

Mass airflow sensor

｠

Engine coolant temperature sensor

｠

Intake air temperature sensor

｠

Barometric pressure sensor

｠

Throttle position sensor

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-563

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

Logic Flow Chart

Good

Malfunction

NeH = +200rpm

NeH = +300rpm

Calculate Ne

Start

End

Yes

ZK603778AA00

Monitoring

conditions

Highest

intake air temp.

in the previous trip < 45degC

(after 1 minute has past since

previous engine-start)

Ne < -100rpm or

> NeH

Have 10secs passed?

Ne = (actual-ne) - (target-Ne)
Ne: engine speed

Check Conditions

｠

Vehicle speed has reached 1.5 km/h (1.0 mph) or
more at least once.

｠

Under the closed loop idle speed control.

｠

Engine coolant temperature is higher than 41°C
(105°F).

｠

Battery positive voltage is higher than 10 volts.

｠

Barometric pressure is higher than 76 kPa (22.4
in.Hg).

｠

Intake air temperature is higher than -10°C (14°F).

｠

3 seconds have elapsed from the start of the
previous monitoring.

｠

Target throttle actuator control motor position is 0
step.

13Ab-564

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

Judgement Criterion

｠

Actual idle speed has continued to be higher than
the target idle speed by 200 r/min (300 r/min*) or
more for 12 seconds.

*: Specs in parentheses are applicable if the
maximum air temperature during the previous
operation was more than 45°C (113°F).

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 20 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Intake system vacuum leak.

｠

Throttle body assy failed.

｠

ECM failed.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

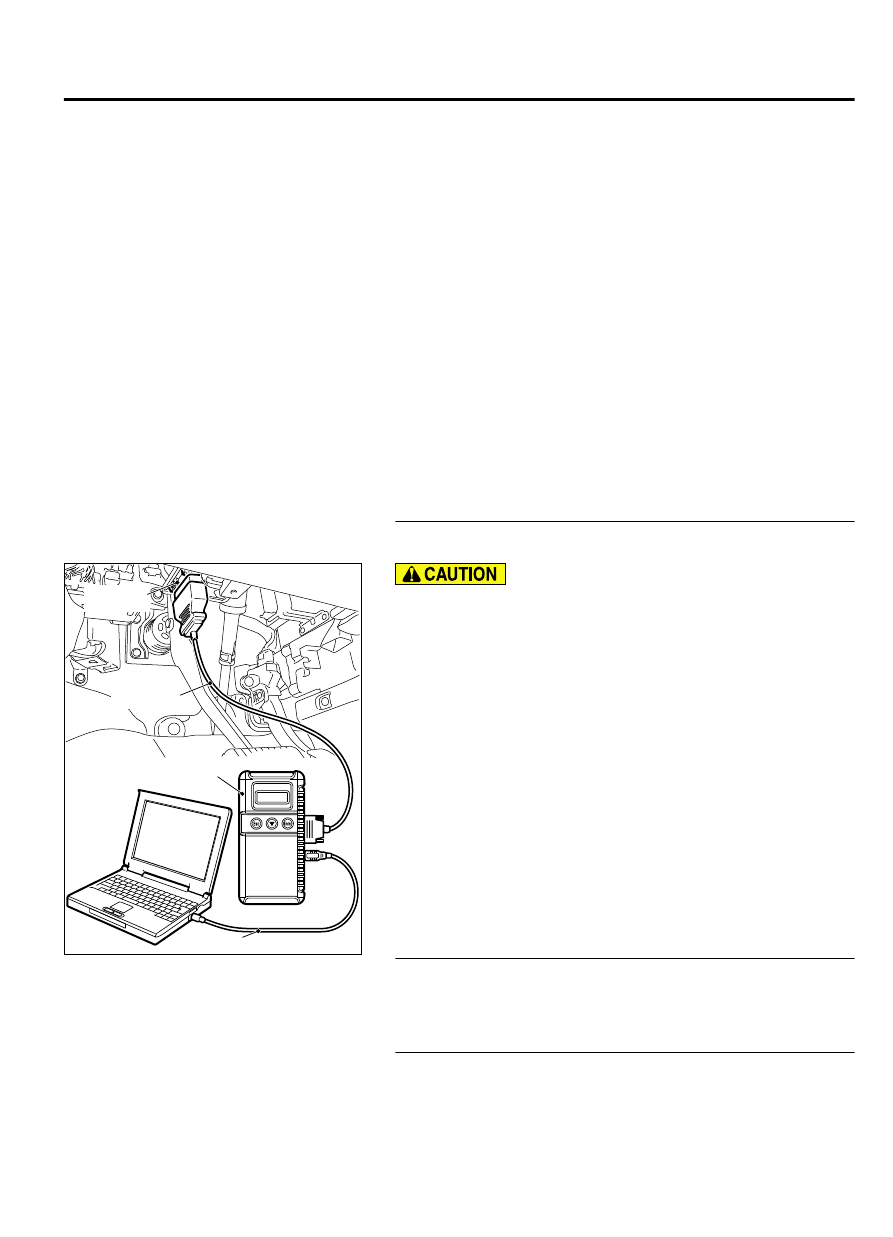

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code other than P0507 set?

YES:

Refer to Diagnostic Trouble Code Chart P.13Ab-44.

NO:

Go to Step 2.

STEP 2. Check the intake system vacuum leak.

Q:Are there any abnormalities?

YES:

Repair it. Then go to Step 4.

NO:

Go to Step 3.

STEP 3. Replace the throttle body assembly.

(1)

Replace the throttle body assembly.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-565

DIAGNOSTIC TROUBLE CODE PROCEDURES

(2)

Carry out test drive with the drive cycle pattern. Refer to
Diagnostic Function - OBD-II Drive Cycle - Pattern 20 P.
13Ab-8.

(3)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0507 set?

YES:

Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 4.

NO:

The inspection is complete.

STEP 4. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic Function - OBD-II Drive Cycle - Pattern 20 P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0507 set?

YES:

Retry the troubleshooting.

NO:

The inspection is complete.

DTC P0513: Immobilizer Malfunction

M11310100240USA0000010000

TECHNICAL DESCRIPTION

｠

ECM  monitors  the  communication  condition  with
the  immobilizer-ECU.  When  an  abnormality  in
communication  is  found,  ECM  prevents  engine
start.

DTC SET CONDITIONS

Check Condition

｠

Ignition switch: ON

Judgment Criterion

｠

When the communication error between ECM and
the immobilizer-ECU continues for 2 seconds or
more.

｠

When it was different in the encrypted code sent
from immobilizer-ECU and operation result by
ECM.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Malfunction of CAN system.

｠

Malfunction of immobilizer system.

｠

ECM failed.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

13Ab-566

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
