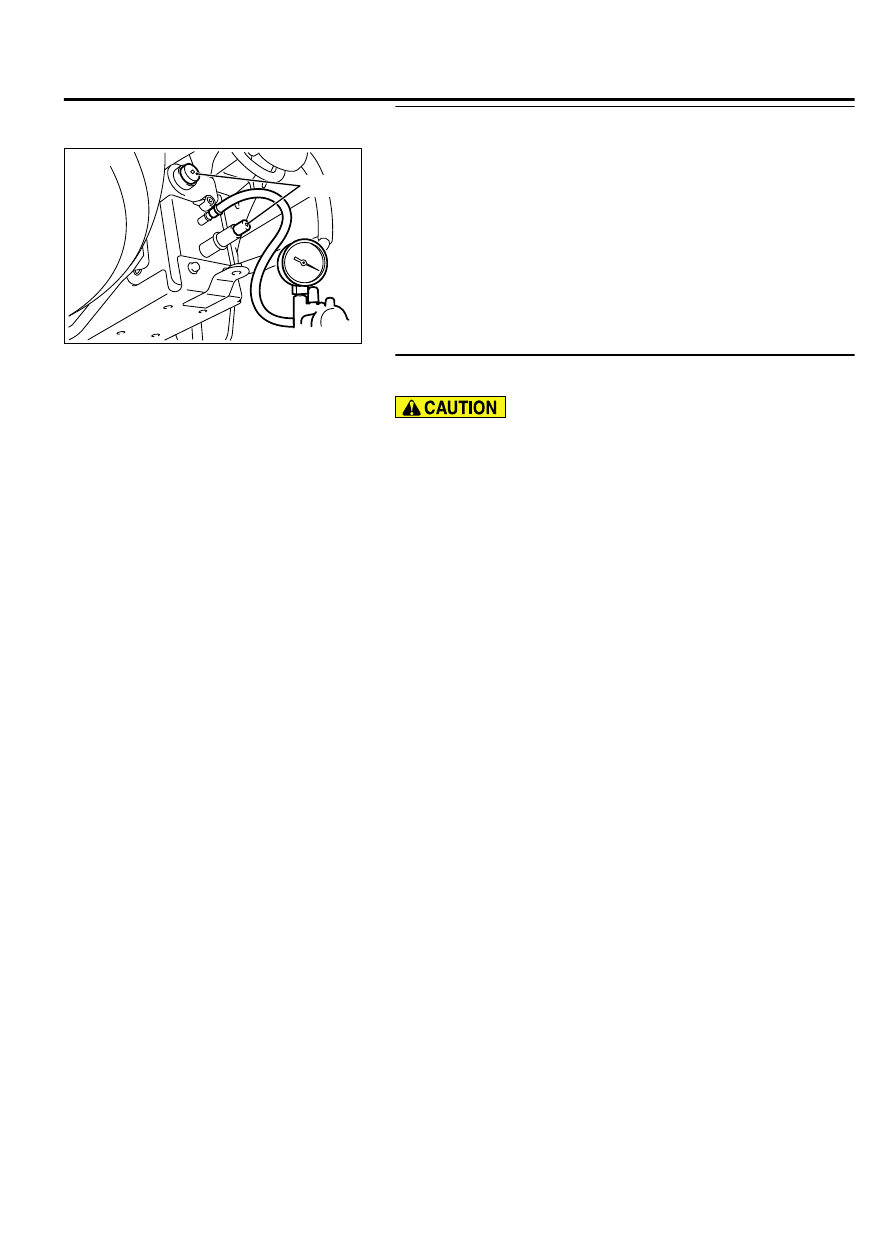

STEP 12. Check the evaporative emission canister for
vacuum leaks.

ZK603414

Plugs

AA00

(1)

Connect a hand vacuum pump to the evaporative emission
canister and plug the other nipples.

(2)

Apply a pressure on the hand vacuum pump, and confirm that
air is maintained.

(3)

Disconnect the hand vacuum pump and remove the plugs.

Q:Is the evaporative emission canister in good condition?

YES:

 Go to Step 13.

NO:

 Replace the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valve P.17c-18). Then go to Step 14.

STEP 13. Using scan tool MB991958, check the evaporative
emission system monitor test.

During  this  test,  the  ECM  automatically  increases  the
engine  speed  to  1,600  r/min  or  greater.  Check  that  the
transaxle is set to "P" position.

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTCs using scan tool MB991958.

(3)

Check that the fuel cap is securely closed (Tighten until three
clicks are heard).

(4)

Start the engine.

(5)

Select "System Test."

(6)

Select "Evap Leak Mon."

(7)

During  the  test,  keep  the  accelerator  pedal  at  the  idle
position.

(8)

Keep the engine speed and engine load within the specified
range. When the monitor test starts, the "In Progress" item
on scan tool MB991958 will change from "NO" to "YES".

(9)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is  "Evap  Leak  Mon.  Completed.  Test  Failed  and  DTCs

Set" displayed on scan tool MB991958?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 14.

NO <"Evap Leak Mon. Completed. Test Passed" is
displayed on scan tool MB991958.>:

 The evaporative

emission system is working properly at this time. Go to
Step 14.

NO <"Evap Leak Mon. Discontinued. Retest again from
the first" is displayed on scan tool MB991958.>:

 The EVAP

monitor has been interrupted during the test. Turn the
ignition switch to the "LOCK" (OFF) position once, and
repeat the monitoring from Step 14.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-471

DIAGNOSTIC TROUBLE CODE PROCEDURES

STEP 14. Perform the OBD-II drive cycle.

(1)

Confirm the repair by performing the appropriate drive cycle
(Refer to Diagnostic Function - OBD-ll Drive Cycle - Pattern
5 P.13Ab-8).

(2)

Read the DTC.

Q:Is DTC P0442 set?

YES:

 Repeat the troubleshooting.

NO:

 The procedure is complete.

13Ab-472

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0443: Evaporative Emission Control System Purge Control Valve Circuit

M11310100232USA0000010000

2

1

ZK602852

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1

3

2

4

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

37

1

2

4

A-13

B-07

MU802779

ENGINE
CONTROL
MODULE

B-10

20A

WHITE

WHITE

WHITE

BR

O

WN-WHITE

WHITE

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

36

FUSIBLE LINK

OFF

ON

AA00

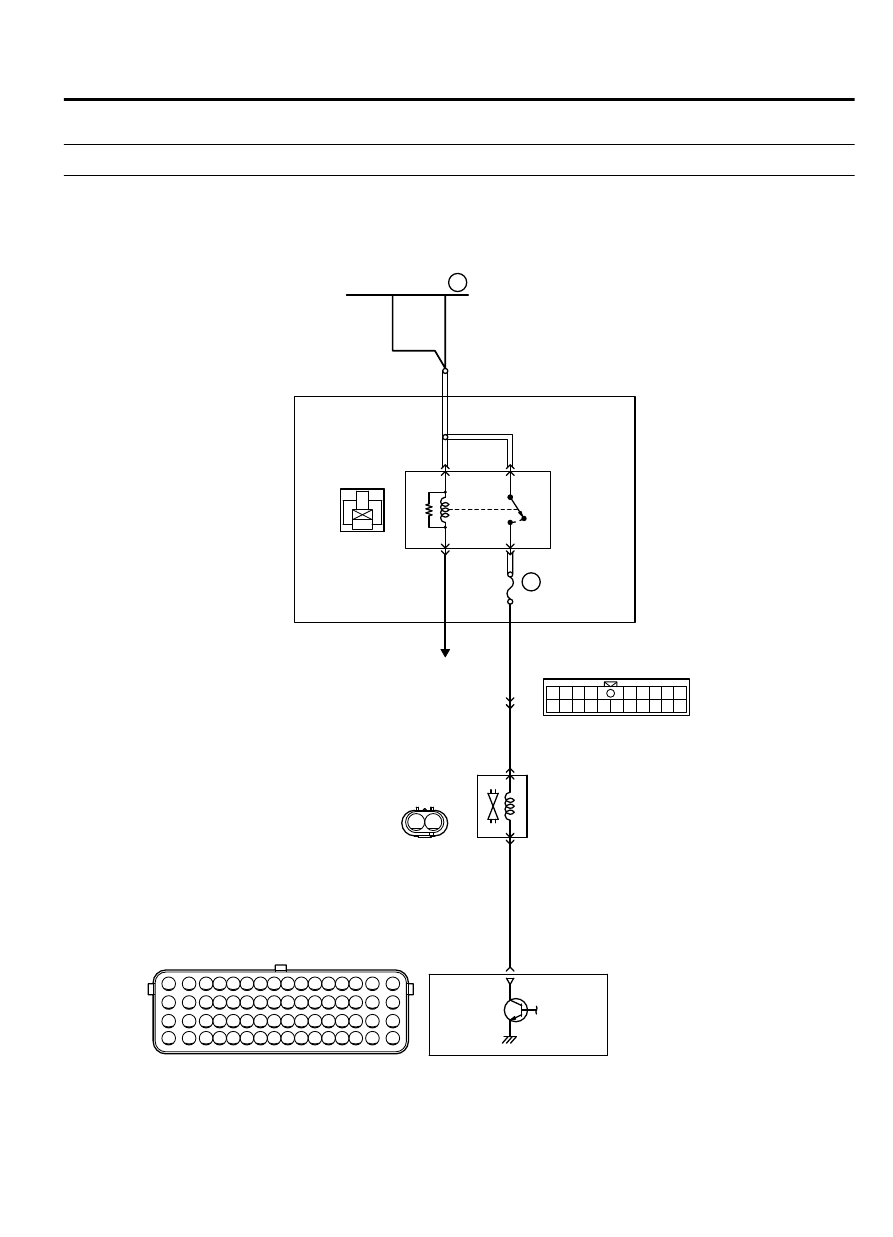

EVAPORATIVE EMISSION PURGE SOLENOID CIRCUIT

EVAPORATIVE EMISSION
PURGE SOLENOID

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-473

DIAGNOSTIC TROUBLE CODE PROCEDURES

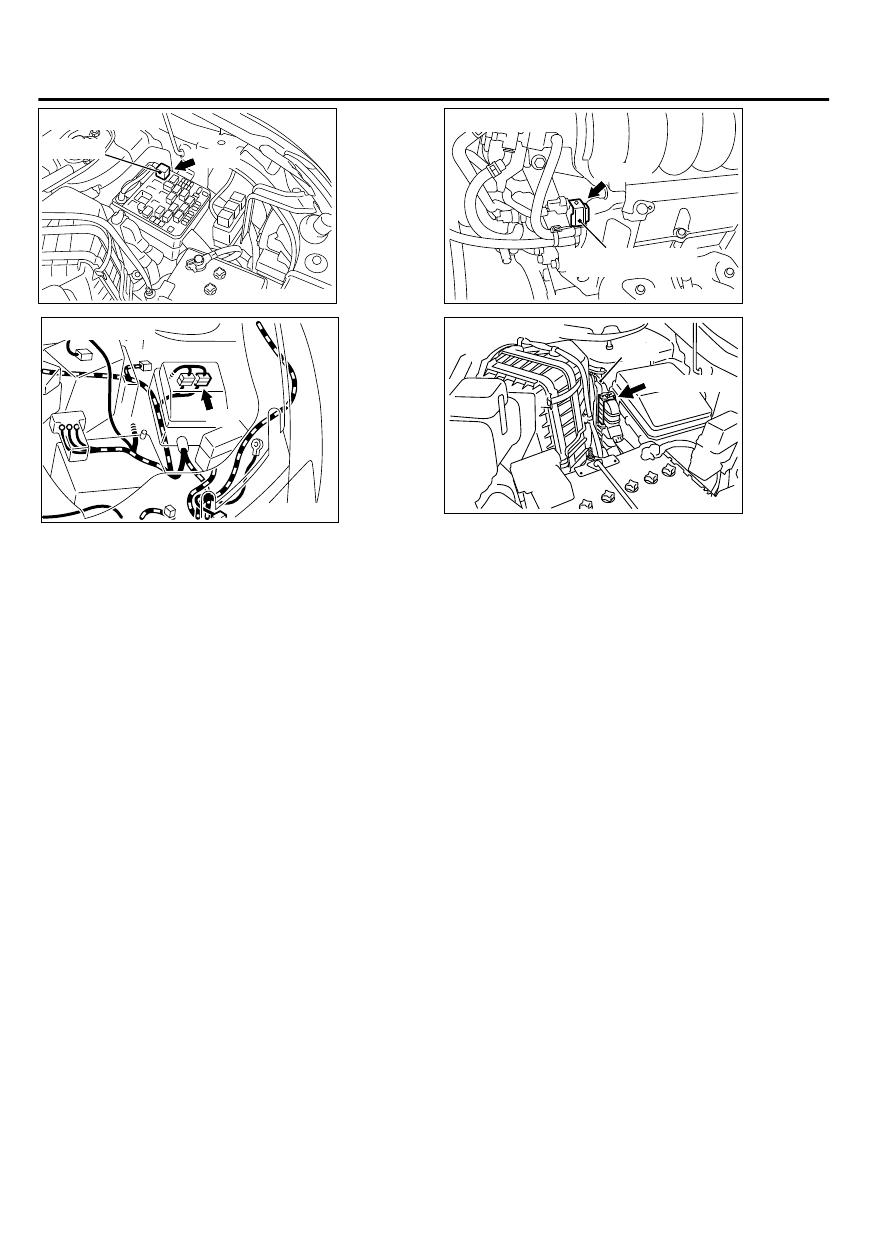

ZK603589

MFI relay

A-33X

Connector: A-33X

AA00

ZK603650AA00

A-13

Connector: A-13

ZK603611

Evaporative emission
purge solenoid

AA00

B-07 (B)

Connector: B-07

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



CIRCUIT OPERATION

The evaporative emission purge solenoid power is
supplied from the MFI relay (terminal No. 2).

The  ECM  controls  ground  evaporative  emission
purge solenoid by turning the power transistor in the
ECM "ON" and "OFF".

TECHNICAL DESCRIPTION

To judge if there is open circuit in the evaporative
emission  purge  solenoid  drive  circuit,  the  ECM
measures  the  surge  voltage  of  the  evaporative
emission purge solenoid coil.

DESCRIPTIONS OF MONITOR METHODS

Off-surge does not occur after solenoid is operated
from on to off.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Not applicable

Sensor (The sensor below is determined to be
normal)

Not applicable

13Ab-474

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
