Mitsubishi Outlander XL. Manual - part 318

ZK603401AA00

Evaporative emission
ventilation solenoid

Intake manifold
side nipple

(3)

Connect the hose of the hand vacuum pump to the canister
side nipple of the evaporative emission ventilation solenoid.

(4)

Turn the ignition switch to the "ON" position.

(5)

Set scan tool MB991958 to actuator test mode.

｠

Item 15: Evaporative Emission Ventilation Solenoid.

｠

While the evaporative emission ventilation solenoid is
energized, operate the hand vacuum pump and
confirm that the solenoid holds vacuum.

(6)

Turn the ignition switch to the "LOCK" (OFF) position.

(7)

Disconnect the hand vacuum pump, and reinstall the
evaporative emission ventilation solenoid.

(8)

Reinstall the canister cover.

Q:Did the evaporative emission ventilation solenoid hold

vacuum?

YES:

Go to Step 6.

NO:

Replace the evaporative emission ventilation

solenoid (Refer to GROUP 17, Evaporative emission
canister and fuel tank pressure relief valve removal and
installation P.17c-18).Then go to Step 14.

STEP 6. Pressure test the evaporative emission system
lines from hoses C to I.

ZK603404

Hose C

AA00

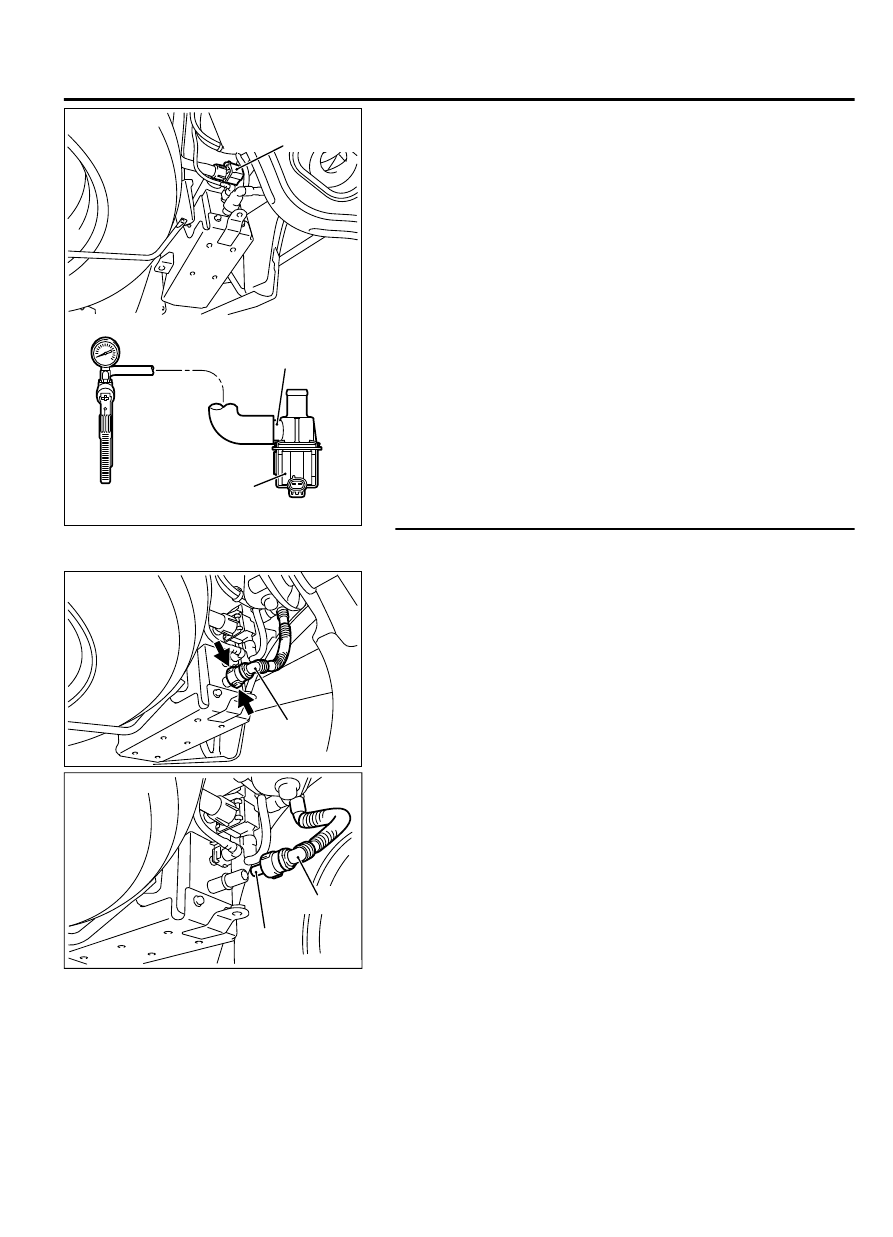

(1)

Disconnect hose C from the canister while holding the
release buttons indicated in the illustration pressed by
fingers.

ZK603402

Hose C

Plug

AA00

(2)

Plug the disconnected end of hose C.

(3)

Confirm that the evaporative emission system pressure
pump (Miller number 6872A) is operating properly. Perform
the self-test as described in the pump manufacturer's
instructions.

(4)

Remove the fuel cap.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-467

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603403AA00

(5)

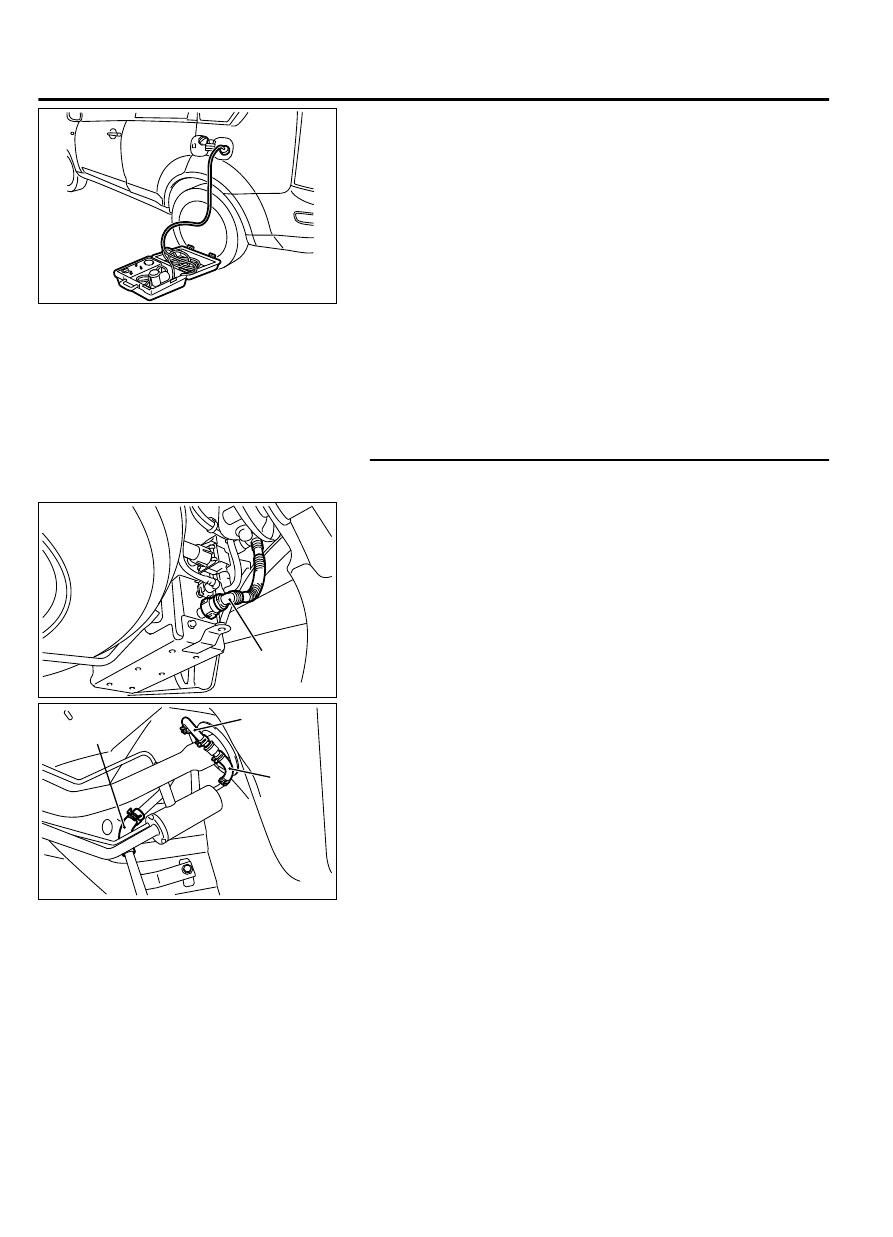

Connect the evaporative emission system pressure pump
(Miller number 6872A) to the fuel tank filler tube by using fuel
tank adapter (MLR-8382).

(6)

Pressure test the system to determine whether any leaks are
present.

NOTE:

The "Pressure test" in this procedure refers to

the I/M240 Simulation Test. The eight steps of this test
are described in the manufacturer's instructions for the
evaporative emission system pressure pump, Miller number
6872A.

(7)

Remove the evaporative emission system pressure pump
(Miller number 6872A) and the fuel tank adapter (MLR-8382),
and reinstall the fuel cap.

(8)

Connect hose C to the evaporative emission canister.

Q:Is the evaporative emission system line free of leaks?

YES:

Go to Step 12.

NO:

Go to Step 7.

STEP 7. Check for leaks in evaporative emission hoses C
through F.

ZK603405

Hose C

AA00

ZK603406

Hose E

Hose F

AA00

Hose D

Use a hand vacuum pump to test each hose from hose C to
hose F.

Q:Do the hoses hold vacuum?

YES:

Go to Step 8.

NO:

Replace any damaged hose. Then go to Step 14.

13Ab-468

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

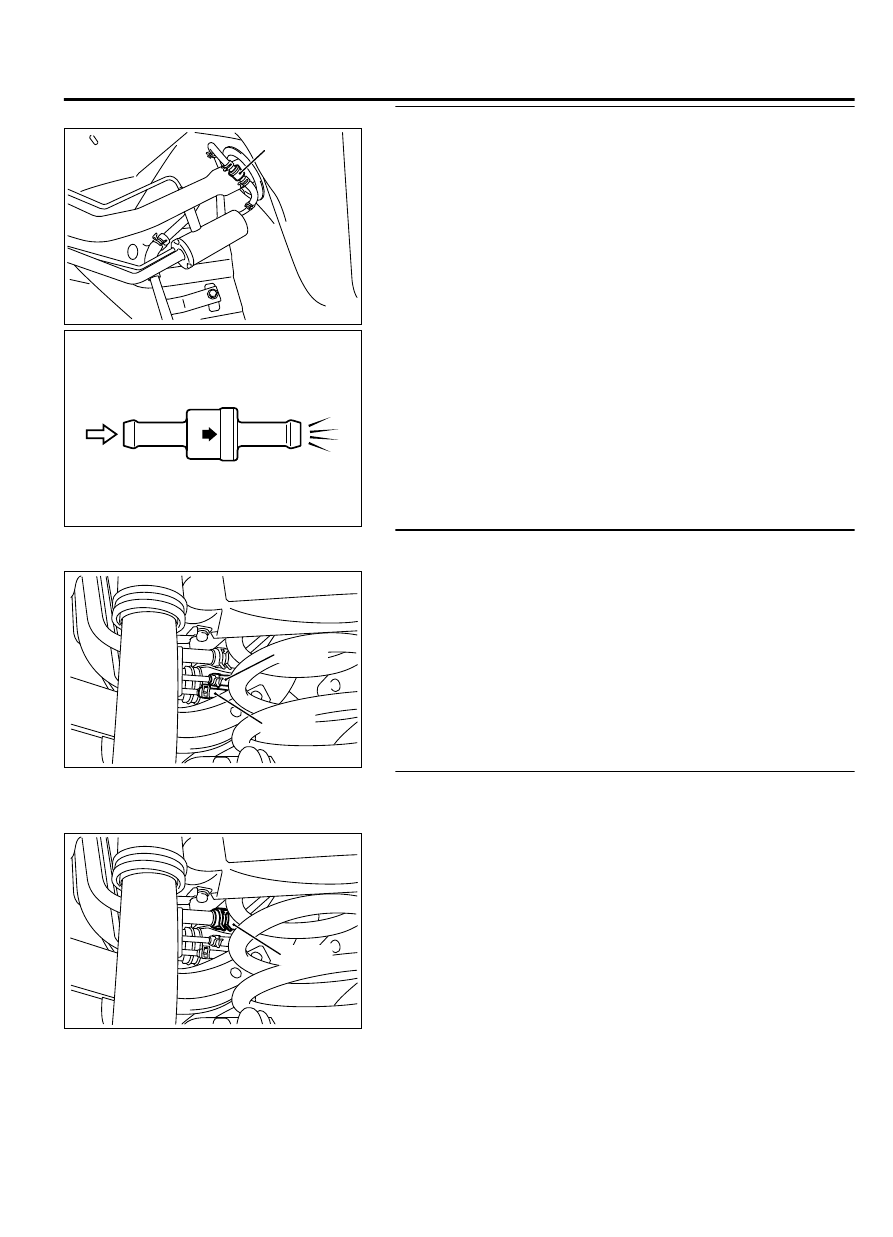

STEP 8. Test check valve.

ZK603407

Check valve

AA00

(1)

Check valve is a one-way check valve.

ZK603408AA00

Check valve

(2)

Check valve should allow air to flow in only one direction.

Q:Does check valve allow air to pass in one direction only?

YES:

Go to Step 9.

NO:

Replace check valve, and reinstall the fuel tank

filler tube protector (Refer to GROUP 13B, Fuel Tank
<FWD> P.13B-13or Fuel Tank <AWD> P.13B-18). Then go
to Step 14.

STEP 9. Check for leaks in evaporative emission hoses G
and H.

ZK603409

Hose G

Hose H

AA00

Use a hand vacuum pump to test each hose G and H.

Q:Do the hoses hold vacuum?

YES:

Go to Step 10.

NO:

Replace any damaged hose. Then go to Step 14.

STEP 10. Check for leaks in evaporative emission hose I.

(1)

Remove the fuel tank assembly (Refer to GROUP 13B, Fuel
Tank <FWD> P.13B-13or Fuel Tank <AWD> P.13B-18).

ZK603410

Hose I

AA00

(2)

Use the hand vacuum pump to check the hose I.

Q:Do the hose hold vacuum?

YES:

Go to Step 11.

NO:

Replace the hose and reinstall the fuel tank assembly

(Refer to GROUP 13B, Fuel Tank <FWD> P.13B-13or Fuel
Tank <AWD> P.13B-18). Then go to Step 14.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-469

DIAGNOSTIC TROUBLE CODE PROCEDURES

STEP 11. Check for leaks in the fuel tank.

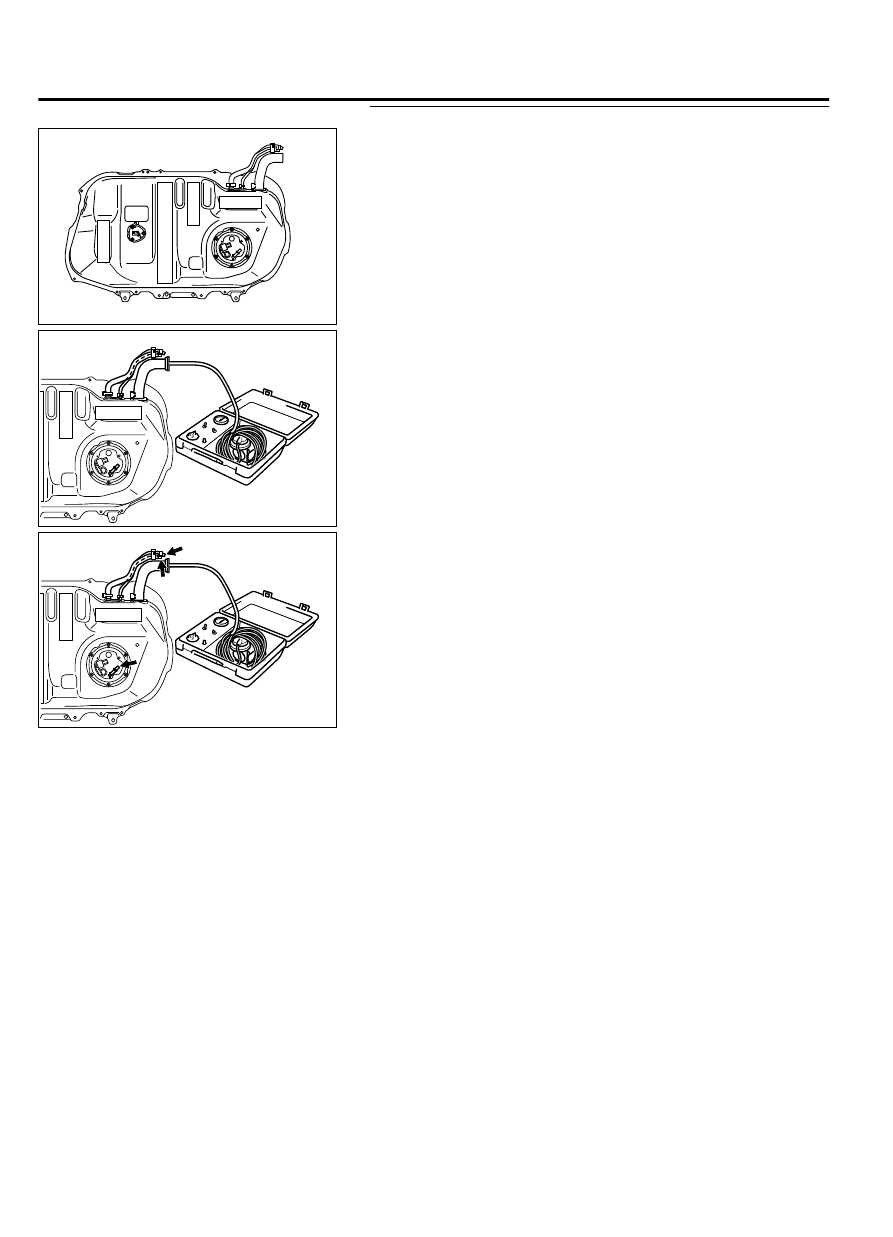

ZK603411AA00

(1)

Visually check for cracks or other leaks in the fuel tank.

NOTE:

Carefully check the fuel pump module and the fuel

tank differential pressure sensor installation in the
fuel tank.

ZK603412AA00

(2)

Connect the evaporative emission system pressure pump
(Miller number 6872A) to the fuel filler hose.

ZK603413AA00

(3)

Plug the hose and the nipple shown in the illustration.

NOTE:

If these items are not securely plugged now, the

fuel could leak in the next step.

(4)

Pressurize the fuel tank with the evaporative emission
system pressure pump.

(5)

In the pressurized state, check for leaks by applying a soapy
water solution to each section and look for bubbles.

Q:Are any leaks found?

YES <When there is a leak from the attachment points of
the fuel pump module, fuel tank differential pressure
sensor, fuel level sensor (sub) or leveling valve.>:

Reassemble the leaked parts and check again that there are
no leaks. Then reinstall the fuel tank (Refer to GROUP
13B, Fuel Tank <FWD> P.13B-13or Fuel Tank <AWD> P.
13B-18). Then go to Step 14.

YES <When there is a leak from the fuel tank.>:

Replace

the fuel tank (Refer to GROUP 13B, Fuel Tank <FWD> P.
13B-13or Fuel Tank <AWD> P.13B-18). Go to Step 14

NO:

When there is no leak, reinstall the fuel tank (Refer

to GROUP 13B, Fuel Tank <FWD> P.13B-13or Fuel Tank
<AWD> P.13B-18). Then go to Step 13.

13Ab-470

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
