Normal waveform

A:Injector drive time

A

AA00

ZK603331

(4)

Measure the waveform.

｠

The waveform should show a normal pattern similar to the
illustration.

(5)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the waveform normal?

YES:

 It can be assumed that this malfunction is

intermittent. Refer to 00, How to Use Troubleshooting/
Inspection Service Points - How to Cope with Intermittent
Malfunctions P.00-15.

NO:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 10.

STEP 10. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  24  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0201 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-339

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0202: Injector Circuit Malfunction - Cylinder 2

M11310100210USA0000010000

ZK602844

1

3

2

4

1

2

3
4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2 3 4

5 6 7

15

14

13

12

11

9

8

1

6

4

5

9

8

10

10

11

13

15

14

12

16

7

2 3

2

1

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

INJEC TOR
NO. 2

B-120

(MU802062)

1

2

ENGINE CONT ROL MODUL E

ETACS -
ECU

3

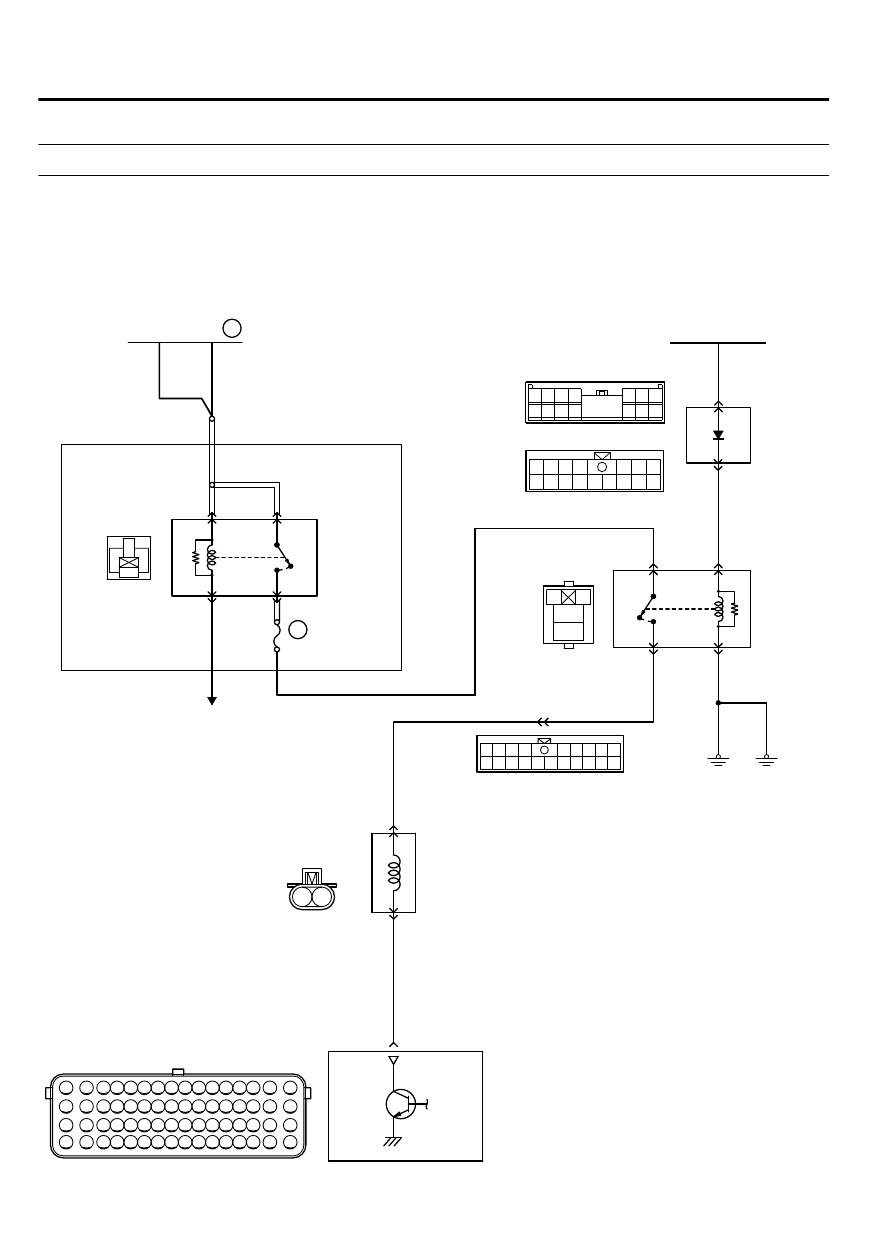

INJECTOR CIRCUIT-CYLINDER 2

BLUE

YELL

O

W

-BL

A

C

K

B-10

AA00

20A

WHITE

WHITE

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

OFF

ON

WHITE

WHITE

RED-WHITE

4

1

10

6

7

C-304

C-317

A-13

A-24X

3

BLUE

BLA

CK

BLA

CK

BLA

CK

2

IGNITION
SWITCH (IG1)

OFF

ON

INJECTOR
RELAY

36

FUSIBLE LINK

13Ab-340

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

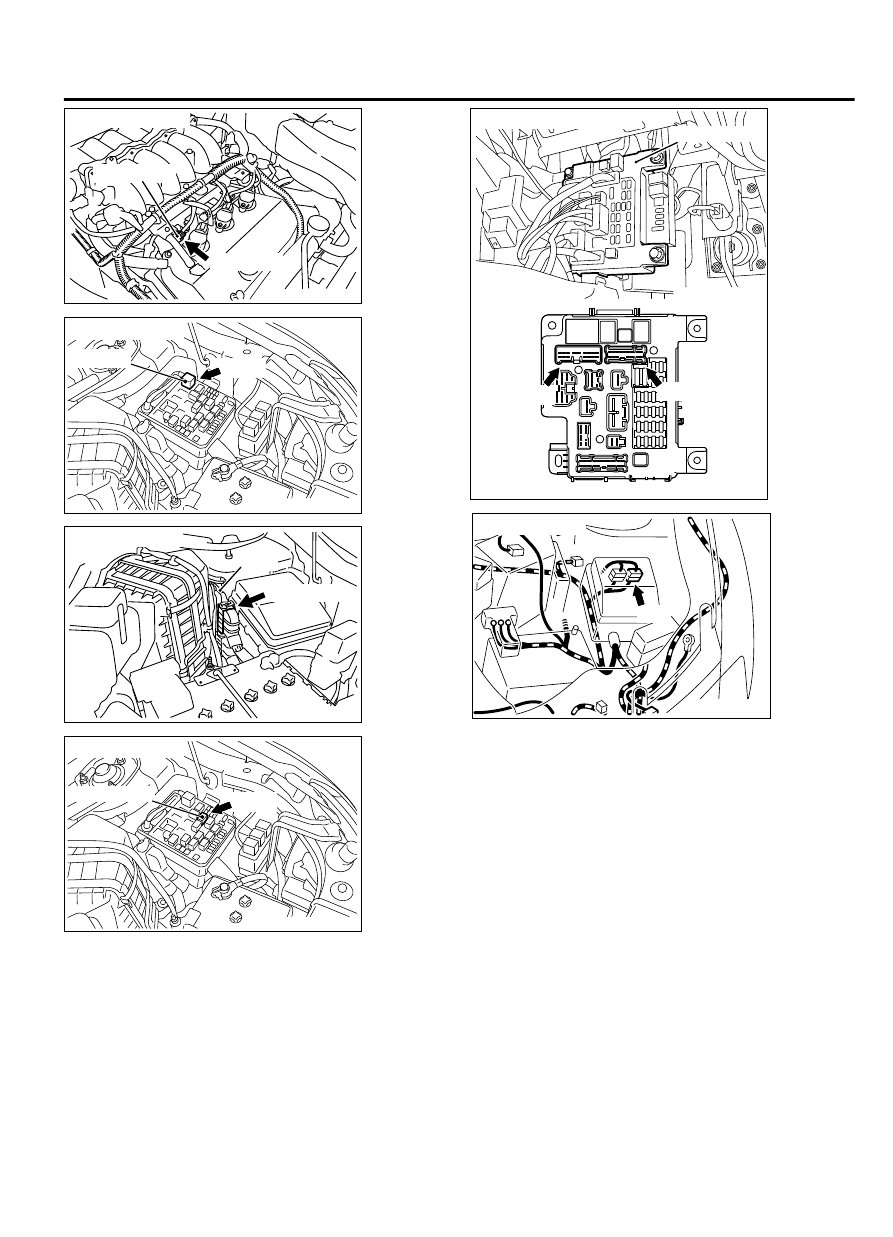

ZK603601

Connector: B-120

B-120 (GR)

AA00

Injector No.2

ZK603589

MFI relay

A-33X

Connector: A-33X

AA00

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00

ZK603607

A-24X

Connector: A-24X

AA00

Injector relay

ZK603608 AA00

ETACS-ECU

C-317

Connectors: C-304, C-317

C-304

ZK603650AA00

A-13

Connector: A-13



CIRCUIT OPERATION

｠

The injector power is supplied from the injector relay
(terminal No. 3).

｠

The ECM controls the injector by turning the power
transistor in the ECM "ON" and "OFF".

TECHNICAL DESCRIPTION

｠

The  amount  of  fuel  injected  by  the  injector  is
controlled by the amount of continuity time the coil
is grounded by the ECM.

DESCRIPTIONS OF MONITOR METHODS
The ECM detects open circuit and short malfunction.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-341

DIAGNOSTIC TROUBLE CODE PROCEDURES

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

DTC SET CONDITIONS <Circuit continuity - open circuit and shorted low>

Logic Flow Chart

Good

Malfunction

Vinj = 3V

Start

Continuous

failure for 2secs

End

No

No

No

Yes

Yes

No

ZK603735AA00

Monitoring

condition

Check Condition

｠

Engine is running.

Judgement Criterion

｠

The  supply  voltage  is  3  volts  or  less  without  the
injector driving.

13Ab-342

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
