Mitsubishi Outlander XL. Manual - part 252

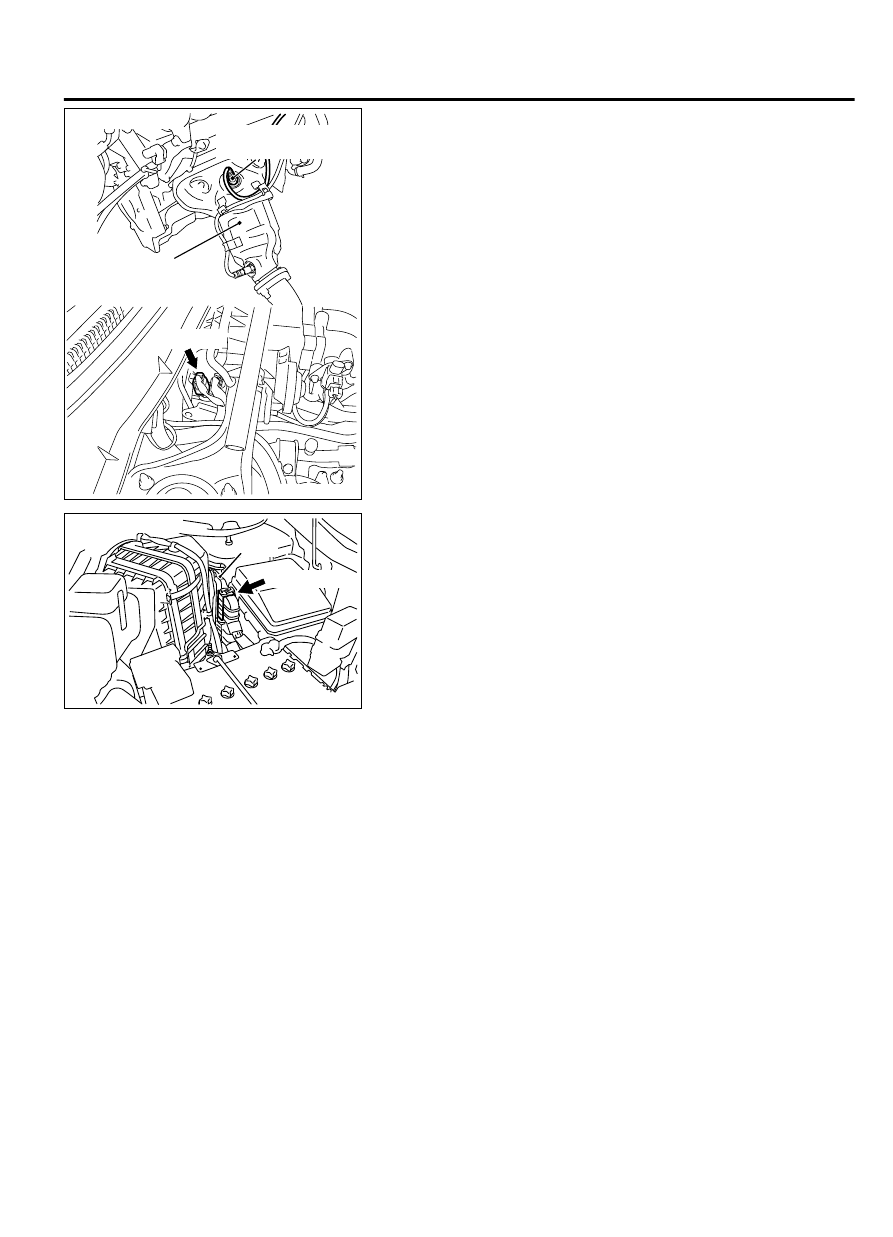

ZK603590AA00

Right bank heated
oxygen sensor (front)

Front exhaust
pipe RH

B-03 (GR)

Connector: B-03

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00

CIRCUIT OPERATION

｠

A voltage corresponding to the oxygen
concentration in the exhaust gas is sent to the ECM
(terminal No. 54) from the output terminal (terminal
No. 4) of the right bank heated oxygen sensor
(front).

｠

Terminal No. 2 of the right bank heated oxygen
sensor (front) is grounded with ECM (terminal No.
55).

｠

The ECM applies an off set voltage of 0.5 volt to
terminal No. 2 the right bank heated oxygen sensor
(front).

TECHNICAL DESCRIPTION

｠

The right bank heated oxygen sensor (front) detects
the concentration of oxygen in the exhaust gas; it

converts those data to voltage, and inputs the
resulting signals to the ECM.

｠

When the right bank heated oxygen sensor (front)
begins to deteriorate, the heated oxygen sensor
signal response becomes poor.

｠

The ECM the right bank heated oxygen sensor
(front) output voltage.

DESCRIPTIONS OF MONITOR METHODS
Right bank heated oxygen sensor (front) output
voltage is over specified range.

MONITOR EXECUTION

Continuous

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-203

DIAGNOSTIC TROUBLE CODE PROCEDURES

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Heated oxygen sensor heater (front) monitor

Sensor (The sensor below is determined to be
normal)

｠

Engine coolant temperature sensor

｠

Intake air temperature sensor

DTC SET CONDITIONS

Logic Flow Chart

Start

End

Yes

Malfunction

Good

Continuous

failure for 2secs

Output voltage

> 1.8V

Monitoring

conditions

ZK603713 AA00

Check Conditions

｠

2 seconds or more have passed since the engine
starting sequence was completed.

｠

Heated oxygen sensor off set voltage is between
0.4 and 0.6 volt.

Judgement Criterion

｠

Right bank heated oxygen sensor (front) output
voltage has continued to be 1.8 volts or higher for 2
seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

｠

Harness damage

｠

Connector damage.

｠

ECM failed.

13Ab-204

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

STEP 1. Check harness connector B-03 at right bank heated
oxygen sensor (front) and harness connector B-10 at ECM
for damage.

Q:Is the harness connector in good condition?

YES:

Go to Step 2.

NO:

Repair it. Refer to GROUP 00E, Harness Connector

Inspection P.00E-2. Then go to Step 4.

STEP 2. Check for short circuit to power supply between the
right bank oxygen sensor connector B-03 and the ECM
connector B-10.

Q:Is the harness wire in good condition?

YES:

Go to Step 3.

NO:

Repair it. Then go to Step 4.

STEP 3. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic Function - OBD-II Drive Cycle - Pattern 24 P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0132 set?

YES:

Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 4.

NO:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points How to Cope
with Intermittent Malfunctions P.00-15.

STEP 4. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic Function - OBD-II Drive Cycle - Pattern 24 P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0132 set?

YES:

Retry the troubleshooting.

NO:

The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-205

DIAGNOSTIC TROUBLE CODE PROCEDURES

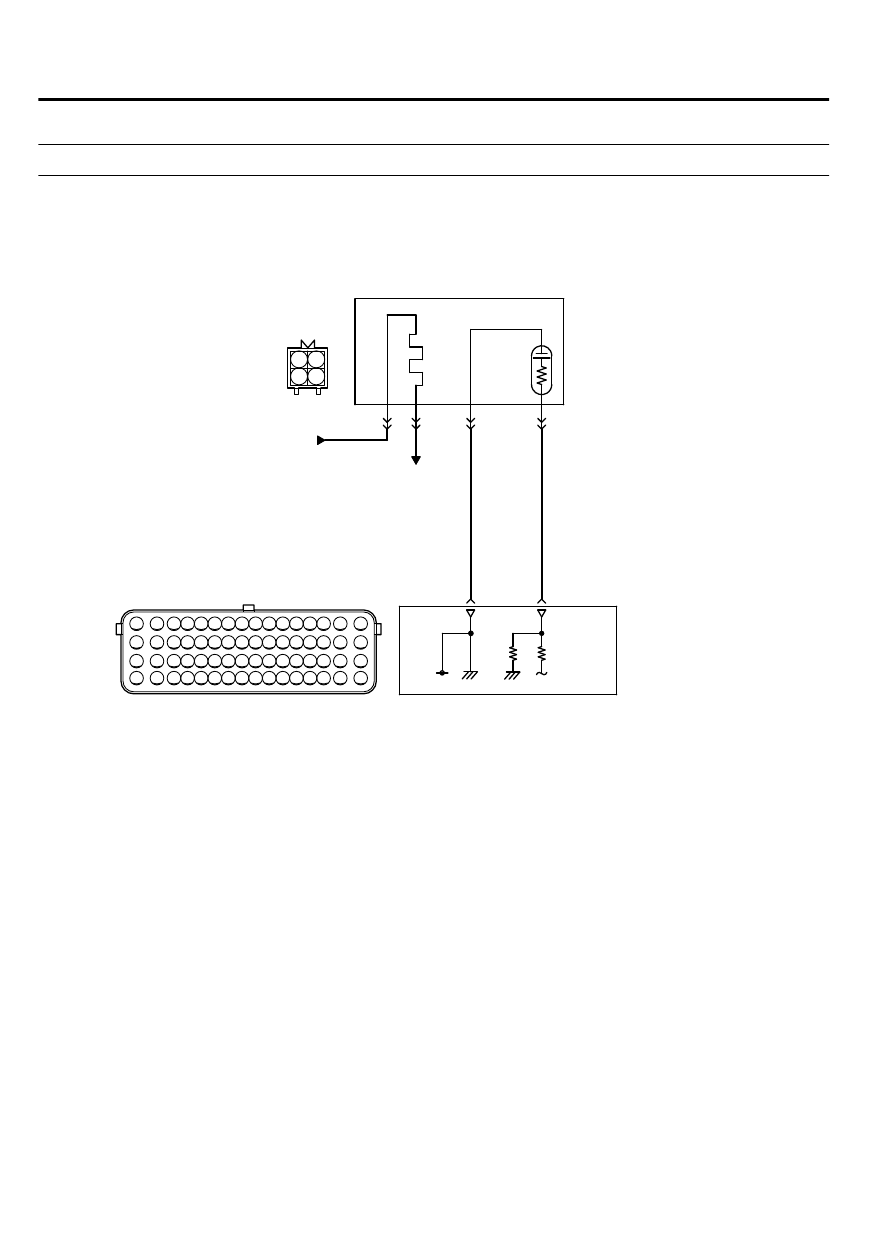

DTC P0133: Heated Oxygen Sensor Circuit Slow Response (bank 1, sensor 1)

M11310100188USA0000010000

ZK602838

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

0.5 V

AA00

ENGINE
CONTROL
MODULE

RIGHT BANK HEATED
OXYGEN SENSOR (FRONT)

FROM MFI RELAY

TO ECM

BLA

CK-WHITE

VIOLET

RIGHT BANK HEATED OXYGEN SENSOR (FRONT) CIRCUIT

B-10

B-03

MU802665

13Ab-206

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
