Mitsubishi Outlander XL. Manual - part 250







DIAGNOSIS

STEP 1. Check the cooling system.
Refer to GROUP14, Engine Cooling Diagnosis P.14-3.

Q:Is the cooling system normal?

YES:

 Go to Step 2.

NO:

 Repair it. Then Go to Step 2.

STEP 2. Test the OBD-II drive cycle.

(1)

Carry  out  test  drive  with  the  drive  cycle  pattern.  Refer  to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  10  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0128 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points How to Cope
with Intermittent Malfunctions P.00-15.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-195

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0131: Heated Oxygen Sensor Circuit Low Voltage (bank 1, sensor 1)

M11310100186USA0000010000

ZK602838

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

2

1

4

3

0.5 V

AA00

ENGINE
CONTROL
MODULE

RIGHT BANK HEATED
OXYGEN SENSOR (FRONT)

FROM MFI RELAY

TO ECM

1

2

3

4

55

BLA

CK-WHITE

VIOLET

54

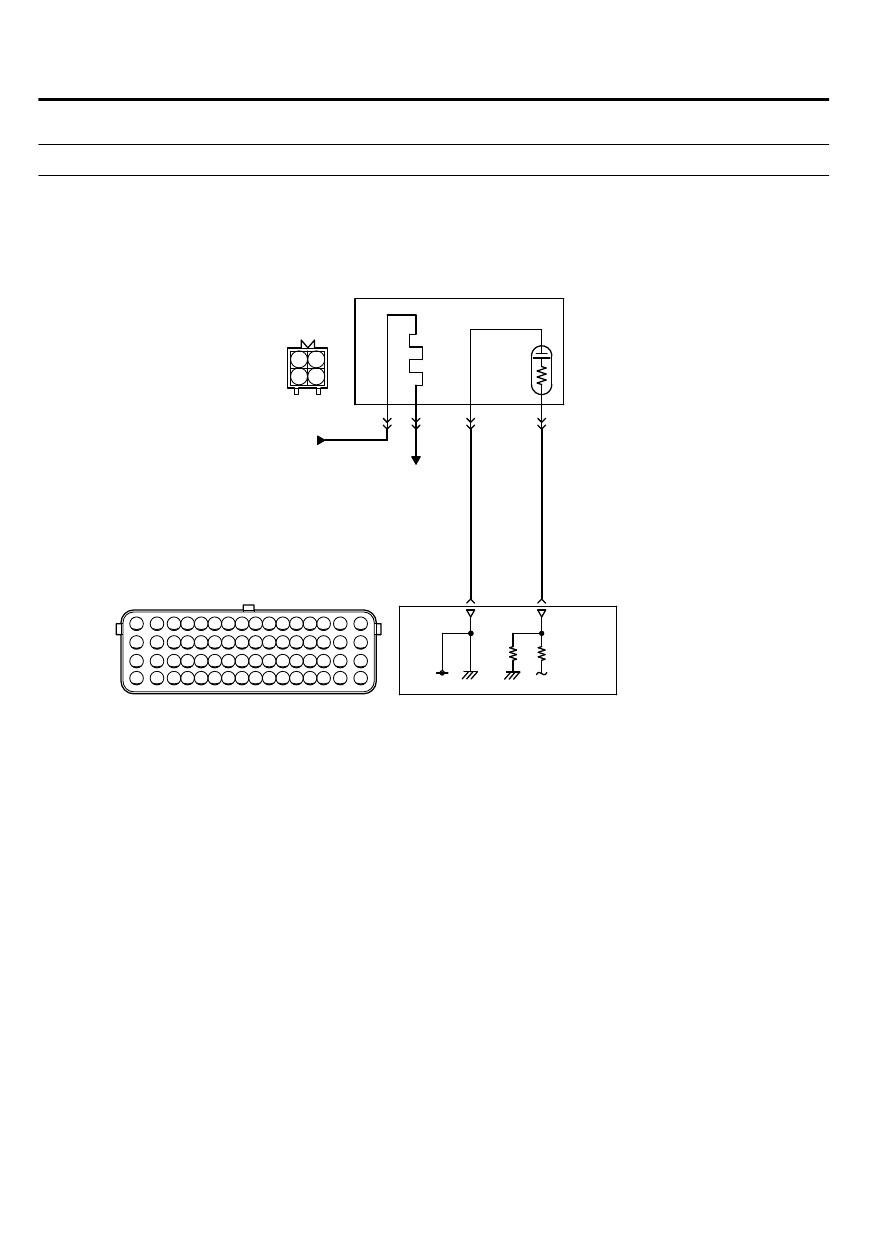

RIGHT BANK HEATED OXYGEN SENSOR (FRONT) CIRCUIT

B-10

B-03

MU802665

13Ab-196

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603590AA00

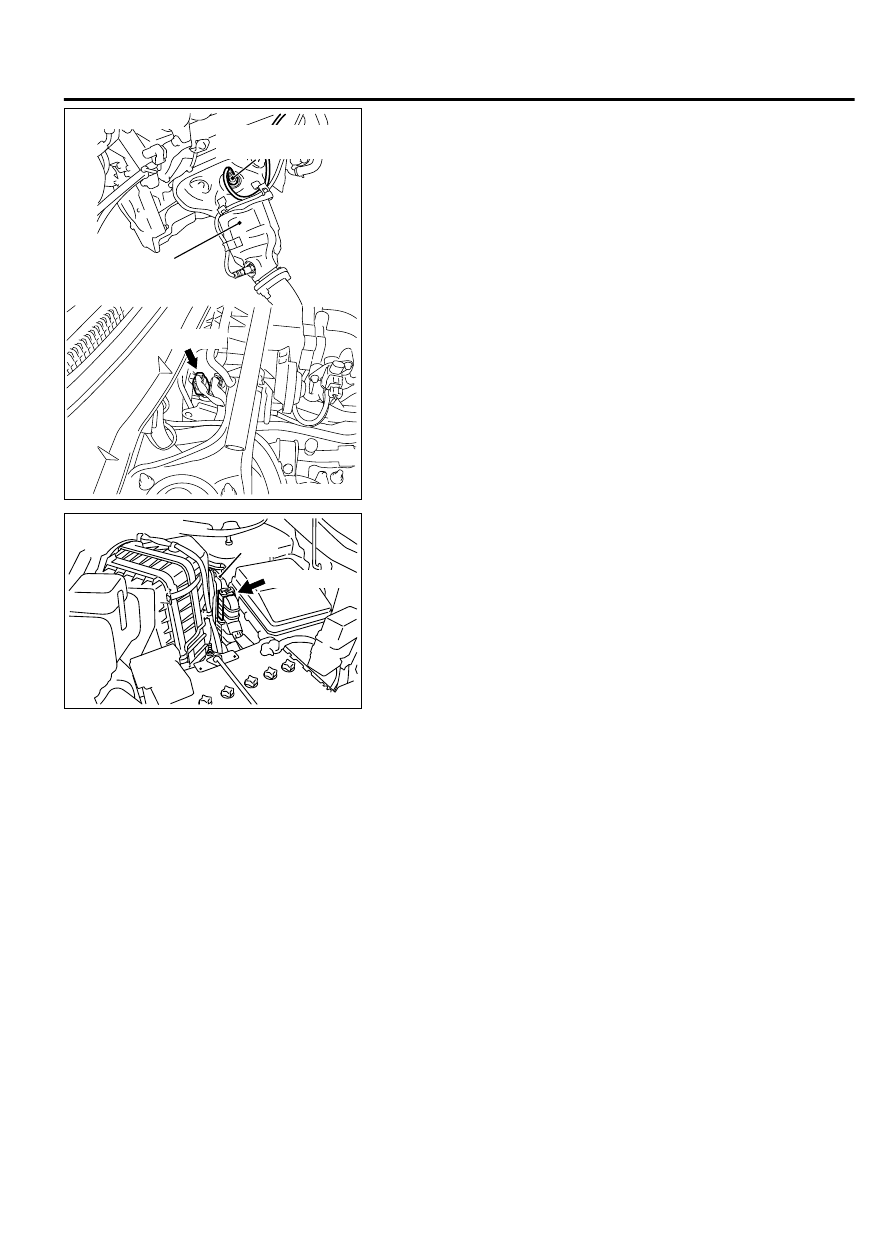

Right bank heated
oxygen sensor (front)

Front exhaust
pipe RH

B-03 (GR)

Connector: B-03

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00




CIRCUIT OPERATION

A  voltage  corresponding  to  the  oxygen
concentration in the exhaust gas is sent to the ECM
(terminal No. 54) from the output terminal (terminal
No.  4)  of  the  right  bank  heated  oxygen  sensor
(front).

Terminal  No.  2  of  the  right  bank  heated  oxygen
sensor (front) is grounded with ECM (terminal No.
55).

The  ECM  applies  an  offset  voltage  of  0.5  volt  to
terminal  No.  2  of  the  right  bank  heated  oxygen
sensor (front).

TECHNICAL DESCRIPTION

The right bank heated oxygen sensor (front) detects
the concentration of oxygen in the exhaust gas; it

converts  those  data  to  voltage,  and  inputs  the
resulting signals to the ECM.

When the right bank heated oxygen sensor (front)
begins  to  deteriorate,  the  heated  oxygen  sensor
signal response becomes poor.

The ECM also checks for an open circuit in the right
bank heated oxygen sensor (front) output voltage.

DESCRIPTIONS OF MONITOR METHODS
Right  bank  heated  oxygen  sensor  (front)  output
voltage is under specified range.

MONITOR EXECUTION

Continuous

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-197

DIAGNOSTIC TROUBLE CODE PROCEDURES

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Heated oxygen sensor heater (front) monitor

Sensor (The sensor below is determined to be
normal)

Engine coolant temperature sensor

Intake air temperature sensor

DTC SET CONDITIONS

Logic Flow Chart

End

Malfunction

Yes

Yes

Yes

No

No

No

2secs have passed?

Output voltage

< 0.2V

Monitoring

conditions

Good

Start

ZK603708 AA00

Check Conditions

Heated oxygen sensor offset voltage is between 0.4
and 0.6 volt.

Battery  positive  voltage  is  between  11  and  16.5
volts.

Typically 60 seconds have passed since the engine
starting sequence was completed.

Judgement Criterion

Right  bank  heated  oxygen  sensor  (front)  output
voltage is lower than 0.2 volt.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 23 P.13Ab-8.

13Ab-198

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
