STEP 5. Check for open circuit to ground or harness
damage between the throttle position sensor connector
B-08 and ECM connector B-10.

(1)

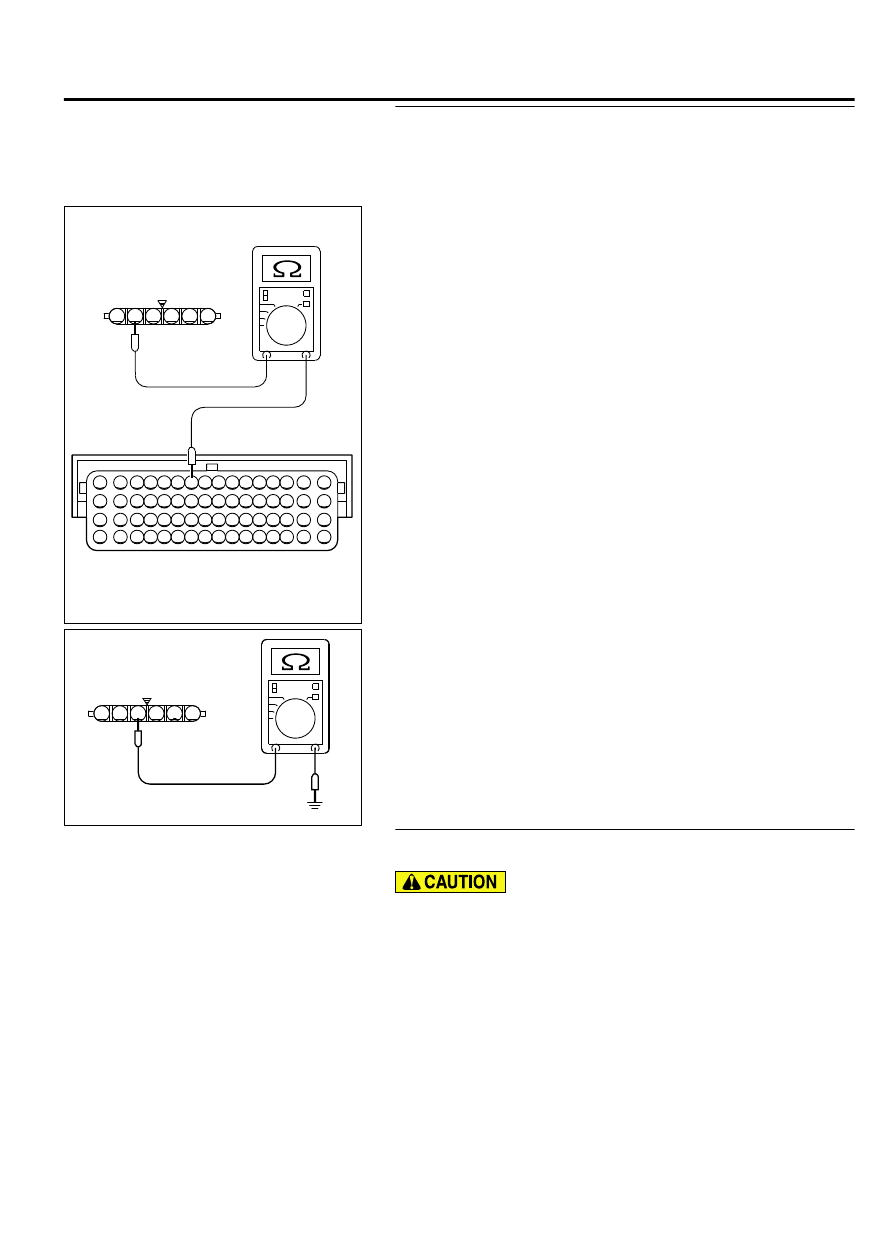

Disconnect the throttle position sensor connector B-08 and
the ECM connector B-10.

ZK603221

1

6

5

4 3

2

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AA00

B-10 harness
connector:
component side

B-08 harness
connector:
component side

(2)

Measure the resistance between the throttle position sensor
connector B-08 (terminal No. 4) and the ECM connector B-10
(terminal No. 10).

｠

Should be less than 2 ohms.

ZK603222

1

6

5

4 3

2

B-08 harness connector:
component side

AA00

(3)

Check for the continuity between the throttle position sensor
connector B-08 (terminal No. 4) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Go to Step 6.

NO:

 Repair it. Then go to Step 8.

STEP 6. Using scan tool MB991958, check data list item 13:
Throttle Position Sensor (main).

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Detach the intake air hose at the throttle body.

(4)

Disconnect the connector of the throttle position sensor.

(5)

Use test harness special tool (MB991658) to connect only
terminals No. 3, No. 4, No. 5, and No. 6.

(6)

Set scan tool MB991958 to the data reading mode for item
13, Throttle Position Sensor (main).

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-179

DIAGNOSTIC TROUBLE CODE PROCEDURES

｠

Output voltage should be between 0.3 and 0.7 volt when
the throttle valve is fully closed with your finger.

｠

Output  voltage  should  be  4.0  volts  or  more  when  the
throttle valve is fully open with your finger.

(7)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the sensor operating properly?

YES:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

 Go to Step 7.

STEP 7. Replace the throttle body assembly.

(1)

Replace the throttle body assembly.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0122 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 8.

NO:

 The inspection is complete.

STEP 8. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0122 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

13Ab-180

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0123: Throttle Position Sensor (main) Circuit High Input

M11310100183USA0000010000

ZK602837

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

6

1 2 3 4 5

5 V

12

5

10

13

4

3

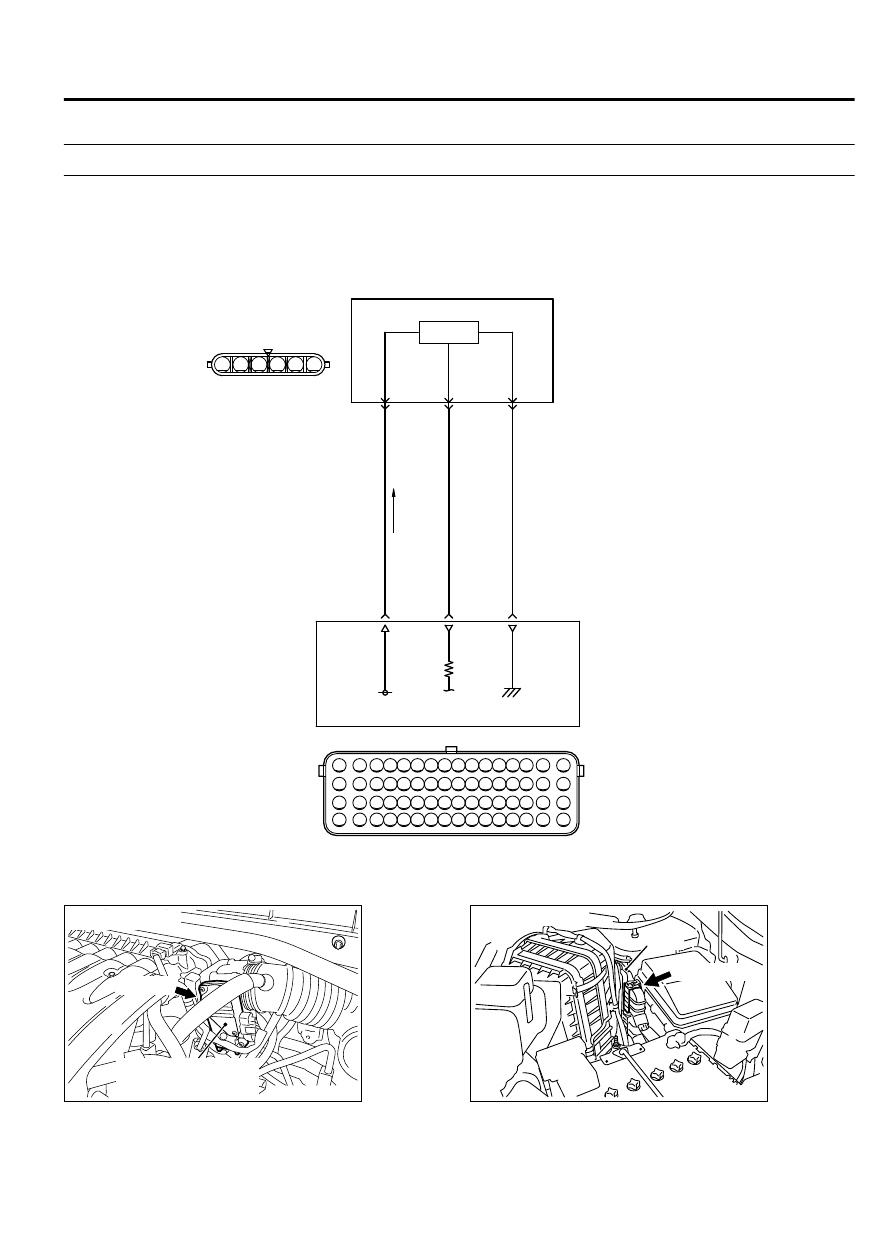

THROTTLE POSITION SENSOR (MAIN) CIRCUIT

THROTTLE POSITION
SENSOR (MAIN)

B-10

HALL IC

AA00

YELLO

W

-GRA

Y

YELLO

W

-RED

GRA

Y

-RED

ENGINE
CONTROL
MODULE

B-08

(MU805200)

ZK603599 AA00

Throttle body assembly
(incorporating throttle
position sensor)

B-08 (B)

Connector: B-08

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-181

DIAGNOSTIC TROUBLE CODE PROCEDURES



CIRCUIT OPERATION

｠

A  5-volt  power  supply  is  applied  on  the  throttle
position sensor (main) power terminal (terminal No.
5) from the ECM (terminal No. 12).
The ground terminal (terminal No. 3) is grounded
with ECM (terminal No. 13).

TECHNICAL DESCRIPTION

｠

The throttle position sensor (main) outputs voltage
which  corresponds  to  the  throttle  valve  opening
angle.

｠

The  ECM  checks  whether  the  voltage  is  within  a
specified range.

DESCRIPTIONS OF MONITOR METHODS

Throttle position sensor (main) output voltage is out
of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

13Ab-182

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>
