Mitsubishi Outlander XL. Manual - part 247

DTC SET CONDITIONS

Logic Flow Chart

Start

Yes

Continuous

failure for 0.3sec

Malfunction

End

Good

Output voltage <= 0.2V

(main), 0.2V (sub)

Output voltage >= 4.8V

ZK603701 AA00

Check Condition

｠

Ignition switch is "ON" position.

Judgement Criterion

｠

Throttle position sensor (main) output voltage
should be 4.8 volts or more for 0.5 second.

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Throttle position sensor failed.

｠

Harness damage

｠

Connector damage

｠

ECM failed.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-183

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

｠

MB991658: Test Harness

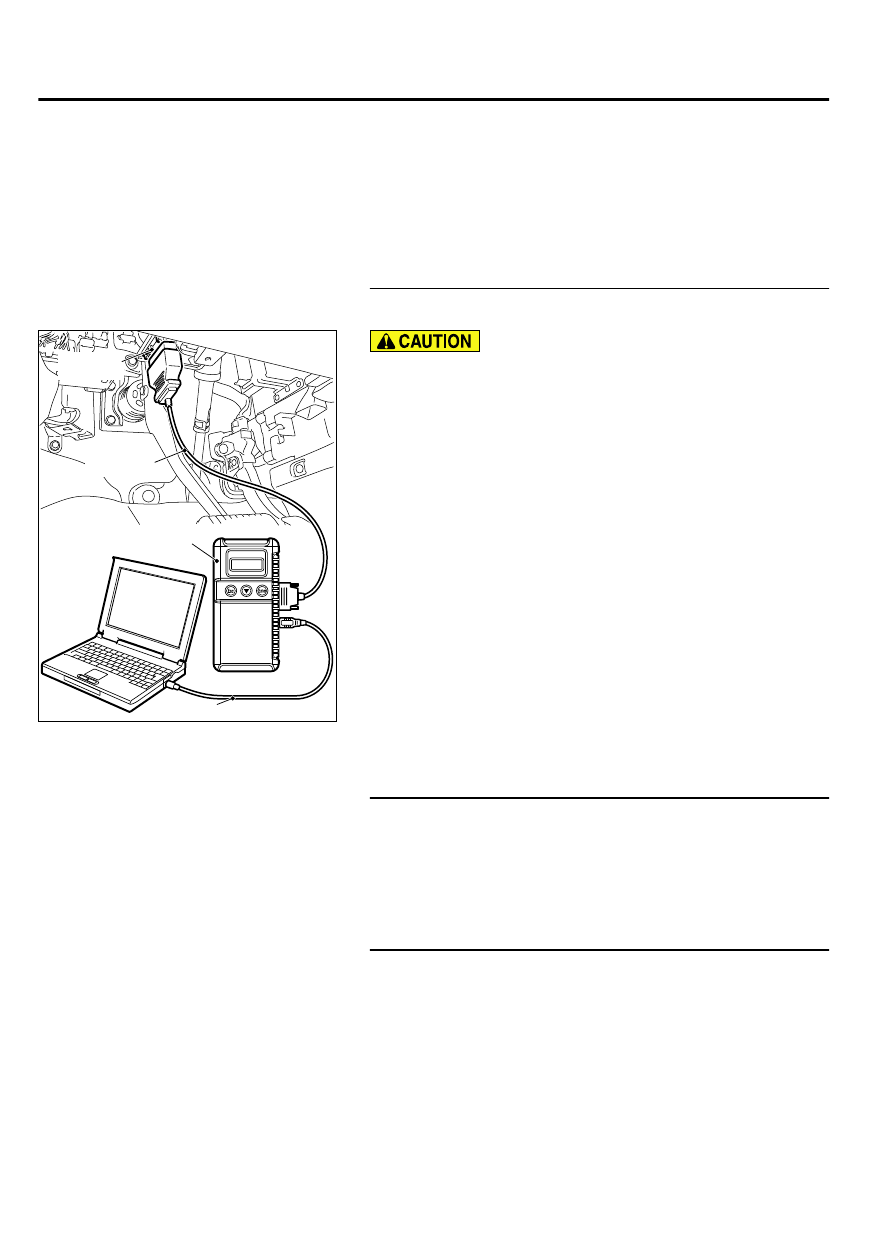

STEP 1. Using scan tool MB991958, check data list item 13:
Throttle Position Sensor (main).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Detach the intake air hose at the throttle body.

(4)

Disconnect the connector of the throttle position sensor.

(5)

Use test harness special tool (MB991658) to connect only
terminals No. 3, No. 4, No. 5, and No. 6.

(6)

Set scan tool MB991958 to the data reading mode for item
13, Throttle Position Sensor (main).

｠

Output voltage should be between 0.3 and 0.7 volt when
the throttle valve is fully closed with your finger.

｠

Output voltage should be between 4.0 volts or more when
the throttle valve is fully open with your finger.

(7)

Turn the ignition switch to the "LOCK"(OFF) position.

Q:Is the sensor operating properly?

YES:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

Go to Step 2.

STEP 2. Check harness connector B-08 at the throttle
position sensor and harness connector B-10 at the ECM for
damage.

Q:Is the harness connector in good condition?

YES:

Go to Step 3.

NO:

Repair it. Refer to GROUP 00E, Harness Connector

Inspection P.00E-2. Then go to Step 3.

STEP 3. Check for open circuit and harness damage
between the throttle position sensor connector B-08 and
ECM connector B-10.

(1)

Disconnect the throttle position sensor connector B-08 and
the ECM connector B-10.

13Ab-184

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603223

4 3

16 15 14 13 12 11 10 9 8 7 6 5 4 3

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

B-08 harness connector:
component side

AA00

B-10 harness connector:
component side

(2)

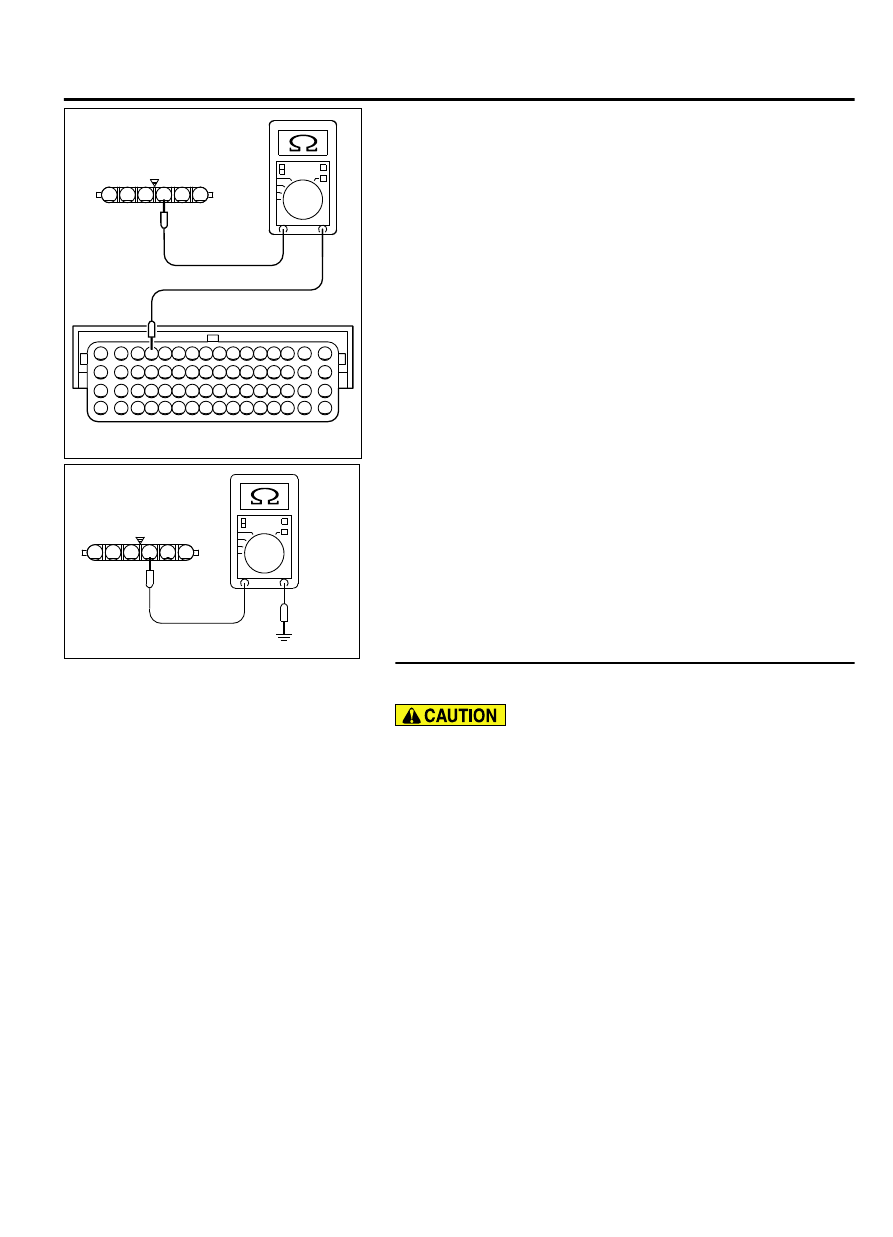

Measure the resistance between the throttle position sensor
connector B-08 (terminal No. 3) and the ECM connector B-10
(terminal No. 13).

｠

Should be less than 2 ohms.

ZK603224

4 3

AA00

B-08 harness
connector:
component side

(3)

Check for the continuity between the throttle position sensor
connector B-08 (terminal No. 3) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

Go to Step 4.

NO:

Repair it. Then go to Step 6.

STEP 4. Using scan tool MB991958, check data list item 13:
Throttle Position Sensor (main).

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Detach the intake air hose at the throttle body.

(4)

Disconnect the connector of the throttle position sensor.

(5)

Use test harness special tool (MB991658) to connect only
terminals No. 3, No. 4, No. 5, and No. 6.

(6)

Set scan tool MB991958 to the data reading mode for item
13, Throttle Position Sensor (main).

｠

Output voltage should be between 0.3 and 0.7 volt when
the throttle valve is fully closed with your finger.

｠

Output voltage should be 4.0 volts or more when the
throttle valve is fully open with your finger.

(7)

Turn the ignition switch to the "LOCK"(OFF) position.

Q:Is the sensor operating properly?

YES:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-185

DIAGNOSTIC TROUBLE CODE PROCEDURES

Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

Go to Step 5.

STEP 5. Replace the throttle body assembly.

(1)

Replace the throttle body assembly.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0123 set?

YES:

Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 6.

NO:

The procedure is complete.

STEP 6. Using scan tool MB991958, read the diagnostic
trouble code (DTC)

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0123 set?

YES:

Retry the troubleshooting.

NO:

The inspection is complete.
