REMOVAL SERVICE POINT

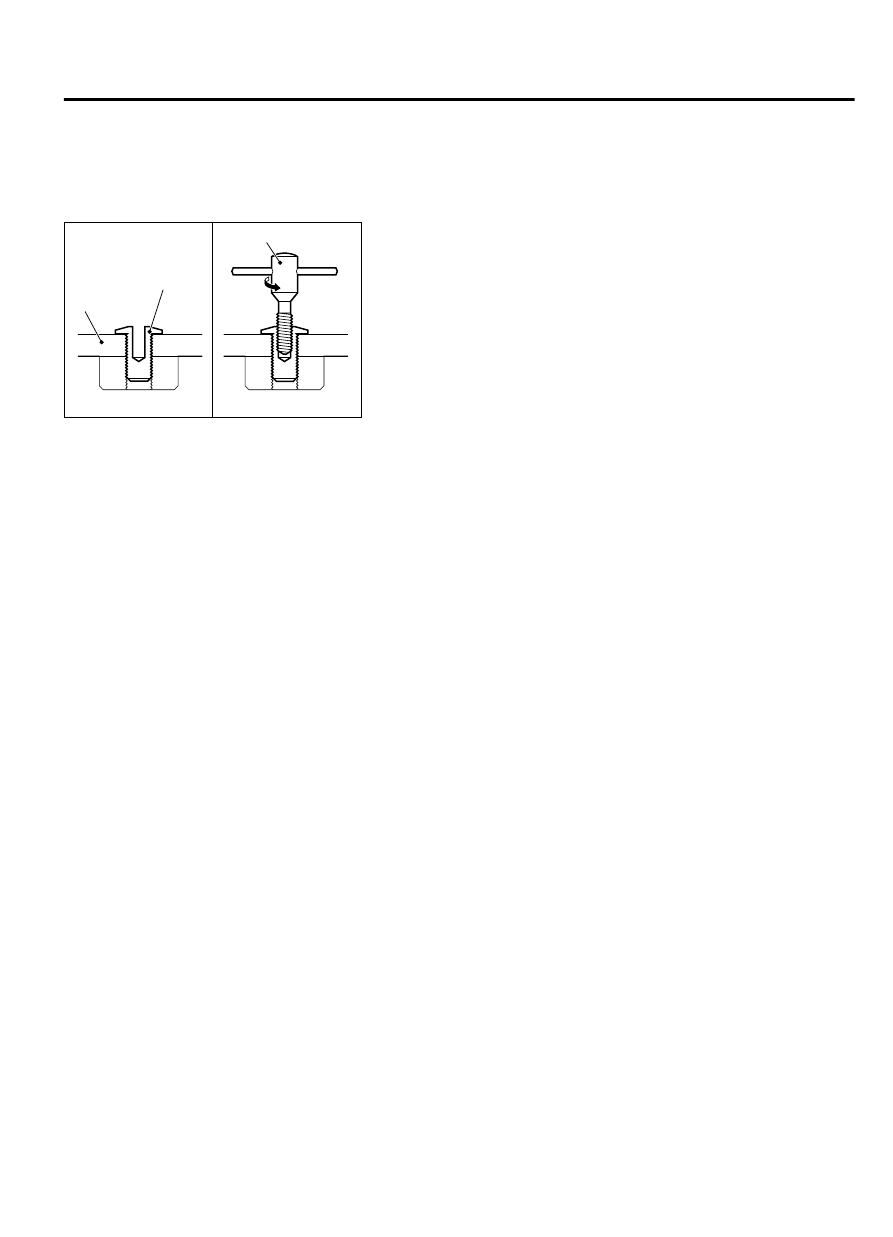

<<A>> BREAK-OFF BOLTS REMOVAL <VEHICLES FOR
CANADA>

ZC602616

Reverse screw tap

ECM

Break off bolt

AA00

1.

Drill in the break-off bolt a hole deep enough for the tap to
stand.

2.

Remove the break-off bolt with a left-hand tap.

INSTALLATION SERVICE POINTS

>>A<< BREAK-OFF BOLTS INSTALLATION <VEHICLES
FOR CANADA>
Tighten until the head of break-off bolt is broken off.



>>B<< INITIALIZATION PROCEDURE
Turn the ignition switch on then off, and keep it off for at least 10
seconds.

MULTIPORT FUEL INJECTION (MFI)

13Aa-39

ENGINE CONTROL MODULE (ECM)

MEMO

13Aa-40

MULTIPORT FUEL INJECTION (MFI)

GROUP 13Ab

MULTIPORT INJECTION SYSTEM

(MFI) <DIAGNOSIS>

CONTENTS

TROUBLESHOOTING STRATEGY......

13Ab-8

DIAGNOSTIC FUNCTION...........

13Ab-8

FAIL-SAFE FUNCTION REFERENCE TABLE
.............................

13Ab-42

DIAGNOSTIC TROUBLE CODE CHART
............................

.13Ab-44

SYMPTOM CHART................

13Ab-49

DIAGNOSTIC TROUBLE CODE PROCEDURES
.............................

13Ab-52

DTC P0031: Heated Oxygen Sensor
Heater Control Circuit Low (bank 1,
sensor 1)....................

13Ab-52

DTC P0032: Heated Oxygen Sensor
Heater Control Circuit High (bank 1,
sensor 1)....................

13Ab-59

DTC P0037: Heated Oxygen Sensor
Heater Control Circuit Low (bank 1,
sensor 2)....................

13Ab-63

DTC P0038: Heated Oxygen Sensor
Heater Control Circuit High (bank 1,
sensor 2)....................

13Ab-69

DTC P0043: Heated Oxygen Sensor
Heater Control Circuit Low (bank 1,
sensor 3) <California>.......

13Ab-73

DTC P0044: Heated Oxygen Sensor
Heater Control Circuit High (bank 1,
sensor 3) <California>.......

13Ab-80

DTC P0051: Heated Oxygen Sensor
Heater Control Circuit Low (bank 2,
sensor 1)....................

13Ab-84

DTC P0052: Heated Oxygen Sensor
Heater Control Circuit High (bank 2,
sensor 1)....................

13Ab-90

DTC P0057: Heated Oxygen Sensor
Heater Control Circuit Low (bank 2,
sensor 2)....................

13Ab-94

DTC P0058: Heated Oxygen Sensor
Heater Control Circuit High (bank 2,
sensor 2)...................

13Ab-100

DTC P0069: Abnormal Correlation
Between Manifold Absolute Pressure
Sensor And Barometric Pressure
Sensor......................

13Ab-104

DTC P0101: Mass Airflow Circuit
Range/Performance Problem. . .

13Ab-108

DTC P0102: Mass Airflow Circuit Low
Input.......................

13Ab-115

DTC P0103: Mass Airflow Circuit High
Input.......................

13Ab-121

13Ab-1

Continued on next page

DTC P0106: Manifold Absolute Pressure
Circuit Range/Performance Problem
............................

13Ab-126

DTC P0107: Manifold Absolute Pressure
Circuit Low Input...........

13Ab-132

DTC P0108: Manifold Absolute Pressure
Circuit High Input..........

13Ab-138

DTC P0111: Intake Air Temperature
Circuit Range/Performance Problem
............................

13Ab-143

DTC P0112: Intake Air Temperature
Circuit Low Input...........

13Ab-148

DTC P0113: Intake Air Temperature
Circuit High Input..........

13Ab-152

DTC P0116: Engine Coolant Temperature
Circuit Range/Performance Problem
...........................

.13Ab-158

DTC P0117: Engine Coolant Temperature
Circuit Low Input..........

.13Ab-163

DTC P0118: Engine Coolant Temperature
Circuit High Input..........

13Ab-168

DTC P0122: Throttle Position Sensor
(Main) Circuit Low Input. . . .

13Ab-174

DTC P0123: Throttle Position Sensor
(main) Circuit High Input. . .

13Ab-181

DTC P0125: Insufficient Coolant
Temperature for Closed Loop Fuel
Control.....................

13Ab-187

DTC P0128: Coolant Thermostat
(Coolant Temperature Below Thermostat
Regulating Temperature). . . . .

13Ab-193

DTC P0131: Heated Oxygen Sensor
Circuit Low Voltage (bank 1, sensor 1)
............................

13Ab-196

DTC P0132: Heated Oxygen Sensor
Circuit High Voltage (bank 1, sensor
1)..........................

13Ab-202

DTC P0133: Heated Oxygen Sensor
Circuit Slow Response (bank 1, sensor
1)..........................

13Ab-206

DTC P0134: Heated Oxygen Sensor
Circuit No Activity Detected (bank 1,
sensor 1)...................

13Ab-210

DTC P0137: Heated Oxygen Sensor
Circuit Low Voltage (bank 1, sensor 2)
............................

13Ab-217

DTC P0138: Heated Oxygen Sensor
Circuit High Voltage (bank 1, sensor
2)..........................

13Ab-222

DTC P0139: Heated Oxygen Sensor
Circuit Slow Response (bank 1, sensor
2)..........................

13Ab-226

DTC P0140: Heated Oxygen Sensor
Circuit No Activity Detected (bank 1,
sensor 2)...................

13Ab-230

DTC P0143: Heated Oxygen Sensor
Circuit Low Voltage (bank 1, sensor 3)
<California>................

13Ab-235

DTC P0144: Heated Oxygen Sensor
Circuit High Voltage (bank 1, sensor
3)..........................

13Ab-240

DTC P0145: Heated Oxygen Sensor
Circuit Slow Response (bank 1, sensor
3)..........................

13Ab-244

DTC P0146: Heated Oxygen Sensor
Circuit Slow Response (bank 1, sensor
3)..........................

13Ab-248

DTC P0151: Heated Oxygen Sensor
Circuit Low Voltage (bank 2, sensor 1)
............................

13Ab-253

DTC P0152: Heated Oxygen Sensor
Circuit High Voltage (bank 2, sensor
1)..........................

13Ab-259

DTC P0153: Heated Oxygen Sensor
Circuit Slow Response (bank 2, sensor
1)..........................

13Ab-263

DTC P0154: Heated Oxygen Sensor
Circuit No Activity Detected (bank 2,
sensor 1)...................

13Ab-268

DTC P0157: Heated Oxygen Sensor
Circuit Low Voltage (bank 2, sensor 2)
............................

13Ab-275
