THROTTLE ACTUATOR CONTROL MOTOR

CHECK

M11301000510USA0000010000

<Operation Inspection>

1.

Disconnect the air intake hose from the throttle body.

2.

Set the ignition switch to the "ON" position.

3.

Operate  the  accelerator  pedal  and  confirm  that  the  throttle
valve is opening and closing accordingly.



<Checking the Terminal Resistance>

6

1

2

3 4

5

ZK604030

Throttle actuator control
motor connector

AA00

1.

Disconnect the throttle position sensor connector.

2.

Measure the resistance between terminal No. 1 and No. 2.

Standard value: 0.3 - 80 Ω [at 20°C (68°F)]

3.

If resistance is outside the standard value, replace the throttle
body assembly.

ENGINE OIL CONTROL VALVE CHECK

M11301000532USA0000010000

Checking the Operation Sound

1.

Disconnect the engine oil control valve connector.

ZK600448 AA00

Engine oil
control
valve

MB991658

To prevent the coil from burning, keep the duration of the
voltage application as short as possible.

2.

Check that the operation sound of the engine oil control valve
can be heard when the positive battery voltage is supplied to
the engine oil control valve. (Use the jumper wires to connect
terminal No. 2 of the engine oil control valve connector to the
positive  battery  terminal  and  terminal  No.  1  to  the  negative
battery terminal.)

3.

If the operation sound cannot be heard, replace the engine oil
control valve.

Checking the Coil Resistance

1.

Disconnect the engine oil control valve connector.

MULTIPORT FUEL INJECTION (MFI)

13Aa-31

ON-VEHICLE SERVICE

ZK600449

1 2

AA00

Harness connector:
component side

2.

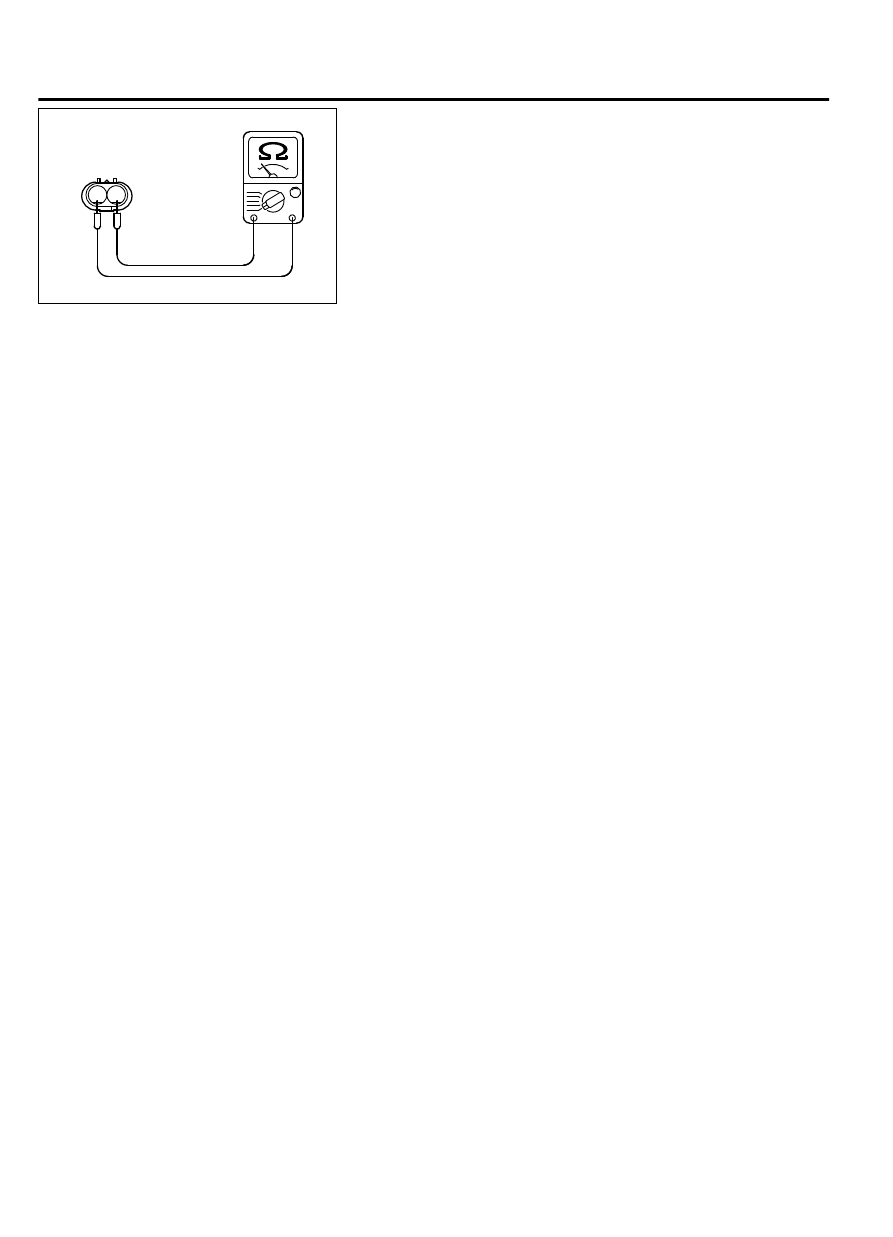

Measure resistance between terminal No. 1 and terminal No.
2 of the connector at the engine oil control valve side.

Standard value: 6.9 - 7.9 Ω [at 20°C (68°F)]

3.

If  resistance  is  not  within  the  standard  value,  replace  the
engine oil control valve.

EVAPORATIVE EMISSION PURGE SOLENOID

CHECK

M11301000056USA0000010000

Refer  to  GROUP  17,  Emission  Control  System  -  Evaporative
Emission  System  -  Evaporative  Emission  Purge  Solenoid
Check P.17c-12.

EVAPORATIVE EMISSION VENTILATION

SOLENOID CHECK

M11301000904USA0000010000

Refer  to  GROUP  17,  Emission  Control  System  -  Evaporative
Emission  Canister  and  Fuel  Tank  Pressure  Relief  Valve  -
Evaporative Emission Canister and Fuel Tank Pressure Relief
Valve Inspection P.17c-19.

EGR VALVE CHECK

M11301000515USA0000010000

Refer to GROUP 17, Emission Control System - Exhaust Gas
Recirculation (EGR) System - EGR Valve Check P.17c-16.

INTAKE MANIFOLD TUNING SOLENOID CHECK

M11301000905USA0000010000

Refer to GROUP 15, Intake and Exhaust System - On-vehicle
Service - Intake Manifold Tuning Solenoid Check P.15-2.

INJECTOR

REMOVAL AND INSTALLATION

M11301000071USA0000010000

Pre-removal Operation

｠

Fuel Discharge Prevention (Refer to P.13Aa-20).

｠

Intake Manifold Plenum Removal (Refer to GROUP 15, Intake

Manifold Plenum P.15-7).

Post-installation Operation

｠

Intake  Manifold  Plenum  Installation  (Refer  to  GROUP  15,

Intake Manifold Plenum P.15-7).

｠

Fuel Leakage Inspection.

13Aa-32

MULTIPORT FUEL INJECTION (MFI)

ON-VEHICLE SERVICE

ZC600513

1

2

3

4

6

8

9

10

11

5

14

15

17

16

19

20

21

22

12

13

11 ± 1 N·m
102 ± 13 in-lb

11 ± 1 N·m
102 ± 13 in-lb

N

N

N

N

7

18

AA00

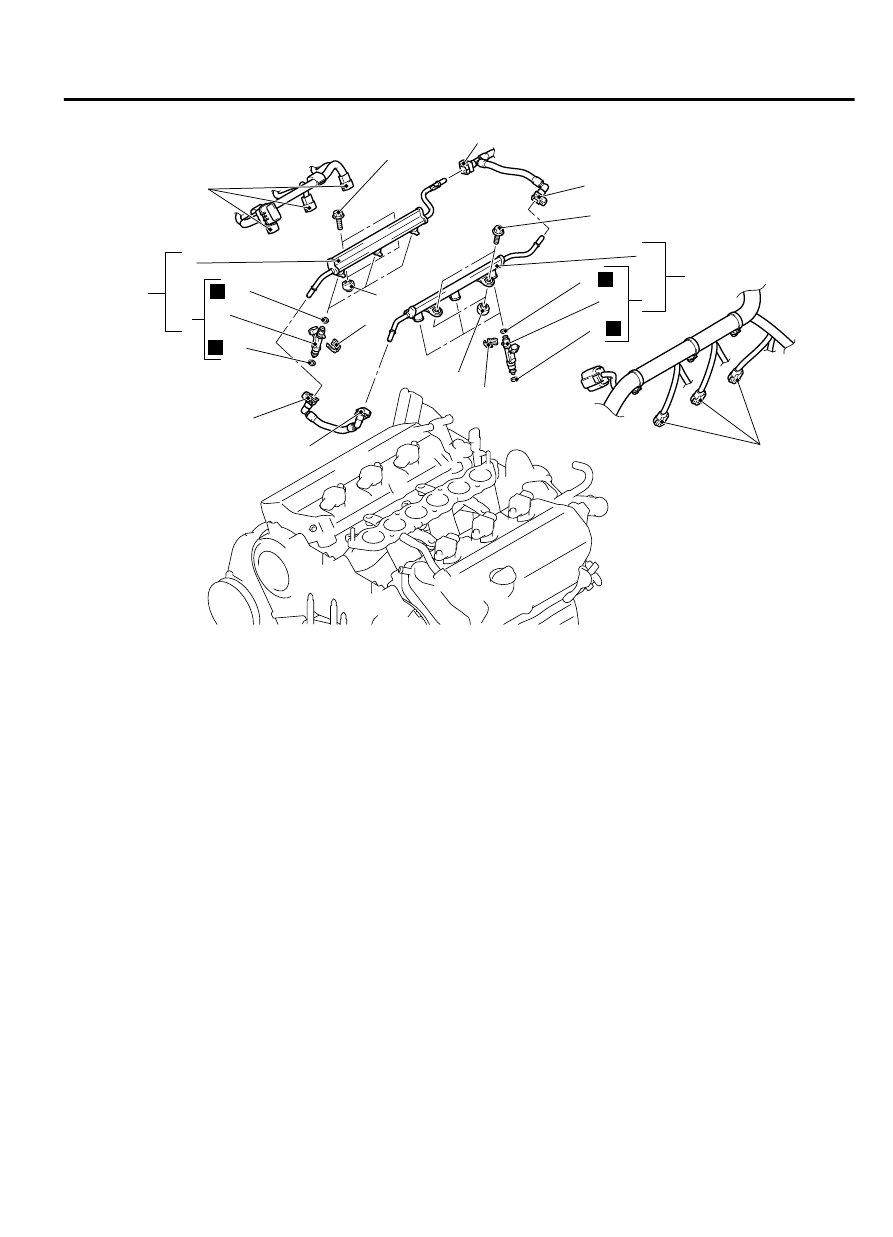

Removal steps

1.

Fuel injector connector

<<A>>

>>E<<

2.

Fuel high pressure hose connection

<<A>>

>>E<<

3.

Fuel high pressure hose connection

<<B>>

4.

Fuel rail and injector assembly

5.

Insulators

>>D<<

6.

Fuel injector support

>>C<<

7.

Fuel injector assembly

>>B<<

8.

O-ring

>>A<<

9.

O-ring

10. Fuel injectors
11. Fuel rail left
12. Fuel injector connector

Removal steps

<<A>>

>>E<<

13. Fuel high pressure hose connection

<<A>>

>>E<<

14. Fuel high pressure hose connection

<<B>>

15. Fuel rail and injector assembly
16. Insulators

>>D<<

17. Fuel injector support

>>C<<

18. Fuel injector assembly

>>B<<

19. O-ring

>>A<<

20. O-ring
21. Fuel injectors
22. Fuel rail right



Required Special Tool:

｠

MB992106: O-ring installer

MULTIPORT FUEL INJECTION (MFI)

13Aa-33

INJECTOR

REMOVAL SERVICE POINTS

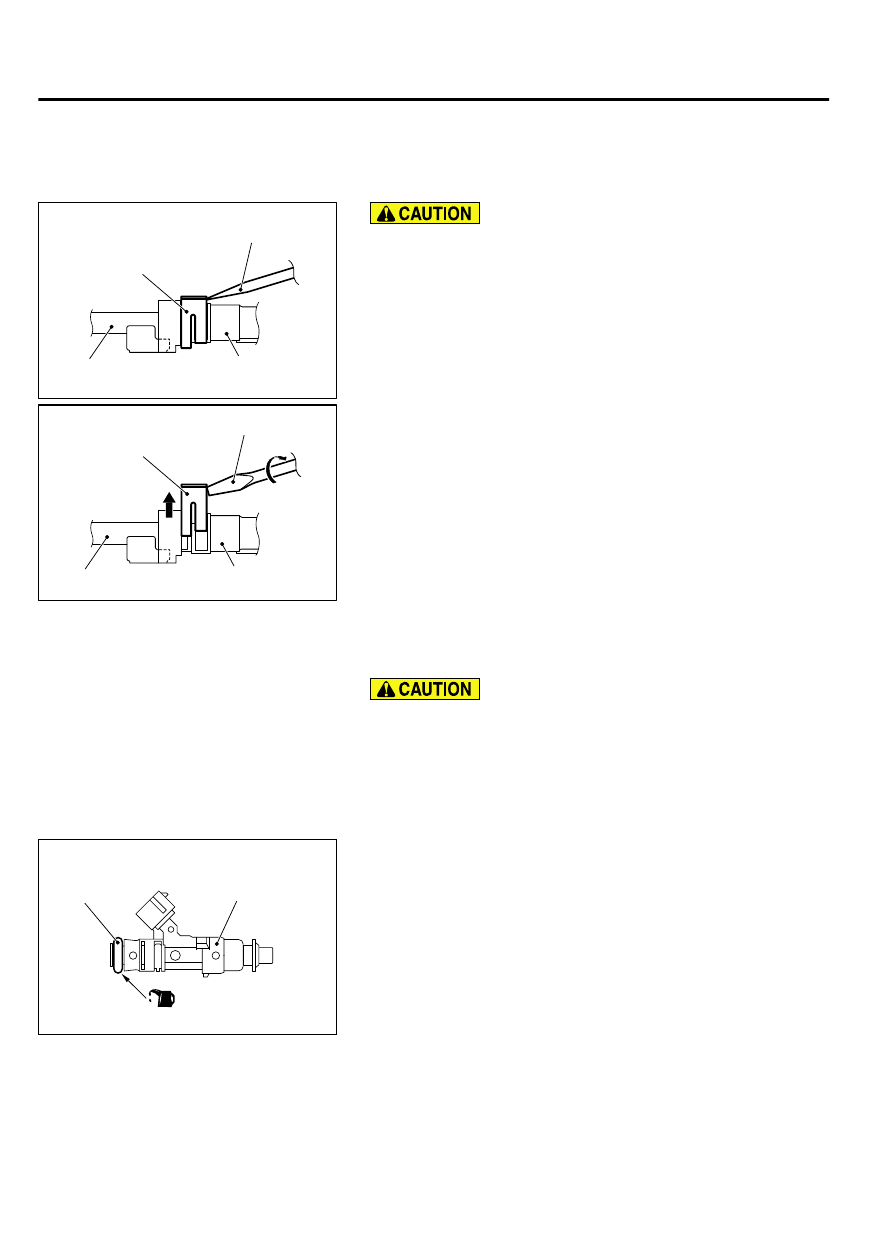

<<A>> FUEL HIGH-PRESSURE HOSE DISCONNECTION

ZC6006360000

Fuel rail

Retainer

Fuel high-pressure
hose

Flat-tipped screw driver

Do  not  kink  the  fuel  high-pressure  hose  as  it  is  made  of
plastics.

1.

Insert  a  flat-tipped  screwdriver  [width  6  mm  (0.24  inch),
thickness 1 mm (0.04 inch)] to the retainer.

ZC6006370000

Fuel rail

Retainer

Fuel high-pressure
hose

Flat-tipped screw driver

2.

Turn  the  flat-tipped  screwdriver  approximately  90°  to  the
arrowed  direction,  and  lift  the  retainer  to  unlock  and
disconnect the fuel high-pressure hose.



<<B>> FUEL RAIL AND INJECTOR ASSEMBLY REMOVAL

Do not drop the fuel injector.
Remove the fuel rail with the fuel injectors attached to it.

INSTALLATION SERVICE POINTS

>>A<< O-RING INSTALLATION

ZC6006380000

O-ring

Fuel injector

(Engine oil)

1.

Apply a drop of new engine oil to the O-ring.

2.

While turning the fuel injector to right and left, install the O-ring
to the fuel injector with a caution not to damage the O-ring.



13Aa-34

MULTIPORT FUEL INJECTION (MFI)

INJECTOR
