Mitsubishi Outlander XL. Manual - part 198





ZK600442

MD998464

White

Black

AA00

Heated oxygen
sensor component
side connector

Standard value:

ENGINE

HEATED
OXYGEN
SENSOR
OUTPUT
VOLTAGE

REMARKS

When  revving
engine

0.6 - 1.0 V

If  you  make  the
air/fuel  ratio  rich
by  revving  the
engine
repeatedly,

 a

normal

 heated

oxygen  sensor
will

 output

 a

voltage  of  0.6  -
1.0 V.

Be  very  careful  when  connecting  the  jumper  wire;
incorrect connection can damage the oxygen sensor.

Be careful the heater is broken when voltage of beyond
8V is applied to the oxygen sensor heater.

NOTE:

If the sufficiently high temperature (of

approximate 400°C or more) is not reached although the
oxygen sensor is normal, the output voltage would be
possibly low although the rich air-fuel ratio. Therefore,
if the output voltage is low, use a jumper wire to connect
terminal No. 1 (red clip of special tool) and terminal No.
3 (blue clip of special tool) of the oxygen sensor with a
(+) terminal and (-) terminal of 8 V power supply
respectively, then check again.

8.

If the output voltage is not within the standard value, replace
the heated oxygen sensor.

NOTE:

For removal and installation of the heated oxygen

sensor, refer to GROUP 15, Exhaust Pipe and Main
Muffler P.15-16.

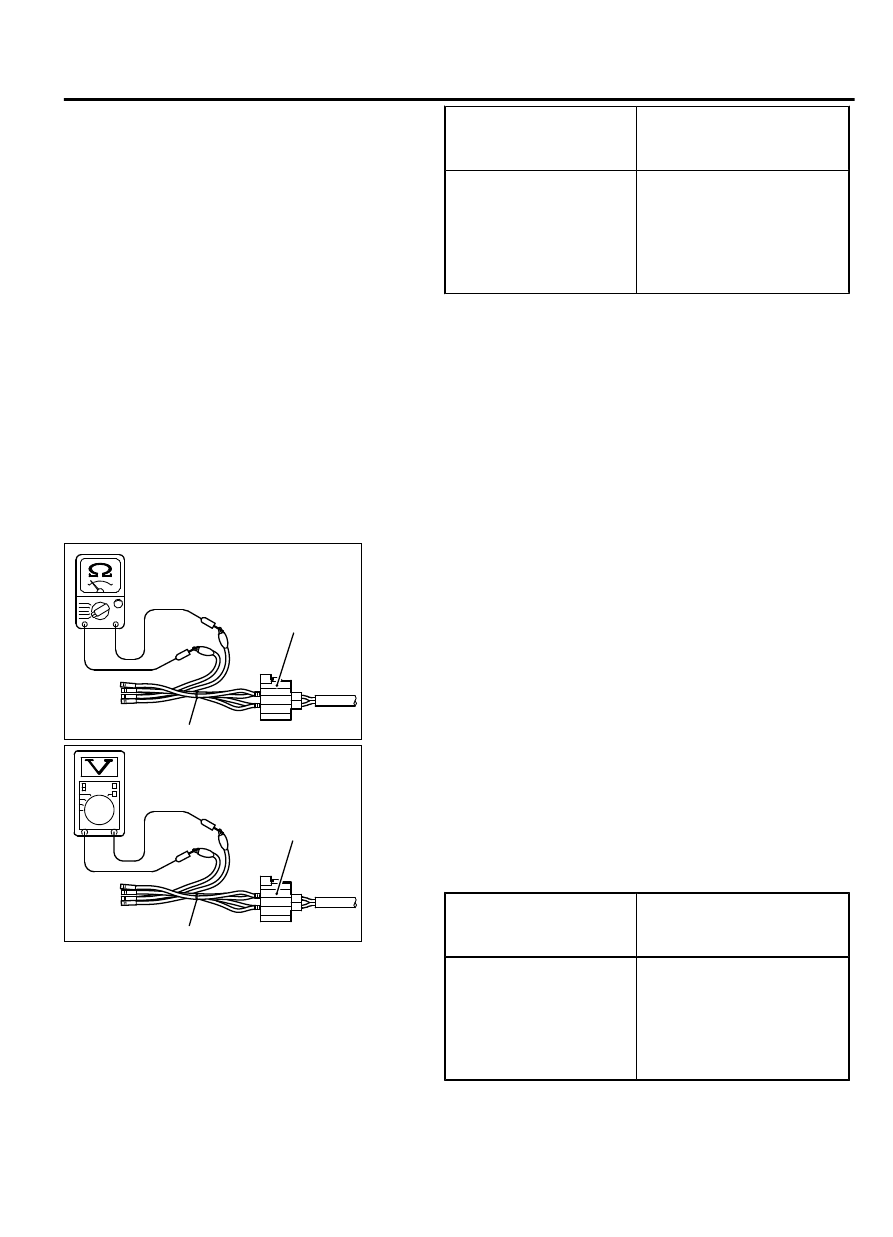

<Right bank heated oxygen sensor (rear)>

ZK600441AA00

MD998464

Blue

Red

Heated oxygen
sensor component
side connector

1.

Disconnect the heated oxygen sensor connector and connect
special tool MD998464 to the connector on the heated oxygen
sensor side.

2.

Make sure that there is continuity [11-18 ohms at 20°C (68°F)]
between terminal No. 1 (red clip) and terminal No. 3 (blue clip)
on the heated oxygen sensor connector.

3.

If there is no continuity, replace the heated oxygen sensor.

4.

Warm up the engine until engine coolant is 80°C (176°F) or
higher.

5.

Drive at 50 km/h (31 mph) or more for 10 minutes.

6.

Connect a digital voltage meter between terminal No. 2 (black
clip) and terminal No. 4 (white clip).

MULTIPORT FUEL INJECTION (MFI)

13Aa-27

ON-VEHICLE SERVICE

ZK600442

MD998464

White

Black

AA00

Heated oxygen
sensor component
side connector

7.

Measure  the  output  voltage  of  the  heated  oxygen  sensor
under the following driving.

Transaxle: 2 nd

Drive with wide open throttle

Engine: 3,500 r/min or more

Standard value:

HEATED

 OXYGEN

SENSOR

 OUTPUT

VOLTAGE

REMARKS

0.6 - 1.0 V

High

 load

 operation

makes air/fuel ratio richer
and

 normal

 heated

oxygen  sensor  also  can
output voltage of 0.6 - 1.0
V.

8.

If the output voltage is not within the standard value, replace
the heated oxygen sensor.

NOTE:

If the sufficiently high temperature (of

approximate 400°C or more) is not reached although the
oxygen sensor is normal, the output voltage would be
possibly low although the rich air-fuel ratio.

NOTE:

For removal and installation of the heated oxygen

sensor, refer to GROUP 15, Exhaust Pipe and Main
Muffler P.15-16.

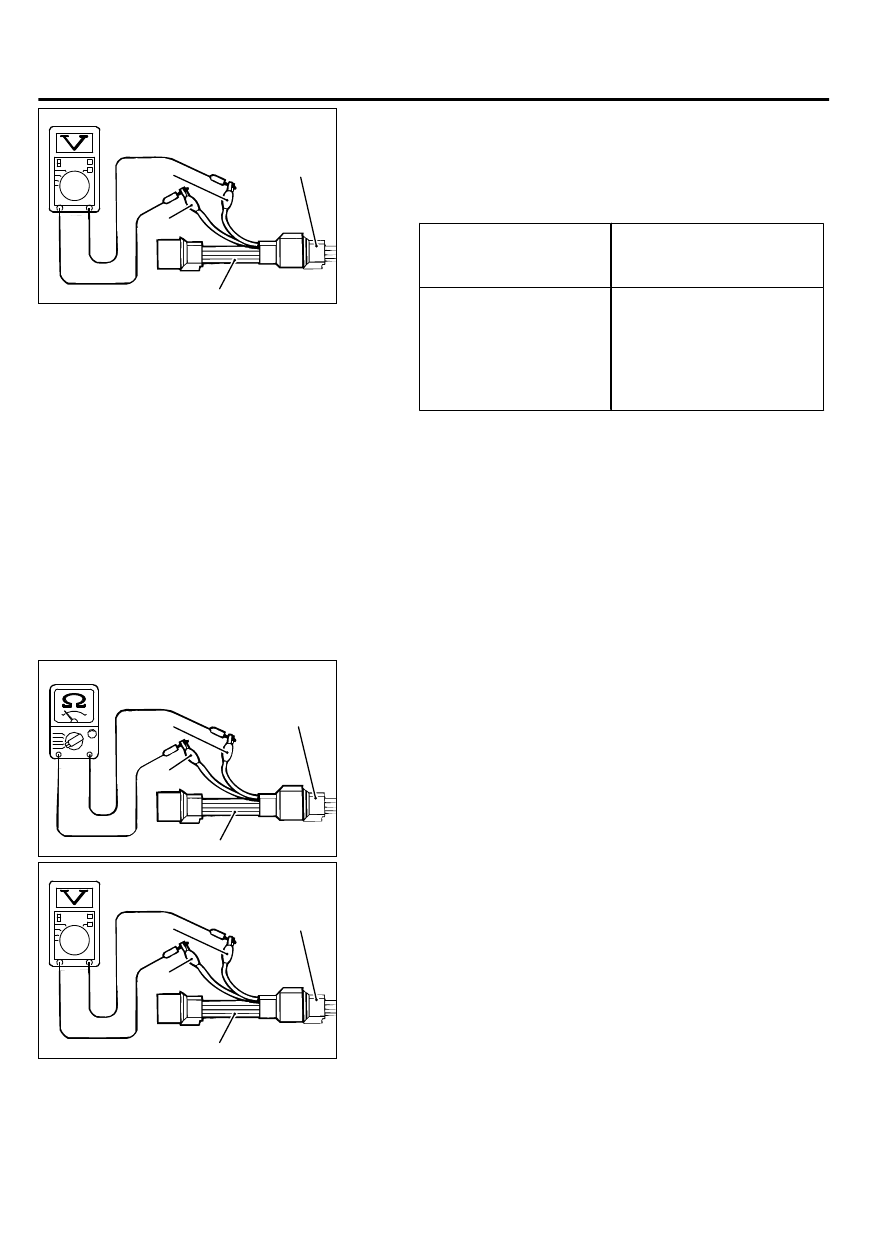

<Left bank heated oxygen sensor (rear)>

ZK600439AA00

MB991316

Blue

Red

Heated oxygen
sensor component
side connector

ZK600440

MB991316

White

Black

AA00

Heated oxygen
sensor component
side connector

1.

Disconnect the heated oxygen sensor connector and connect
special tool MB991316 to the connector on the heated oxygen
sensor side.

2.

Make sure that there is continuity [11-18 ohms at 20°C (68°F)]
between terminal No. 1 (red clip) and terminal No. 3 (blue clip)
on the heated oxygen sensor connector.

3.

If there is no continuity, replace the heated oxygen sensor.

4.

Warm up the engine until engine coolant is 80°C (176°F) or
higher.

5.

Drive at 50 km/h (31 mph) or more for 10 minutes.

6.

Connect a digital voltage meter between terminal No. 2 (black
clip) and terminal No. 4 (white clip).

7.

Measure  the  output  voltage  of  the  heated  oxygen  sensor
under the following driving.

Transaxle: 2 nd

Drive with wide open throttle

Engine: 3,500 r/min or more

Standard value:

13Aa-28

MULTIPORT FUEL INJECTION (MFI)

ON-VEHICLE SERVICE

HEATED

 OXYGEN

SENSOR

 OUTPUT

VOLTAGE

REMARKS

0.6 - 1.0 V

High

 load

 operation

makes air/fuel ratio richer
and

 normal

 heated

oxygen  sensor  also  can
output voltage of 0.6 - 1.0
V.

8.

If the output voltage is not within the standard value, replace
the heated oxygen sensor.

NOTE:

If the sufficiently high temperature (of

approximate 400°C or more) is not reached although the
oxygen sensor is normal, the output voltage would be
possibly low although the rich air-fuel ratio.

NOTE:

For removal and installation of the heated oxygen

sensor, refer to GROUP 15, Exhaust Pipe and Main
Muffler P.15-16.

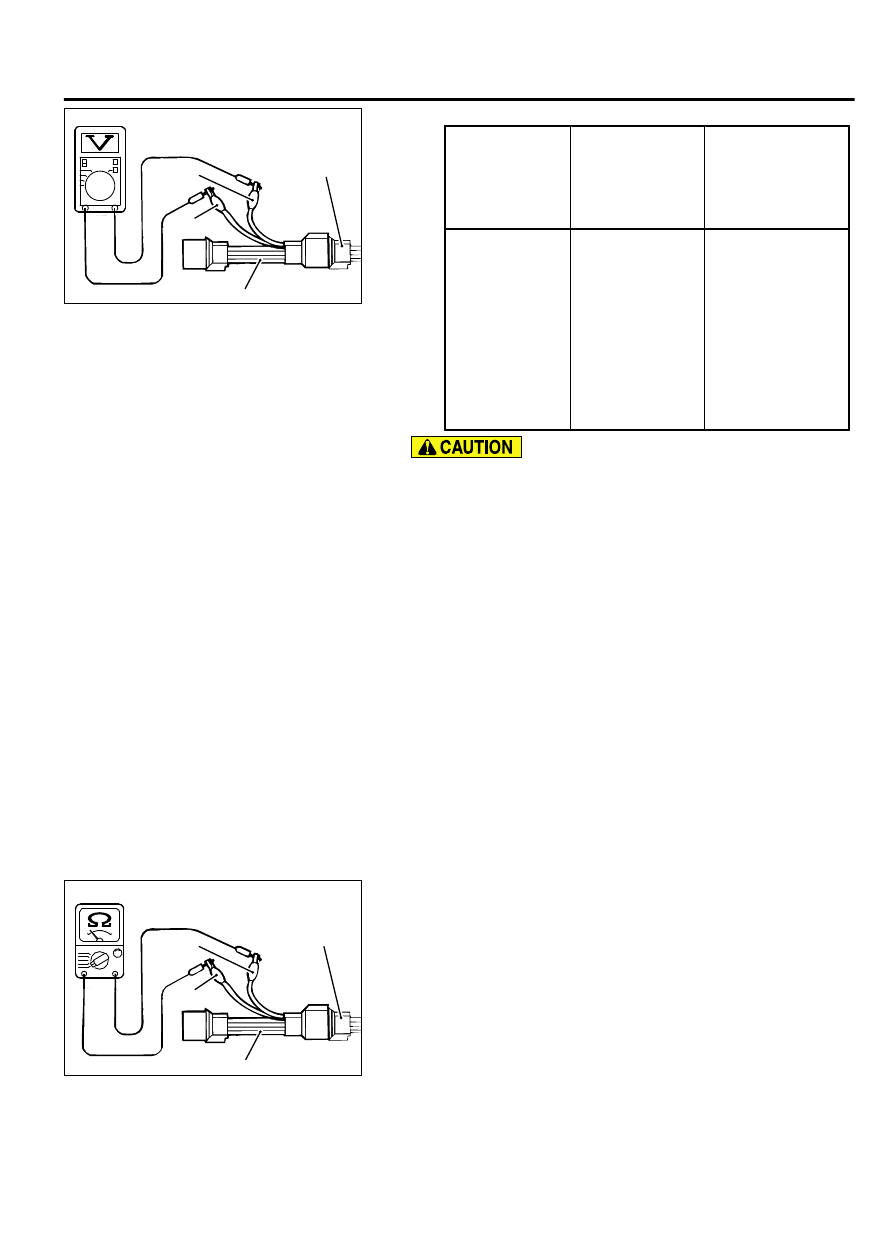

<Center exhaust pipe heated oxygen sensor>

ZK600443

MB991658

AA00

Heated oxygen
sensor component
side connector

ZK600444

MB991658

AA00

Heated oxygen
sensor component
side connector

1.

Disconnect the heated oxygen sensor connector and connect
special tool MB991658 to the connector on the heated oxygen
sensor side.

2.

Make sure that there is continuity [11-18 Ω at 20°C (68°F)]
between  terminal  No.  1  and  terminal  No.  2  on  the  heated
oxygen sensor connector.

3.

If there is no continuity, replace the heated oxygen sensor.

4.

Warm up the engine until engine coolant is 80°C (176°F) or
higher.

5.

Drive at 50 km/h (31 mph) or more for 10 minutes.

6.

Connect a digital voltage meter between terminal No. 3 and
terminal No. 4.

7.

Measure  the  output  voltage  of  the  heated  oxygen  sensor
under the following driving.

Transaxle: 2 nd

Drive with wide open throttle

Engine: 3,500 r/min or more

Standard value:

HEATED

 OXYGEN

SENSOR

 OUTPUT

VOLTAGE

REMARKS

0.6 - 1.0 V

High

 load

 operation

makes air/fuel ratio richer
and

 normal

 heated

oxygen  sensor  also  can
output voltage of 0.6 - 1.0
V.

MULTIPORT FUEL INJECTION (MFI)

13Aa-29

ON-VEHICLE SERVICE

8.

If the output voltage is not within the standard value, replace
the heated oxygen sensor.

NOTE:

If the sufficiently high temperature (of

approximate 400°C or more) is not reached although the
oxygen sensor is normal, the output voltage would be
possibly low although the rich air-fuel ratio.

NOTE:

For removal and installation of the heated oxygen

sensor, refer to GROUP 15, Exhaust Pipe and Main
Muffler P.15-16.

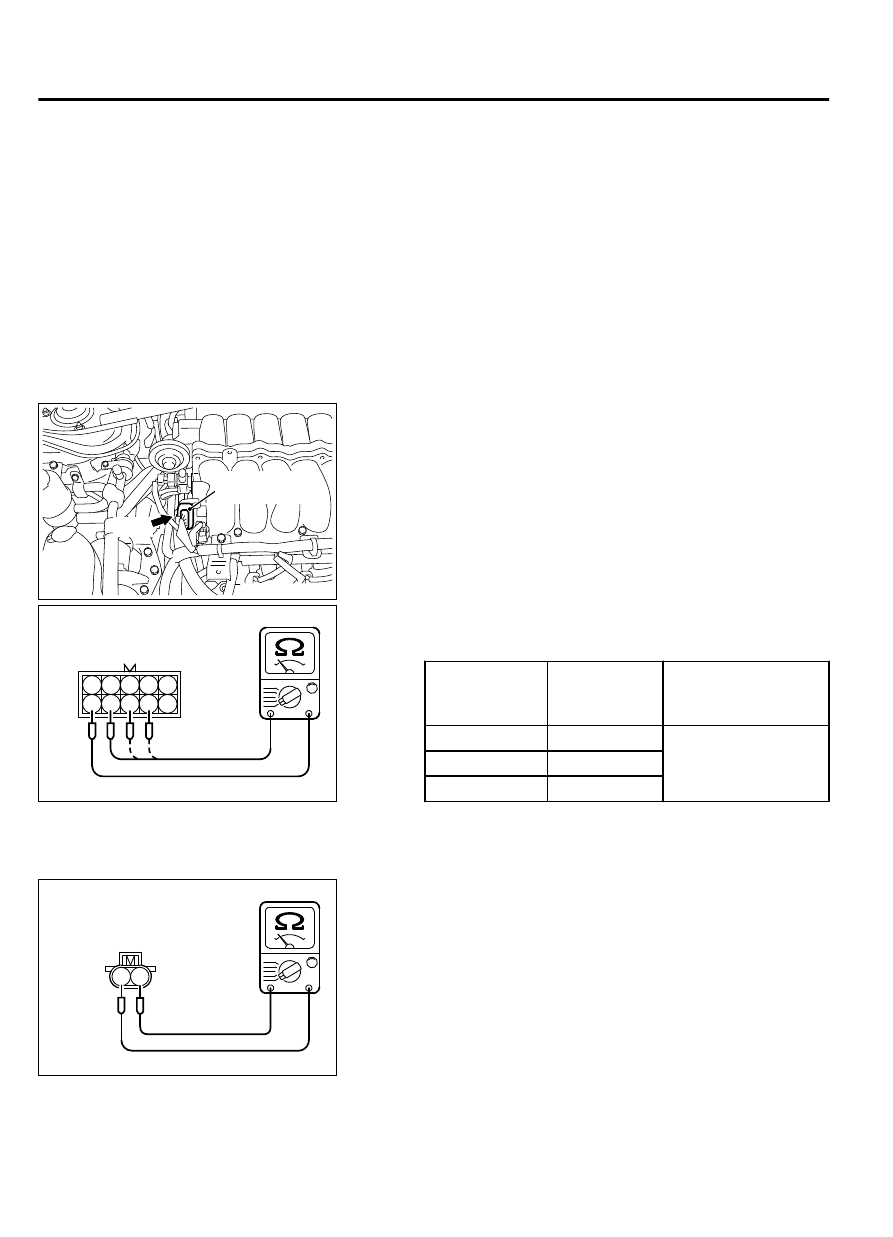

INJECTOR CHECK

M11301000052USA0000010000

Right bank side (number 1, 3, 5 cylinders)

ZK604047 AA00

B-21

Intermediate
connector

1.

Disconnect the intermediate connector B-21.

1

2

3

6

7

8

4

5

9 10

ZK600445

B-21
Intermediate connector

AA00

2.

Measure  the  resistance  between  the  injector  intermediate
connector terminals.

Standard value:

INJECTOR
No.

MEASUREM
ENT
TERMINAL

RESISTANCE

No. 1

6 - 7

10.5  -  13.5  Ω  [20°C
(68°F)]

No. 3

6 - 8

No. 5

6 - 9

3.

Connect the injector intermediate connector.

Left bank side (number 2, 4, 6 cylinders)

ZK600446

1 2

Injector
connector

AA00

1.

Disconnect the injector connector.

2.

Measure  the  resistance  between  injector  side  connector
terminals 1 and 2.

Standard value: 10.5 - 13.5 ohms [at 20°C (68°F)]

3.

Connect the injector connector.

13Aa-30

MULTIPORT FUEL INJECTION (MFI)

ON-VEHICLE SERVICE
