Mitsubishi Outlander XL. Manual - part 195

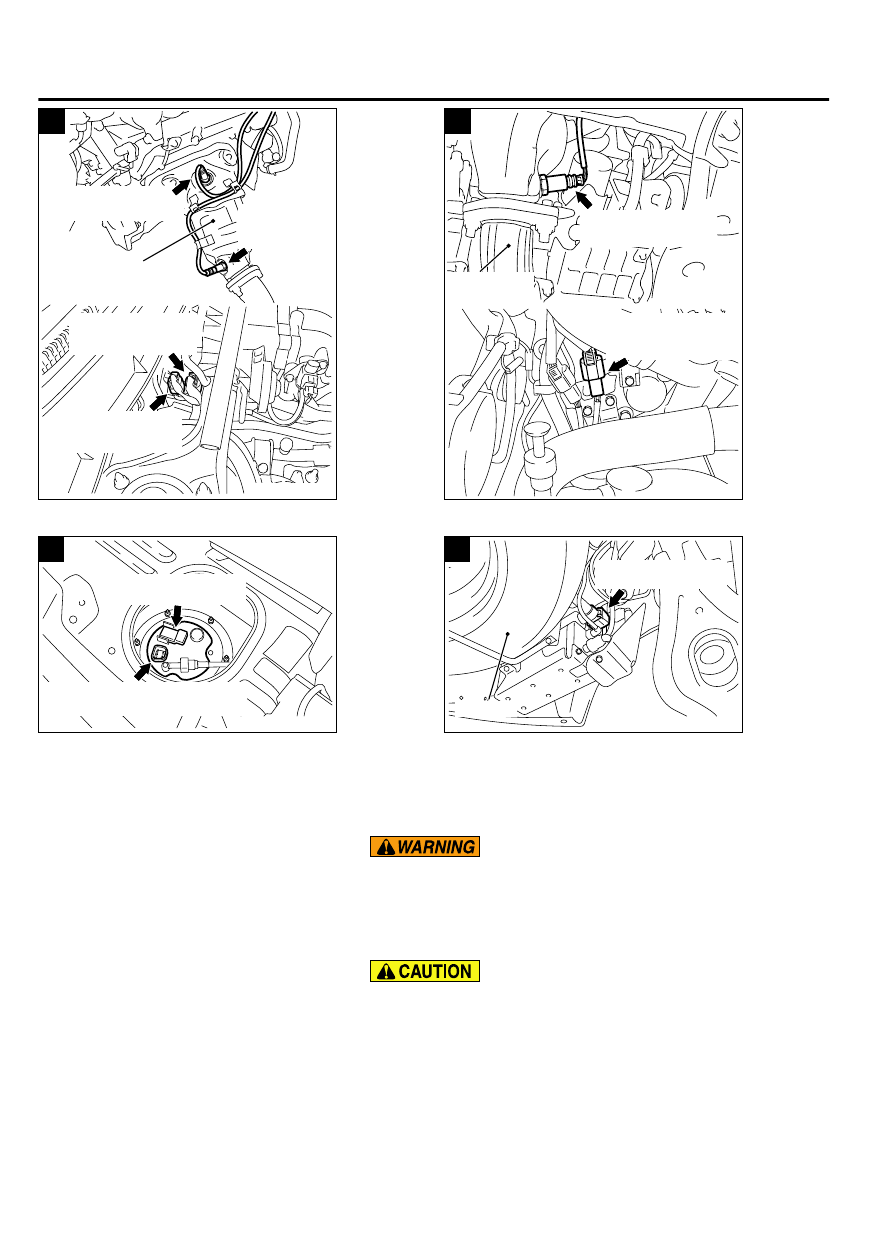

ZK600404 AA00

M

Camshaft
position sensor

Exhaust gas
recirculation valve

ZK600424 AA00

ETACS-ECU (incorporating
fuel pump relay)

N



ZK600403 AA00

Accelerator pedal
position sensor

O

ZK604069 AA00

Center exhaust pipe
heated oxygen sensor

Center exhaust pipe
heated oxygen sensor connector

Rear heater duct

P



MULTIPORT FUEL INJECTION (MFI)

13Aa-15

ON-VEHICLE SERVICE

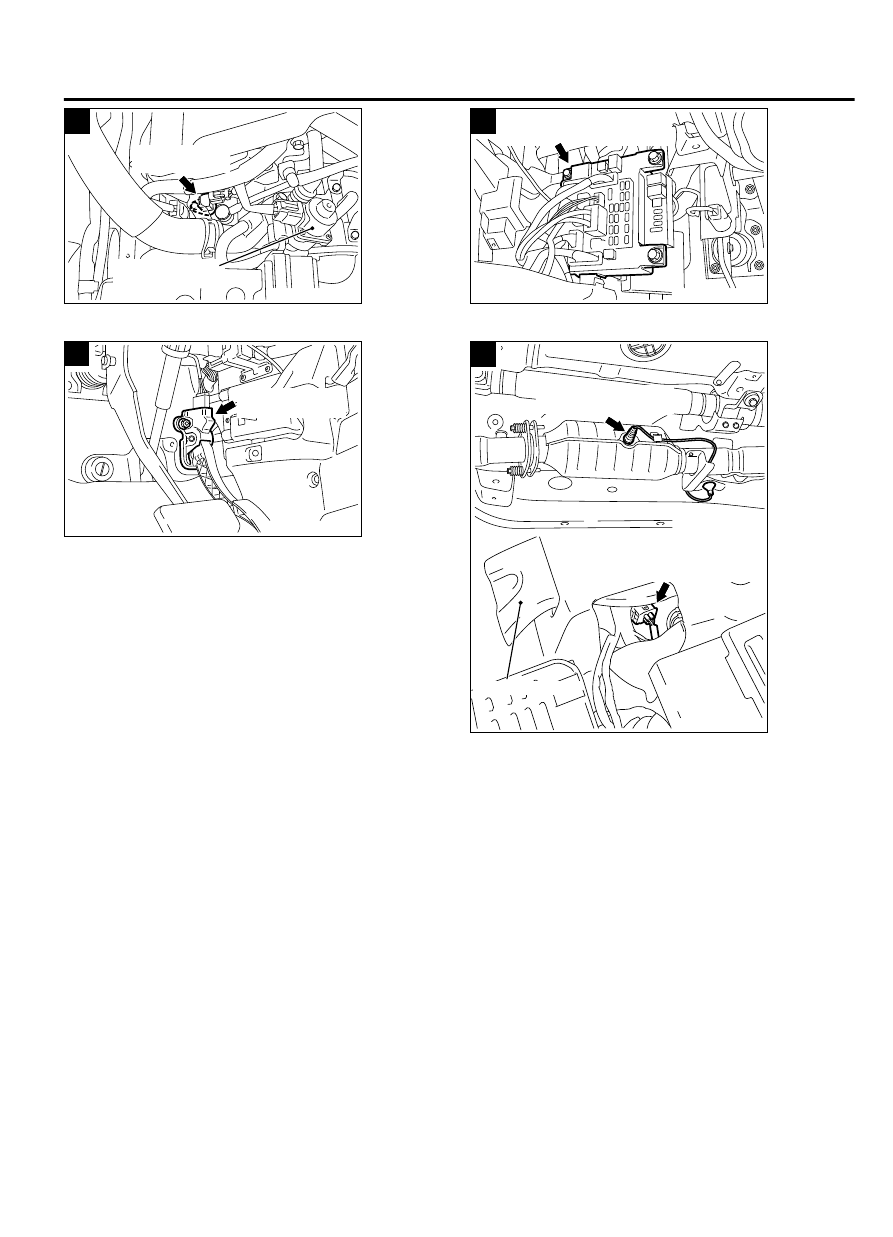

ZK600415 AA00

Right bank
heated oxygen
sensor (rear)

Right bank heated
oxygen sensor (front)

Right bank heated
oxygen sensor (front)
connector

Right bank heated
oxygen sensor (rear)
connector

Front exhaust
pipe RH

Q

ZK600423 AA00

Left bank heated
oxygen sensor (rear)

Left bank heated
oxygen sensor (rear)
connector

Front
exhaust pipe

R



ZK600411 AA00

Fuel pump module (incorporating
fuel tank temperature sensor)

Fuel tank differential
pressure sensor

S

ZK600409AA00

Evaporative emission
ventilation solenoid

T

Spare tire

THROTTLE BODY (THROTTLE VALVE AREA)

CLEANING

M11301000010USA0000010000

If the throttle valve is in operation, a finger might be injured
as the result of being caught by the throttle valve. Make sure
that the ignition switch is surely in "LOCK"(OFF) position
before the service in order that the throttle valve cannot be
operation.

｠

When the throttle body cleaning is performed, use scan
tool  MB991958  to  initialize  the  learning  value  (Refer  to
GROUP 00, Initialization Procedure for Learning Value in
MFI Engine ).

｠

Do not spray the cleaning solvent directly to the throttle
valve.

13Aa-16

MULTIPORT FUEL INJECTION (MFI)

ON-VEHICLE SERVICE

｠

Make sure the cleaning solvent does not enter the motor
and the sensor through the shaft.

｠

Do not remove molybdenum, which is applied around the
throttle valve of the throttle body.

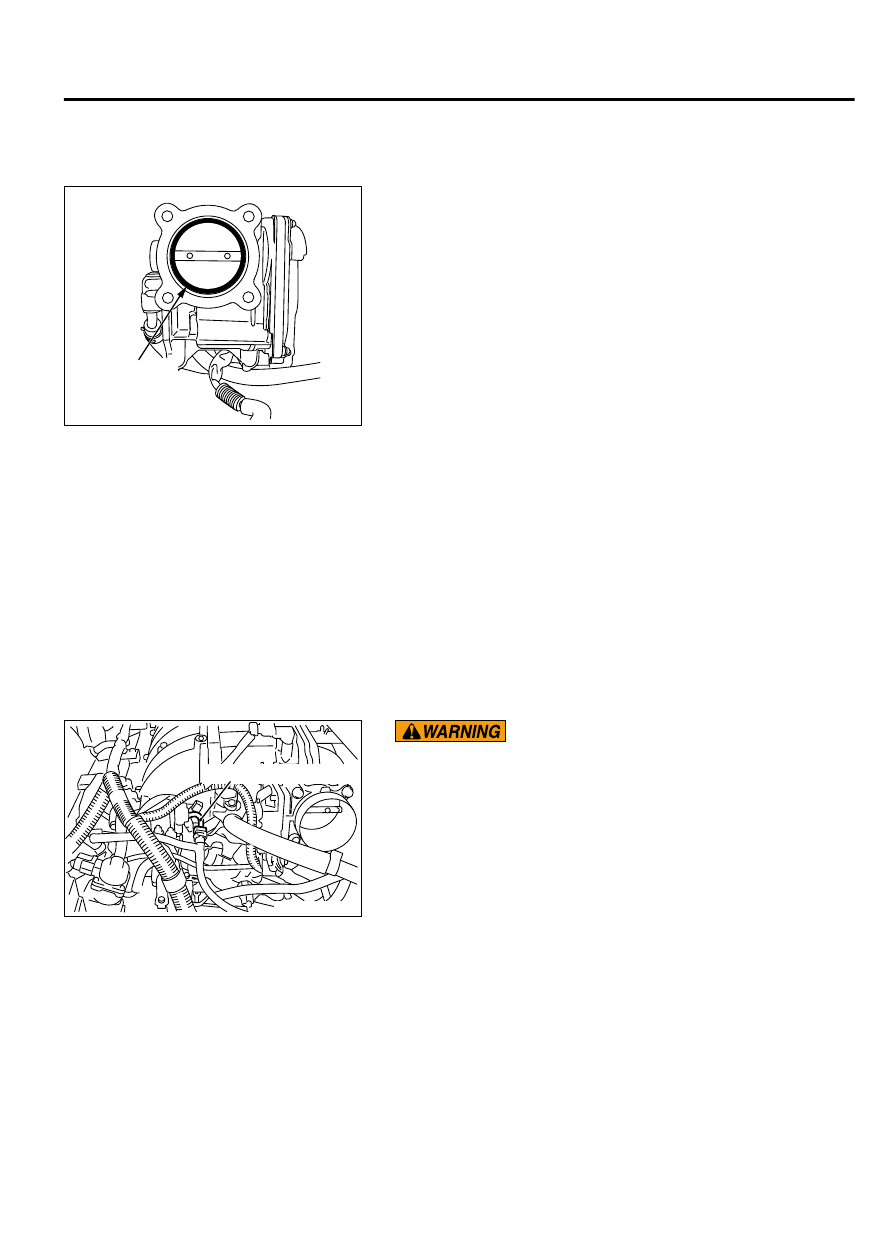

ZK600426 AA00

Areas on throttle
valve to apply
molybdenum
disulfide

1.

Remove the throttle body.

2.

Spray cleaning solvent on a clean cloth.

3.

Wipe off the dirt around the throttle valve with the cloth sprayed
with cleaning solvent.

4.

Attach the throttle body.

FUEL PRESSURE TEST

M11301000019USA0000010000

Required Special Tools:

｠

MB991958: Scan tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

｠

MB991981: Fuel Pressure Gauge Set

｠

MB992001: Hose Adaptor

｠

MB992049: Quick Connector

｠

MB992076: Injector Test Set

1.

Release residual pressure from the fuel line to prevent fuel
spray. (Refer to P.13Aa-20.)

ZK600427

Fuel high-pressure hose

AA00

To  prevent  a  fire,  cover  the  hose  connection  with  shop
towels to prevent splashing of fuel that could be caused by
some residual pressure in the fuel pipe line.

2.

Disconnect the fuel high-pressure hose at the fuel rail side.

MULTIPORT FUEL INJECTION (MFI)

13Aa-17

ON-VEHICLE SERVICE

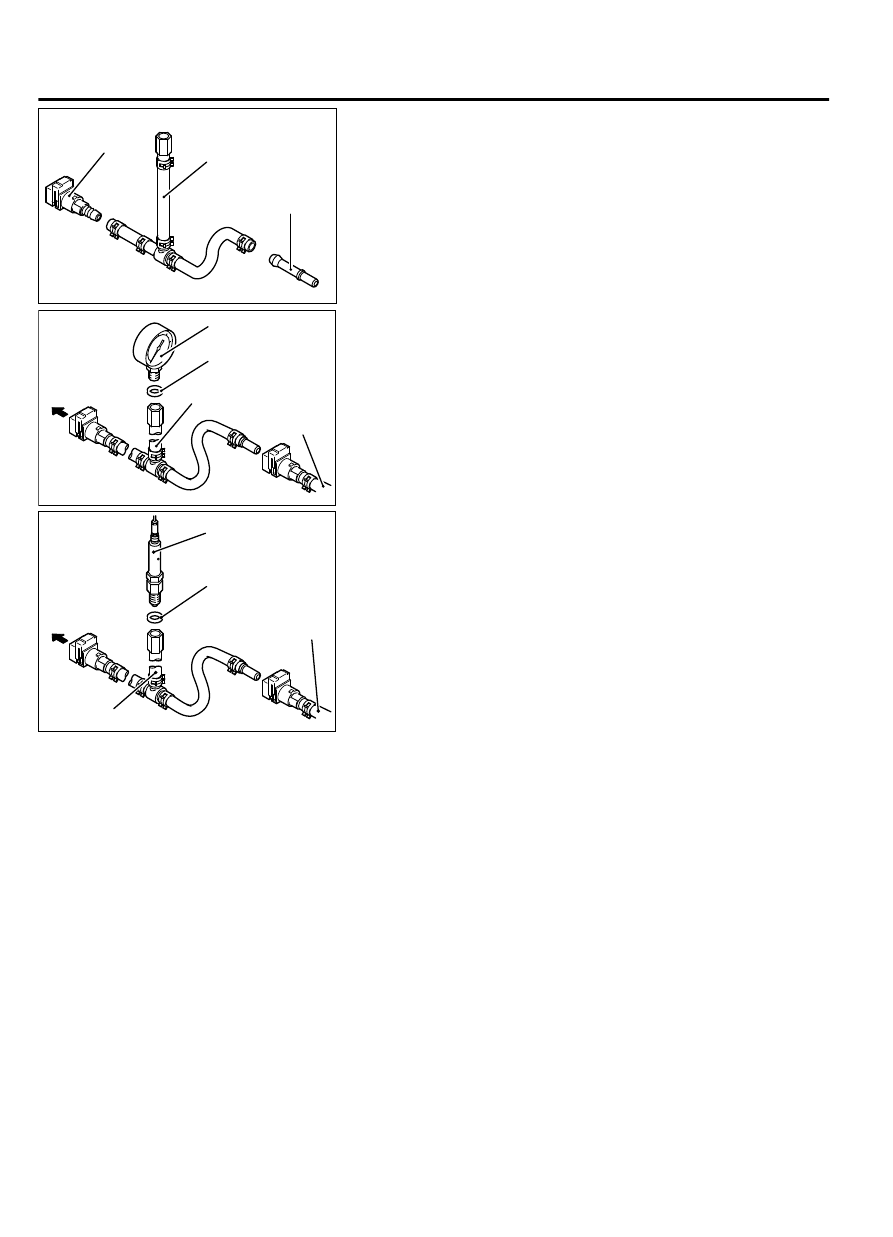

ZK600428AA00

MB992076

MB992001

MB992049

3.

Assemble  the  special  tool  MB992076  (injector  test  set)  of
special tool as shown in figure.

4.

Remove  either  the  installation  adapter  for  the  injector  or
another adapter.

5.

Install the special tool MB992049 (quick connector) and the
special tool MB992001 (hose adapter) to the hose without the
adapter.

ZK600429

O-ring or gasket

MD998706

Delivery pipe

High-pressure
fuel hose

Fuel pressure
gauge set

AA00

ZK600430

MB991981

Gasket

High-pressure
fuel hose

Delevery pipe

AA00

MB992076

6.

Assemble the fuel pressure measurement tools as follows.

<When using the fuel pressure gauge>

a.

Via  a  suitable  O-ring  or  gasket,  install  the  fuel  pressure
gauge to the special tool that has already assembled as
described.

<When using special tool MB991981 (fuel pressure gauge
set)>

a.

Via  a  gasket,  install  the  special  tool  MB991981  (fuel
pressure gauge set) into the special tool that has already
assembled as described.

7.

Install  the  assembled  fuel  pressure  measurement  tools
between the fuel rail and fuel high-pressure hose.

13Aa-18

MULTIPORT FUEL INJECTION (MFI)

ON-VEHICLE SERVICE
