Fosgate® PREMIUM SOUND SYSTEM>

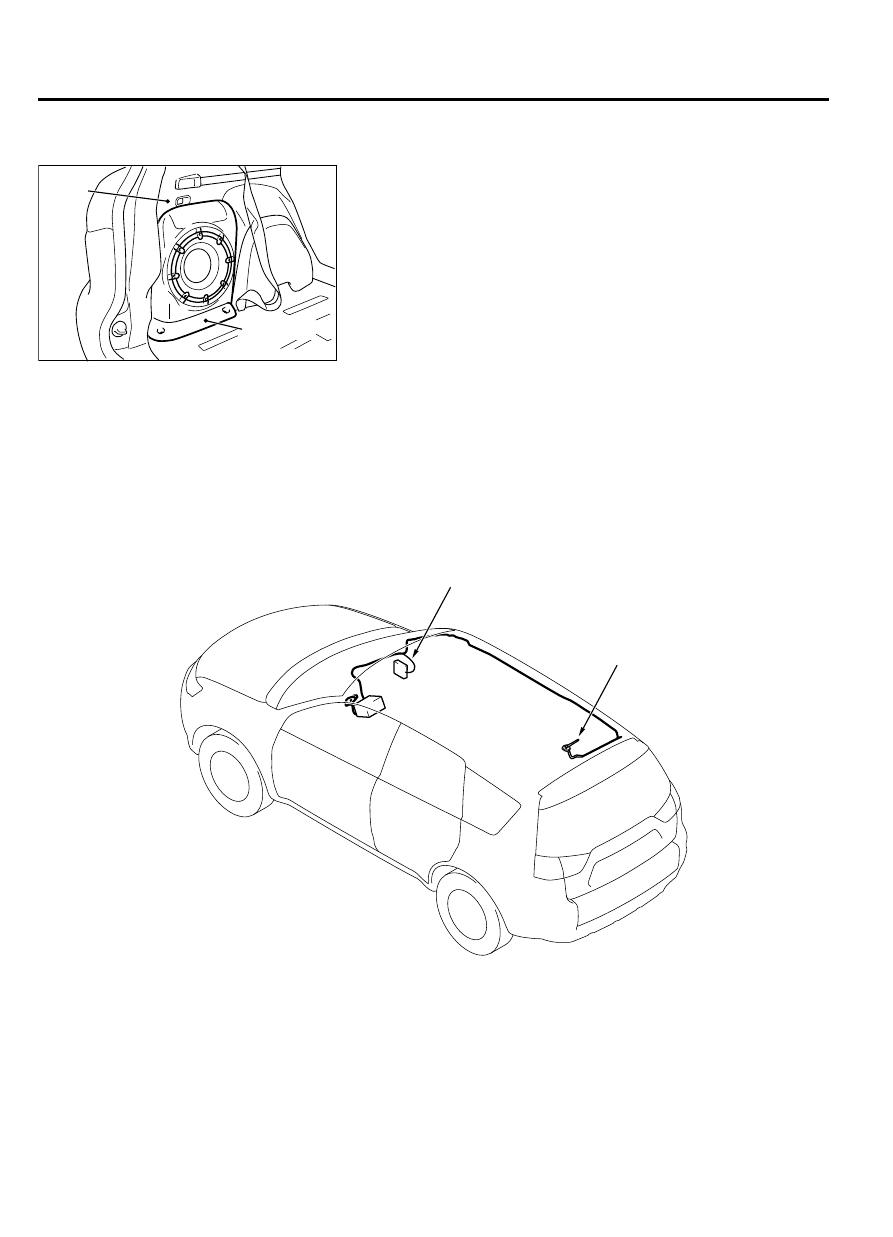

ZC3051390000

AC505779

Subwoofer

Quarter
trim

The Rockford Fosgate® 25-cm dual voice coil subwoofer has
been  installed  to  the  passenger  seat-side  quarter  trim  in  the
luggage room, enabling the playback of dynamic deep bass.

ANTENNA

GENERAL INFORMATION

M25403800001USA0000010004

The pole antenna has been adopted for the AM/FM
and satellite radio.

CONSTRUCTION DIAGRAM

ZC6027720000

Pole antenna

<Vehicles with satellite radio>

54B-6

AUDIO AND NAVIGATION SYSTEM

ANTENNA

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

GENERAL

M25403800001USA0000010005

INFO

N A V I

SCALE

MENU

MODE

A UDI O

V O L

PWR

SET

OPEN

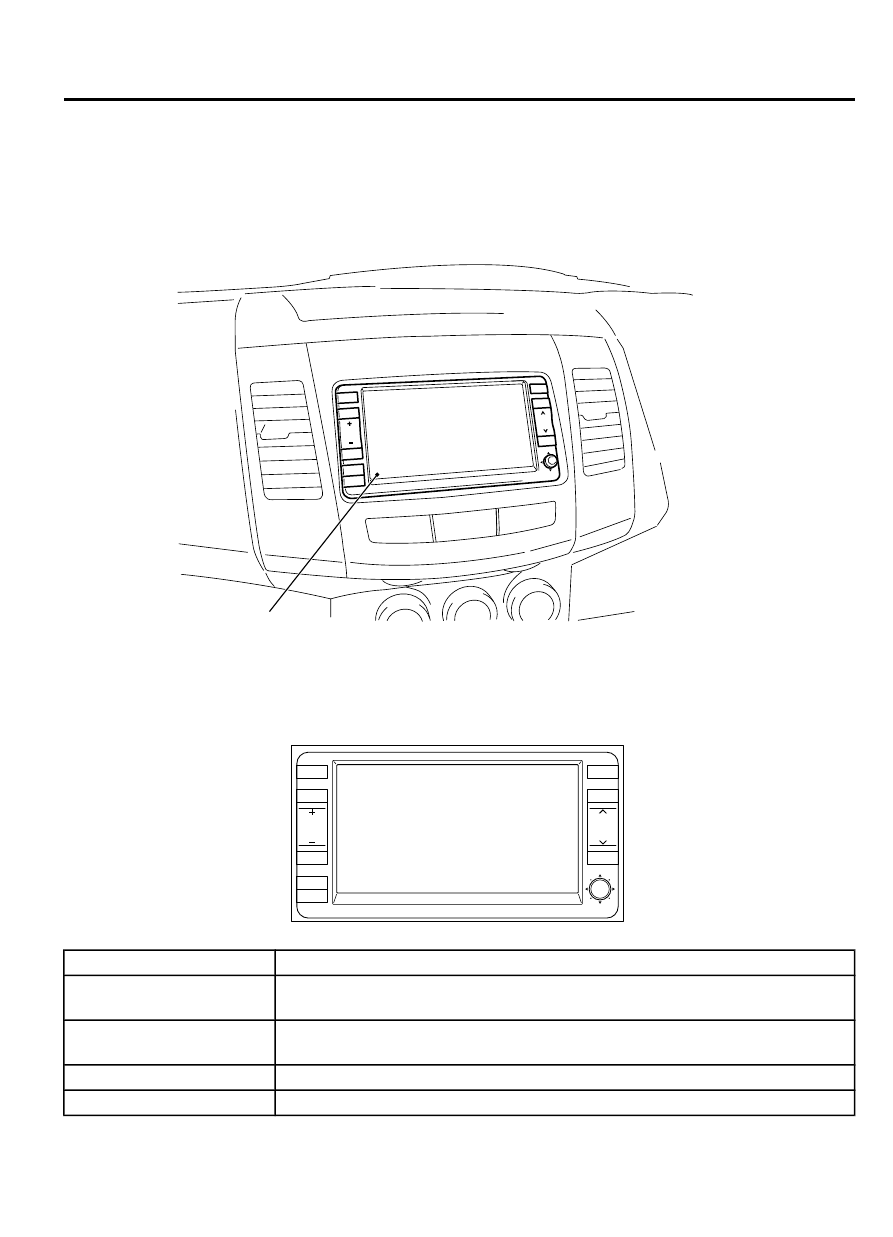

ZC3051980000

Audio visual navigation unit

Mitsubishi multi-communication system (7-inch wide
monitor HDD navigation) with built-in hard disk drive

(30 gigabyte) has been installed. Also, a 7-inch liquid
crystal display of wide 2 DIN size has been adopted.

Operation part

ZC3050170000

AC505475

MODE

AUDIO

VOL

PWR

INFO

NAVI

SCALE

MENU

Mitsubishi Multi Communication System

ENT

SET

OPEN

Display (function)

Contents

Navigation screen

Displays the navigation functions including the map display, search, guidance,
information search.

Vehicle position information
screen

Displays the position information of current location. (Longitude and latitude,
altitude, GPS reception status)

CD screen

Plays back the disc inserted to the CD drive (CD-R/CD-RW).

MP3/WMA screen

Plays back the MP3/WMA.

AUDIO AND NAVIGATION SYSTEM

54B-7

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

Display (function)

Contents

DVD screen

Plays back the disc inserted to the DVD drive.

Music server function

Plays back the music data on hard disk drive, and records the music CD.

Rear display screen

Displays the image input from the rear display unit.

Radio screen

Displays  the  receiving  station  information.  Also,  the  operation  of  receiving
channel can be performed.

Navigation function

The storage of very large map data is now possible,
and the following contents have been adopted.

｠

Map type navigation

｠

NAVTEQ map database

｠

Map data stored in hard disc drive

｠

Corresponds  to  U.S.  English,  Canadian  French,
and Latin Spanish

Audio and visual function

There  are  the  following  functions  in  addition  to  the
navigation function.

｠

Music server function

｠

DVD drive unit

｠

FM/AM radio

｠

MP3/WMA playback function

｠

Control by steering audio switch

｠

Integrated 4-ch power amplifier (140 W)

｠

Correspond to Rockford Fosgate®premium sound
system

｠

Output of DVD video 5.1 channel data

｠

Connect with satellite radio tuner

Other function

There  are  the  following  functions  in  addition  to  the
navigation, audio and visual function.

｠

Clock display

｠

Connect with hands free unit

｠

A/C information display

｠

Outside temperature display

｠

Trip information display (Average fuel consumption
etc.)

｠

Function customize

｠

Interfaces  with  the  rear  display  (entertainment
system)

54B-8

AUDIO AND NAVIGATION SYSTEM

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

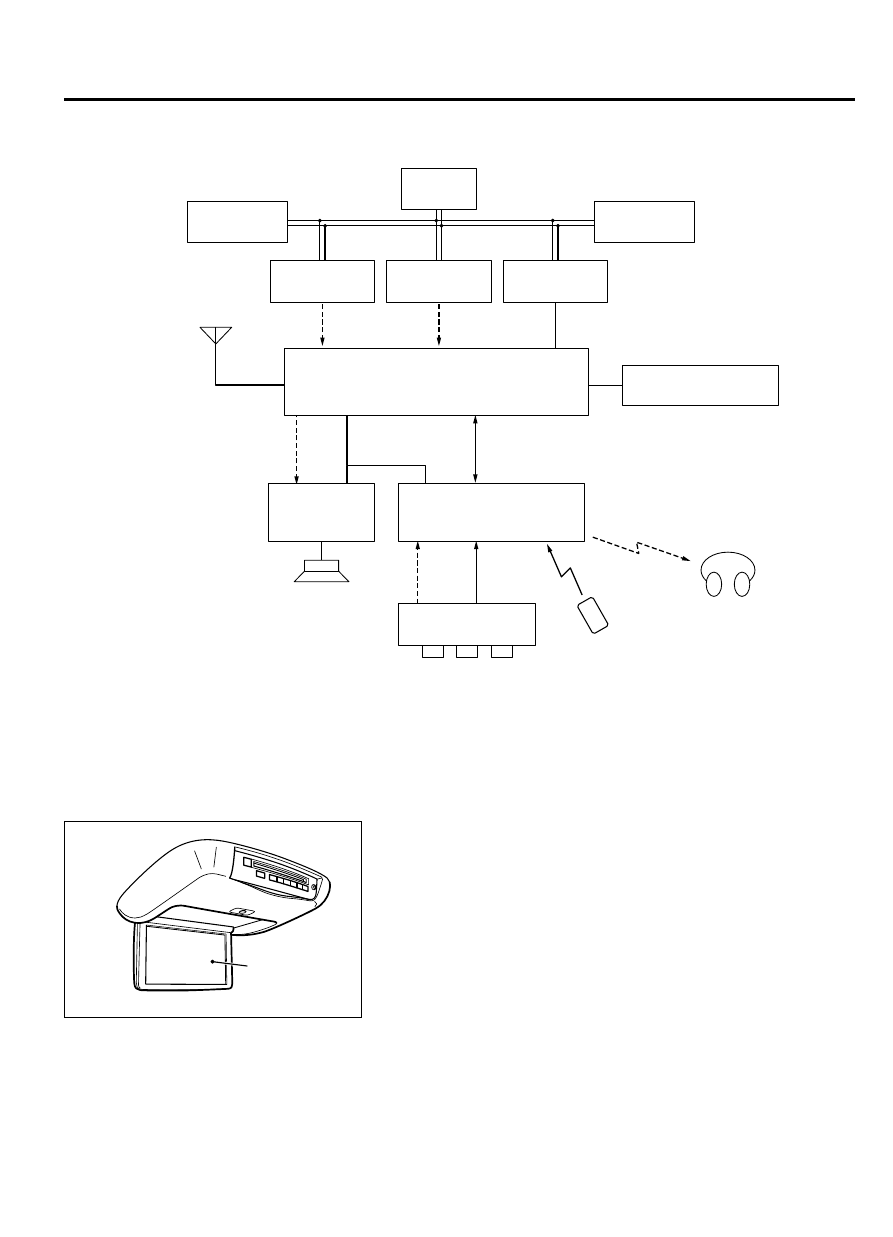

SYSTEM BLOCK DIAGRAM

AC505476

ZC3050180000

Audio and video
adopter

Antenna

Steering audio switch

Speaker

*1: Controller Area Network

Note:

*2: Universal Asynchronous Receiver Transmitter

*3: National Television Standards Committee

Wireless headphone

Wireless remote
controller

UART*

2

communication

NTSC*

3

signal and sound signal

CAN*

1

communication

Sound

Sound

Sound

Voice Sound


Play sound

Audio amplifier

Rear display unit

CAN box

ETACS-ECU

Combination
meter

Audio visual navigation unit

A/C-ECU

Satellite radio
tuner

Hands free
module

REAR ENTERTAINMENT SYSTEM

GENERAL

M25403800001USA0000010006

ZC3049490000

AC505256

Rear display unit

｠

A  rear  seat  9-inch  wide  LCD  monitor  with  DVD  has  been
adopted for rear passengers to enjoy DVD, CD, video games,
video, or others. The monitor has been installed to the center
of the roof, between the first row seats and second row seats.

｠

In order to connect video equipment such as video computer
and  video  player,  the  external  connection  jacks  (audio  and
video adapter) has been installed to the backside of the rear
floor console.

AUDIO AND NAVIGATION SYSTEM

54B-9

REAR ENTERTAINMENT SYSTEM
