RADIO AND CD PLAYER

GENERAL INFORMATION

M25403800001USA0000010002

ZC3049510000

Unique panel audio

ZC3052910000

Audio amplifier

Driver's seat

｠

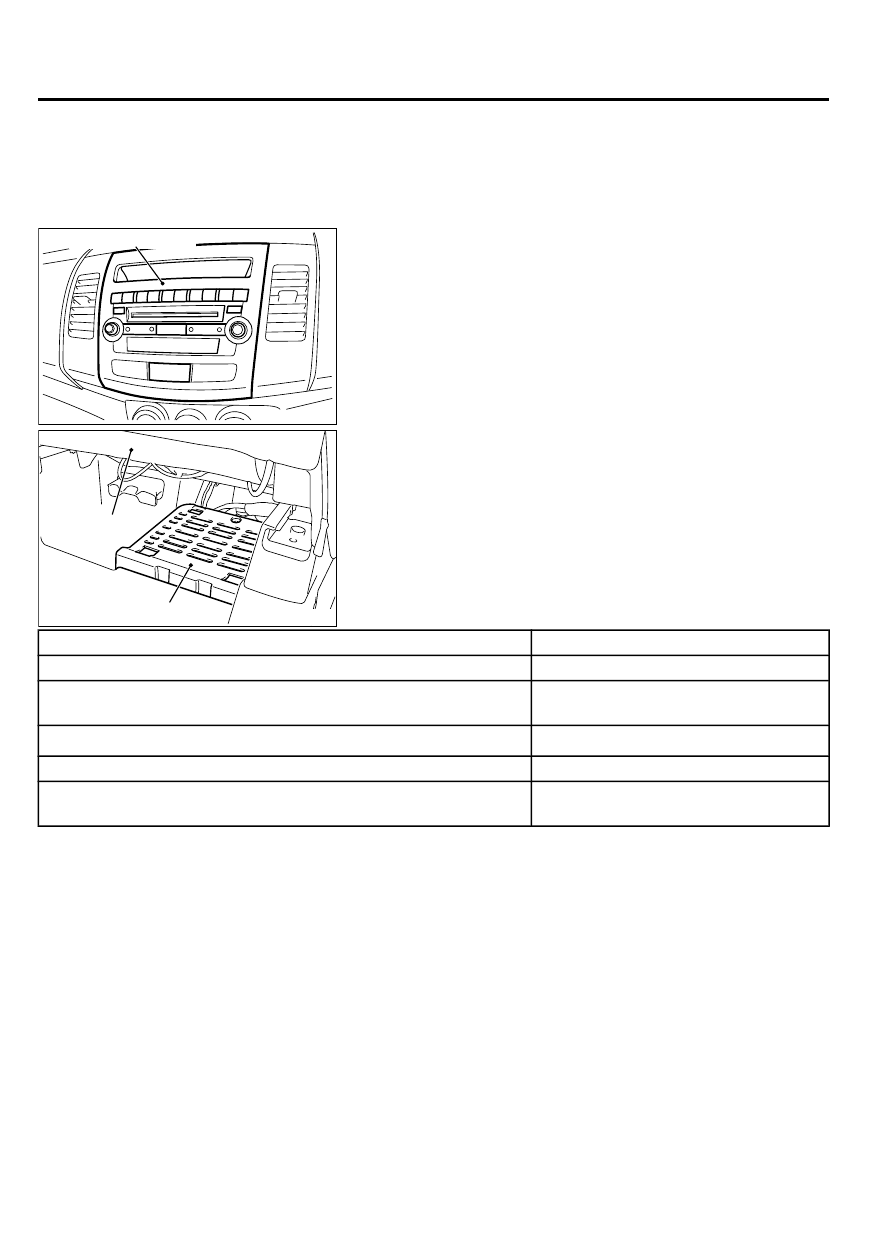

The unique panel audio (radio and CD player or CD changer)
gives a sense of unity with the instrument panel. Also, a new
function automatically corrects the sound quality and volume
during driving.

｠

A 8-ch high-power audio amplifier with integrated DSP (total
maximum  output  of  650  W)  has  been  combined  with  the
Rockford Fosgate® premium sound system.

Specification

Note

AM/FM electronic tuning radio

-

SIRIUS satellite radio Only the vehicles with the satellite radio

tuner

6-disk CD autochanger*1(compatible with MP3*2)

Six CDs can be loaded.

Audio integrated 4-ch power amplifier <vehicles with 6 speakers>

General 140 W

Audio amplifier-integrated 8-ch power amplifier and digital signal

processor (DSP) <Rockford Fosgate® premium sound system>

General 650 W (maximum)

NOTE:

｠

*1: CD-R/CD-RW may not be played.

｠

*2: Some may not be played.

STEERING AUDIO SWITCH

54B-2

AUDIO AND NAVIGATION SYSTEM

RADIO AND CD PLAYER

ZC6027630000

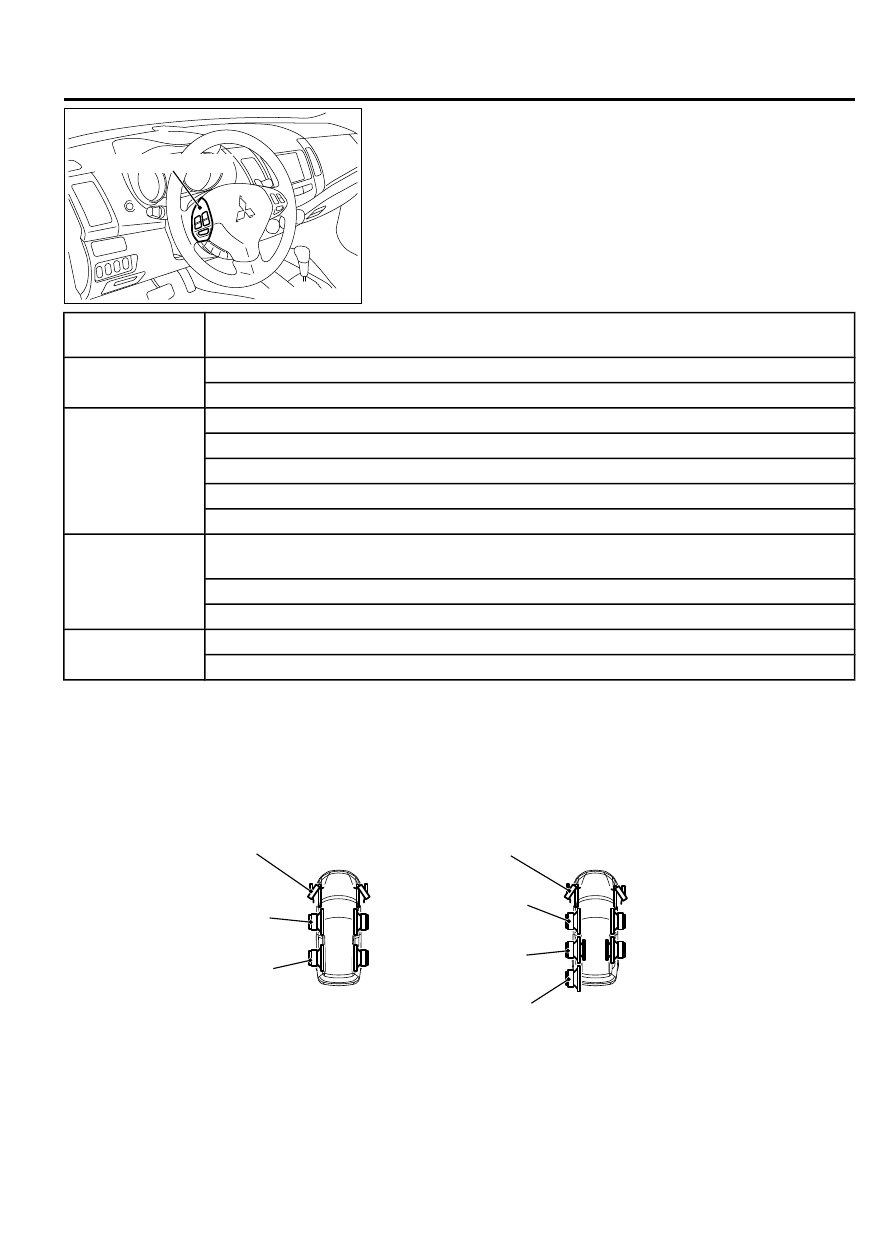

Steering audio switch

The concentrated switch has been established onto
the  steering  wheel  spoke  for  allowing  the  remote
control of audio.

AUDIO OPERATION TONE ALARM

To  prevent  an  audio  operational  error,  the  audio
operation  tone  alarm  confirms  the  audio  operation
which sounds a tone alarm in the combination meter
when  the  audio  is  operated.  The  details  are  as
described in the following table:

Usage category

Confirmation tone alarm sounding condition (with conditions below, tone alarm

sounds for 0.08 seconds)

Radio use

Press and hold "1", "2", "3", "4", "5" or "6" button.

Press and hold "SCAN" button.

CD use

Press and hold the "LOAD" button.

Press and hold the "DISC" button.

Press and hold the "RPT" button.

Press and hold the "RDM" button.

Press and hold the CD eject button

Audio adjustment With "BASS", "MID", "TREBLE", "BALANCE", or "FADER" selected, adjust the adjustment

level to zero.

Select "NORMAL" of "SOUND FIELD".

Select "NORMAL" of "MUSIC TYPE".

Others

Press and hold the "TUNE" knob.

Press and hold the "MODE" switch of steering remote control switch.

SPEAKER

GENERAL INFORMATION

M25403800001USA0000010003

ZC3050480000

AC505569

Front door
speaker

Rear door
speaker

Tweeter

Front door
speaker

Rear door
speaker

Tweeter

Sub woofer

<6 speakers>

<9 speakers>

The following two types of speakers are available.

｠

Six speakers (tweeter: 3.5 cm, front door: 16 cm,
rear door: 16 cm)

｠

Nine speakers (tweeter: 3.5 cm, front door: 16 cm,
rear door: 2-way coaxial 16 cm, subwoofer: 25 cm)
Rockford Fosgate® premium sound system

AUDIO AND NAVIGATION SYSTEM

54B-3

SPEAKER

TWEETER

ZC3050540000

AC505606

Tweeter

Front sash trim

Front sash trim

Tweeter

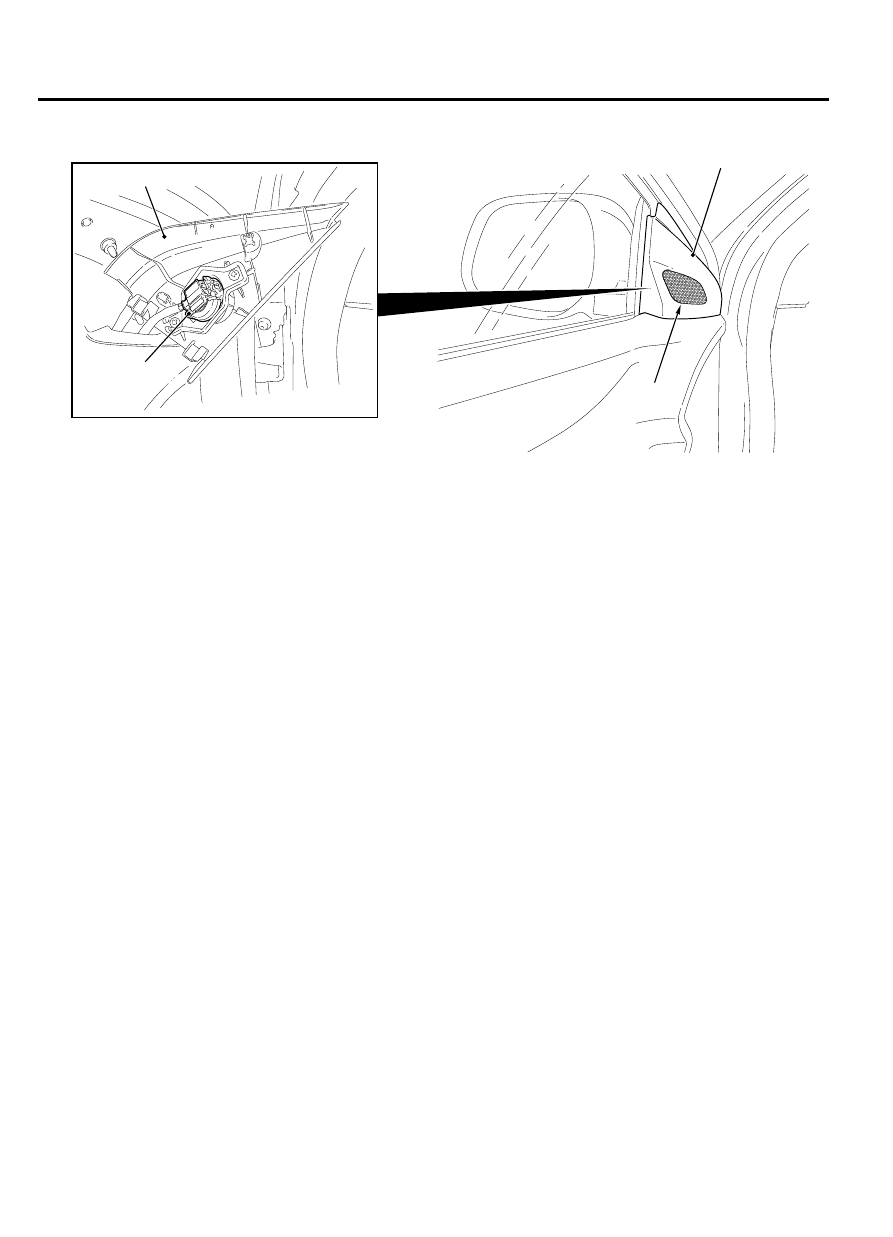

The tweeters are incorporated in the front sash trim.
Also, two types of tweeters, the balance dome tweeter
vehicles  with  six  speakers  and  soft  dome  tweeter

Rockford  Fosgate®  premium  sound  system,  are
available.  The  soft  dome  tweeter  can  play  clearer
treble  with  less  distortion  compared  to  the  balance
dome tweeter.

54B-4

AUDIO AND NAVIGATION SYSTEM

SPEAKER

DOOR SPEAKER

ZC3050550000

AC505608

Front door speaker

Rear door speaker

Sheet metal
cover*

Resin cover*

Resin cover*

Resin cover*

Front door water
proof film

Rear door water
proof film

Urethane integrated
resin sheet*

Urethane integrated
resin sheet*

NOTE:

The parts with "*" are installed

exclusively to the vehicles with Rockford Fosgate®
premium sound system.

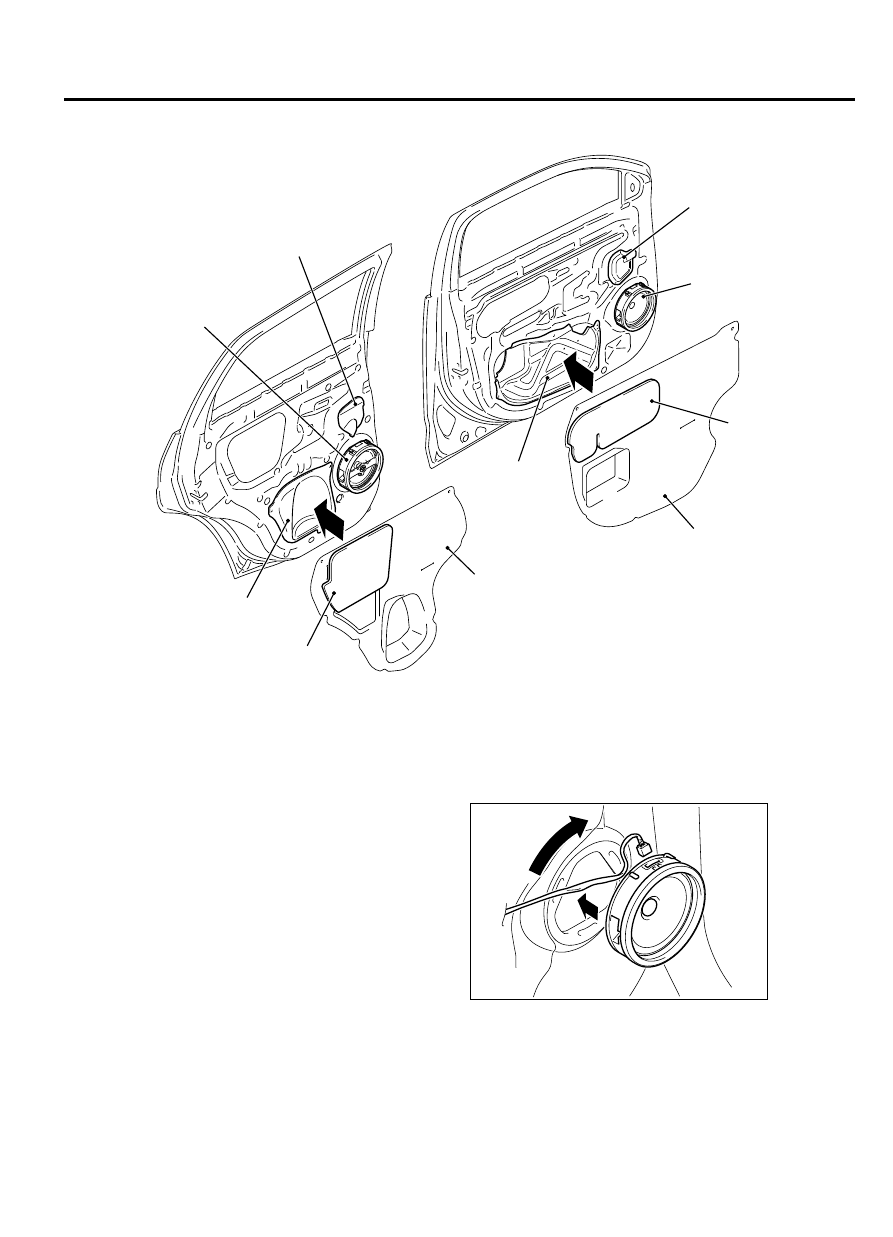

For the front door speaker, two types of speakers, 16-
cm paper cone speaker vehicles with 6 speakers and
PP (polypropylene) cone speaker Rockford Fosgate®
premium  sound  system,  are  available.  For  the  rear
door  speaker,  two  types  of  speakers,  16-cm  paper
cone  speaker  vehicles  with  6  speakers  and  PP
(polypropylene) cone 2-way coaxial speaker Rockford
Fosgate®  premium  sound  system,  are  available.
Compared  to  the  paper  cone  speakers,  the  PP
(polypropylene) cone speakers can playback crisper
bass. The door opening of the vehicles with Rockford
Fosgate® premium sound system is blocked by using
the  sheet  metal  cover  and  the  urethane  integrated
resin sheet (resin cover and water proof film) to make
the door into a speaker box, thus improving the sound

quality. As an advantage of the sheet metal cover, the
rigidity  of  the  areas  around  the  speaker  has  been
increased,  and  the  higher  sound  pressure,
suppression  of  high  harmonic,  and  suppression  of
dumping are achieved to improve sound quality.

ZC3060770000

AC507245

The one-touch installable speaker (with 3 tabs, fixed
by  rotating)  has  been  adopted  to  improve
serviceability.

SUB WOOFER <VEHICLES WITH Rockford

AUDIO AND NAVIGATION SYSTEM

54B-5

SPEAKER
