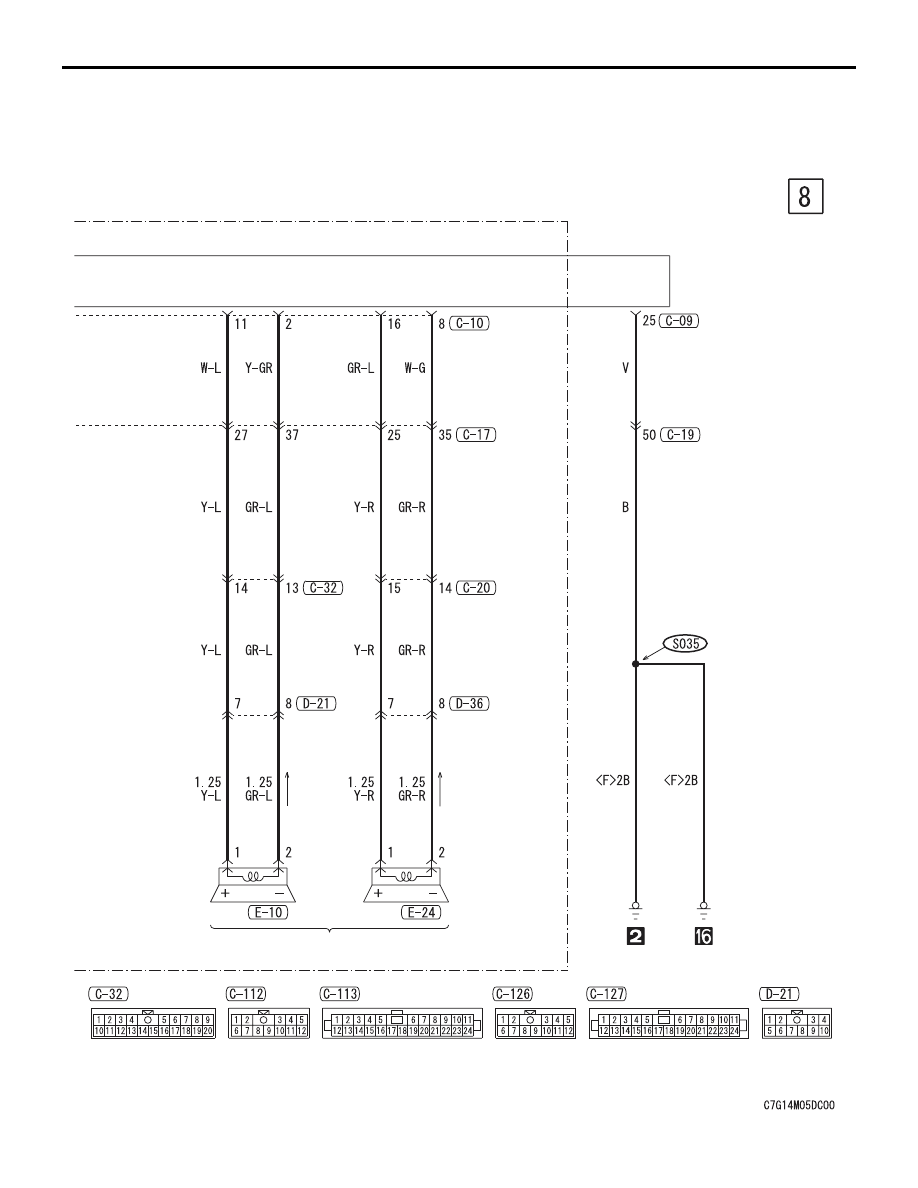

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-193

REAR DOOR SPEAKER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-194

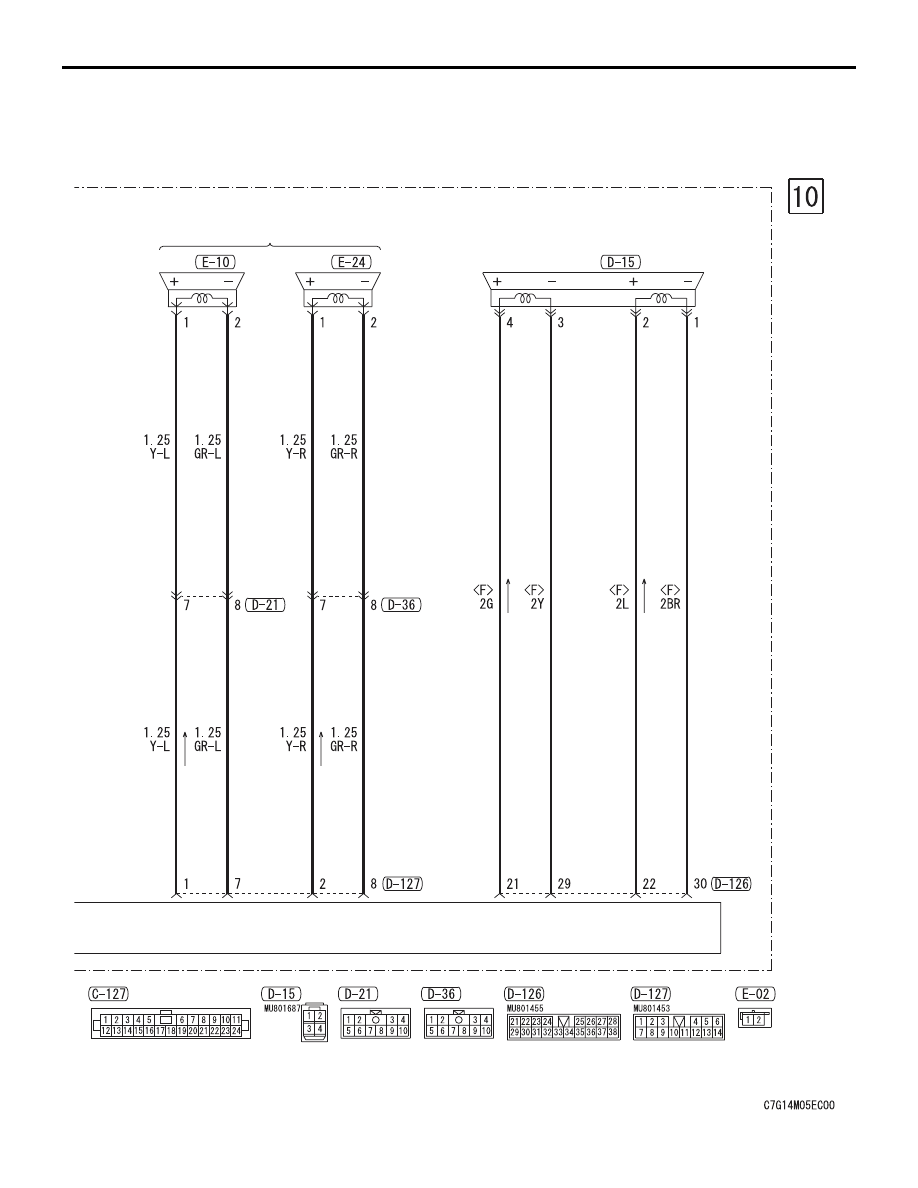

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) (CONTINUED)

AUDIO AMPLIFIER

TWEETER

FRONT DOOR SPEAKER

(LH)

(LH)

(RH)

(RH)

<VEHICLES WITH AUDIO AMPLIFIER>

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-195

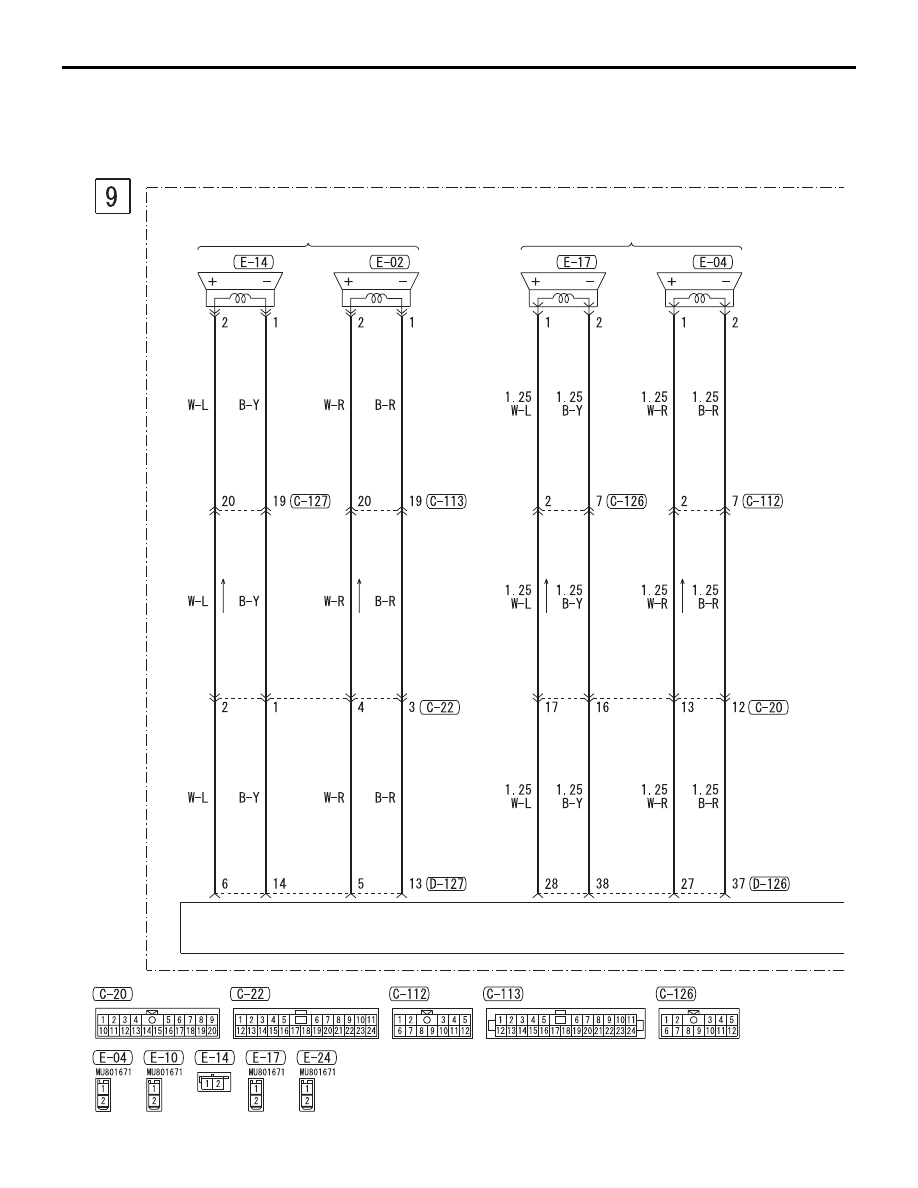

REAR DOOR SPEAKER

SUB WOOFER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-196

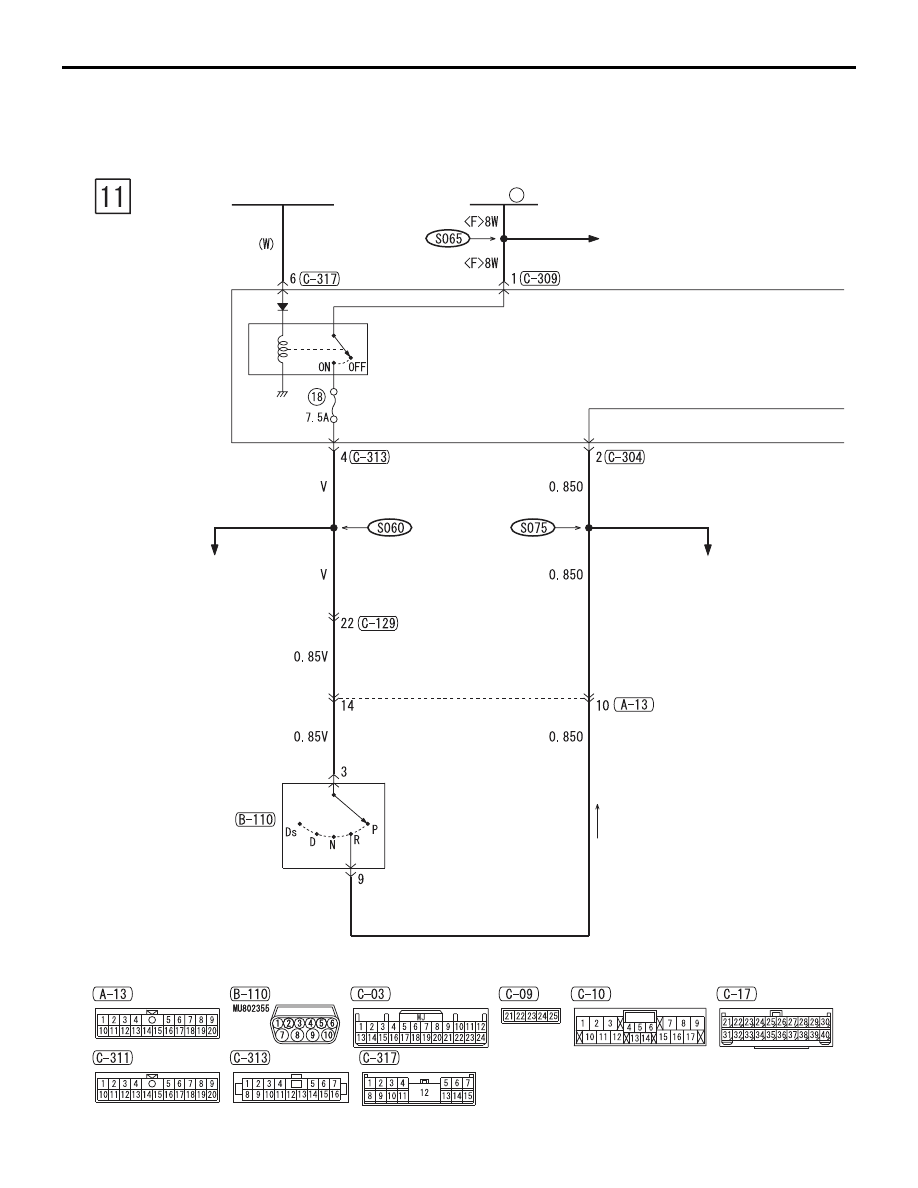

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) (CONTINUED)

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

TRANSMISSION
RANGE SWITCH

POWER
DISTRIBUTION
SYSTEM

ETACS-ECU

·SHIFT LOCK MECHANISM
·SPARE CONNECTOR
 (FOR TRAILER LIGHT)
·STOPLIGHT

INVECS-II 6A/T
