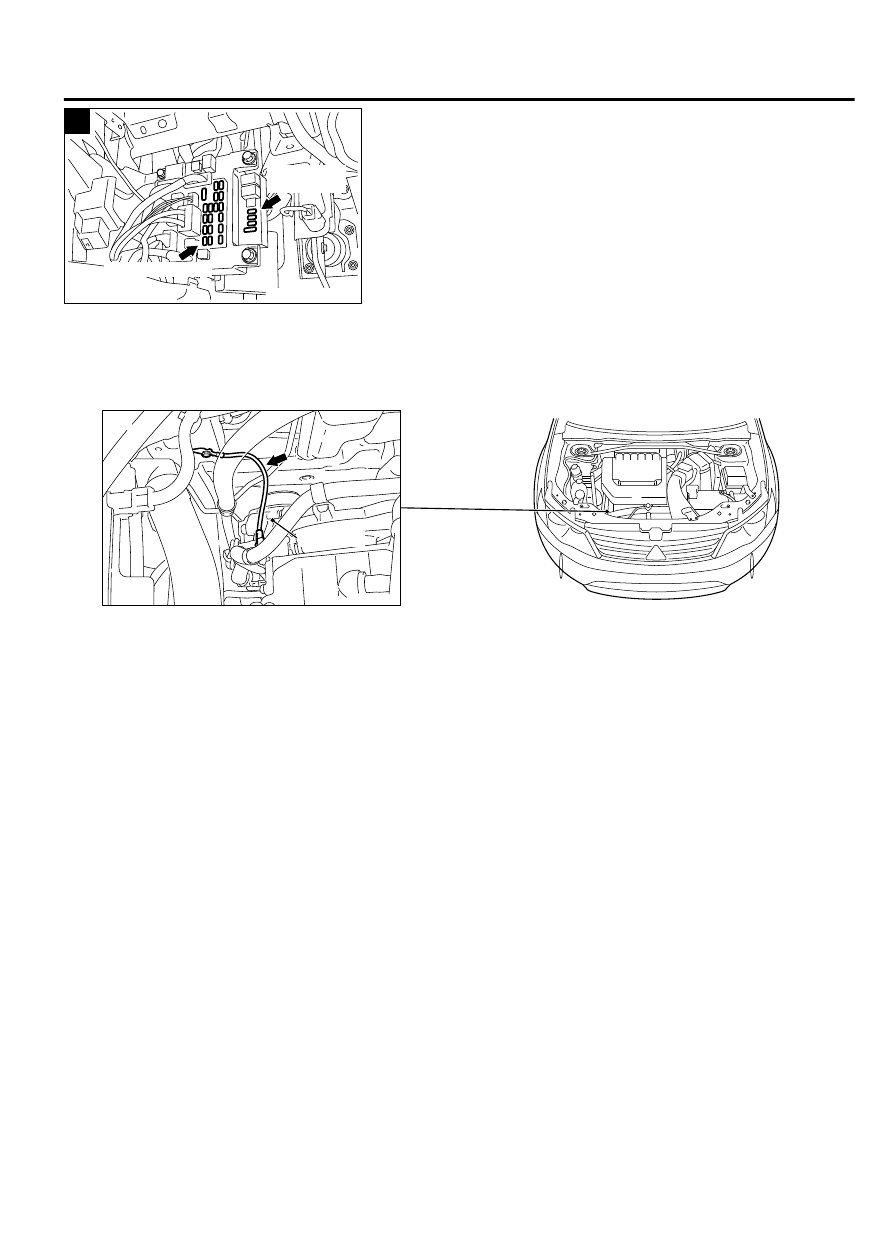

Fuse Nos.22
to 25

Fuse Nos.2 to 19

GROUNDING CABLE

M17001000010USA0000010000

ZC6030410000

Generator

COMPONENT LOCATIONS

70-19

GROUNDING CABLE

GROUNDING

M17001000003USA0000010000

ZC6003220002

12

13

14

15

1

4

3

2

11

16

17

18

10

9

8

19

5

6

7

NOTE:

1 to 19 numbers correspond to the body

ground point numbers in CIRCUIT DIAGRAMS.

ZC6010390000

1

ZC6010470000

2

70-20

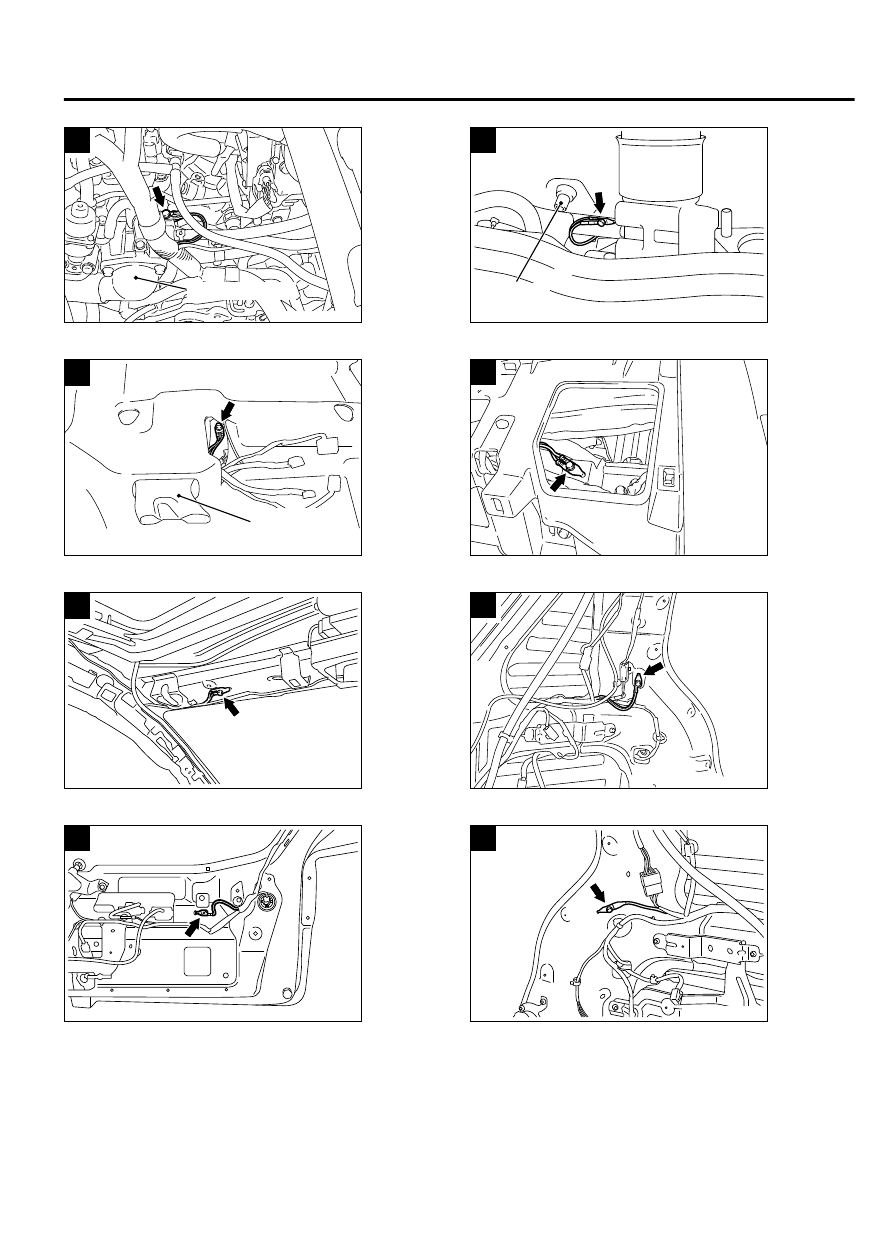

COMPONENT LOCATIONS

GROUNDING



ZC6010420000

3

Water inlet fitting

ZC6016380000

4

Drain hose



ZC6030320000

5

Rear heater
duct (RH)

ZC6010490000

6



ZC6030350000

7

ZC6016440000

8



ZC6016450000

9

ZC6016460000

10



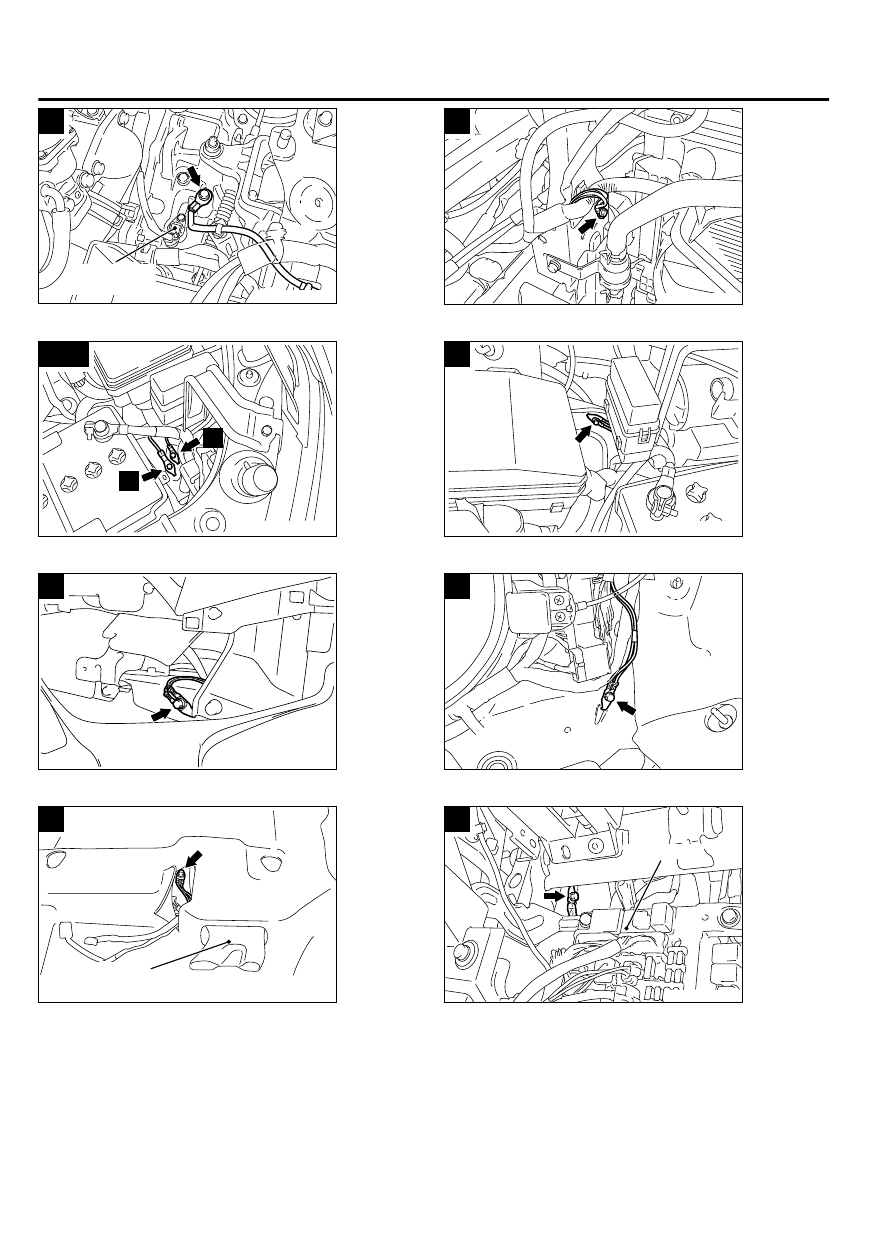

COMPONENT LOCATIONS

70-21

GROUNDING

ZC6010440000

11

Input shaft
speed sensor

ZC6010410000

12



ZC6010330000

13

14

14

13,

ZC6010340000

15



ZC6036570000

16

ZC6010480000

17



ZC6030330000

18

Rear heater
duct (LH)

ZC6010500000

19

ETACS-ECU



70-22

COMPONENT LOCATIONS

GROUNDING
