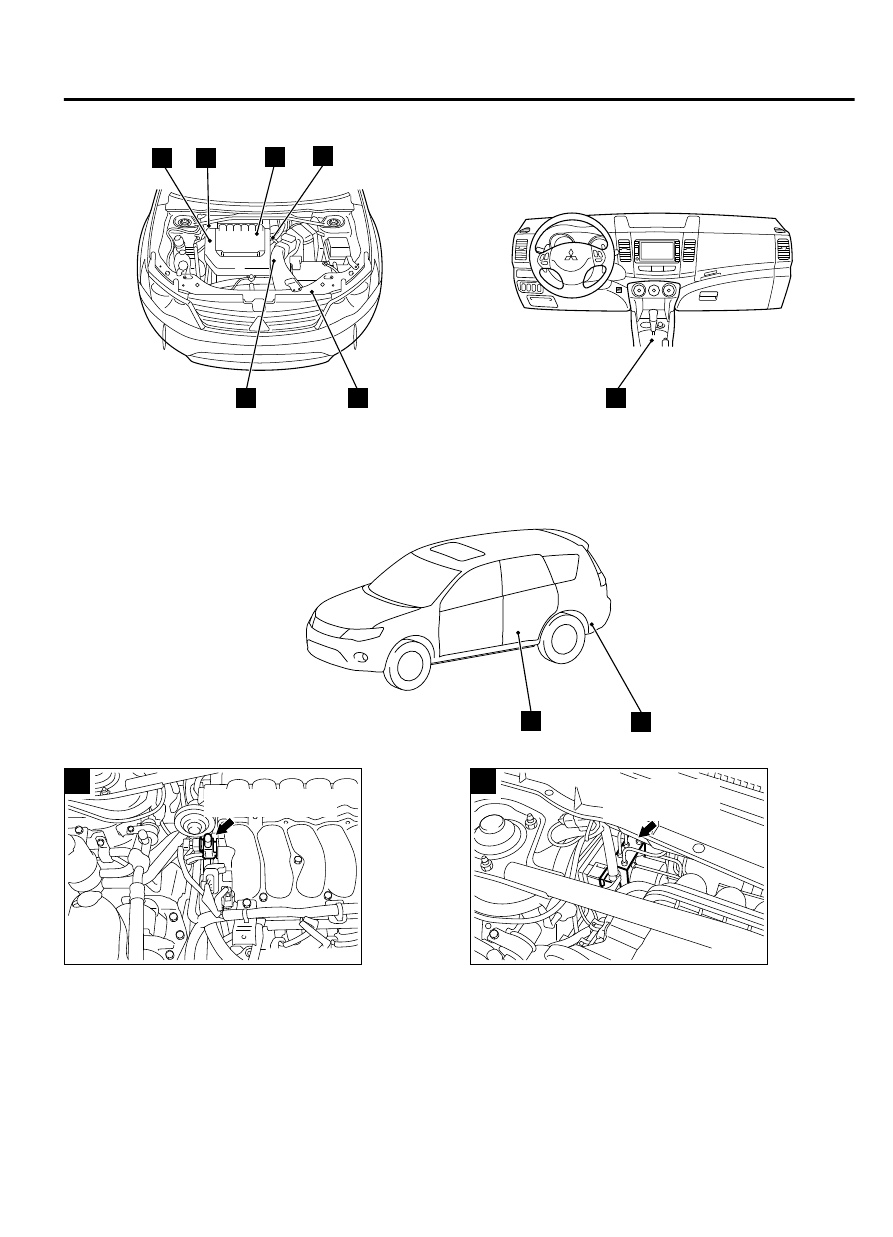

Variable intake air
control solenoid valve

0000

A

ZC603389

Hydraulic unit
(incorporating ABS
solenoid valve)

0000

B



COMPONENT LOCATIONS

70-15

SOLENOID AND SOLENOID VALVE

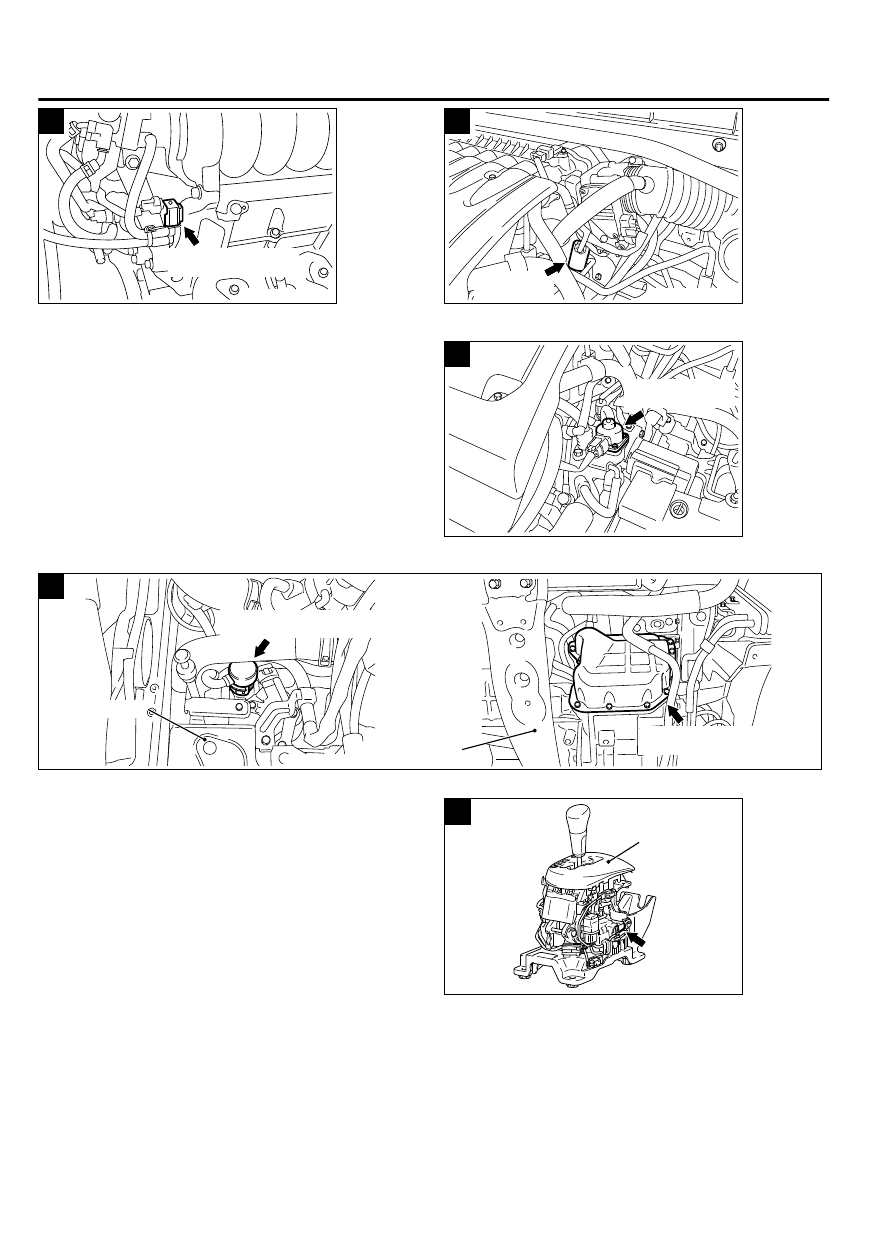

ZC601639

Evaporative emission
purge solenoid

0000

C

ZC601356

Engine oil
control valve

0000

D



ZC601153

Exhaust gas
recirculation valve

0000

E



ZC603369

A/T control solenoid valve
assembly connector

0000

F

A/T control solenoid
valve assembly

Battery tray

Centermember



ZC603489

G

0000

Shift lock
solenoid

Selector lever
assembly



70-16

COMPONENT LOCATIONS

SOLENOID AND SOLENOID VALVE

ZC6033890000

Electronic control
coupling solenoid

H

Electronic control
coupling solenoid
connector

<AWD>



ZC6013610000

Evaporative emission
ventilation solenoid

I

Spare tire

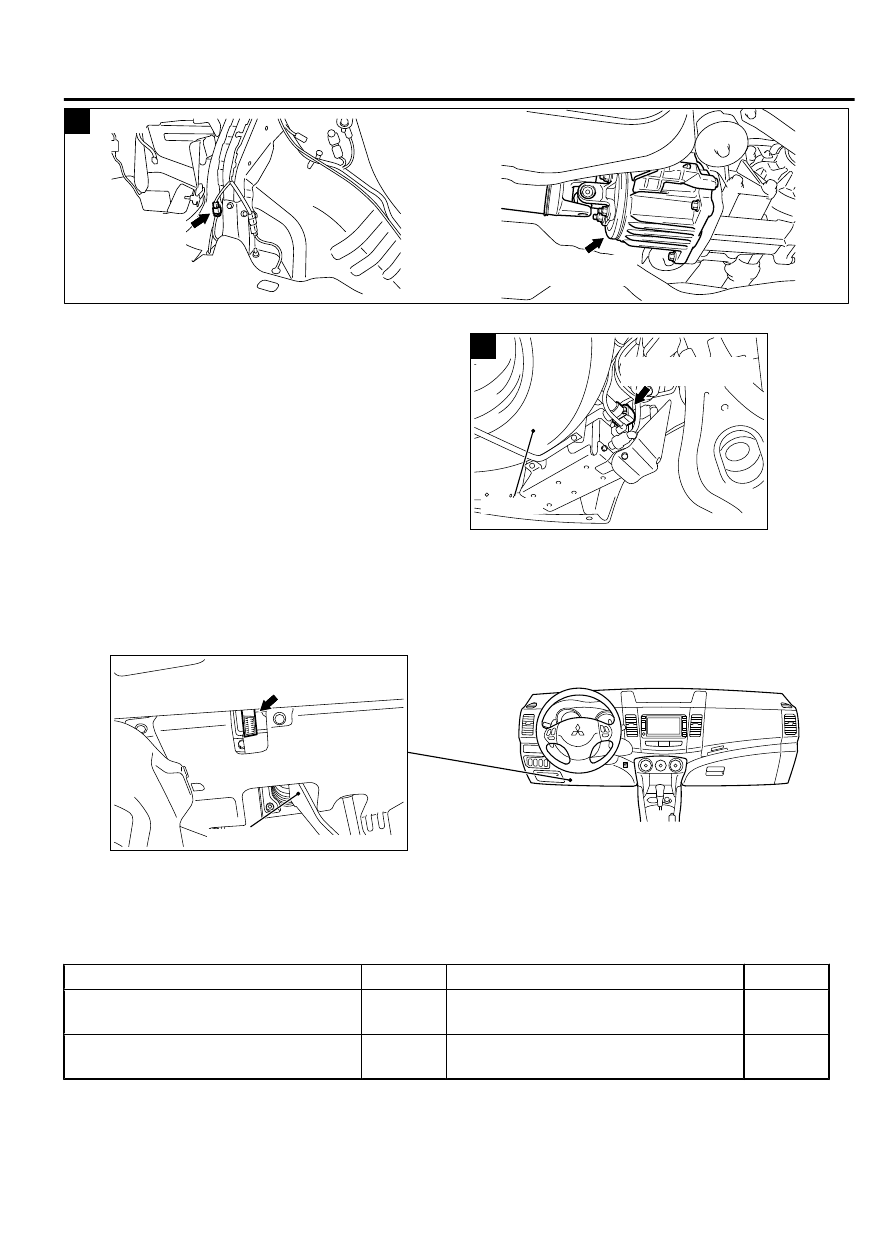

INSPECTION TERMINAL

M17001000002USA0000010000

ZC603332

Data link connector

Brakepedal

0000

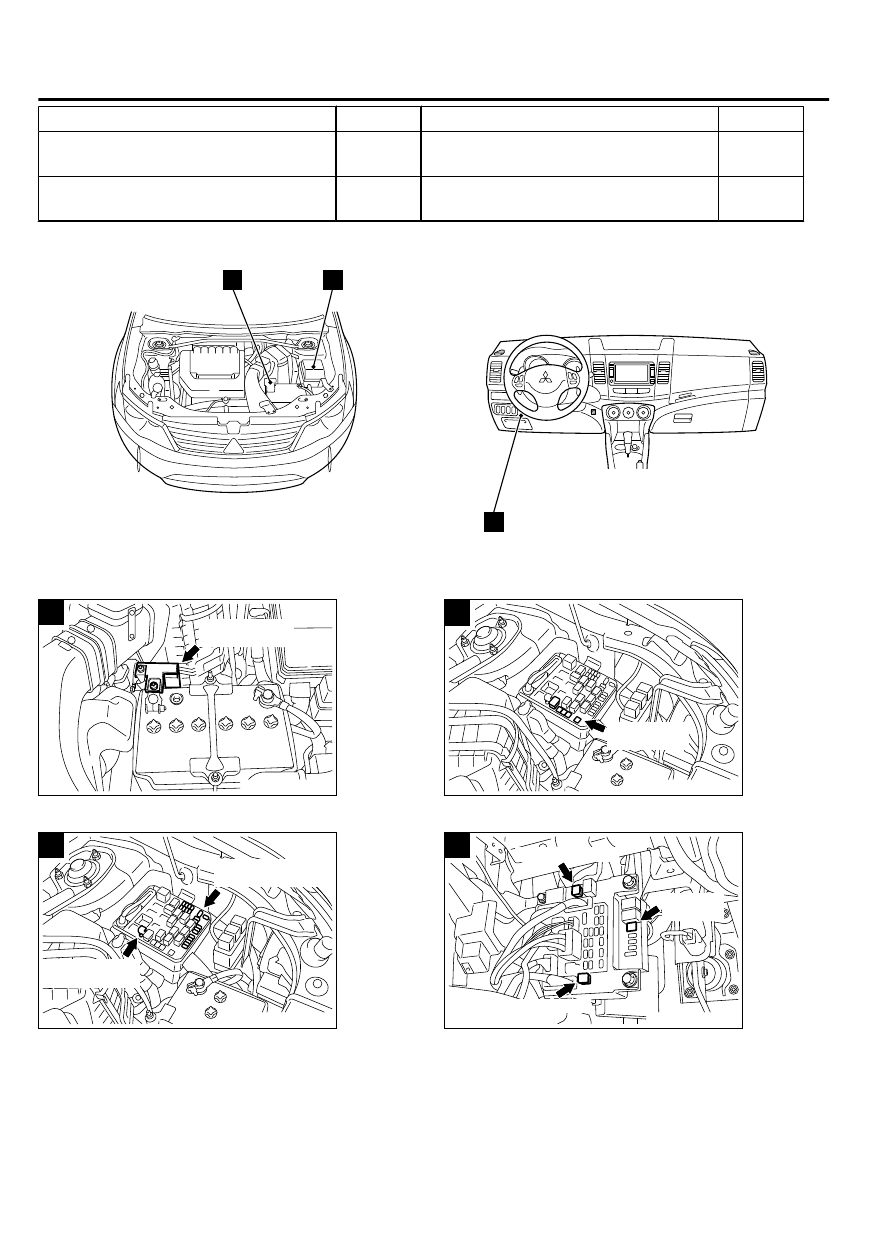

FUSIBLE LINK, FUSE AND IOD OR STORAGE CONNECTOR

M17001000001USA0000010000

Name

Symbol

Name

Symbol

Fuse  Nos.1  to  23  and  No.31  to  32
(engine compartment relay box)

B

Fusible

 link

 Nos.21

 (passenger

compartment relay box)

C

Fuse Nos.2 to 19 (ETACS-ECU)

C

Fusible  link  Nos.24  to  30  (engine
compartment relay box)

B

COMPONENT LOCATIONS

70-17

INSPECTION TERMINAL

Name

Symbol

Name

Symbol

Fuse  Nos.22  to  25  (passenger
compartment relay box)

C

Fusible  link  Nos.33  to  37  (connected
directly to battery positive terminal)

A

Fusible link Nos.1 and No.20 (ETACS-
ECU)

C

IOD or storage connector

B

ZC601643

A

B

C

0001



ZC6010370000

A

Fusible link
Nos.33 to 37

ZC6010360000

B

Fusible link
Nos.24 to 30



ZC6010360001

B

Fuse Nos.1 to 23
and 31 to 32

IOD or storage
connector

ZC6011500000

C

Fusible
link No.21

Fusible link No.20

Fusible link No.1



70-18

COMPONENT LOCATIONS

FUSIBLE LINK, FUSE AND IOD OR STORAGE CONNECTOR
