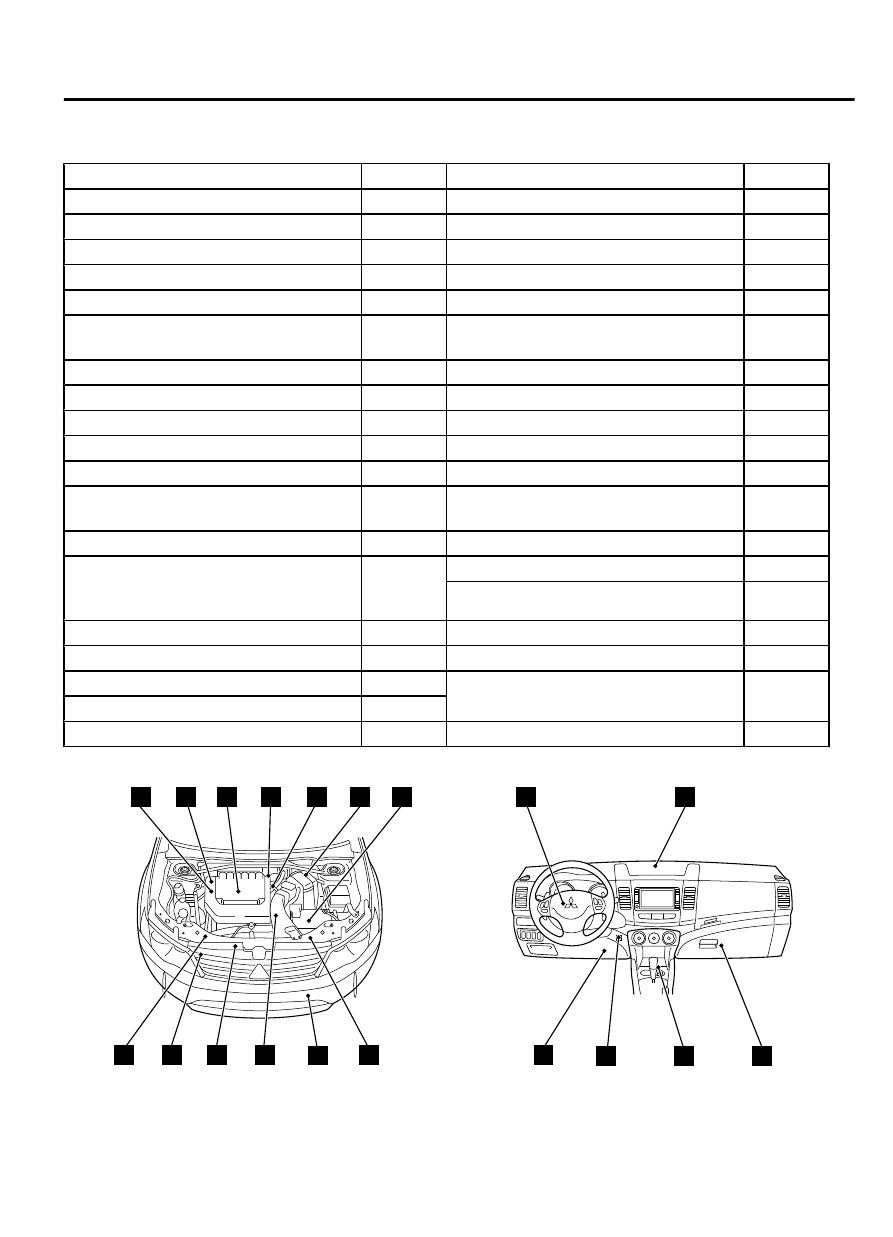

SENSOR

M17001000006USA0000010000

Name

Symbol

Name

Symbol

A/C pressure sensor

I

Knock sensor 2

C

Accelerator pedal position sensor

P

Left bank heated oxygen sensor (front) J

Air thermo sensor

S

Left bank heated oxygen sensor (rear) Z

Ambient temperature sensor

L

Manifold absolute pressure sensor

D

Camshaft position sensor

K

Mass airflow sensor

F

Center  exhaust  pipe  heated  oxygen
sensor

W

Output shaft speed sensor

a

Crankshaft position sensor

A

Photo sensor

O

Engine coolant temperature sensor

E

Power steering pressure sensor

B

Front height sensor

X

Radiator sensor

H

Front impact sensor

M

Rear hight sensor

T

Front wheel speed sensor

b

Rear wheel speed sensor

g

Front  paseenger’s  seat  (incorporating
weight sensor)

V

Right bank heated oxygen sensor (front) Y

Fuel level sensor (sub)

U

Right bank heated oxygen sensor (rear) Y

Fuel  pump  module  (incorporating  fuel
level  sensor  (main)  and  fuel  tank
temperature sensor)

f

Seat slide sensor

c

Side impact sensor (front)

e

Fuel tank differential pressure sensor

f

Side impact sensor (rear)

h

G and yaw rate sensor

R

Steering wheel sensor

N

Input shaft speed sensor

G

Throttle  body  assembly  (incorporating
throttle position sensor)

D

Interior temperature sensor

Q

Knock sensor 1

C

Unlock sensor

d

ZC6016430004

A

B

D

E

F

C

G

H

I

J

K

L

M

N

O

P

Q

R

S

*

COMPONENT LOCATIONS

70-7

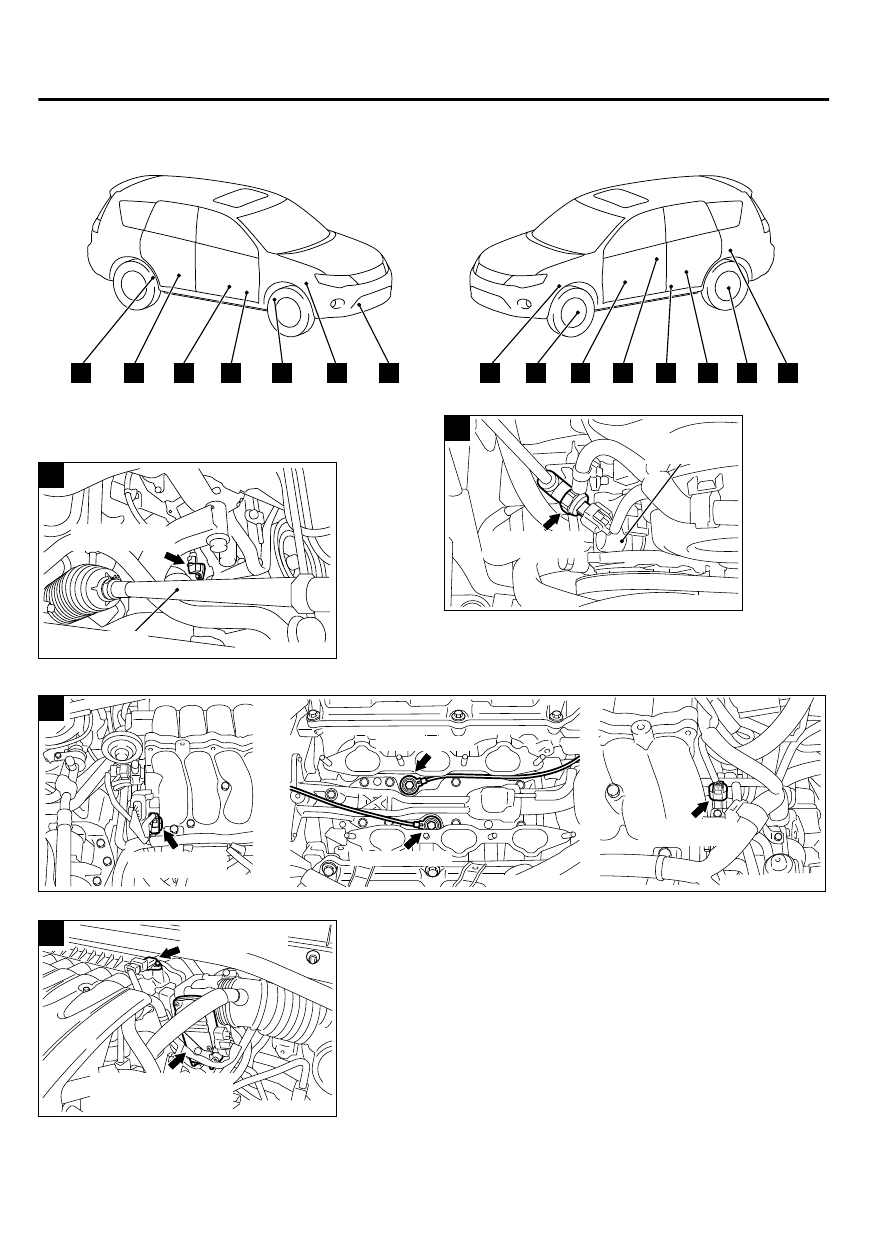

SENSOR

ZC603617

T

U

V

W

X

Y

Z

0000

a

b

d

e

f

g

h

c

*

*

*

*

*

NOTE:

The * symbols indicate equipment at both

sides.

ZC6016410000

A

Tie rod

Crank shaft
position sensor

ZC6016330000

Power steering
oil pump

Power steering
pressure sensor

B



ZC603621

Knock sensor 1

0000

C

Knock sensor 2

Knock sensor 1
connector

Knock sensor 2
connector



ZC601355

Manifold absolute
pressure sensor

0000

Throttle body assembly
(incorporating throttle
position sensor)

D

70-8

COMPONENT LOCATIONS

SENSOR

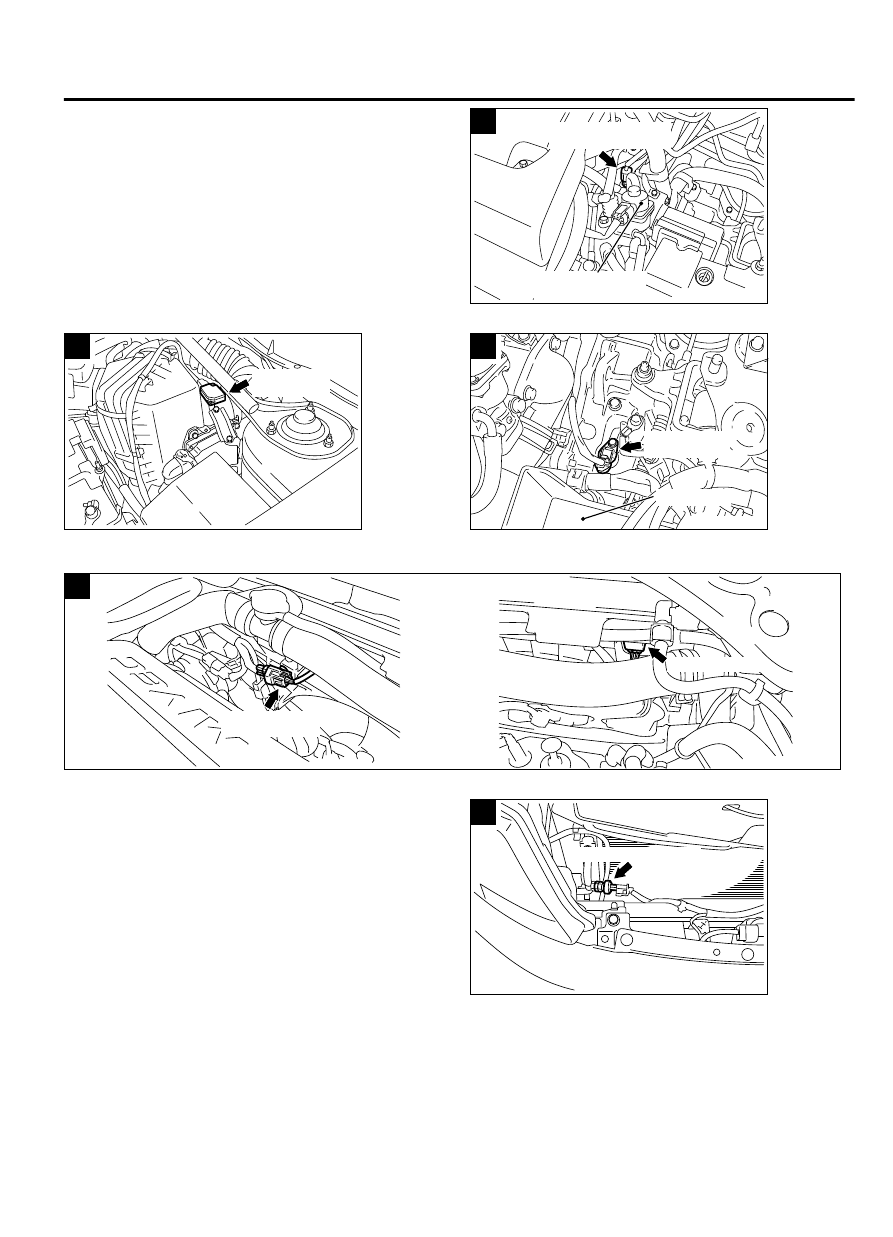

ZC601154

Engine coolant
temperature sensor

0000

Exhaust gas
recirculation valve

E



ZC601032

Mass airflow
sensor

0000

F

ZC601043

Input shaft
speed sensor

0000

G

Battery tray



ZC603704

H

Radiator sensor
connector

0000

Radiator sensor



ZC603622

A/C pressure sensor

0000

I



COMPONENT LOCATIONS

70-9

SENSOR

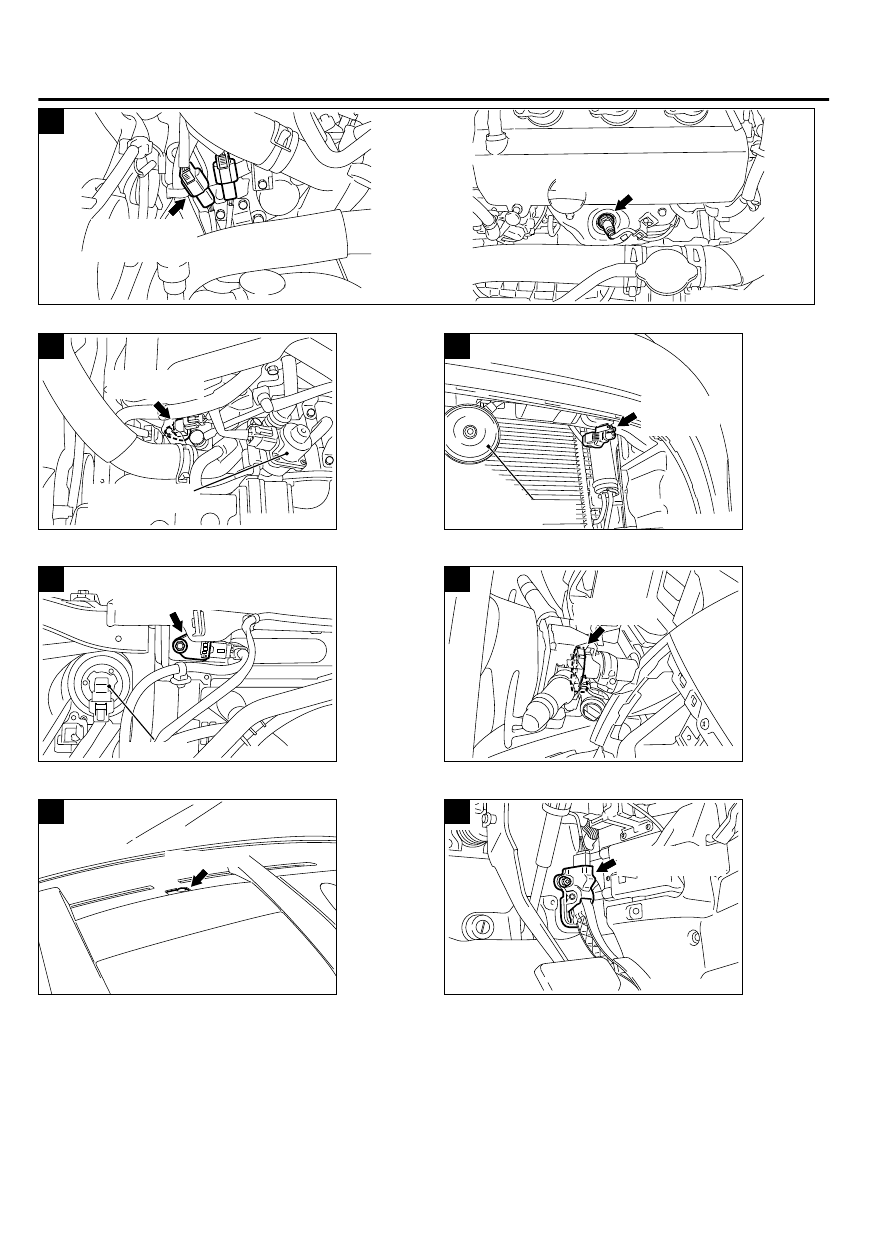

ZC603623

Left bank heated oxygen
sensor (front)

0000

J

Left bank heated
oxygen sensor
(front) connector



ZC6011560000

K

Camshaft
position sensor

Exhaust gas
recirculation valve

ZC6036240000

Ambient
temperature
sensor

Horn (low)

L



ZC6010560000

Front impact sensor

M

Headlight

ZC6013580000

Steering
wheel sensor

N



ZC6036250000

Photo sensor

O

ZC601152 0000

Accelerator pedal
position sensor

P



70-10

COMPONENT LOCATIONS

SENSOR
