RESISTANCE
TEMPERATURE °C (°F)
(k
W
)
NOTE:
The temperature conditions when checking should not
exceed the range shown in the diagram.
PHOTO SENSOR AND SECURITY INDICATOR CHECK
1.
Connect scan tool MB991958, and check the data list of the
photo sensor and security indicator. (Refer to P.55B-13)
2.
Check that the displayed value changes when you cover the
photo sensor and security indicator with your hands or a shop
towel.
OTHER PARTS
OTHER PARTS MAINTENANCE SERVICE POINTS
M15504000040USA0000010000
The following maintenance service points are the
same as for the manual A/C.
ITEM
REFERENCE PAGE
ON-VEHICLE
SERVICE
AIR CONDITIONING COMPRESSOR CLUTCH TEST
SIMPLE INSPECTION OF THE A/C PRESSURE SENSOR
COMPRESSOR DRIVE BELT ADJUSTMENT
REFRIGERANT LEVEL CHECK, DRAING, AND CHARGING
PERFORMANCE TEST
REFRIGERANT LEAK REPAIR
COMPRESSOR NOISE CHECK

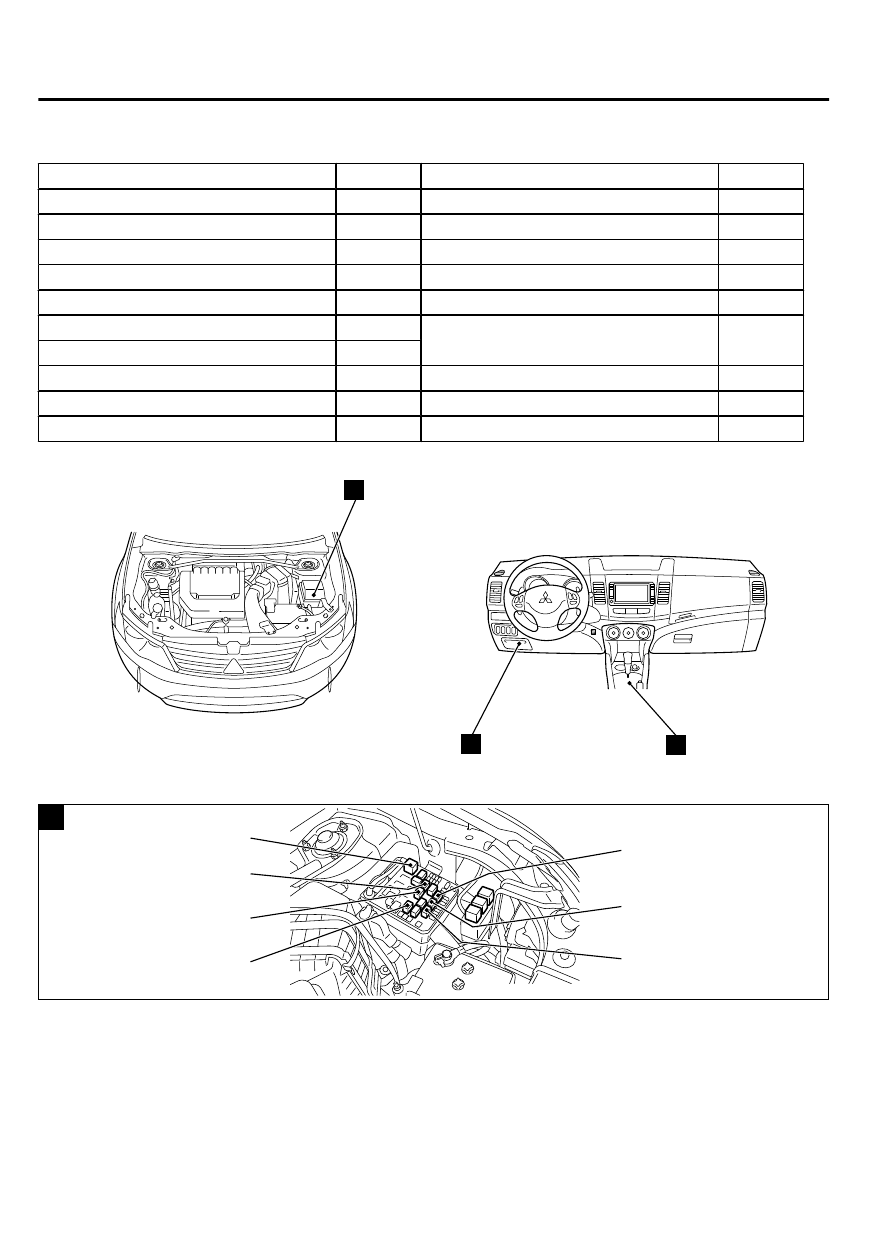

POWER RELAY CONTINUITY CHECK
IDLE-UP OPERATION CHECK
HEATER CONTROL (A/C-ECU)
HEATER UNIT AND FRONT DECK CROSSMEMBER ASSEMBLY
MOTORS AND TRANSISTOR
AMBIENT AIR TEMPERATURE SENSOR
A/C-ECU
A/C COMPRESSOR
CONDENSER
REFRIGERANT LINE
AUTOMATIC AIR CONDITIONING
