Mitsubishi Outlander XL. Manual - part 1142





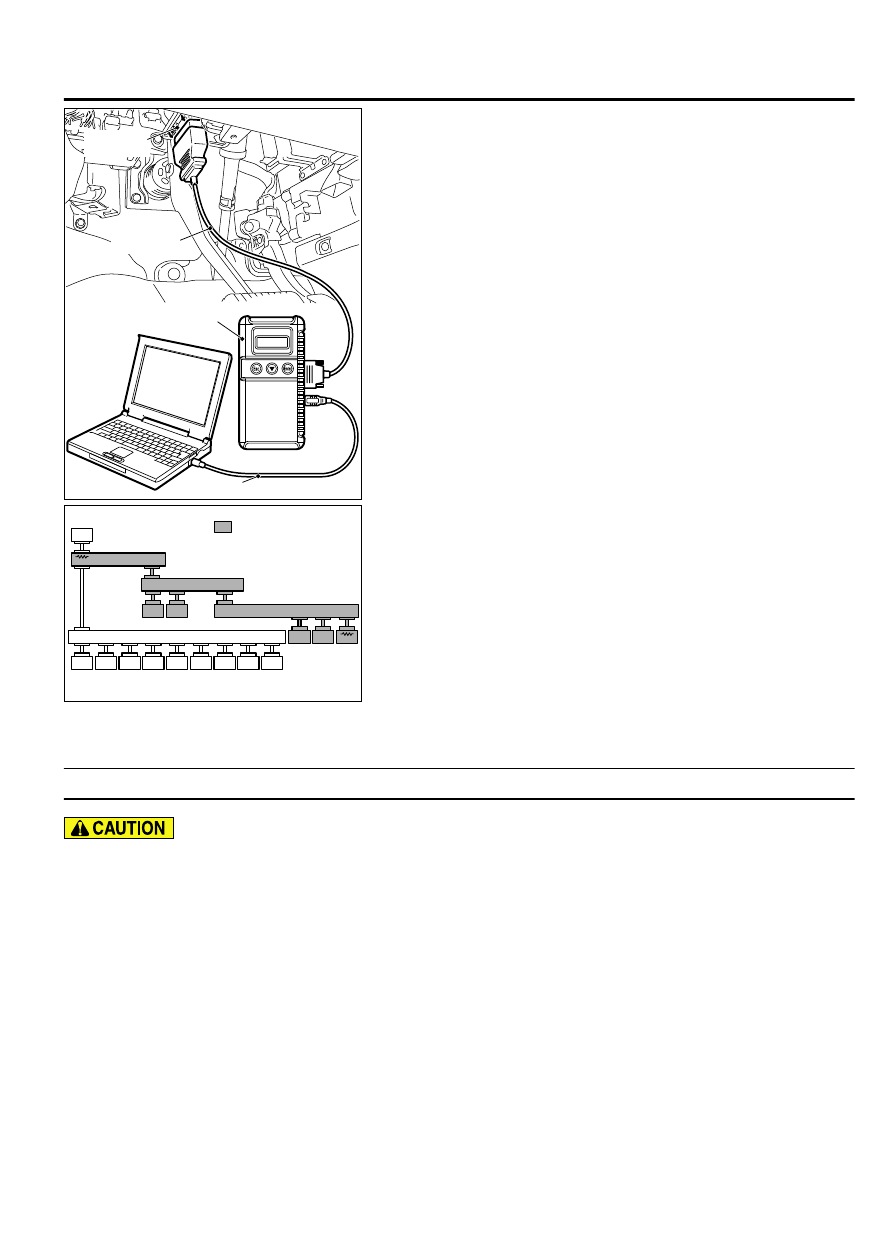

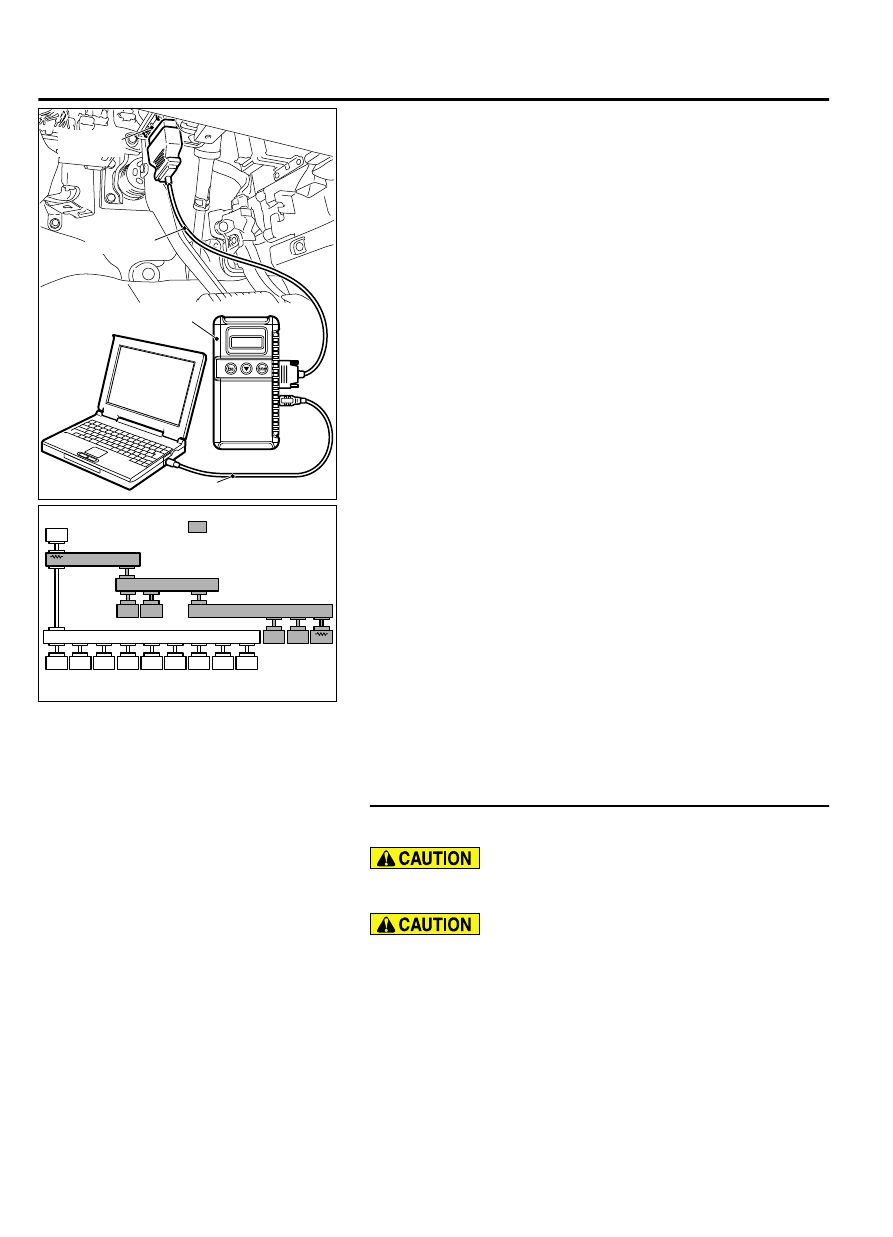

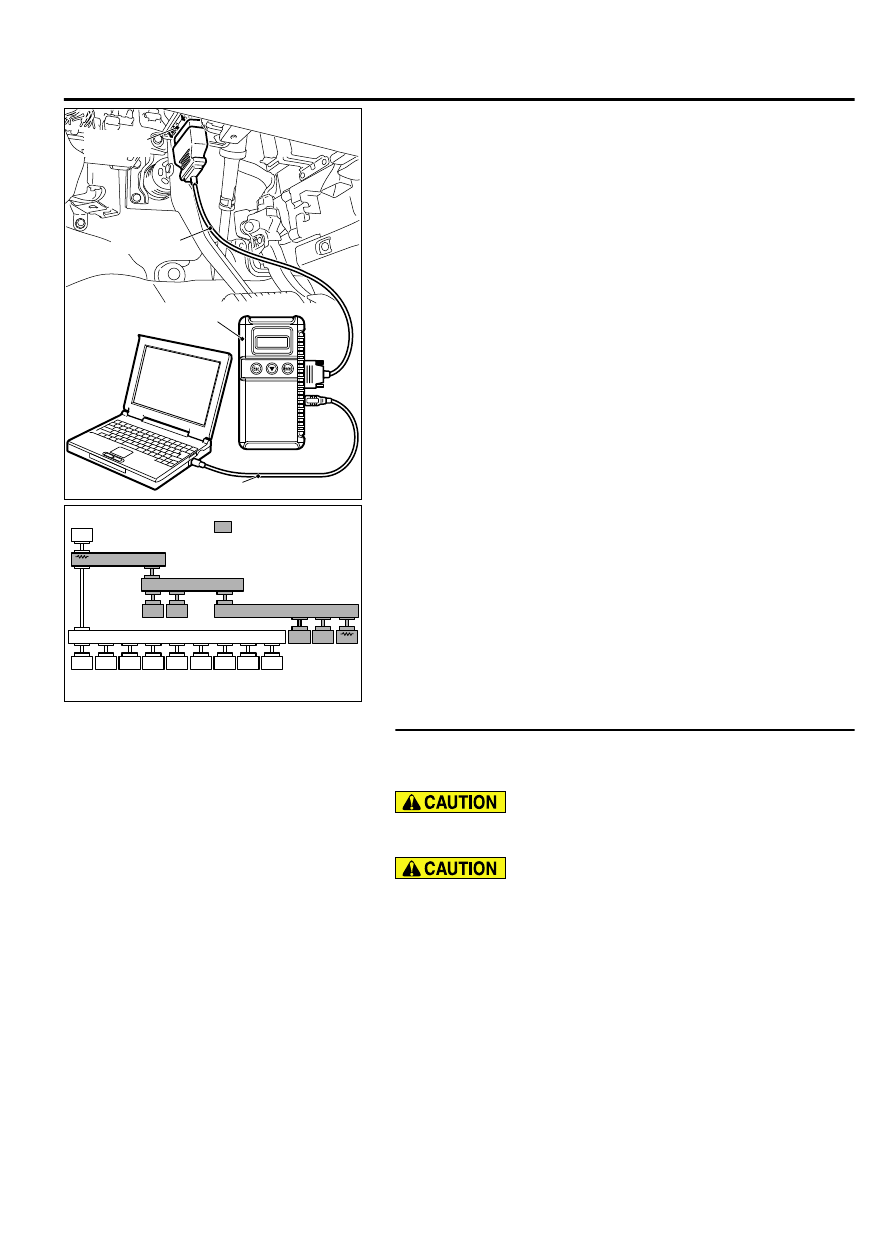

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Repair the wiring harness between ECM connector B-11

and joint connector (CAN3) C-01.

NO:

 Check ECM connector B-11, and repair if necessary.

If the ECM connector is in good condition, replace the
ECM.

STEP 11. Using scan tool MB991958, diagnose the CAN bus
line. (checking the ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC> for internal short to ground)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Disconnect  ABS-ECU  connector  A-01  <vehicles  without
ASC> or ASC-ECU connector A-02 <vehicles with ASC>.

CONTROLLER AREA NETWORK (CAN)

54D-51

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Repair the wiring harness between ABS-ECU connector

A-01 <vehicles without ASC> or ASC-ECU connector A-02
<vehicles with ASC> and joint connector (CAN3) C-01.

NO:

 Check ABS-ECU connector A-01 <vehicles without ASC>

or ASC-ECU connector A-02 <vehicles with ASC>, and repair
if necessary. If the ABS-ECU connector <vehicles without
ASC> or ASC-ECU connector <vehicles with ASC> is in good
condition, replace the ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC>.

STEP 12. Using scan tool MB991958, diagnose the CAN bus
line. (checking the TCM for internal short to ground)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Disconnect TCM connector C-38.

54D-52

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Repair the wiring harness between TCM connector C-38

and joint connector (CAN3) C-01.

NO:

 Check TCM connector C-38, and repair if necessary.

If the TCM connector is in good condition, replace the
TCM.

DIAGNOSTIC ITEM 5: Diagnose shorts in the power supply to CAN-C bus line.

M15408300010USA0000010000

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted

water  pipe.  If  you  fail  to  do  so,  a  component
connected to the CAN bus line may be damaged.

CONTROLLER AREA NETWORK (CAN)

54D-53

DIAGNOSIS

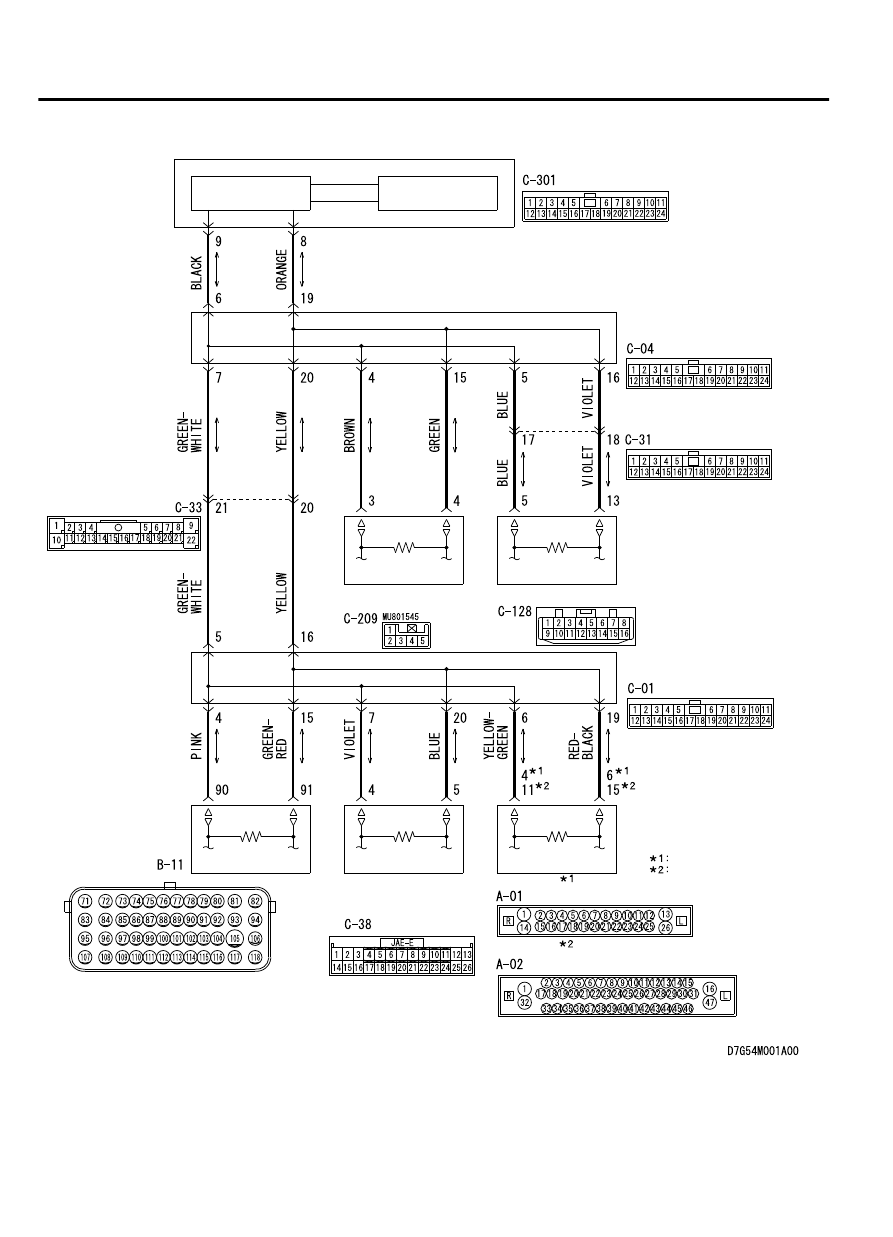

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

STEERING WHEEL
SENSOR

AWD-ECU

JOINT CONNECTOR
(CAN2)

JOINT CONNECTOR
(CAN3)

TRANSMISSION
CONTROL
MODULE

ASC-ECU

ABS-ECU

ENGINE
CONTROL
MODULE

NOTE

VEHICLES WITHOUT ASC
VEHICLES WITH ASC

54D-54

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
