Mitsubishi Outlander XL. Manual - part 1143

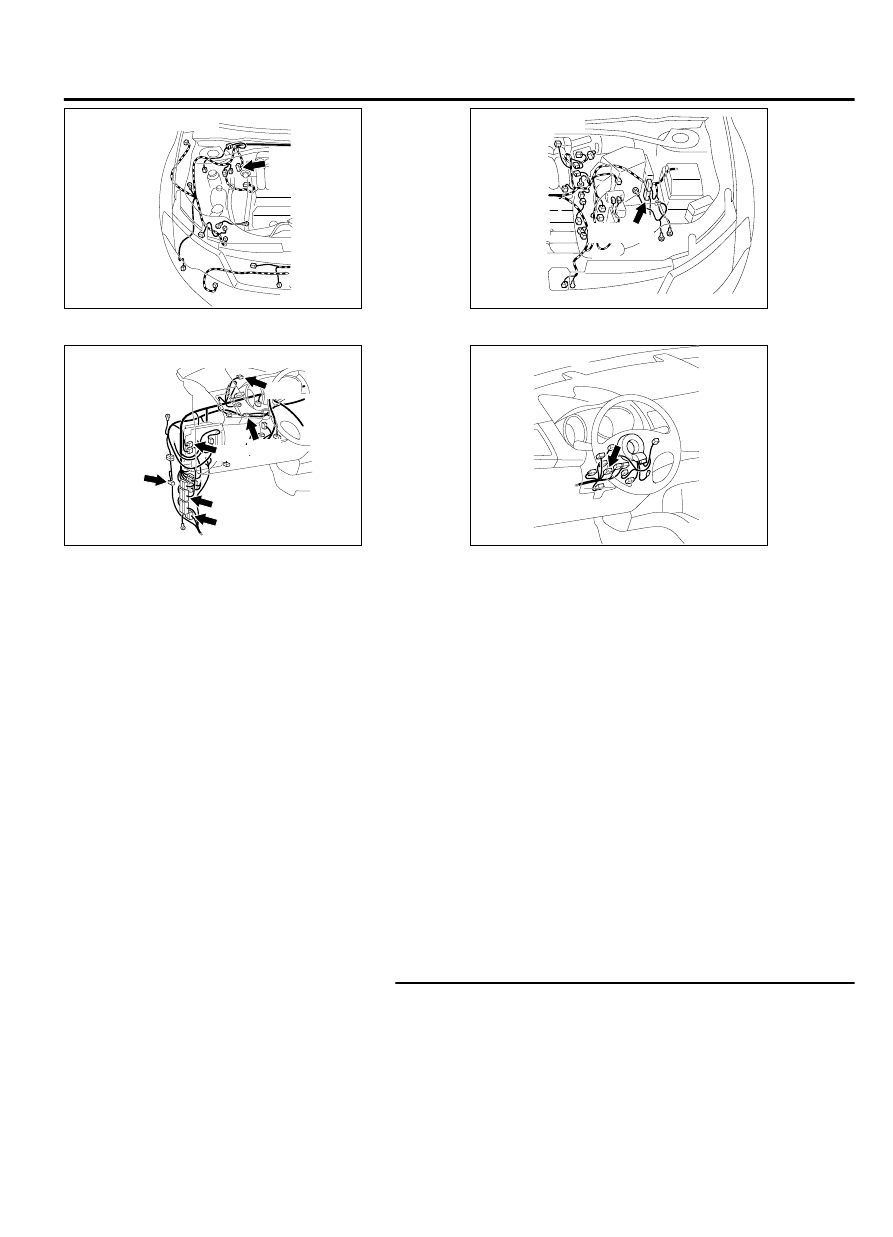

ZC6008710000

Connectors: A-01, A-02

A-01 (B)
or
A-02 (B)

ZC6008740000

Connector: B-11

B-11 (GR)



ZC6008750001

C-128

C-128

C-33

C-31

Connectors: C-01, C-04, C-31, C-33, C-38,

C-04

C-01

C-38

ZC6008770000

Connector: C-209



FUNCTION
If  a  short  to  power  supply  is  present  in  the  CAN-C
lines, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
The  wiring  harness  wire  or  connectors  may  have
loose,  corroded,  or  damage  terminals,  or  terminals
pushed  back  in  the  connector,  or  an  ECU  may  be
defective.

TROUBLESHOOTING HINTS

｠

Malfunction of the connector (short to power supply
in connector)

｠

Malfunction  of  the  wiring  harness  (short  to  power
supply in the CAN-C main or sub bus lines)

｠

Malfunction of the ECU (ETACS-ECU, or ECUs on
CAN-C lines failed)

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

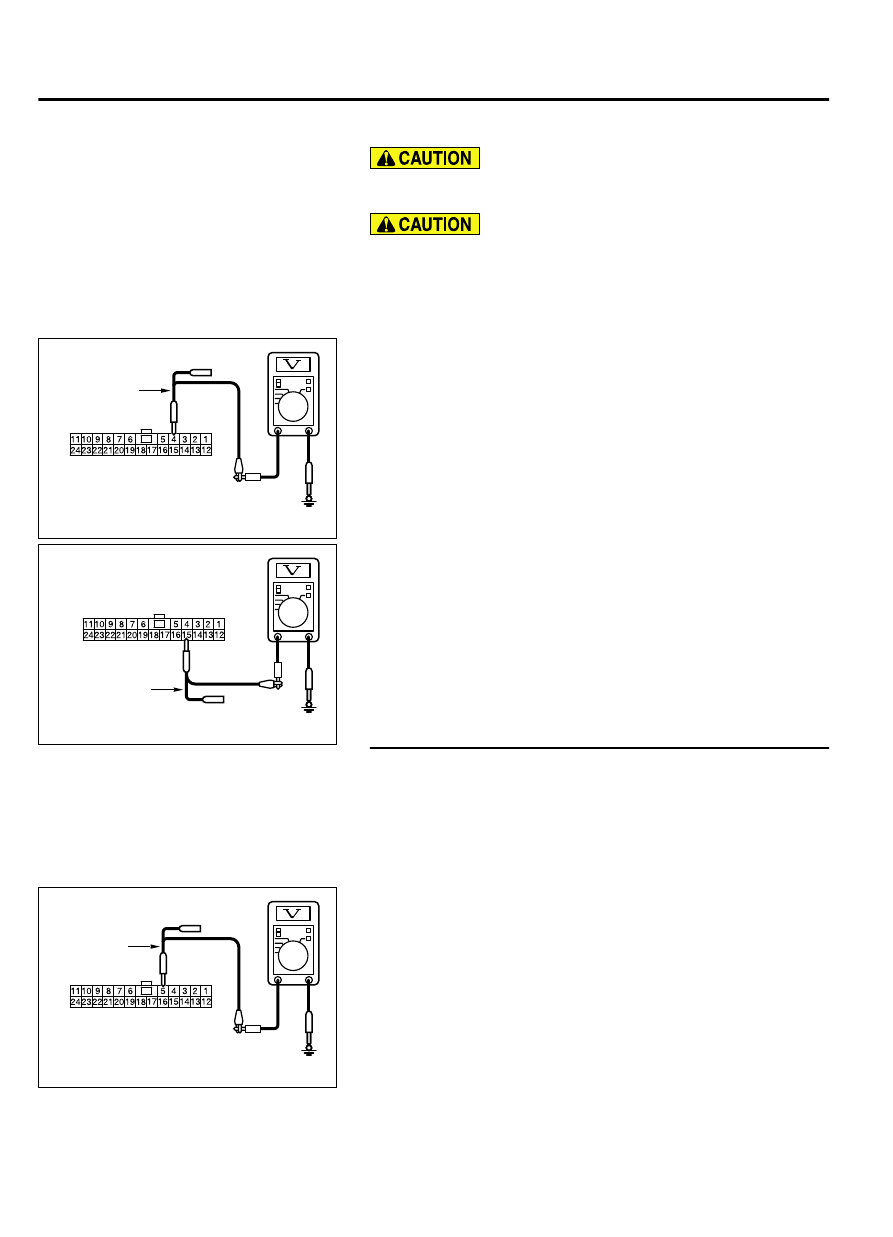

STEP 1. Check the wiring harness between joint connector
(CAN2) C-04 and steering wheel sensor connector C-209 for

CONTROLLER AREA NETWORK (CAN)

54D-55

DIAGNOSIS

a short to power supply. Measure the voltage at joint
connector (CAN2) C-04.

A digital multimeter should be used. For details refer to P.
54D-8.

The test wiring harness should be used. For details refer
to P.54D-8.

(1)

Disconnect joint connector (CAN2), and measure the voltage
at the wiring harness side of joint connector (CAN2).

(2)

Turn the ignition switch to the ON position.

ZC5010400002

Harness side: C-04

Test
harness

(3)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 4 and body ground.

OK: 4.7 volts or less

ZC5010400003

Harness side: C-04

Test
harness

(4)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 15 and body ground.

OK: 4.7 volts or less

Q:Do all the voltages measure 4.7 volts or less?

YES:

 Go to Step 2.

NO:

 Go to Step 7.

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and AWD-ECU connector C-128 for a short to
power supply. Measure the voltage at joint connector
(CAN2) C-04.

(1)

Disconnect joint connector (CAN2), and measure the voltage
at the wiring harness side of joint connector (CAN2).

(2)

Turn the ignition switch to the ON position.

ZC5010400004

Harness side: C-04

Test
harness

(3)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 5 and body ground.

OK: 4.7 volts or less

54D-56

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

ZC5010400005

Harness side: C-04

Test
harness

(4)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 16 and body ground.

OK: 4.7 volts or less

Q:Do all the voltages measure 4.7 volts or less?

YES:

 Go to Step 3.

NO:

 Go to Step 8.

STEP 3. Check the wiring harness between joint connector
(CAN2) C-04 and ETACS-ECU connector C-301 for a short
to power supply. Measure the voltage at joint connector
(CAN2) C-04.

(1)

Disconnect joint connector (CAN2), and measure the voltage
at the wiring harness side of joint connector (CAN2).

(2)

Turn the ignition switch to the ON position.

ZC5010400006

Harness side: C-04

Test harness

(3)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 6 and body ground.

OK: 4.7 volts or less

ZC5010400007

Harness side: C-04

Test
harness

(4)

Measure  the  voltage  between  joint  connector  (CAN2)
terminal 19 and body ground.

OK: 4.7 volts or less

Q:Do all the voltages measure 4.7 volts or less?

YES:

 Go to Step 4.

NO:

 Go to Step 9.

STEP 4. Check the wiring harness between joint connector
(CAN3) C-01 and ECM connector B-11 for a short to power
supply. Measure the voltage at joint connector (CAN3) C-01.

(1)

Disconnect joint connector (CAN3), and measure the voltage
at the wiring harness side of joint connector (CAN3).

(2)

Turn the ignition switch to the ON position.

CONTROLLER AREA NETWORK (CAN)

54D-57

DIAGNOSIS

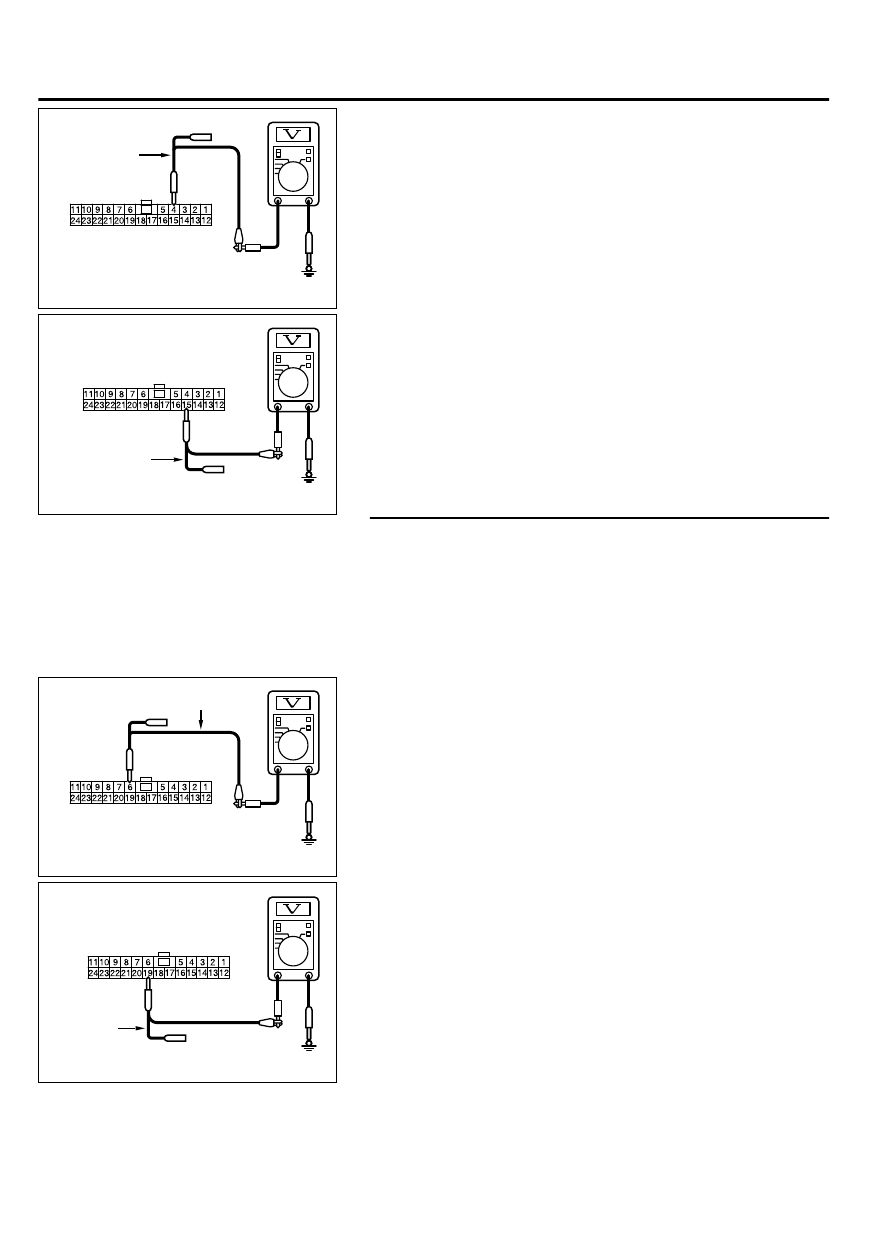

ZC5010400008

Harness side: C-01

Test
harness

(3)

Measure  the  voltage  between  joint  connector  (CAN3)
terminal 4 and body ground.

OK: 4.7 volts or less

ZC5010400009

Harness side: C-01

Test
harness

(4)

Measure  the  voltage  between  joint  connector  (CAN3)
terminal 15 and body ground.

OK: 4.7 volts or less

Q:Do all the voltages measure 4.7 volts or less?

YES:

 Go to Step 5.

NO:

 Go to Step 10.

STEP 5. Check the wiring harness between joint connector
(CAN3) C-01 and ABS-ECU connector A-01 <vehicles
without ASC> or ASC-ECU connector A-02 <vehicles with
ASC> for a short to power supply. Measure the voltage at
joint connector (CAN3) C-01.

(1)

Disconnect joint connector (CAN3), and measure the voltage
at the wiring harness side of joint connector (CAN3).

(2)

Turn the ignition switch to the ON position.

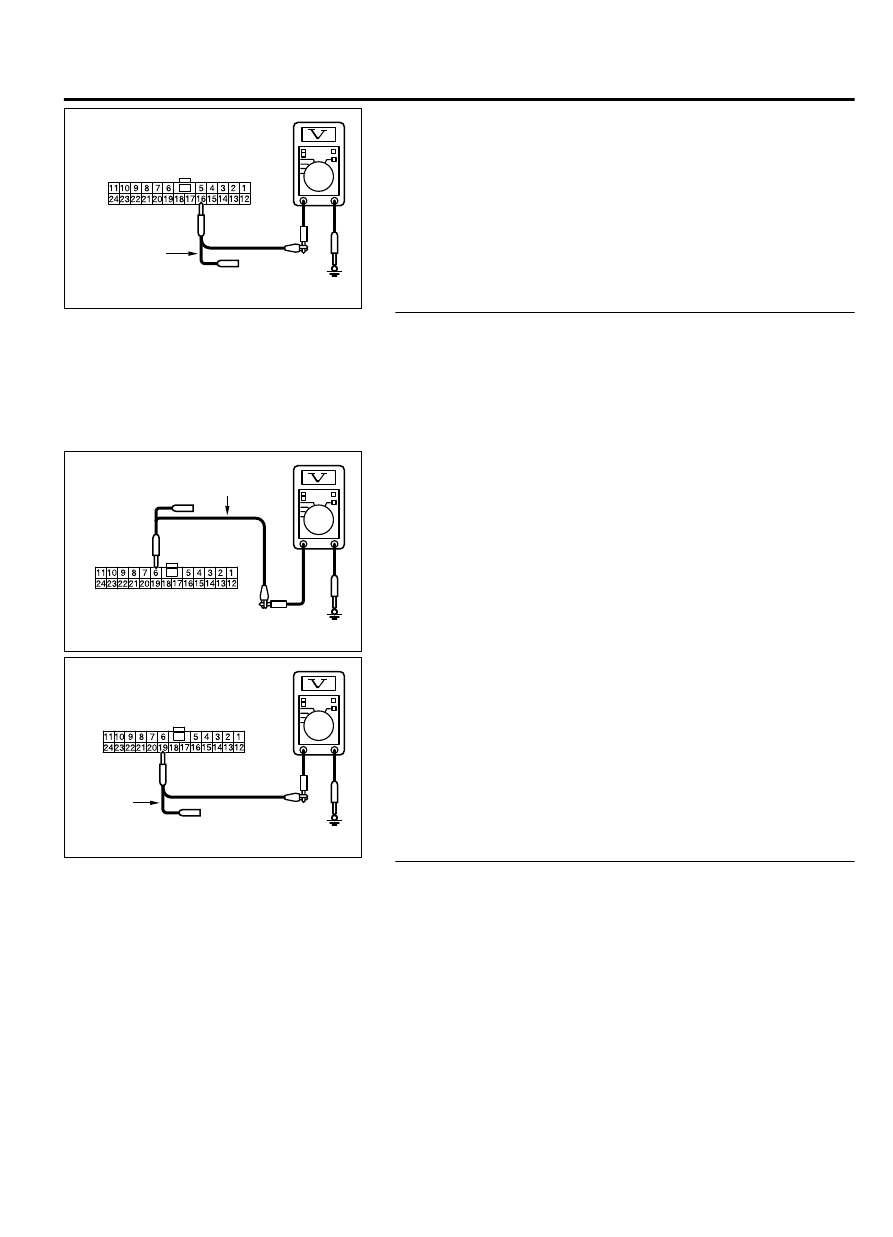

ZC5010400010

Harness side: C-01

Test harness

(3)

Measure  the  voltage  between  joint  connector  (CAN3)
terminal 6 and body ground.

OK: 4.7 volts or less

ZC5010400011

Harness side: C-01

Test
harness

(4)

Measure  the  voltage  between  joint  connector  (CAN3)
terminal 19 and body ground.

OK: 4.7 volts or less

Q:Do all the voltages measure 4.7 volts or less?

YES:

 Go to Step 6.

NO:

 Go to Step 11.

54D-58

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS
