line short. Measure the resistance at joint connector (CAN2)
C-04.

(1)

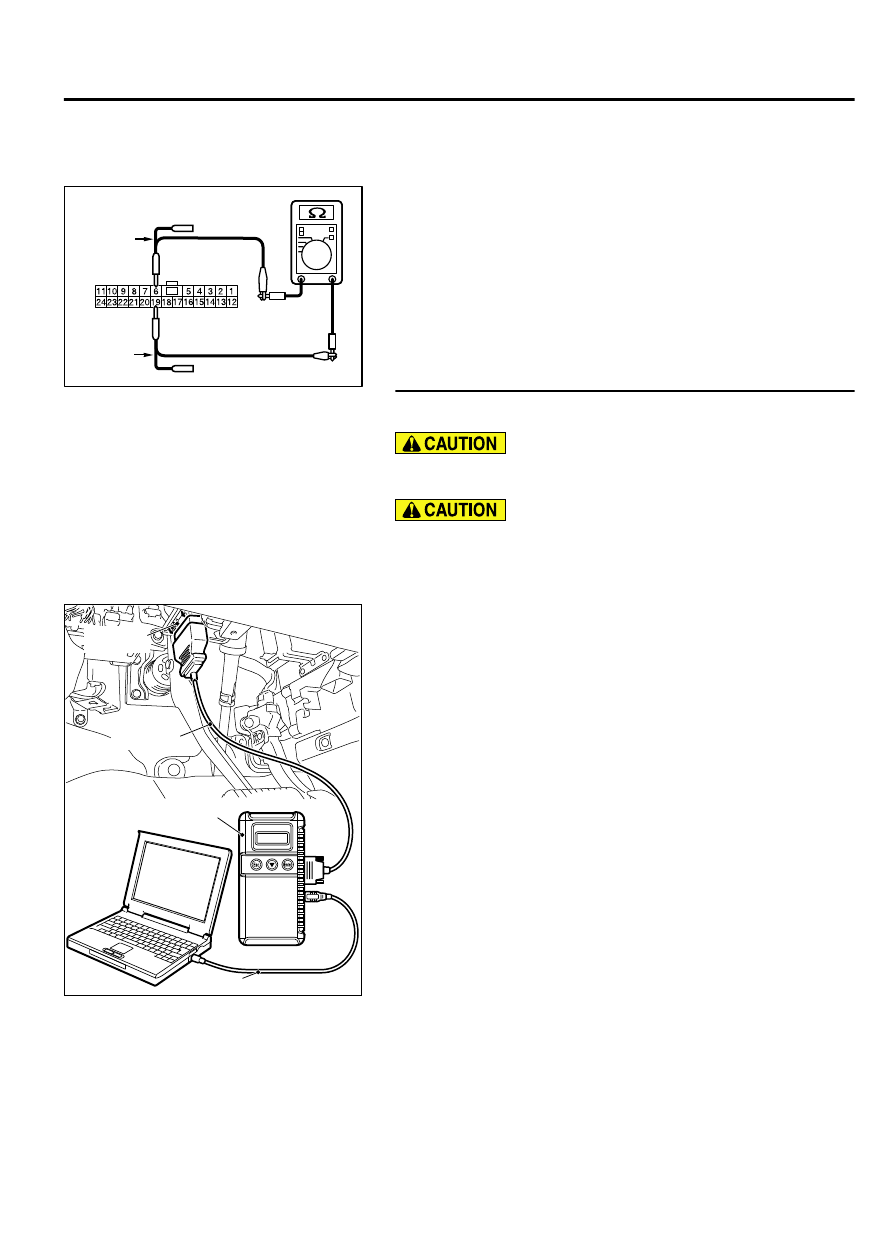

Disconnect joint connector (CAN2), and check that there is
continuity at the harness side of joint connector (CAN2).

ZC5010390006

Test
harness

Test
harness

Harness side: C-04

(2)

Check  that  there  is  continuity  between  joint  connector
(CAN2) terminals 6 and 19.

OK: No continuity

Q:Is the check result normal?

YES:

 Check intermediate connector C-27, and repair if

necessary. If the intermediate connector is in good
condition, repair the wiring harness between joint
connector (CAN2) C-04 and joint connector (CAN3) C-01.

NO:

 Go to Step 13.

STEP 8. Using scan tool MB991958, diagnose the CAN bus
line. (checking the steering wheel sensor for internal short)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

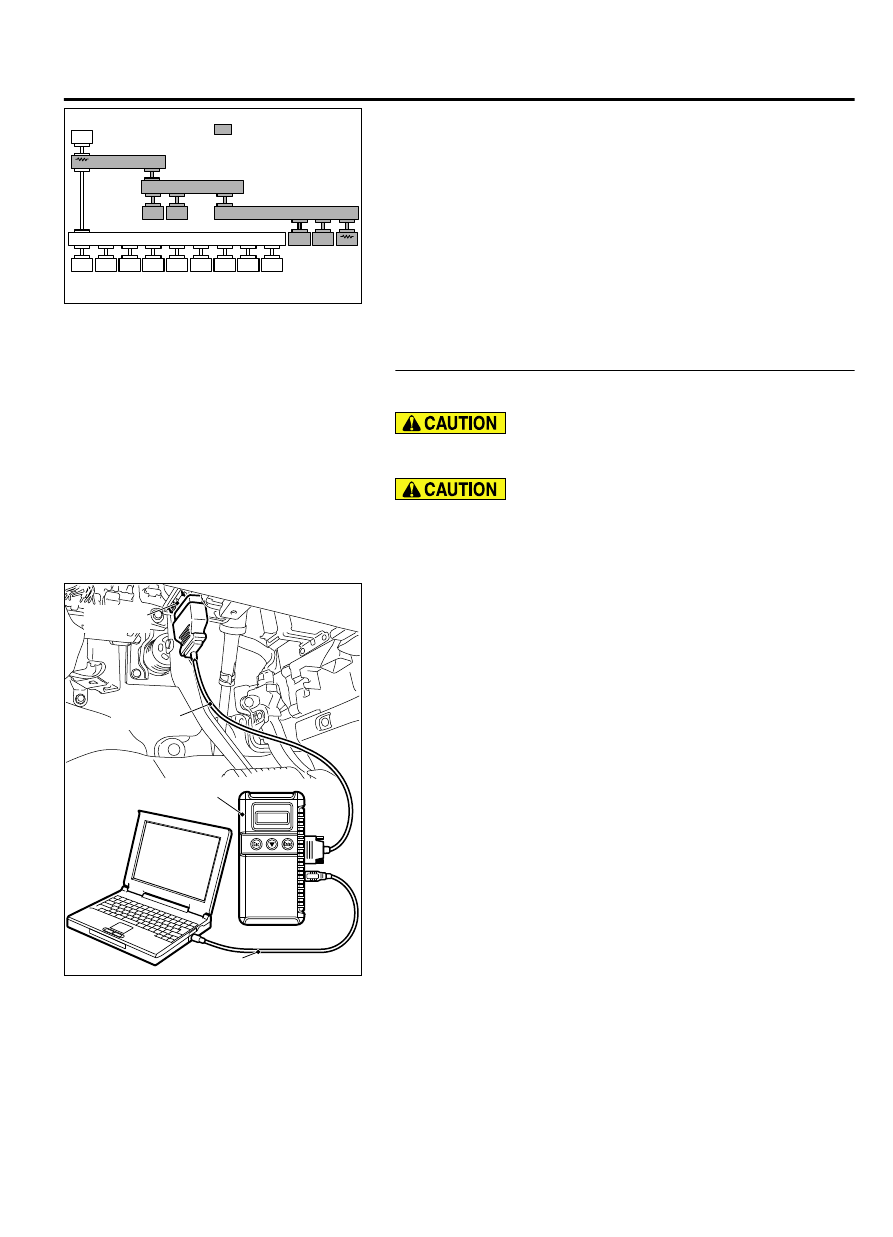

(1)

Disconnect steering wheel sensor connector C-209.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

CONTROLLER AREA NETWORK (CAN)

54D-35

DIAGNOSIS

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Repair the wiring harness between steering wheel

sensor connector C-209 and joint connector (CAN2) C-04.

NO:

 Check steering wheel sensor connector C-209, and

repair if necessary. If the steering wheel sensor
connector is in good condition, replace the steering
wheel sensor.

STEP 9. Using scan tool MB991958, diagnose the CAN bus
line. (checking the AWD-ECU for internal short)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

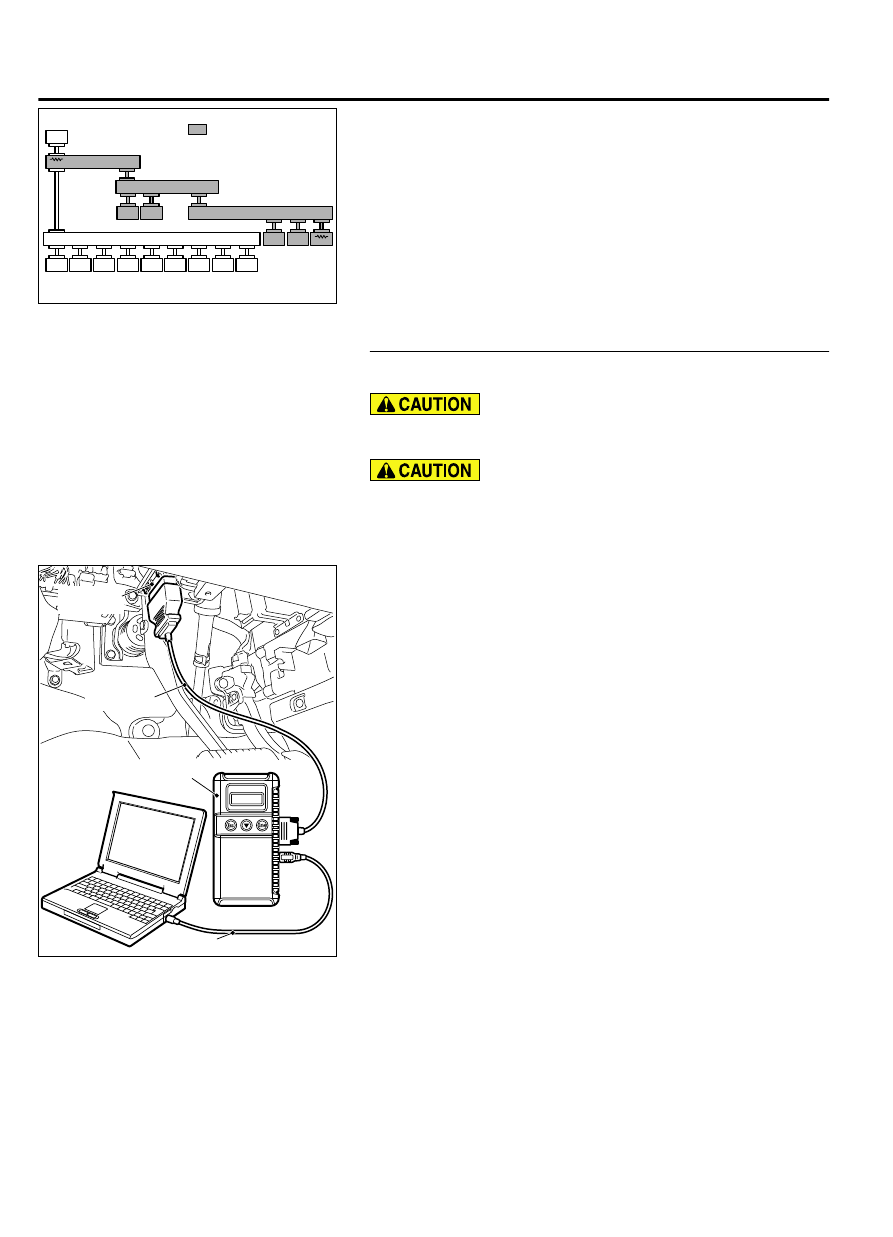

(1)

Disconnect AWD-ECU connector C-128.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

54D-36

CONTROLLER AREA NETWORK (CAN)

DIAGNOSIS

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Check intermediate connector C-31, and repair if

necessary. If the intermediate connector is in good
condition, repair the wiring harness between AWD-ECU
connector C-128 and joint connector (CAN2) C-04.

NO:

 Check AWD-ECU connector C-128, and repair if

necessary. If the AWD-ECU connector is in good condition,
replace the AWD-ECU.

STEP 10. Using scan tool MB991958, diagnose the CAN bus
line. (checking the ECM for internal short)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

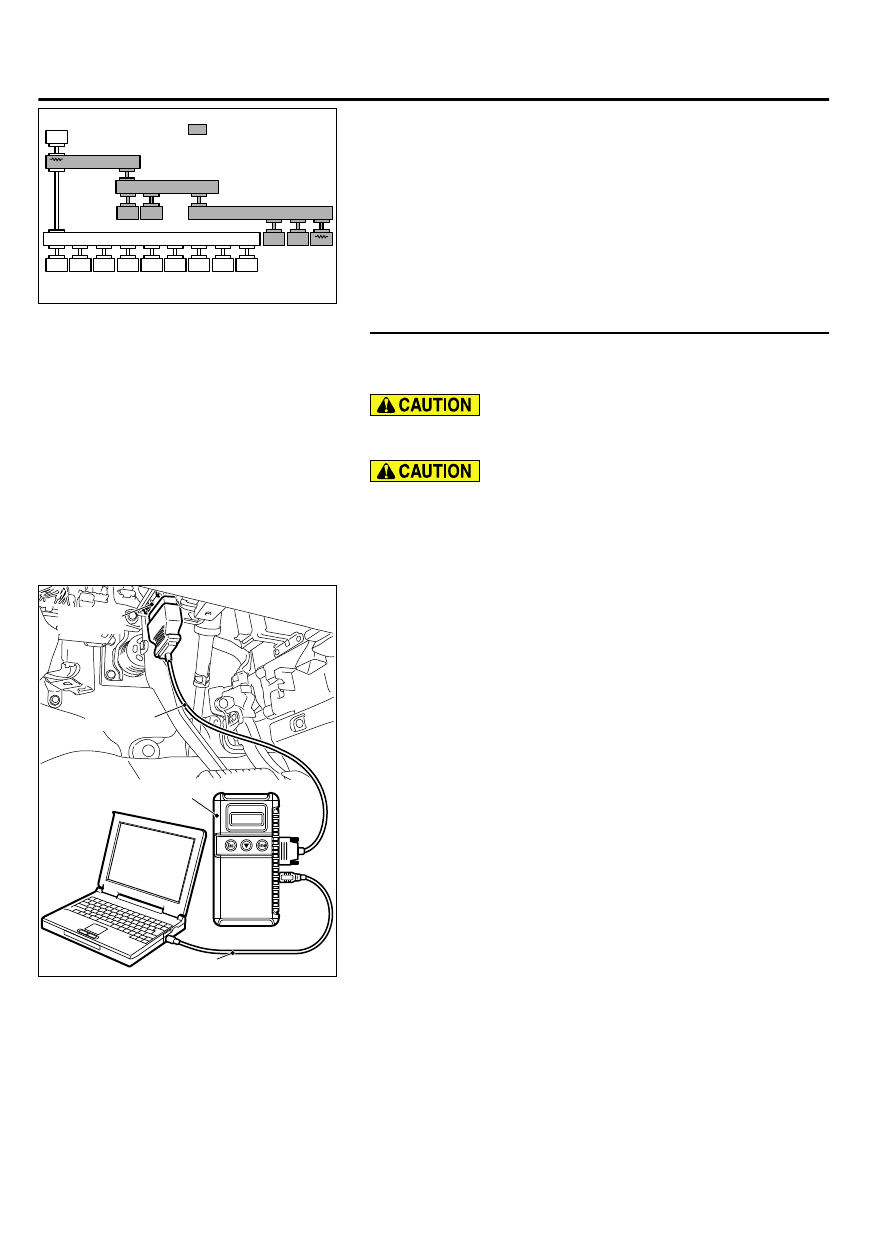

(1)

Disconnect ECM connector B-11.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.

CONTROLLER AREA NETWORK (CAN)

54D-37

DIAGNOSIS

ZC5018690001

: Red section on scree n

M. U . T .

J/C (3)

J/C (2)

SAS

4WD

K OS/WC

M

SRS

OCM

A/C

A UDI O

MMCS

Sat Radio

HFM

METER

ABS/ASC

A T

ENGINE

E T A C S

J/C (1)

(4)

Diagnose  CAN  bus  lines,  and  check  if  the  scan  tool
MB991958 screen is as shown in the figure.

OK:  The  display  of  the  scan  tool  MB991958  is  as
shown in the figure.

Q:Does  scan  tool  MB991958  screen  correspond  to  the

illustration?

YES:

 Repair the wiring harness between ECM connector B-11

and joint connector (CAN3) C-01.

NO:

 Check ECM connector B-11, and repair if necessary.

If the ECM connector is in good condition, replace the
ECM.

STEP 11. Using scan tool MB991958, diagnose the CAN bus
line. (checking the ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC> for internal short)

Strictly  observe  the  specified  wiring  harness  repair
procedure. For details refer to P.54D-8.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Disconnect  ABS-ECU  connector  A-01  <vehicles  without
ASC> or ASC-ECU connector A-02 <vehicles with ASC>.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(2)

Connect scan tool MB991958 to the data link connector.

(3)

Turn the ignition switch to the "ON" position.
