AIR CONDITIONING SYSTEM

CIRCUIT DIAGRAMS

90-149

INPUT SIGNAL

IMPACT SENSOR

CPU

CAN DRIVE CIRCUIT

COMBINATION
METER

INTERFACE
CIRCUIT

CAN
DRIVE CIRCUIT

SRS-ECU

A/C-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET     PU : PURPLE

AIR CONDITIONING SYSTEM

CIRCUIT DIAGRAMS

90-150

AIR CONDITIONING SYSTEM (CONTINUED)

FUSIBLE
LINK

28

FAN
CONTROL
RELAY

CONDENSER
FAN
RELAY

CONDENSER
FAN
MOTOR

ETACS-
ECU

AIR CONDITIONING SYSTEM

CIRCUIT DIAGRAMS

90-151

FUSIBLE
LINK

29

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

RADIATOR
FAN
RELAY

RADIATOR
FAN
MOTOR

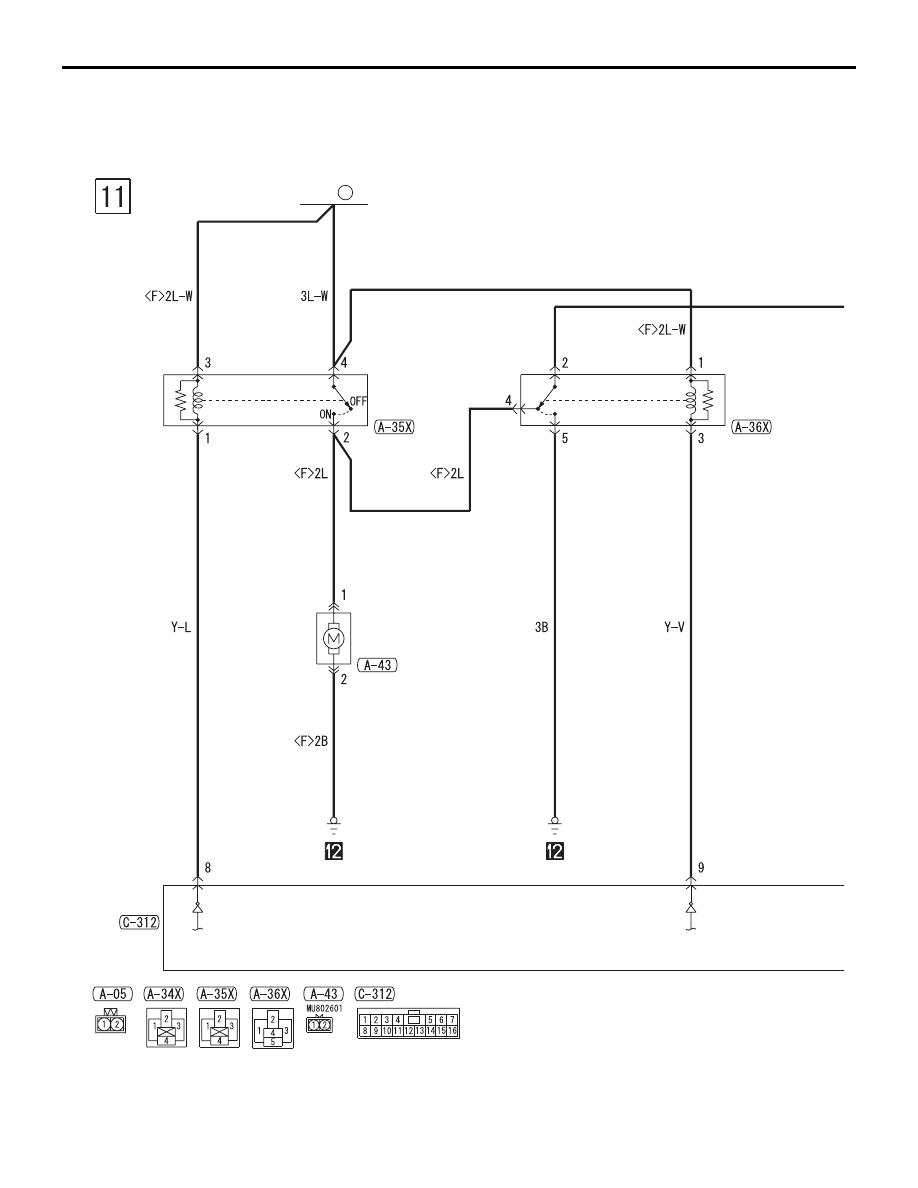

WINDSHIELD WIPER AND WASHER

CIRCUIT DIAGRAMS

90-152

WINDSHIELD WIPER AND WASHER

36

FUSIBLE
LINK

34

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

IG1
RELAY

LIN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

COLUMN-ECU

COLUMN
SWITCH

(HI)

(LO)

(INT)

WINDSHIELD
WIPER SWITCH

(MIST)

WINDSHIELD
INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

W
W
S
R

ETACS-ECU

POWER
DISTRIBUTION
SYSTEM

RELAY BOX

ENGINE
COMPARTMENT

WINDSHIELD
WASHER
SWITCH

UPPER
SIDE

UPPER
SIDE

POWER
WINDOWS

:

NOTE

·AIR CONDITIONING SYSTEM
·BRAKE WARNING LIGHT
·CENTRAL DOOR LOCKING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·DOME LIGHT, LUGGAGE COMPARTMENT
 LIGHT AND IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FUEL WARNING LIGHT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM (KOS)
·METER AND GAUGE
·OIL PRESSURE WARNING LIGHT
·POWER WINDOWS
·SEAT BELT WARNING TONE ALARM
·SUNROOF
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM (TPMS)
