AIR CONDITIONING SYSTEM

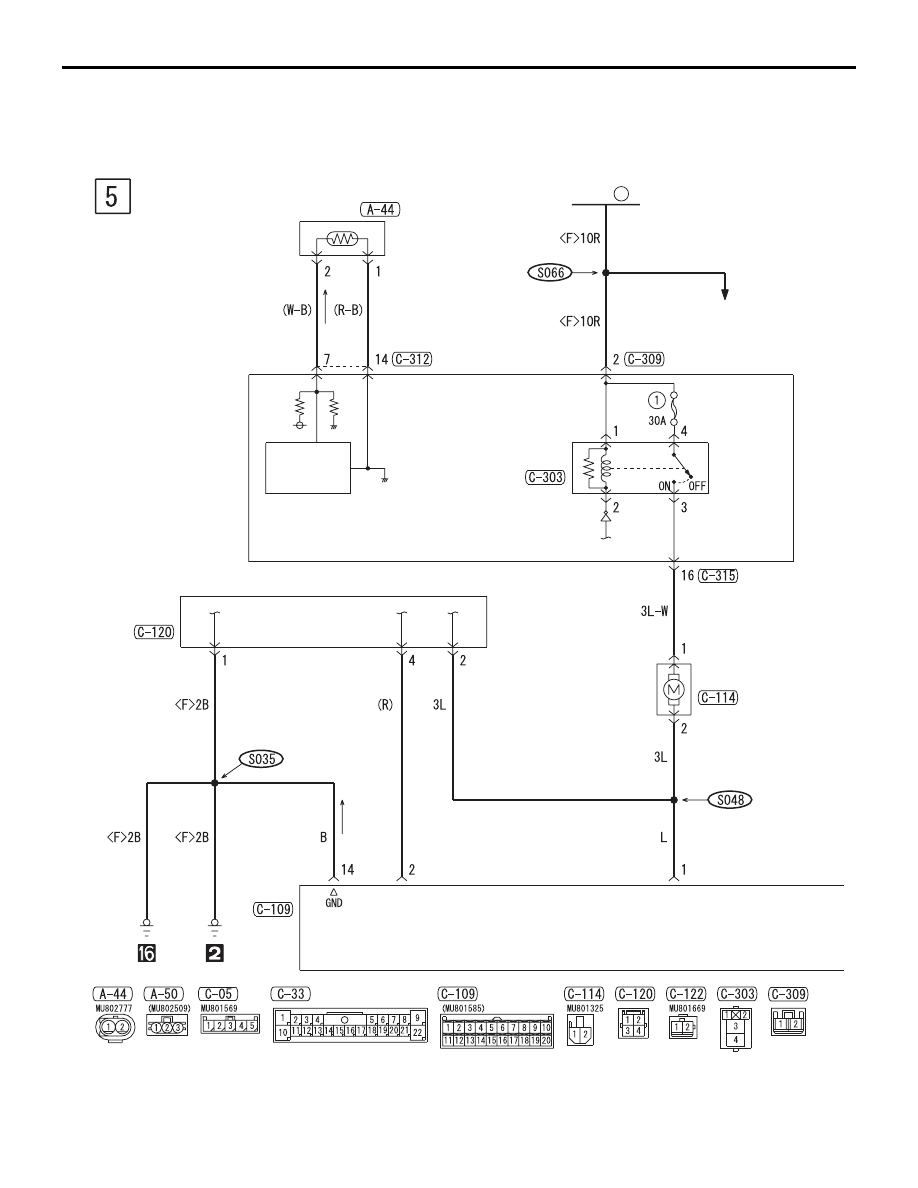

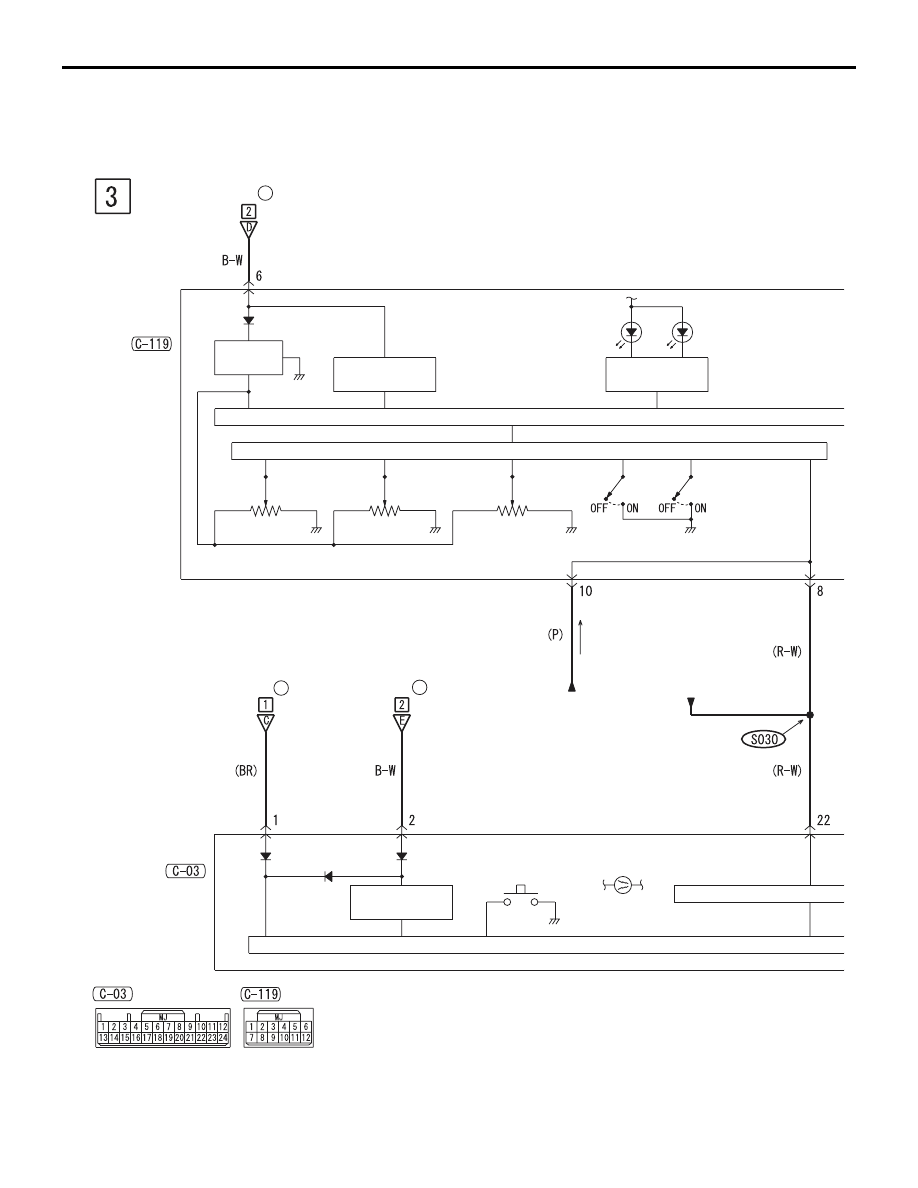

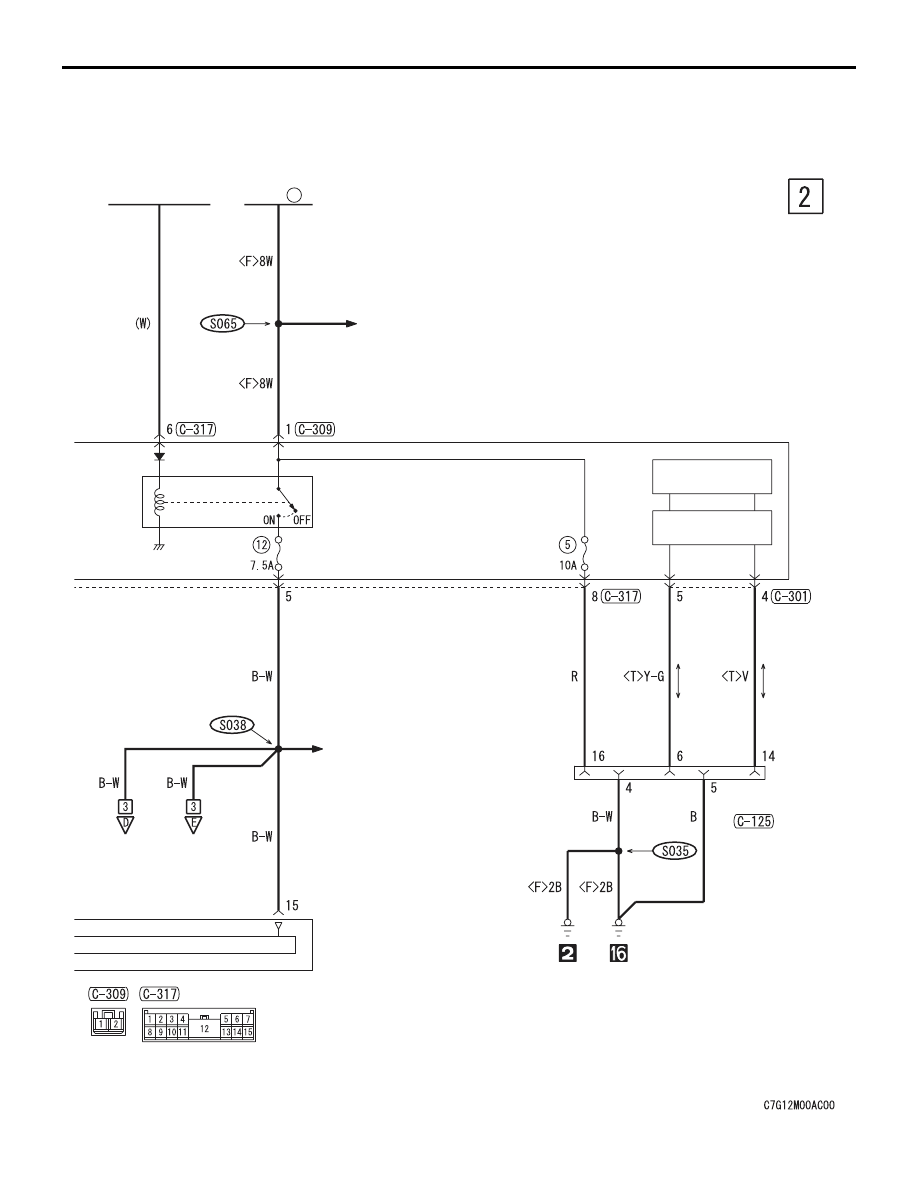

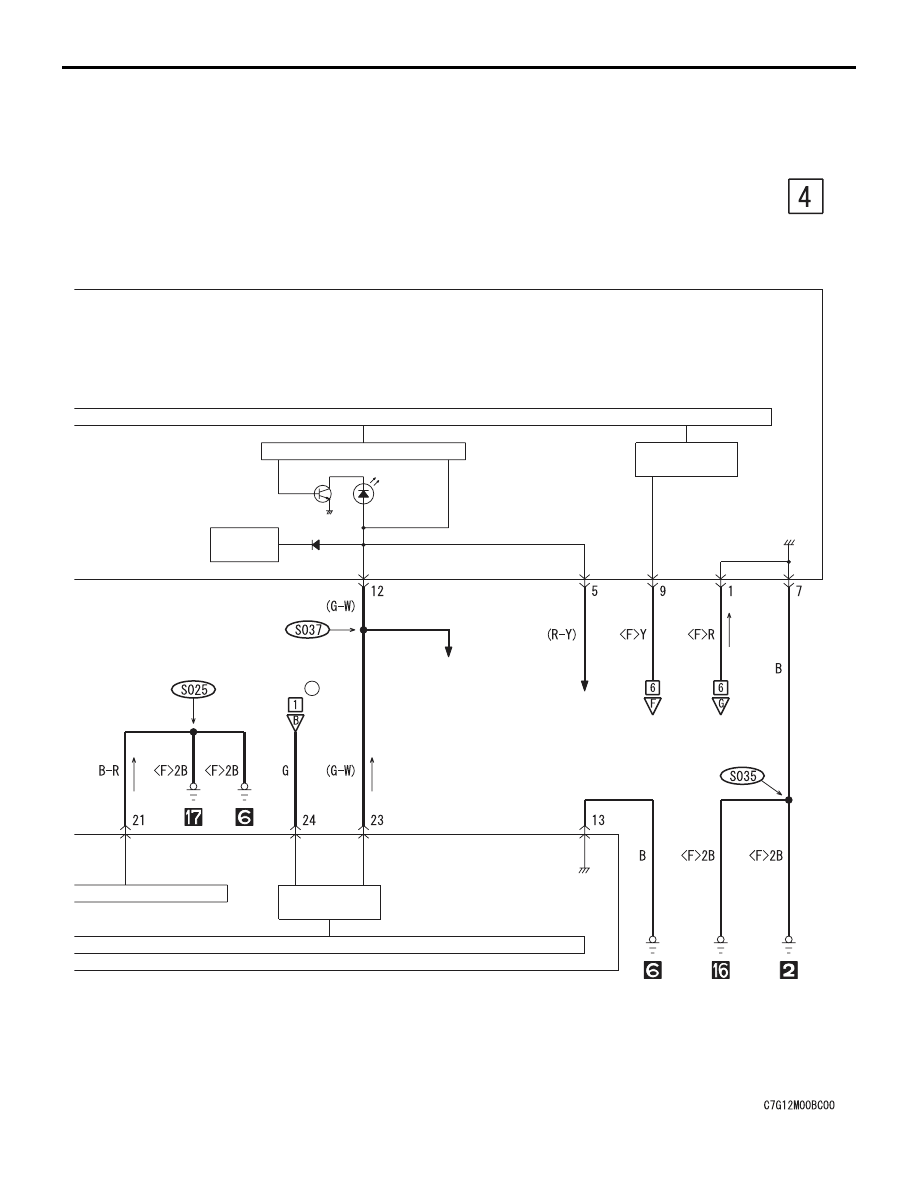

CIRCUIT DIAGRAMS
90-141
IGNITION
SWITCH (IG1)
IG1
RELAY
CAN DRIVE
CIRCUIT
INTERFACE
CIRCUIT
DATA LINK
CONNECTOR
POWER
DISTRIBUTION
SYSTEM
FUSIBLE
LINK
34
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE SKID CONTROL SYSTEM (ASC)
·CENTRAL DOOR LOCKING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·DOME LIGHT, LUGGAGE COMPARTMENT LIGHT
AND IGNITION KEY HOLE ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING SYSTEM
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·KEYLESS OPERATING SYSTEM (KOS)
·POWER WINDOWS
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
