Mitsubishi Outlander XL. Manual - part 109
KEYLESS OPERATING SYSTEM (KOS)

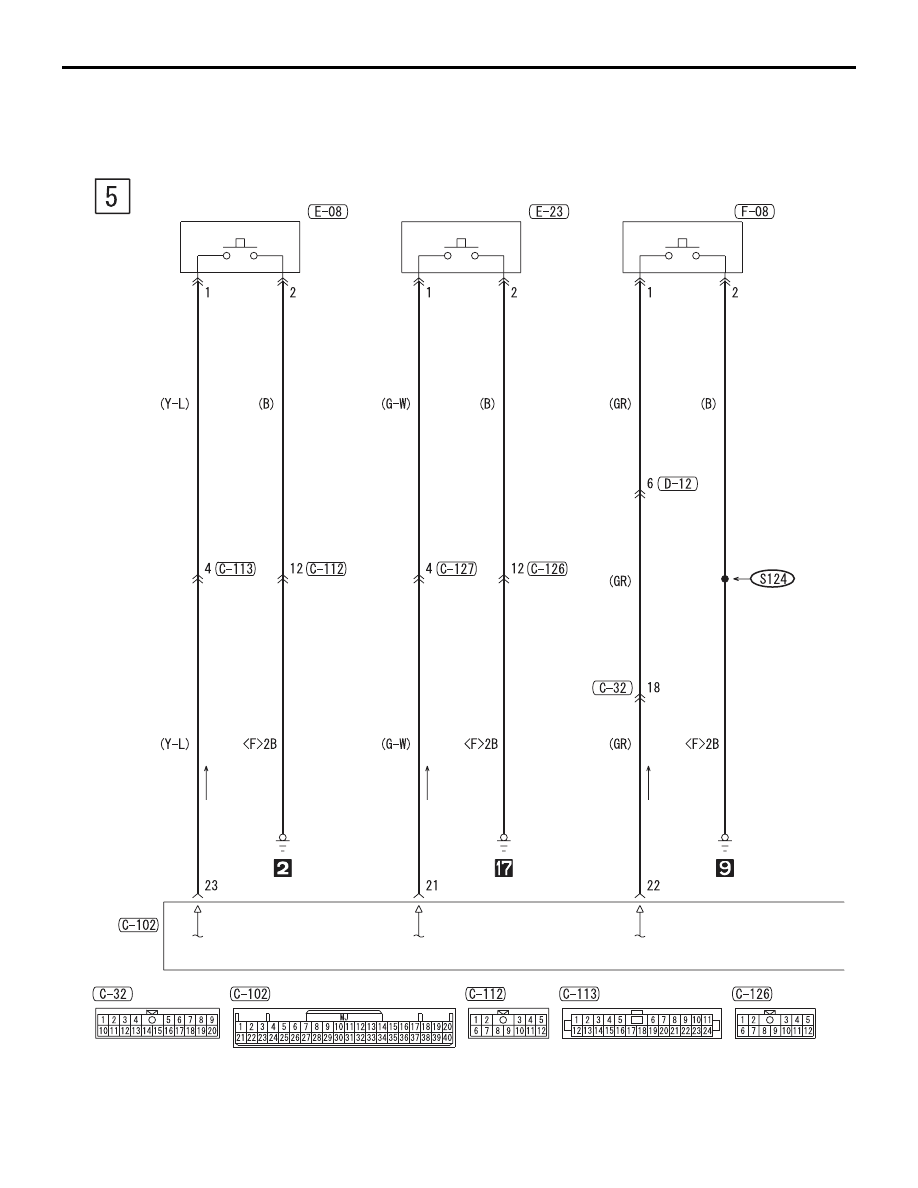

CIRCUIT DIAGRAMS
90-133
FRONT SIDE
INTERFACE
CIRCUIT
INTERFACE
CIRCUIT
CAN DRIVE
CIRCUIT
CAN DRIVE
CIRCUIT
INPUT SIGNAL
OUTPUT SHAFT
SPEED SENSOR
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
DATA LINK
CONNECTOR
·AIR CONDITIONING SYSTEM
·BRAKE WARNING LIGHT
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·FOG LIGHT
·FUEL WARNING LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·METER AND GAUGE
·OIL PRESSURE WARNING LIGHT
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·TAILLIGHT, POSITION LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
NOTE
:
TRANSMISSION
CONTROL
MODULE
