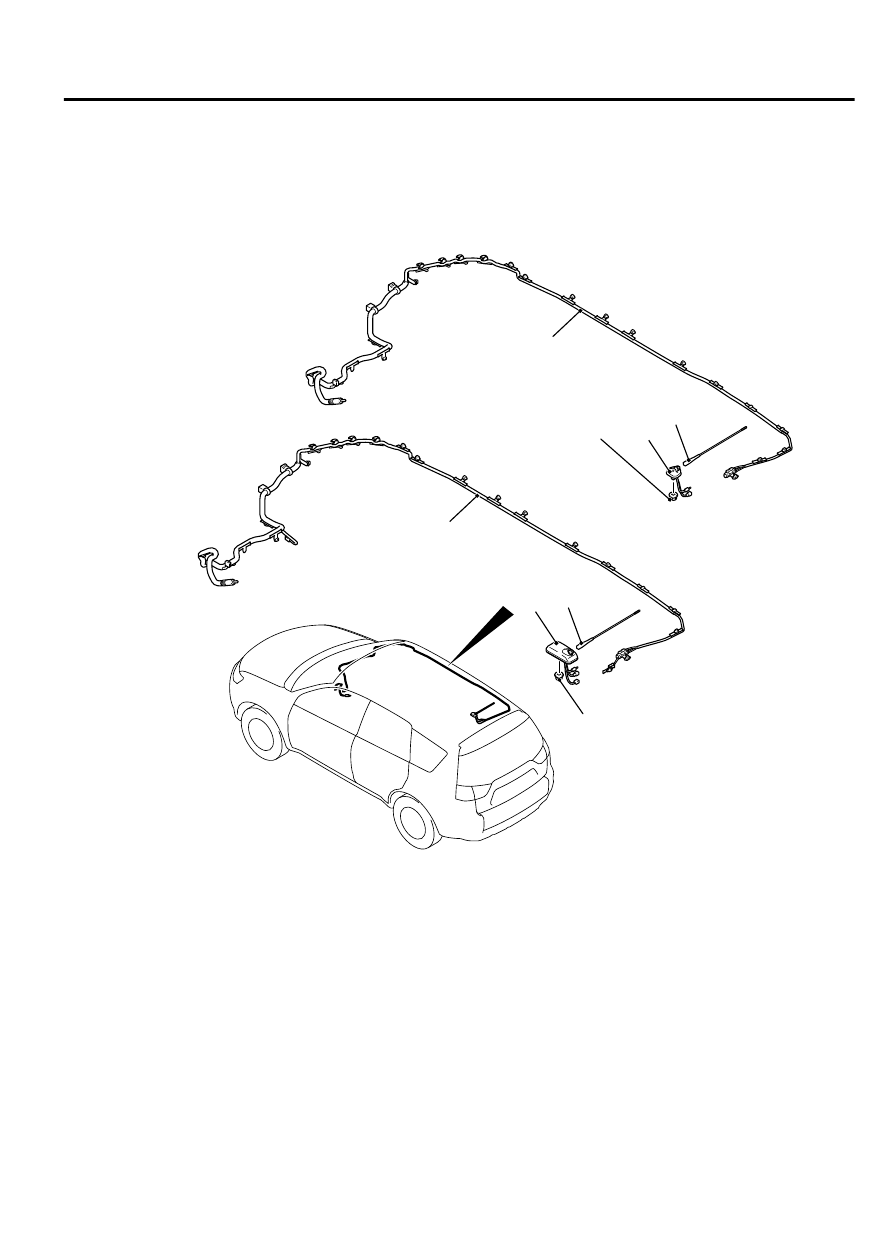

ANTENNA

REMOVAL AND INSTALLATION

M15410800068USA0000010000

ZC6003990000

3

3

1

2

1

2

<Vehicles without satellite radio>

<Vehicles with satellite radio>

3.0 ± 1.0 N·m
27 ± 8 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

Removal Steps

1.

Antenna rod

·

Headlining  (Refer  to  GROUP  52A,
Headlining P.52A-15)

2.

Antenna base

Removal Steps

·

Instrument panel assembly (Refer to
GROUP 52A P.52A-2).

3.

Antenna feeder cable

AUDIO AND NAVIGATION SYSTEM

54B-173

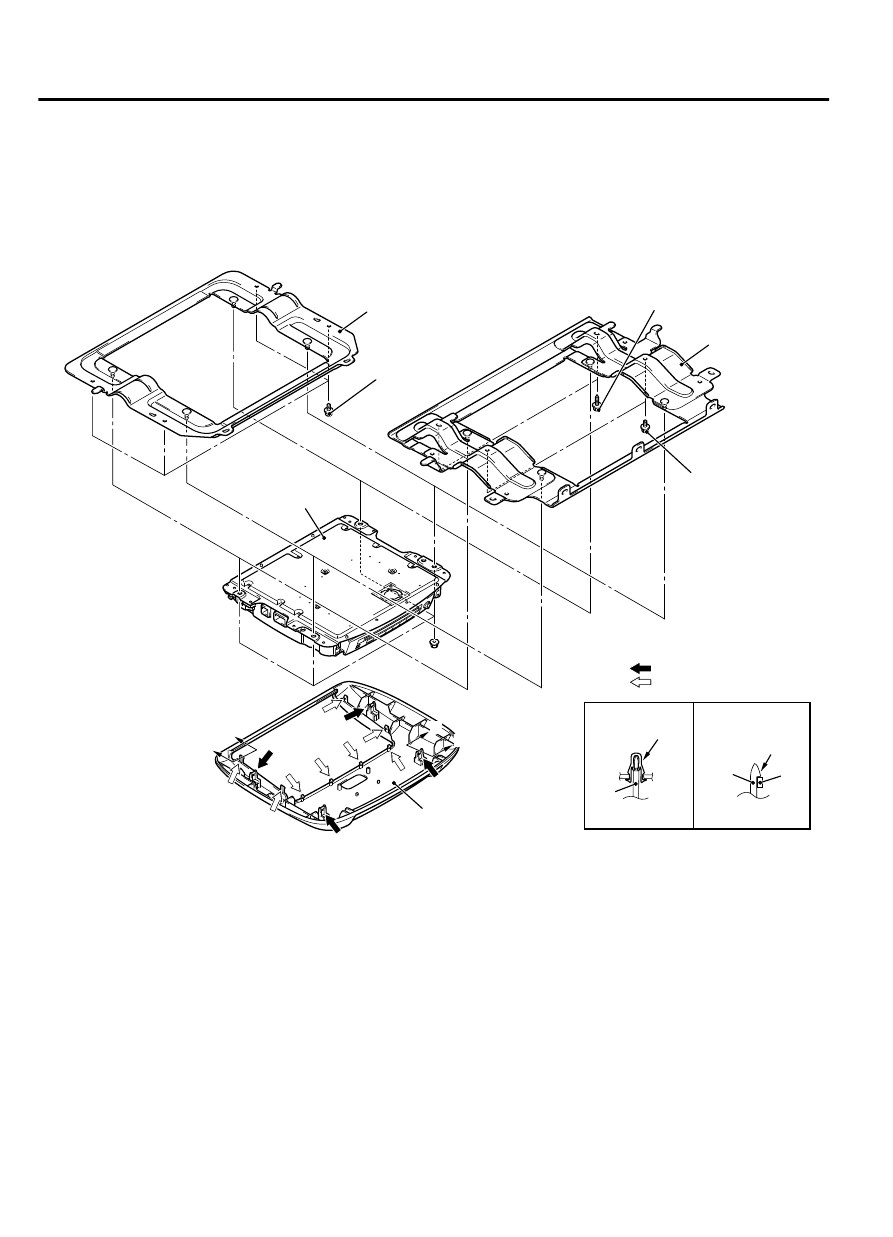

REAR DISPLAY

REAR DISPLAY

REMOVAL AND INSTALLATION

M15410800224USA0000010000

AC507427

NOTE
(1)       : Clip positions
(2)       : Claw positions

Section A – A

Section B – B

1

A

A

B

B

2

3

1

2

1

3

<Vehicles without sunroof>

<Vehicles with sunroof>

1.5 ± 0.5 N·m
14 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

Clip

Claw

ZC3061990000

54B-174

AUDIO AND NAVIGATION SYSTEM

REAR DISPLAY

ZC3060860000

4

Section C – C

Claw

Claw

4

C

C

Rear floor console

Rear Monitor Removal Steps

1.

Bezel

2.

Rear monitor

·

Headlining  (Refer  to  GROUP  52A  P.
52A-15.)

Rear Monitor Removal Steps

3.

Bracket

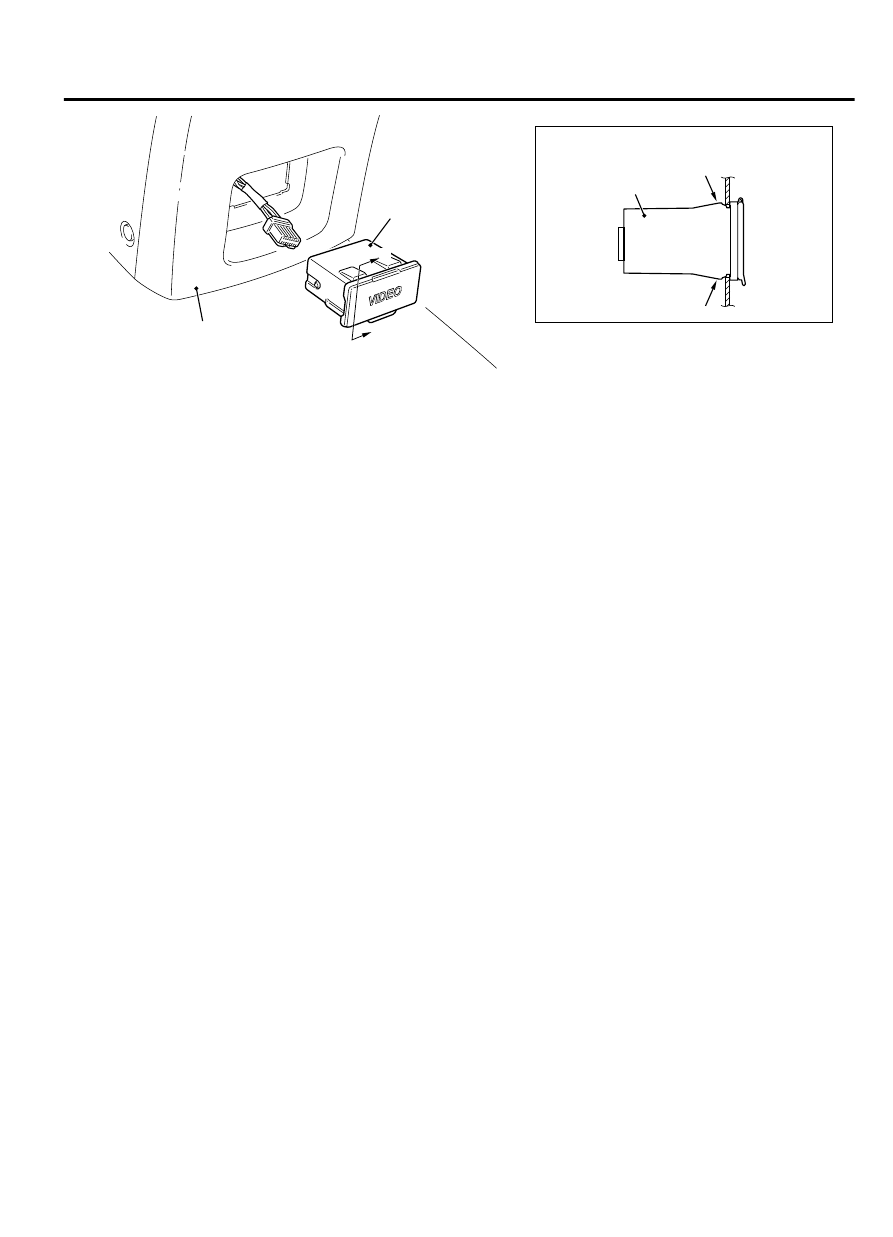

Audio And Video Adaptor Removal
Steps

4.

Audio and video adaptor

AUDIO AND NAVIGATION SYSTEM

54B-175

REAR DISPLAY

MEMO
