CHATTERING CHECK MODE
Inserting a CD during the speaker connection check mode shifts
the  mode  to  the  chattering  check  mode,  and  the  chattering
sound of each speaker can be checked.

1.

As with the speaker connection check mode, press the [CH6]
button  to  switch  the  output  speaker  of  the  chattering  check
sound.

2.

Check  that  the  chattering  sound  is  output  from  the  output
speaker of chattering check sound.

<VEHICLES WITH MMCS>

Refer to P.54B-64.

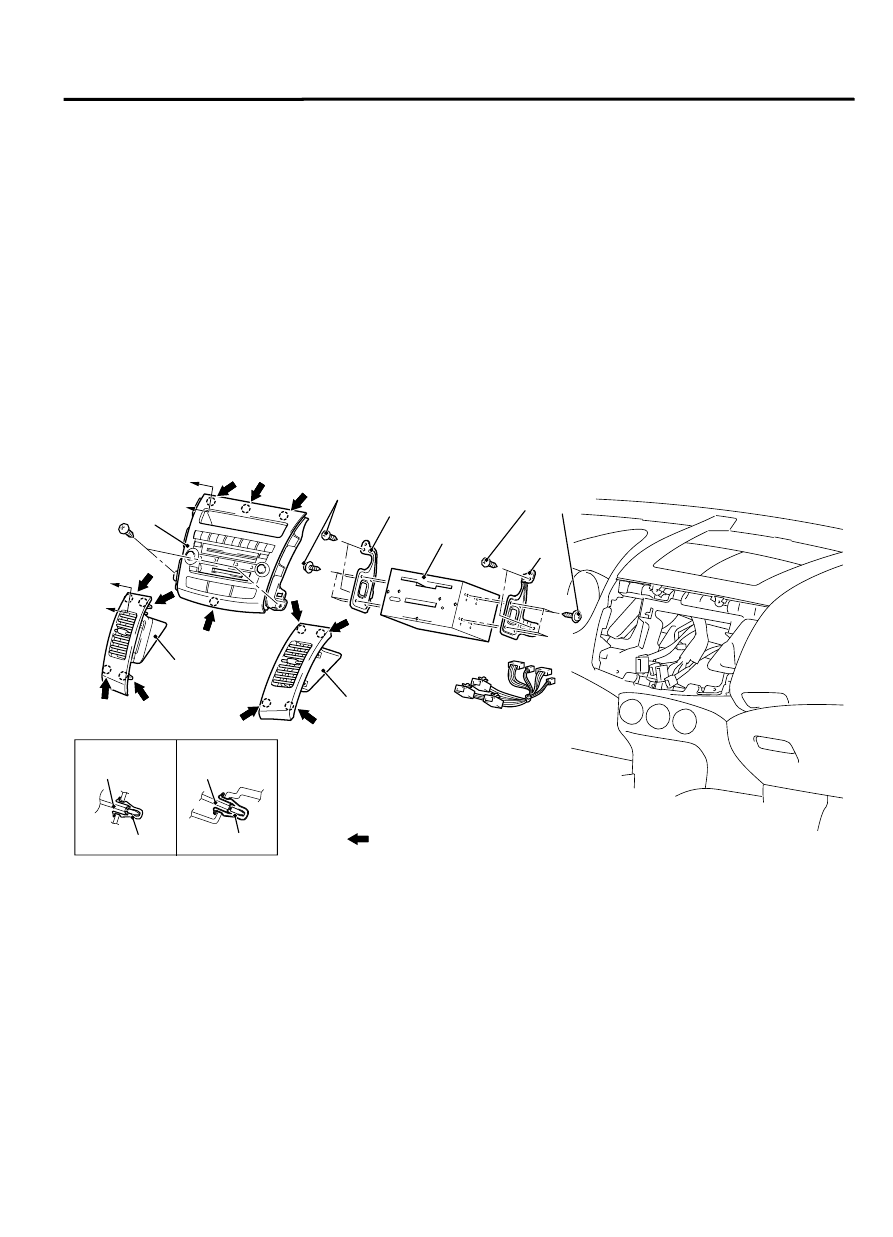

RADIO AND CD PLAYER

REMOVAL AND INSTALLATION

M15410800047USA0000010000

AC506561

ZC6006550000

Section A – A

2

Clip

Section B – B

1

Clip

1

1

2

A

A

B

B

3

4

4

Clip positions

NOTE:

1.5 ± 0.5 N·m
14 ± 4 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

Removal Steps

1.

Center outlet

2.

Center panel assembly

3.

Radio and CD player or CD changer

Removal Steps

4.

Radio  and  CD  player  or  CD  changer
bracket

AUDIO AND NAVIGATION SYSTEM

54B-165

RADIO AND CD PLAYER

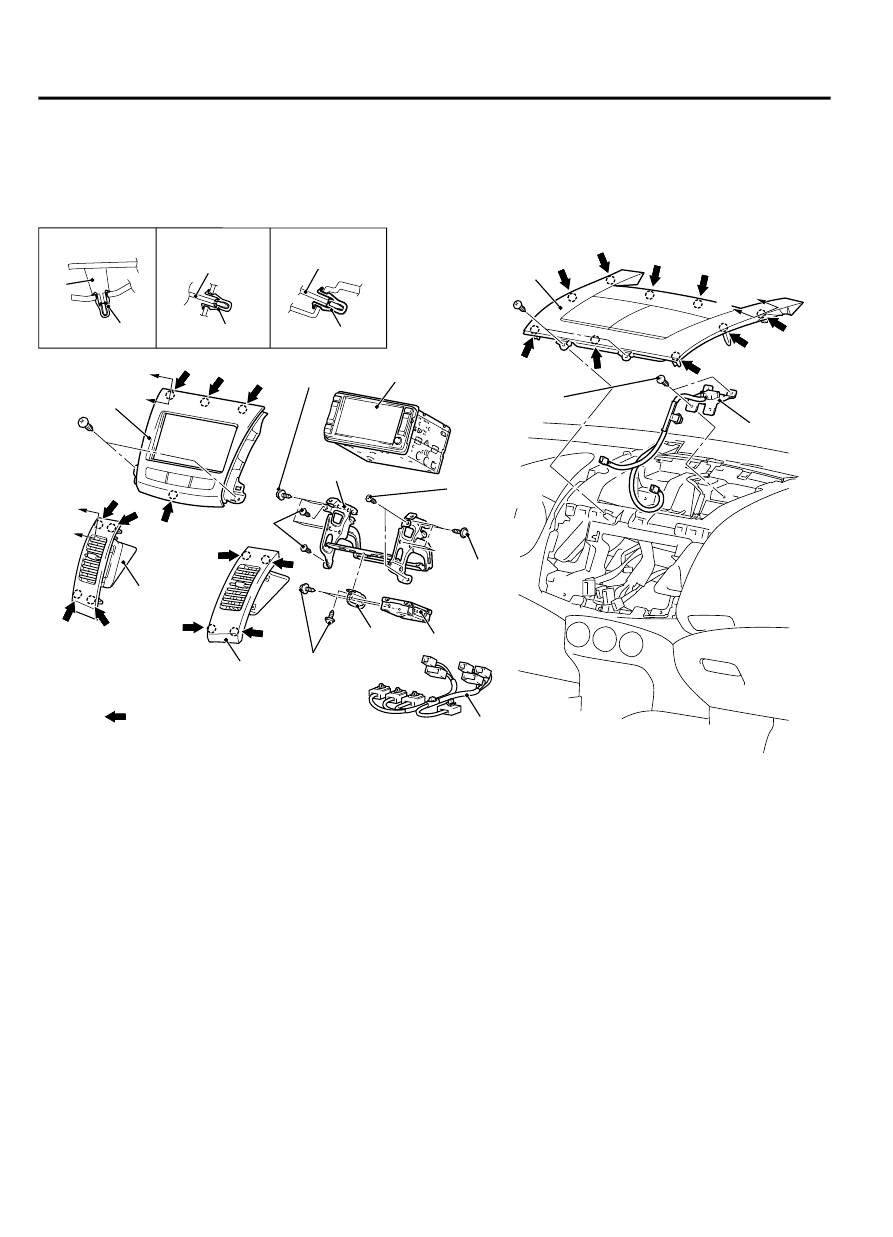

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

REMOVAL AND INSTALLATION

M15410800086USA0000010000

AC511339

ZC600647AA00

1

1

2

4

6

5

3

7

8

9

A

A

B

B

C

C

Section A – A

Section B – B

Section C – C

6

Clip

Clip positions

NOTE:

2

Clip

1

Clip

3.0 ± 1.0 N·m
27 ± 8 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

Audio  Visual  Navigation  Unit
Removal Steps

1.

Center outlet

2.

Center panel assembly

3.

Audio visual navigation unit

4.

Audio visual navigation bracket

5.

CAN box unit

6.

CAN box unit bracket

Audio  Visual  Navigation  Unit
Removal Steps

7.

Audio visual navigation harness
GPS Antenna Removal Steps

1.

Center outlet

2.

Center panel assembly

8.

Center upper box

9.

GPS antenna

54B-166

AUDIO AND NAVIGATION SYSTEM

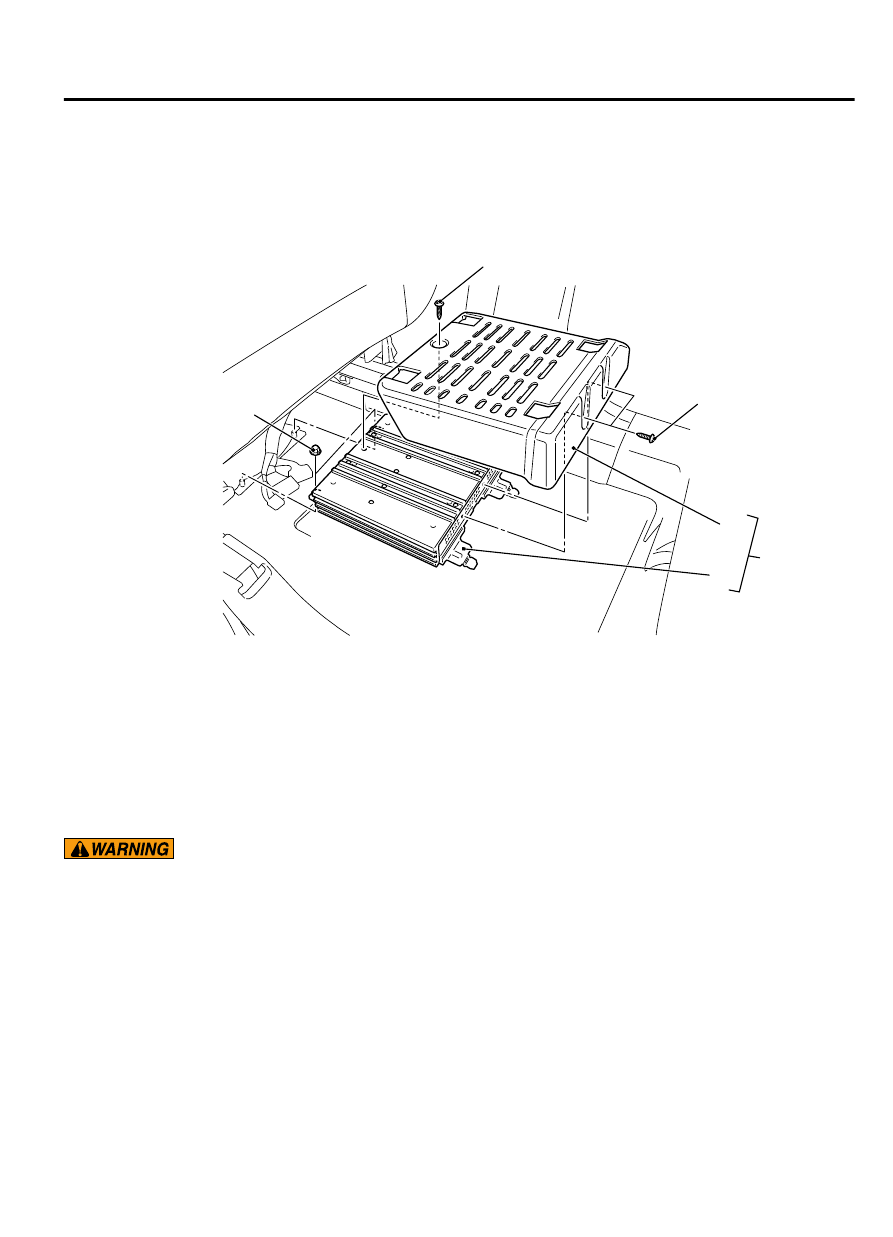

AUDIO AMPLIFIER

AUDIO AMPLIFIER

REMOVAL AND INSTALLATION

M15410800369USA0000010000

ZC6006560000

2

3

1

1.5 ± 0.5 N·m
14 ± 4 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

Removal Steps

1.

Audio amplifier assembly

2.

Audio amplifier cover

Removal Steps

3.

Audio amplifier

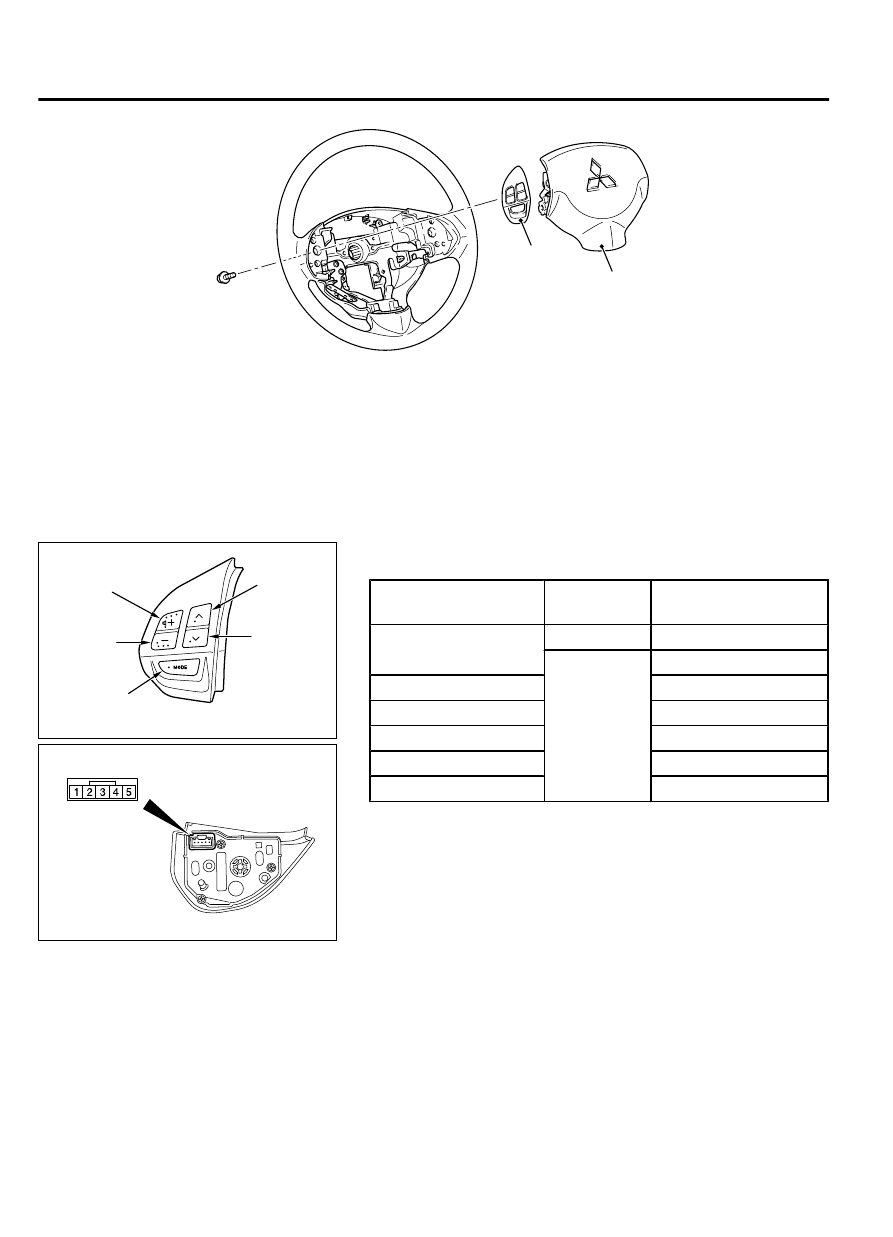

REMOTE CONTROLLED AUDIO SWITCH

REMOVAL AND INSTALLATION

M15410800061USA0000010000

Before  removing  the  air  bag  module,  refer  to
GROUP  52B,  Service  Precautions  (  P.52B-28
)
and  Air  Bag  Module  and  Clock  Spring  (  P.
52B-329).

When  removing  and  installing  the  steering
wheel,  do  not  let  it  bump  against  the  air  bag
module.

AUDIO AND NAVIGATION SYSTEM

54B-167

REMOTE CONTROLLED AUDIO SWITCH

1

2

ZC6003810000

Removal Steps

1.

Air bag module (Refer to GROUP 52B,
Air  Bag  Module  and  Clock  Spring  P.
52B-329.)

Removal Steps

2.

Remote controlled radio switch

REMOTE CONTROLLED RADIO SWITCH

CONTINUITY CHECK

M15410800062USA0000010000

ZC6019360000

“VOL up” switch

“CH up”
switch

“CH down”
switch

“VOL down”
switch

“Mode” switch

ZC6016200000

Use an ohmmeter to measure the resistance value between the
terminal.

Switch Position

Tester
Connection

Measurement Value

No push

2 - 3

Approximately 3.1 kΩ

2 - 4

Approximately 71 kΩ

"Mode" switch

Approximately 270 Ω

"CH up" switch

Approximately 740 Ω

"CH down" switch

Approximately 1.3 kΩ

"VOL up" switch

Approximately 2.1 kΩ

"VOL down" switch

Approximately 3.1 kΩ

54B-168

AUDIO AND NAVIGATION SYSTEM

REMOTE CONTROLLED AUDIO SWITCH
