Mitsubishi Outlander XL. Manual - part 1118

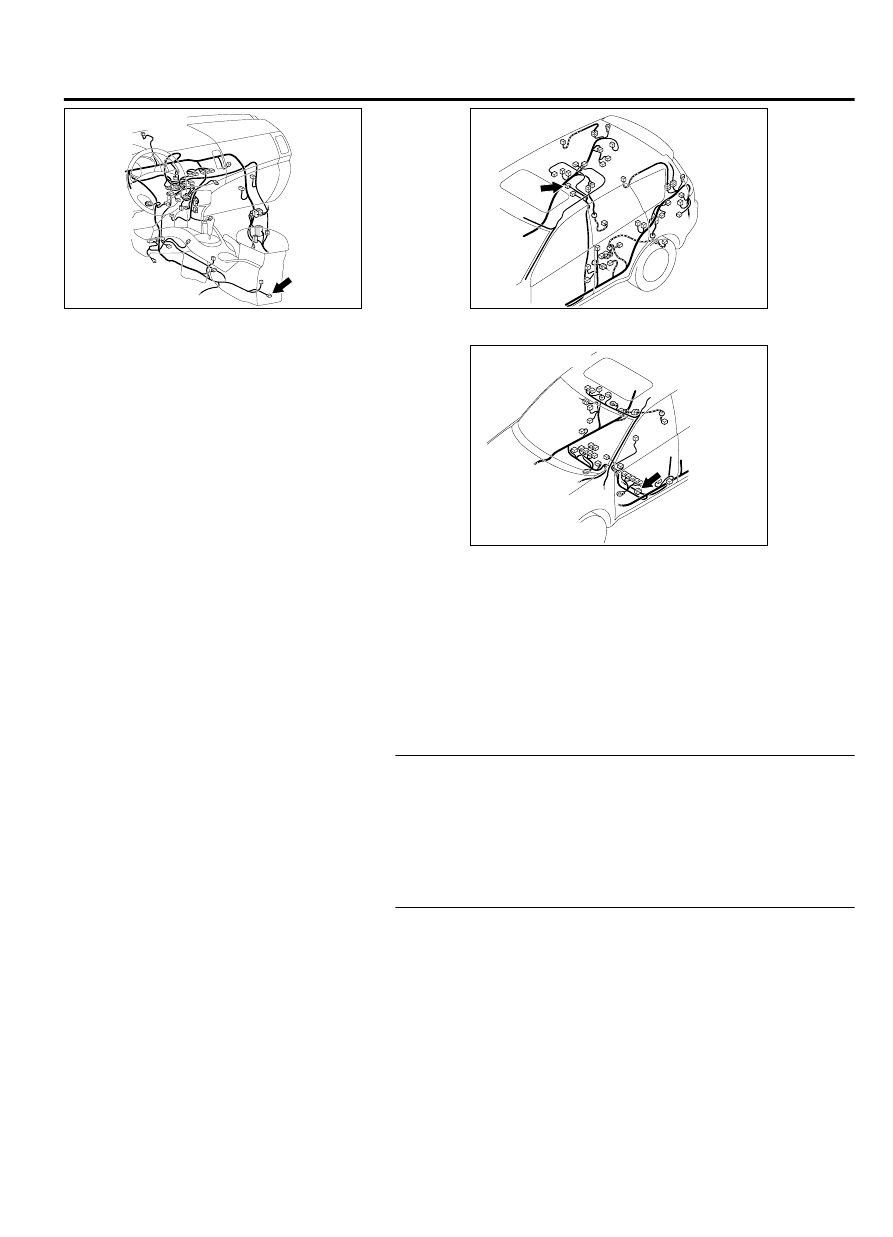

ZC6008760008

Connector: C-117

C-117 (B)

ZC6008800001

Connector: D-16



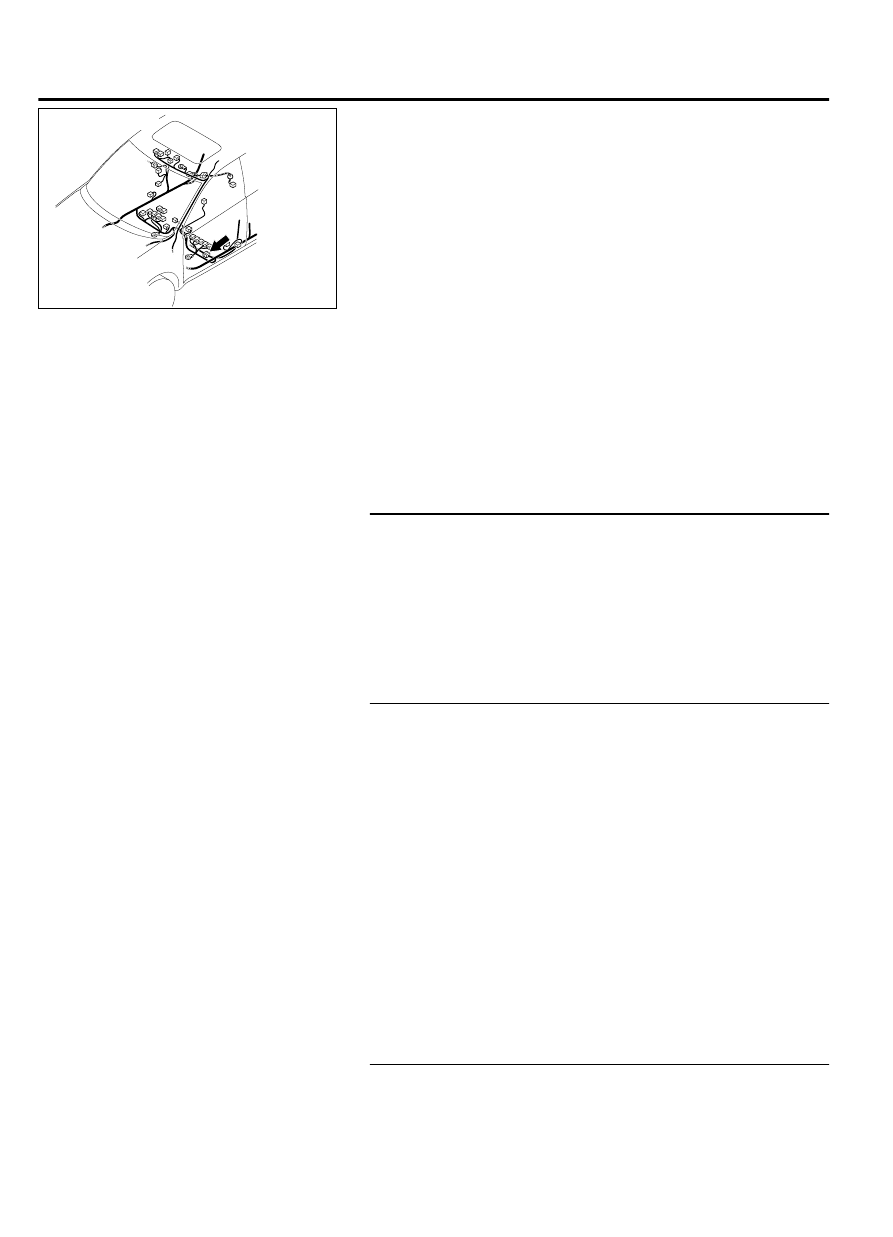

ZC6008790003

Connector: D-123

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Check of rear display unit DVD picture.
Check that the DVD picture is displayed normally when the rear
display unit DVD player is used.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Perform the troubleshooting related to the rear

display unit DVD video. Refer to P.54B-141.

STEP 2. Check rear display unit connector D-16 and audio
and video adaptor connector C-117 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Is rear display unit connector D-16 and audio and video

adaptor connector C-117 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

AUDIO AND NAVIGATION SYSTEM

54B-153

DIAGNOSIS

STEP 3. Check the wiring harness between rear display unit
connector D-16 (terminal 31, 33, 36, 37, 38) and audio and
video adaptor connector C-114 (terminal 1, 6, 2, 5, 4).

NOTE:

Also check intermediate connector D-123 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-123 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

｠

Check the communication lines for open circuit.

Q:Is the wiring harness between rear display unit connector

D-16  (terminal  31,  33,  36,  37,  38)  and  audio  and  video

adaptor connector C-114 (terminal 1, 6, 2, 5, 4) in good

condition?

YES:

 Replace the audio and video adapter, then go to Step

4.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 4. Retest the system
Check that the external input is normal.

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points, How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the rear display unit.

54B-154

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

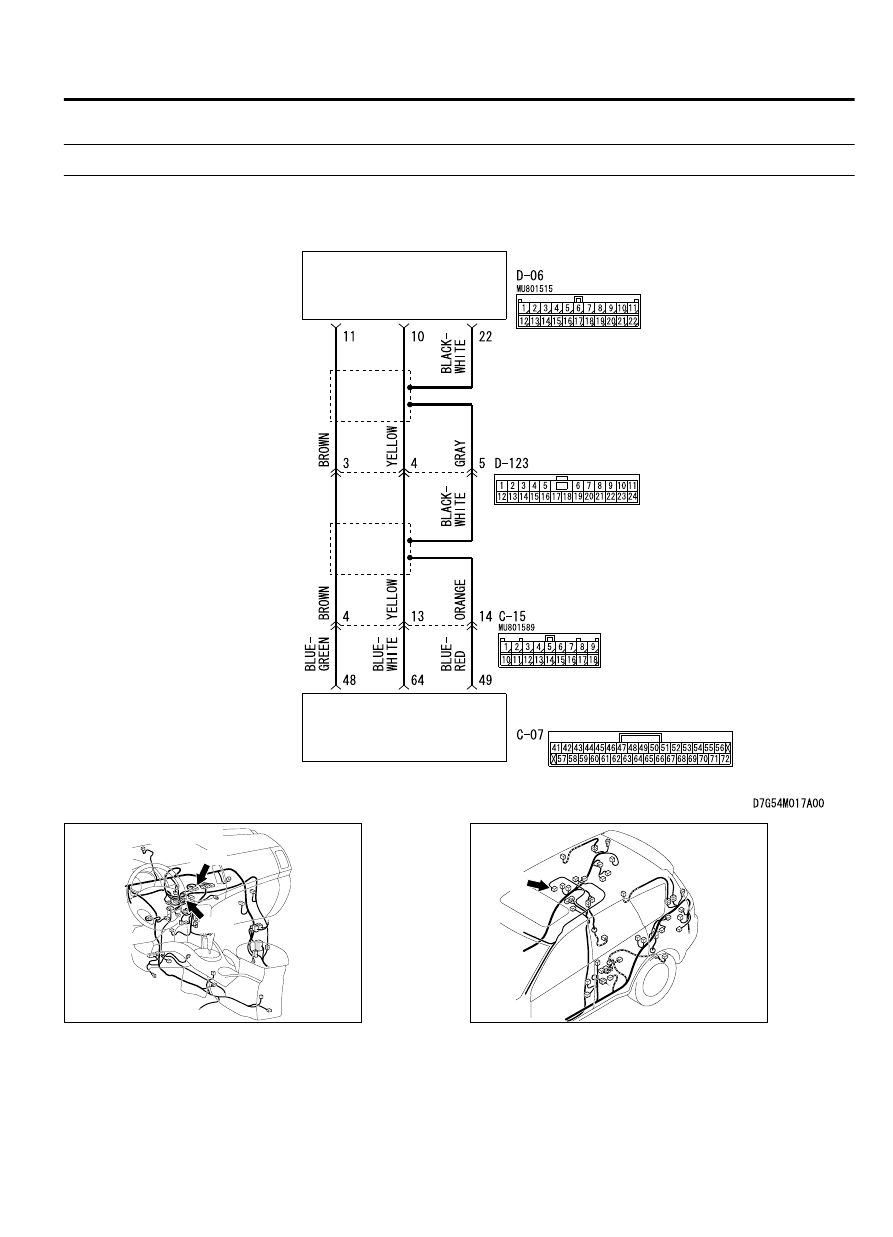

Inspection Procedure 7: The rear display unit sound is not output from the speaker.

M15410800366USA0000010000

Audio Communication Circuit

REAR DISPLAY UNIT

AUDIO VISUAL
NAVIGATION UNIT

ZC6008760009

Connectors: C-07, C-15

C-07

C-15

ZC6008800000

Connector: D-06

D-06 (L)



AUDIO AND NAVIGATION SYSTEM

54B-155

DIAGNOSIS

ZC6008790003

Connector: D-123

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Check rear display unit connector D-06 and audio
visual navigation unit connector C-07 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Is  rear  display  unit  connector  D-06  and  audio  visual

navigation unit connector C-07 in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 2. Check the wiring harness between rear display unit
connector D-06 (terminal 10, 11, 22) and audio visual
navigation unit connector C-07 (terminal 64, 48, 49).

NOTE:

Also check intermediate connectors C-15 and D-123 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-15 or
D-121 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

｠

Check the communication lines for open circuit.

Q:Is the wiring harness between rear display unit connector

D-06 (terminal 10, 11, 22) and audio visual navigation unit

connector C-106 (terminal 64, 48, 49) in good condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 3. Retest the system
Check if the rear display unit sound is output from the speaker.

54B-156

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
