Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the audio visual navigation unit.

Inspection Procedure 2: No sound is heard. <Vehicles with audio amplifier>

M15410800356USA0000010001

Before replacing the ECU, ensure that the power
supply  circuit,  the  ground  circuit  and  the
communication circuit are normal.

AUDIO AND NAVIGATION SYSTEM

54B-81

DIAGNOSIS

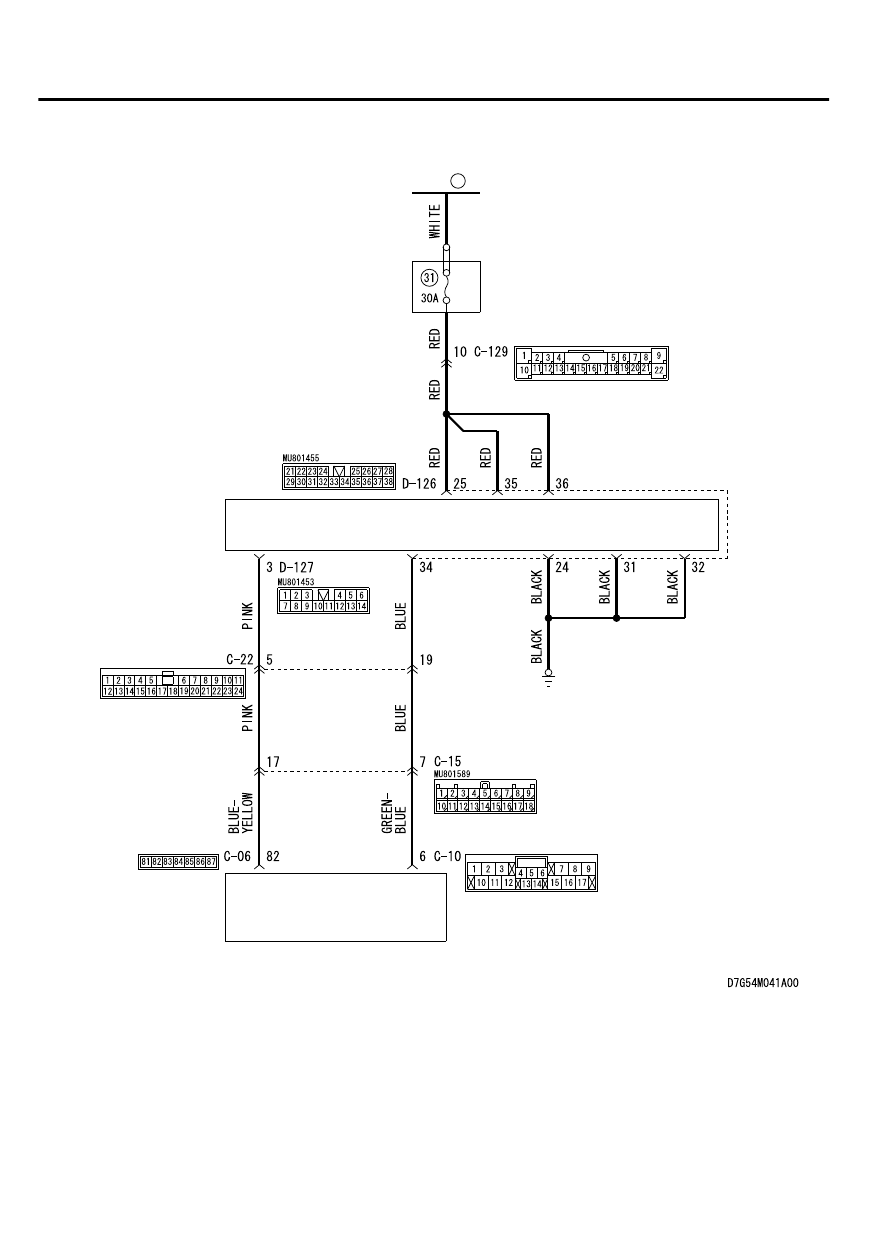

Audio Visual Navigation System Circuit

RELAY
BOX

AUDIO AMPLIFIER

FUSIBLE
LINK

36

AUDIO VISUAL
NAVIGATION UNIT

54B-82

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

ZC6008760016

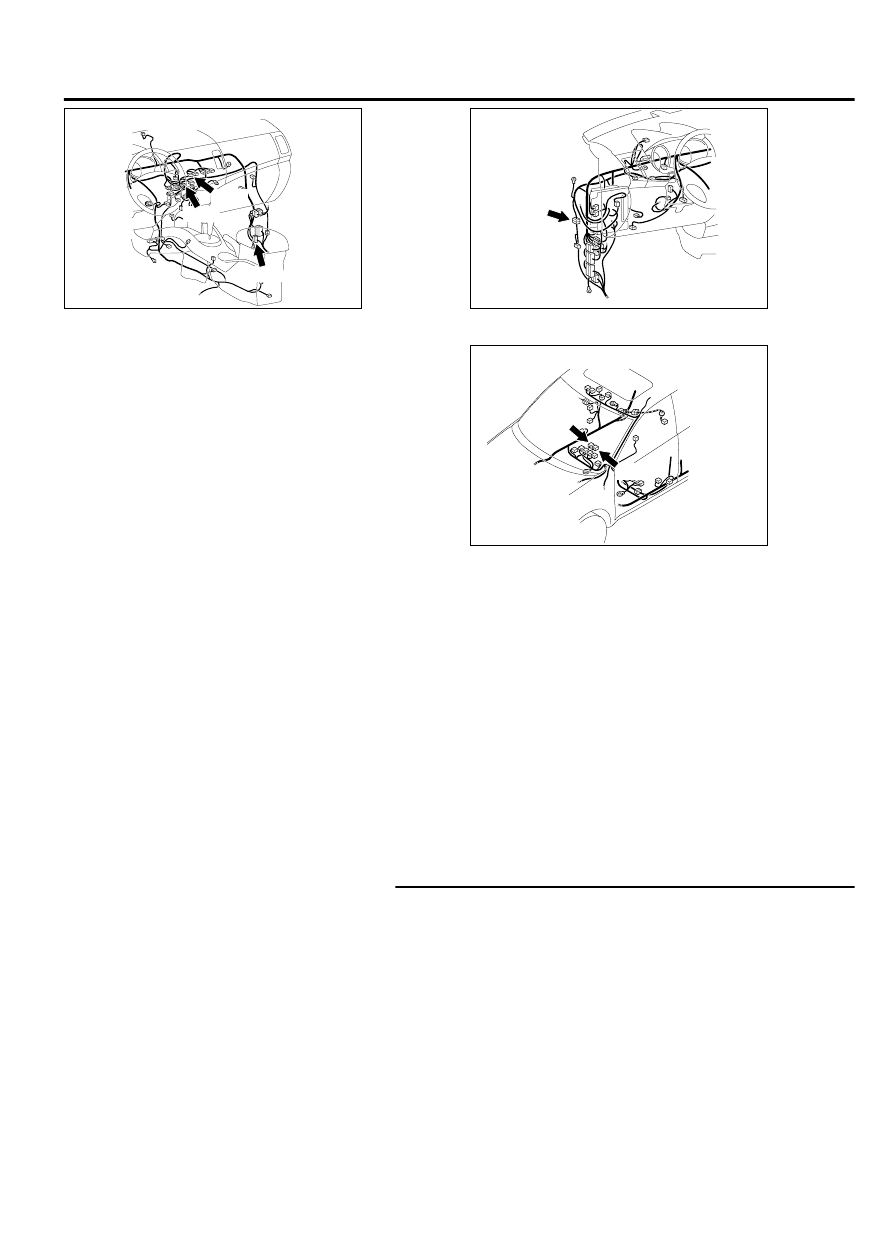

Connectors: C-06, C-15, C-22

C-06

C-15

C-22

ZC6008750019

Connector: C-129



ZC6008790004

Connectors: D-126, D-127

C-127

C-126



COMMENTS ON TROUBLE SYMPTOM
If  the  audio  sound  is  not  output,  the  audio  visual
navigation unit, audio amplifier, or power supply circuit
of audio amplifier may have a problem, or the option
coding information may be inconsistent.

PROBABLE CAUSES

⦆

Malfunctions of audio visual navigation unit

⦆

Malfunction of audio amplifier

⦆

Option coding information inconsistency

⦆

Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

⦆

MB991223: Harness Set

⦆

MB992006: Extra Fine Probe

⦆

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

⦆

MB991824: Vehicle Communication Interface (V.C.I.)

⦆

MB991827: M.U.T.-III USB Cable

⦆

MB991910: M.U.T.-III Main Harness A

STEP 1. Check the ETACS-ECU coding data.

(1)

Operate the scan tool MB991958 to read the ETACS-ECU
option  coding  information.  (Refer  to  GROUP  00,  Coding
Table P.00-34.)

(2)

Check that the "Speaker" is set to "Premium."

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Operate scan tool MB991958 to set the option coding

"Speaker" to "Premium," and check the trouble symptom.

AUDIO AND NAVIGATION SYSTEM

54B-83

DIAGNOSIS

STEP 2. Check audio amplifier connector D-126 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-126 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 3. Check the ground circuit to the rear monitor.

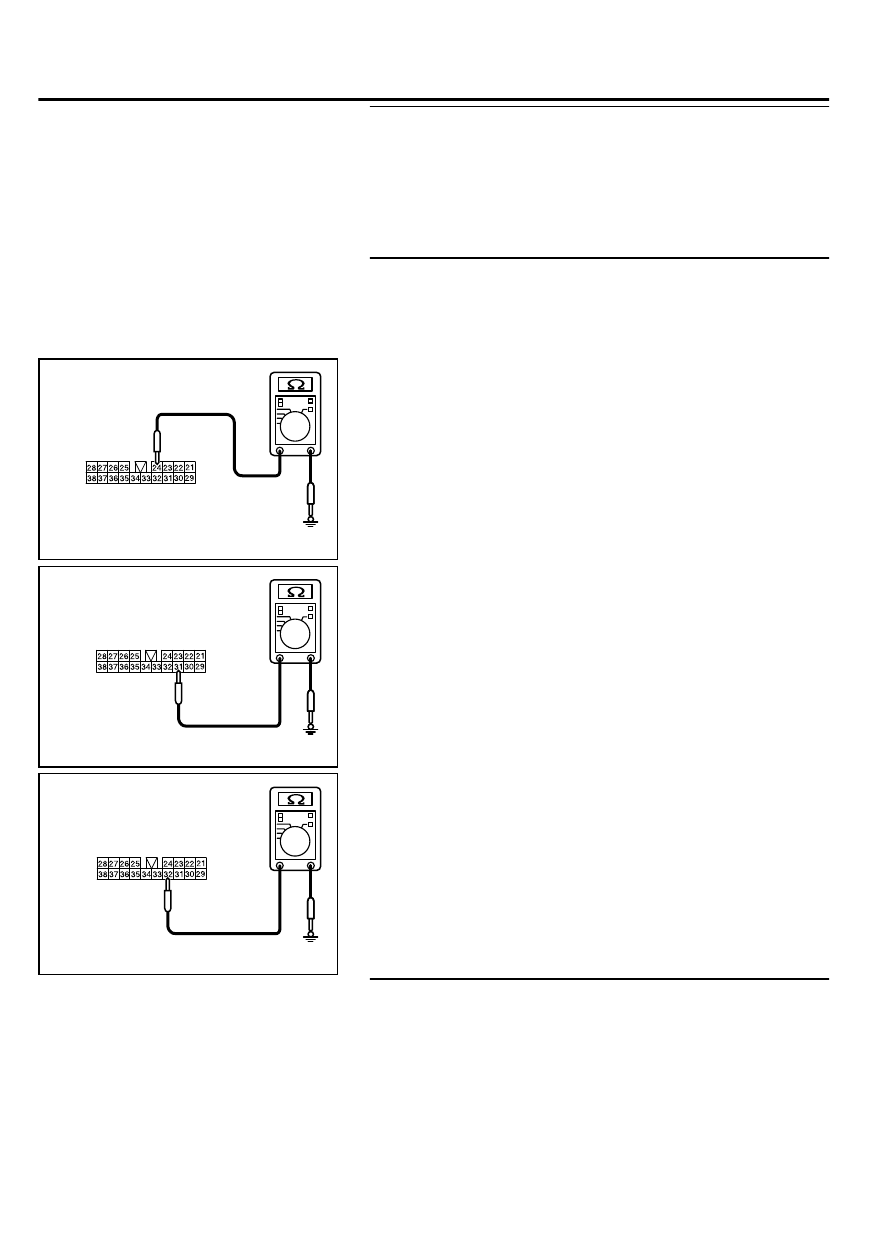

Measure the resistance at audio amplifier connector D-126.

(1)

Disconnect audio amplifier connector D-126, and measure
the  resistance  available  at  the  wiring  harness  side  of  the
connector.

ZC5010410041

Harness side: D-126

(2)

Measure the resistance between terminal 24 and ground.

OK: The resistance should be 2 ohms or less

ZC5010410042

Harness side: D-126

(3)

Measure the resistance between terminal 31 and ground.

OK: The resistance should be 2 ohms or less

ZC5010410043

Harness side: D-126

(4)

Measure the resistance between terminal 32 and ground.

OK: The resistance should be 2 ohms or less

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 5.

NO:

 Go to Step 4.

STEP 4. Check the wiring harness between audio amplifier
connector D-126 (terminal 24, 31, 32) and ground.

⦆

Check the ground wires for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-126 (terminal 24, 31, 32) and ground in good condition?

54B-84

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
