CAN Communication Confirmation

List Of Connection Equipment

Version Indication

CAN BOX Memory Data Indication

Back

ZC6015260000

CAN List Of Connection Equipment

HVAC

OCM

SATR

CCN

HFM

WCM

FCM

ORC

Back

ZC6015270000

2.

If  "List  Of  Connection  Equipment"  is  selected  on  "CAN
Communication Confirmation" screen, the system will determine
which  equipment  is  installed  according  to  the  connected
equipment  reference  table.  Then  the  equipment  which  are
connected to the CAN box unit will be displayed.

CAN box unit-connected equipment reference table

Screen indication

Equipment

HVAC

A/C-ECU

SATR

Satellite radio tuner

HFM

Hands free module

FCM

ETACS-ECU

ORC

SRS-ECU

OCM

Occupant classification-ECU

CNN

Combination meter

WCM

Wireless control module

Version Indication

Hardware : 1.2

CAN MATRIX : 05.25

NM : 43.24

DIAG : 00h

TPMC : 33.11

Software : 01.02.03

CAN DRIVER : 73.00

KWP2000 : 49.10

Back

DBKOM : 49.17

ZC6015280000

3.

If  "Version  Indication"  is  selected  on  "CAN  Communication
Confirmation" screen, the version for each item is displayed.

CAN BOX Memory Data Indication

Various Data

Coding Data

VIN

Tell-Tale Stack

Chrono Stack

Back

ZC6015290000

4.

If "CAN BOX Memory Data Indication" is selected on "CAN
Communication  Confirmation"  screen,  "CAN  BOX  Memory
Data Indication" will be displayed.

Various Data

Origin : 04h    Supplier : 85h

System ID : 08h    Variation ID : 10h

Serial ID : 0000h

ECU Part Number : 008750A90

ECU Serial Number : 01234567890123

Back

ZC6015300000

5.

If any item is selected on "CAN BOX Memory Data Indication"
screen, its relevant information is displayed.

｠

Various Data

｠

Coding Data

｠

VIN

｠

Tell-Tale Stack

｠

Chrono Stack

AUDIO AND NAVIGATION SYSTEM

54B-73

DIAGNOSIS

Coding Data

Coding Data : 4000h

Back

ZC6015310000

VIN

current VIN

    0123456  0123456  012

Original VIN

    0123456  0123456  012

Back

ZC6015320000

Tell-Tale Stack

Historical
    DTC : C197h
    Odometer : 0132h
Interrogation
    DTC Read Counter : 04h
    Odometer : 01a5h

Back

Next

Previ

2/8

ZC6015330000

Chrono Stack

DTC Value : 0197h

DTC Status : A0h

Odometer Mileage : 1B27h

Accumulation Timer : 06C4h

IG Counter : 15h

Back

Next

Previ

2/8

ZC6015340000

TROUBLE SYMPTOM CHART

M15410800007USA0000010002

Trouble symptom

Inspection
Procedure No.

Reference
page

No navigation screen is displayed.

1

 P.54B-76

No sound is heard. <Vehicles with audio amplifier>

2

 P.54B-81

No  sound  is  heard  from
one of the speakers.

<Vehicles without audio visual navigation unit>

3

 P.54B-87

<Vehicles with audio amplifier>

 P.54B-97

54B-74

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

Trouble symptom

Inspection
Procedure No.

Reference
page

The navigation system can be operated while the vehicle is driven.

4

 P.54B-109

The screen is not normal in the navigation mode.

5

 P.54B-111

AM and/or FM station(s) cannot be received.

6

 P.54B-113

GPS signal cannot be received.

7

 P.54B-114

No DVD (video disk) cannot be played.

8

 P.54B-115

Image of a DVD (video disk) is played, but no sound is played.

9

 P.54B-116

Sound of a DVD (video disk) can be played, but no image is played.

10

 P.54B-117

Check the CAN box unit power supply circuit.

11

 P.54B-119

Communication with scan tool is not possible.

12

 P.54B-122

AUDIO AND NAVIGATION SYSTEM

54B-75

DIAGNOSIS

SYMPTOM PROCEDURES

Inspection Procedure 1: No navigation screen is displayed.

M15410800119USA0000010000

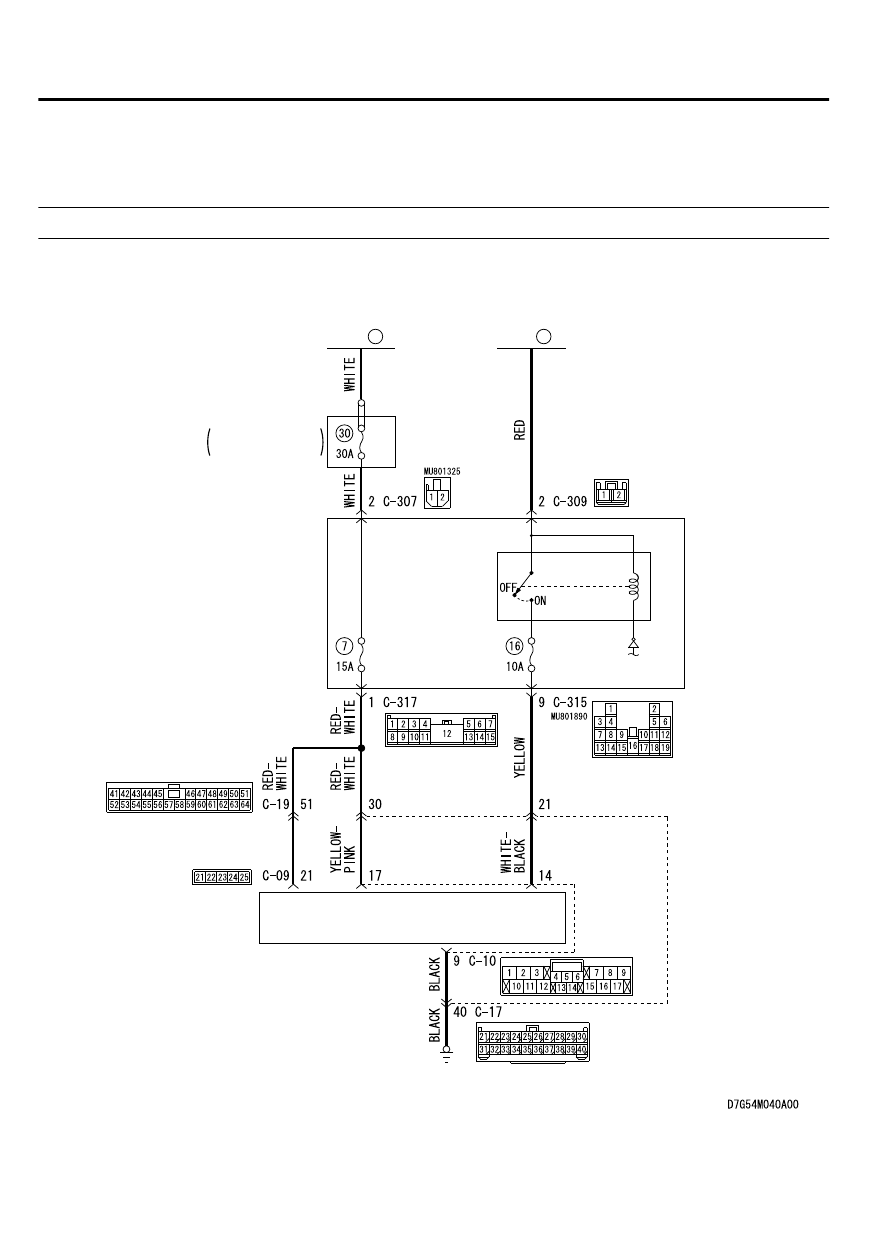

Audio Visual Navigation Unit Power Supply Circuit

ACC
RELAY 2

ETACS-
ECU

FUSIBLE
LINK

36

FUSIBLE
LINK

37

AUDIO VISUAL NAVIGATION UNIT

RELAY BOX
 ENGINE
 COMPARTMENT

54B-76

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
