GROUP 54Ai

DEFOGGER

CONTENTS

TROUBLESHOOTING...............

54Ai-2

ON-VEHICLE SERVICE............

54Ai-2

PRINTED HEATER CHECK..........

54Ai-2

REAR WINDOW DEFOGGER RELAY CHECK
..............................

54Ai-3

REAR WINDOW DEFOGGER SWITCH
..............................

54Ai-3

REMOVAL AND INSTALLATION......

54Ai-3

54Ai-1

TROUBLESHOOTING

M15410500002USA0000010000

Refer to GROUP 55B - Troubleshooting P.55B-10.

ON-VEHICLE SERVICE

PRINTED HEATER CHECK

M15410500004USA0000010000

ZC3048440000

Voltage (V)

Normal characteristics of print heater

Abnormal characteristics of print heater

Voltage (V)

12

6

0

12

6

0

(+) terminal

(-) terminal

(+) terminal

(-) terminal

Length of print heater

Length of print heater

A (middle point)

Appr oximately 6  V

Disconnection
location

1.

Let the engine run (2,000 r/min), and check the printed heater
with the battery fully charged.

2.

With  the  defogger  switch  "ON,"  use  the  circuit  tester  to
measure the voltage of each printed heater at the rear window
glass  center  A  point.  If  approximately  6  V  is  indicated,  it  is
judged good.

3.

If the voltage of 12 V is indicated at the A point, there is an
open  circuit  between  the  A  point  and  negative  terminal.
Therefore, by moving the test bar slowly to the negative side,
search and determine the location where the voltage changes
suddenly (0 V). The location of voltage change indicates the
open circuit position.

4.

Also, if the voltage indicates 0 V at the A point, there is an open
circuit between the A point and positive terminal. Therefore,
search and determine the location of voltage change (12 V)
using the above mentioned method.

54Ai-2

DEFOGGER

TROUBLESHOOTING

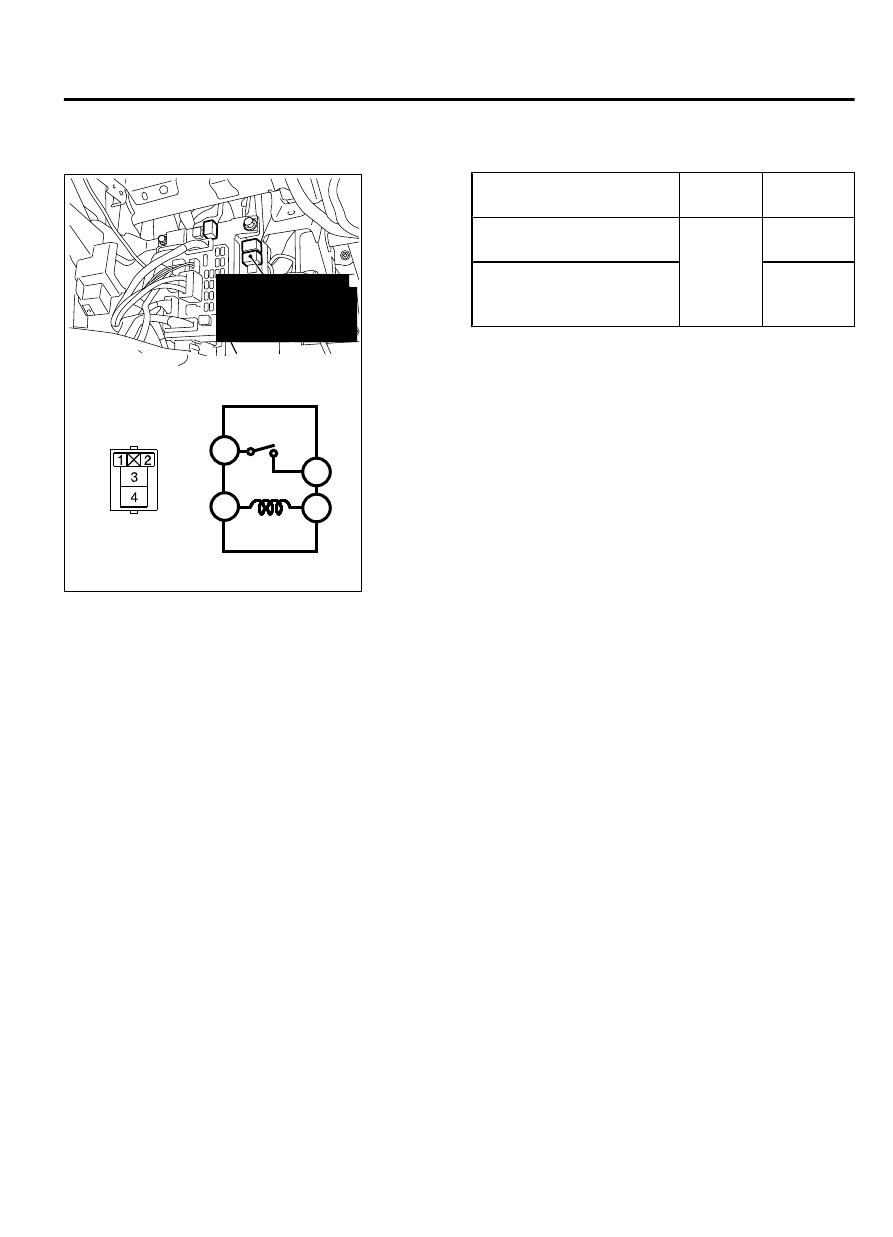

REAR WINDOW DEFOGGER RELAY CHECK

M15410500010USA0000010000

2

3

4

1

ZC6030450000



ETACS-ECU

Battery voltage

Terminal
number

Normal
condition

At no energisation

3 - 4

No
continuity

With

 current

 supply

[terminal  1  (+),  terminal  2
(-)]

Continuity
exists (2 Ω
or less)

REAR WINDOW DEFOGGER SWITCH

REMOVAL AND INSTALLATION

M15410500009USA0000010000

Refer  to  GROUP  55A  -  A/C  control  panel  P.
55A-110.

DEFOGGER

54Ai-3

ON-VEHICLE SERVICE

MEMO

54Ai-4

DEFOGGER
