Mitsubishi Outlander XL. Manual - part 1051





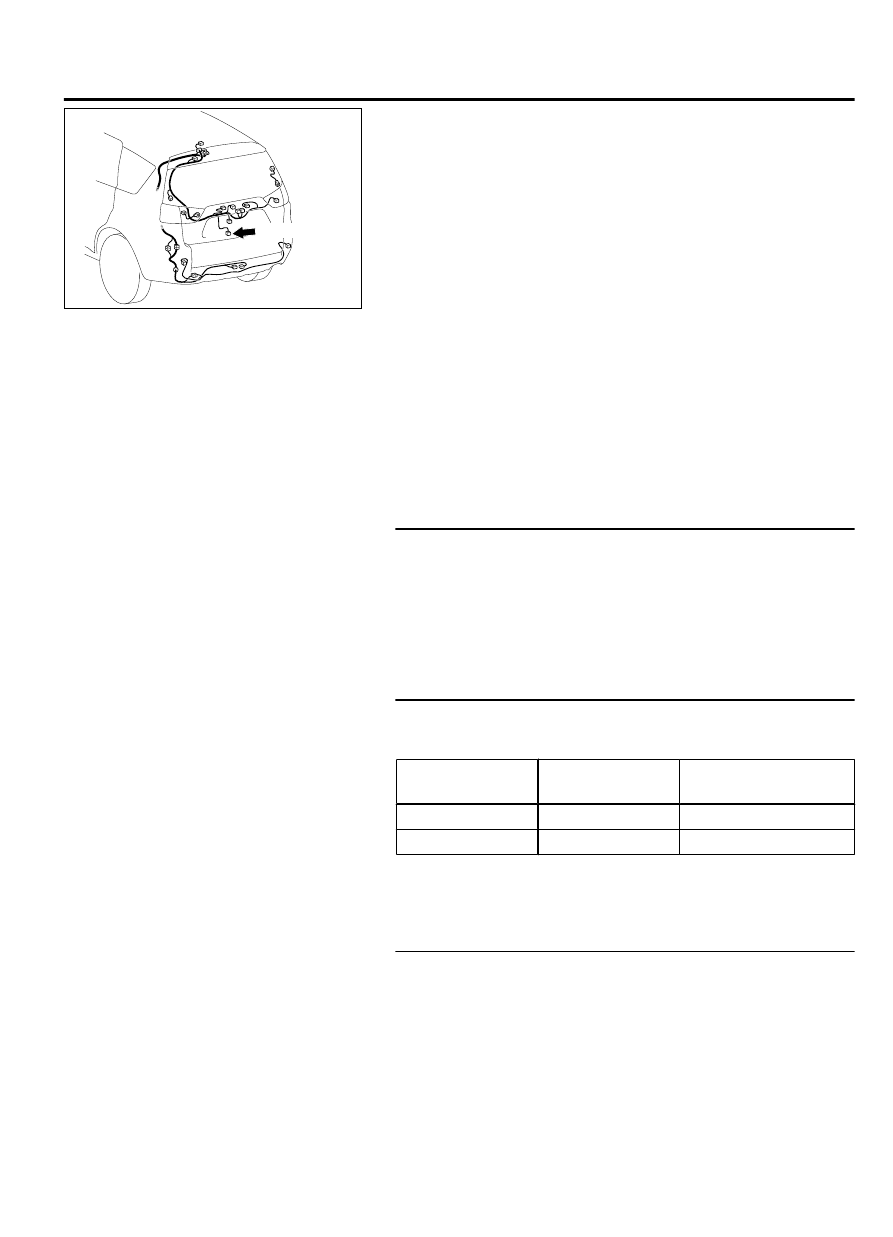

ZC6008820001

Connector: F-12

F-12 (B)

TECHNICAL DESCRIPTION (COMMENT)
If there is an error to the liftgate switch input signal,
the  liftgate  switch  signal  is  no  longer  output  to  the
communication line.

TROUBLESHOOTING HINTS

The liftgate switch may be defective

The ETACS-ECU may be defective

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

STEP 1. Check liftgate switch connector F-12 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is liftgate switch connector F-12 in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the input signal of liftgate switch is normal.

STEP 2. Check the liftgate switch.
Remove the liftgate switch. Then check the continuity between
the switch terminals and the switch body.

Switch position

Tester
connection

Specified condition

Released

1 - switch body

Less than 2 ohms

Pressed

1 - switch body

Open circuit

Q:Is the liftgate switch in good condition?

YES:

 Go to Step 3.

NO:

 Replace the liftgate switch. Check that the input

signal of liftgate switch is normal.

STEP 3. Measure at the lower metal part of the liftgate switch
in order to check the ground circuit to the liftgate switch.

NOTE:

Check that the liftgate switch is grounded to the

vehicle body by means of its mounting screw.
Remove the cap, and measure the resistance value between the
lower metal part and ground.

The resistance should equal 2 ohms or less.

ETACS

54Ad-83

DIAGNOSIS

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 4.

NO:

 Check the fit of the switch, and repair if necessary.

Check that the input signal of liftgate switch is normal.

STEP 4. Check ETACS-ECU connector C-313 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-313 in good condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the input signal of liftgate switch is normal.

STEP 5. Check the wiring harness between liftgate switch
connector F-12 (terminal 1) and ETACS-ECU connector
C-313 (terminal 5).

NOTE:

Also check intermediate connector D-12 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-12 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between liftgate switch connector

F-12  (terminal  1)  and  ETACS-ECU  connector  C-313

(terminal 5) in good condition?

YES:

 Replace the ETACS-ECU. Check that the input signal

of liftgate switch is normal.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the input signal of
liftgate switch is normal.

54Ad-84

ETACS

DIAGNOSIS

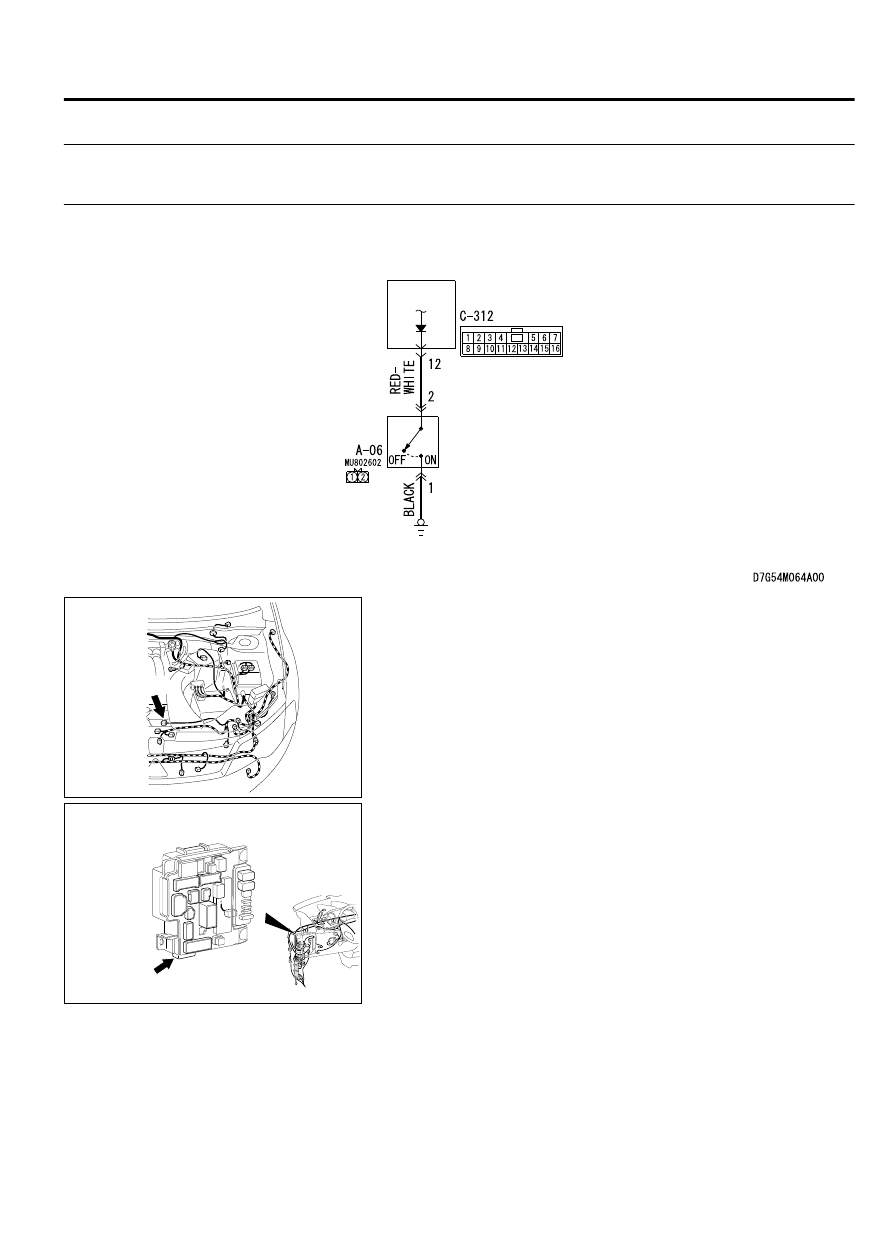

Inspection Procedure 10: ETACS-ECU does not receive any signal from the hood
switch.

M15410600074USA0000010000

Hood Switch Input Circuit

ETACS-
ECU

HOOD
SWITCH

ZC6008720000

Connector: A-06

A-06 (B)

ZC600878003

Connector: C-312

C-312

TECHNICAL DESCRIPTION (COMMENT)
If there is an error to the hood switch input signal, the
hood  switch  signal  is  no  longer  output  to  the
communication line.

TROUBLESHOOTING HINTS

The hood switch may be defective

The ETACS-ECU may be defective

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set

ETACS

54Ad-85

DIAGNOSIS

MB992006: Extra Fine Probe

STEP 1. Check hood switch connector A-06 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is hood switch connector A-06 in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the input signal of hood switch is normal.

STEP 2. Check the hood switch.
Remove  the  hood  switch.  Then  check  continuity  between  the
switch terminals.

Switch position

Tester
connection

Specified
condition

Released

1 - 2

Less than 2 ohms

Pressed

1 - 2

Open circuit

Q:Is the hood switch in good condition?

YES:

 Go to Step 3.

NO:

 Replace the hood switch. Check that the input signal

of hood switch is normal.

STEP 3. Check the ground circuit to the hood switch. Test
at hood switch connector A-06.

(1)

Disconnect  hood  switch  connector  A-06  and  measure  the
resistance  available  at  the  wiring  harness  side  of  the
connector.

ZC602222 0004

Connector A-06
(Harness side)

(2)

Measure  the  resistance  value  between  terminal  2  and
ground.

The resistance should equal 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 5.

NO:

 Go to Step 4.

STEP 4. Check the wiring harness between hood switch
connector A-06 (terminal 1) and ground.

Q:Is  the  wiring  harness  between  hood  switch  connector

A-06 (terminal 1) and the ground in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the input signal of hood
switch is normal.

54Ad-86

ETACS

DIAGNOSIS
