Mitsubishi Outlander XL. Manual - part 80

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-17

ZC6005000000

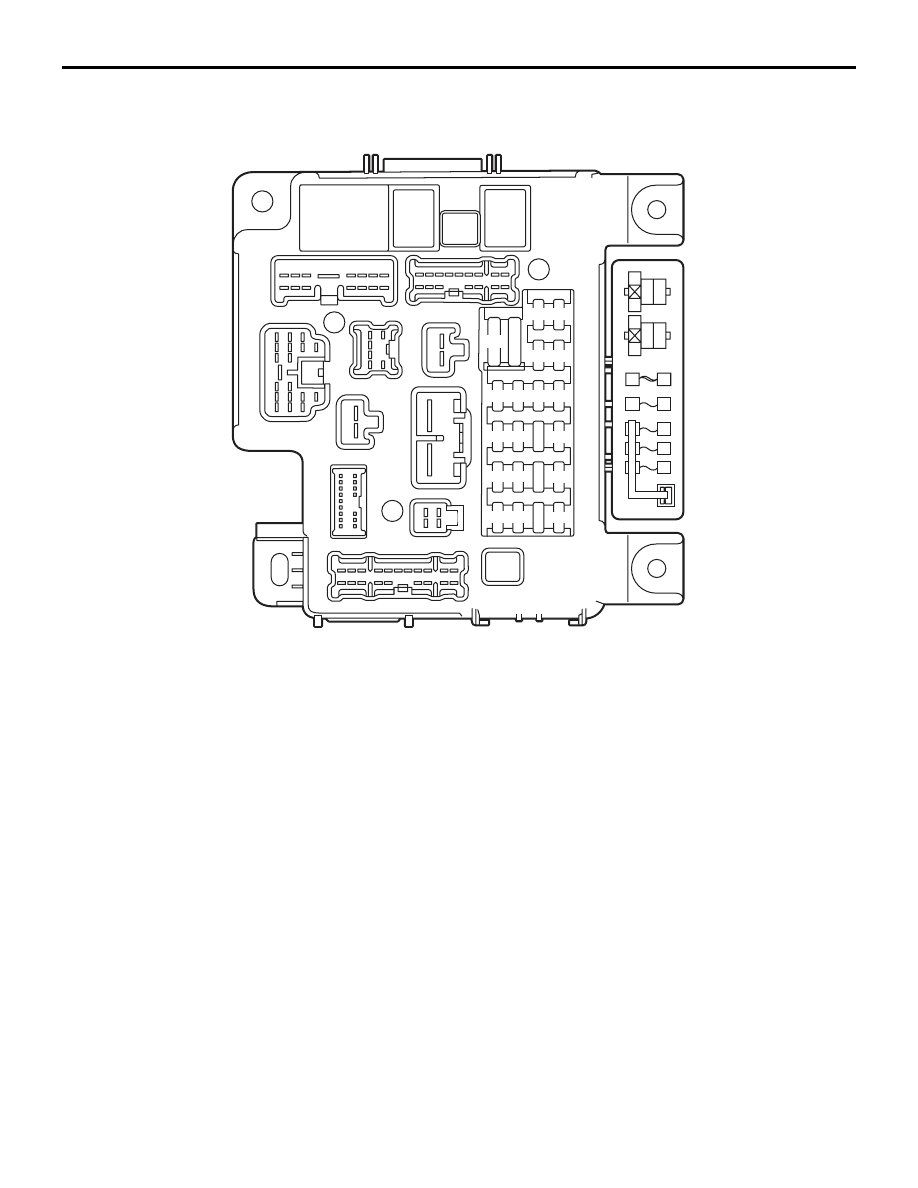

FUSE BOX IN ETACS-ECU

1

7

8

9 10

20

4

2

3

5

6

11 12

13

14 15

16

17 18

19

21

22

23

24

25

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-18

RELAY

Connector No. Name

Connector No. Name

A-14X

Fog light relay

A-26X

−

A-15X

Horn relay

A-27X

Starter relay

A-16X

A/C compressor clutch relay

A-28X

Headlight relay (Low)

A-17X

Theft-alarm horn relay

A-29X

−

A-18X

A/T control relay

A-30X

−

A-19X

−

A-31X

−

A-20X

Headlight relay (High)

A-32X

−

A-21X

Throttle valve control servo relay

A-33X

MFI relay

A-22X

−

A-34X

Radiator fan relay

A-23X

Daytime running light relay

A-35X

Condenser fan relay

A-24X

Injector relay

A-36X

Fan control relay

A-25X

−

ZC6005030001

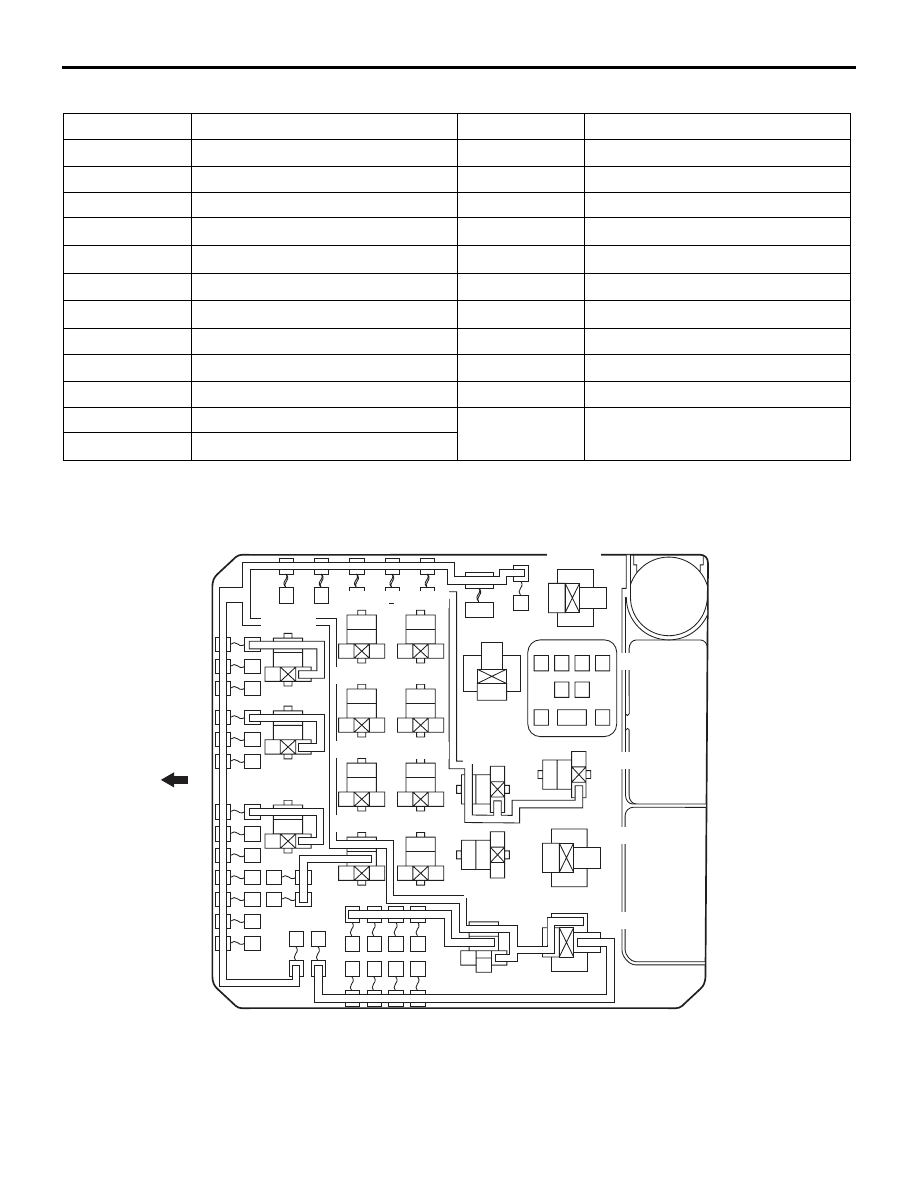

Relay box in engine room

A-14X

A-15X

A-16X

A-17X

A-18X

A-19X

A-20X

A-21X

A-22X

A-23X

A-24X

A-25X

A-26X

A-27X

A-28X

A-29X

A-30X

A-31X

A-32X

A-33X

Front of
vehicle

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-19

ZC6005010000

Front of
vehicle

A-34X

A-35X

A-36X

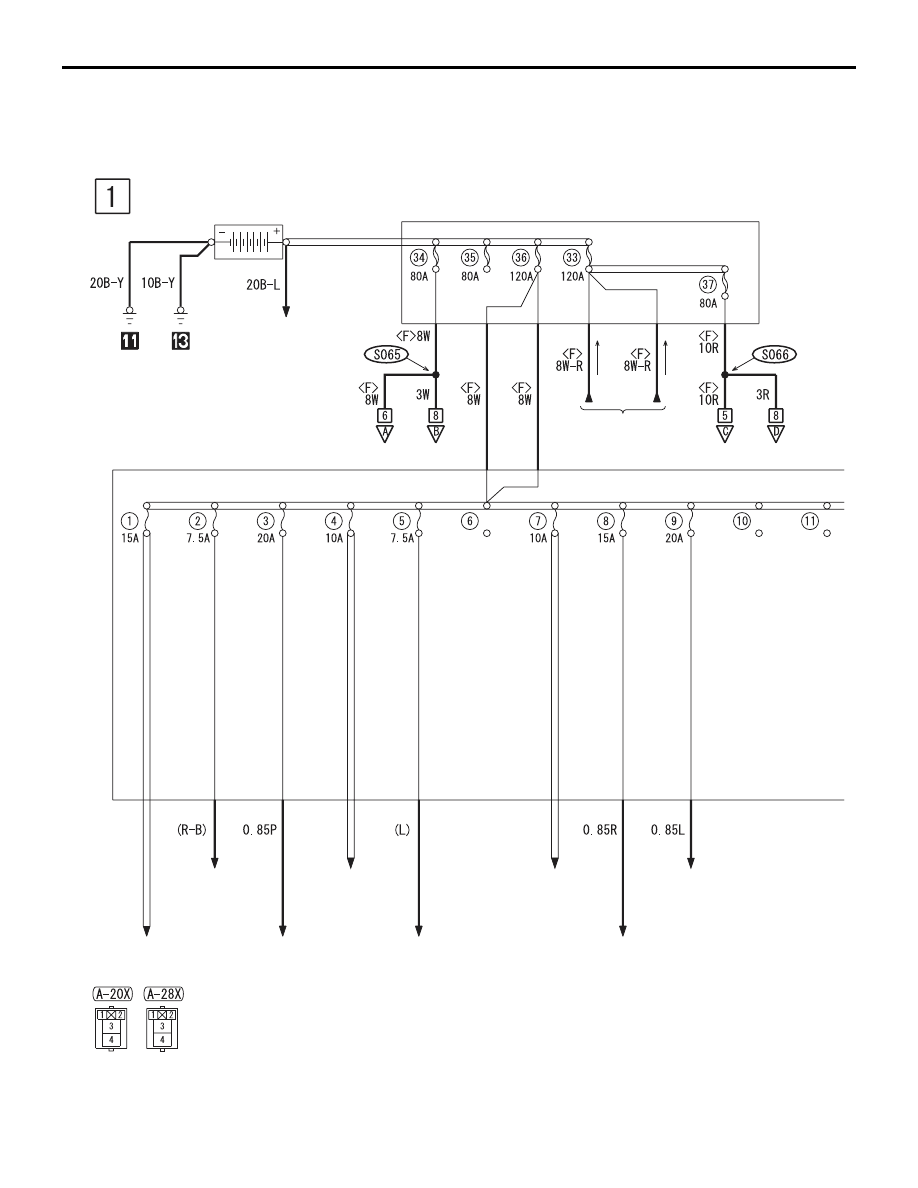

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-20

POWER DISTRIBUTION SYSTEM

BATTERY

FUSIBLE LINK BOX
(FUSIBLE LINK BOX CONNECTED DIRECTLY
 TO BATTERY POSITIV TERMINAL)

CHARGING
SYSTEM

STARTING SYSTEM

RELAY BOX (ENGINE COMPARTMENT)

CHARGING SYSTEM

HORN

AIR CONDITIONING
SYSTEM

THEFT-ALARM
SYSTEM

·AUTO-CRUISE
 CONTROL SYSTEM

·CONTROLLER AREA

 NETWORK (CAN)

·MFI SYSTEM

FOG LIGHT

·CONTROLLER AREA

 NETWORK (CAN)
·INVECS-II 6A/T

·AUTO-CRUISE
 CONTROL SYSTEM

·MFI SYSTEM

FOG LIGHT
