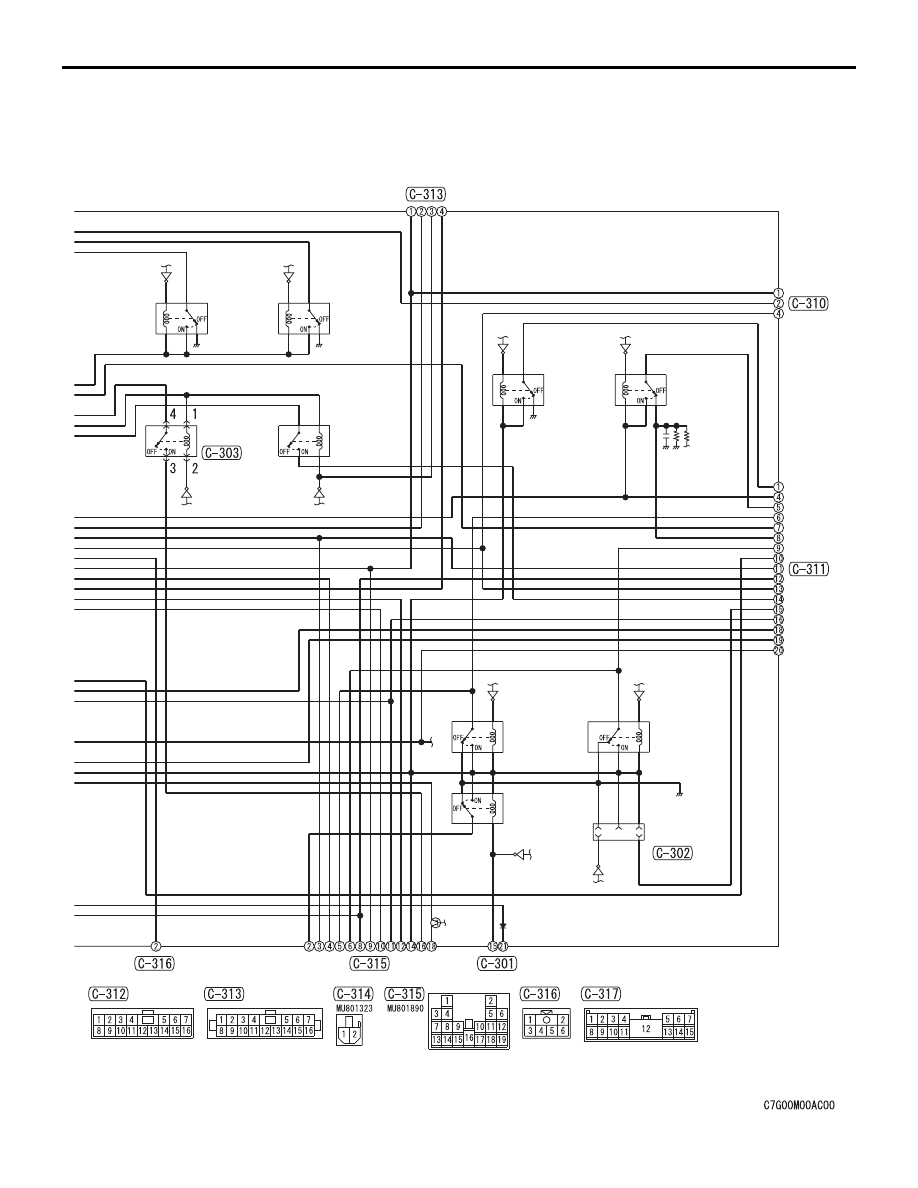

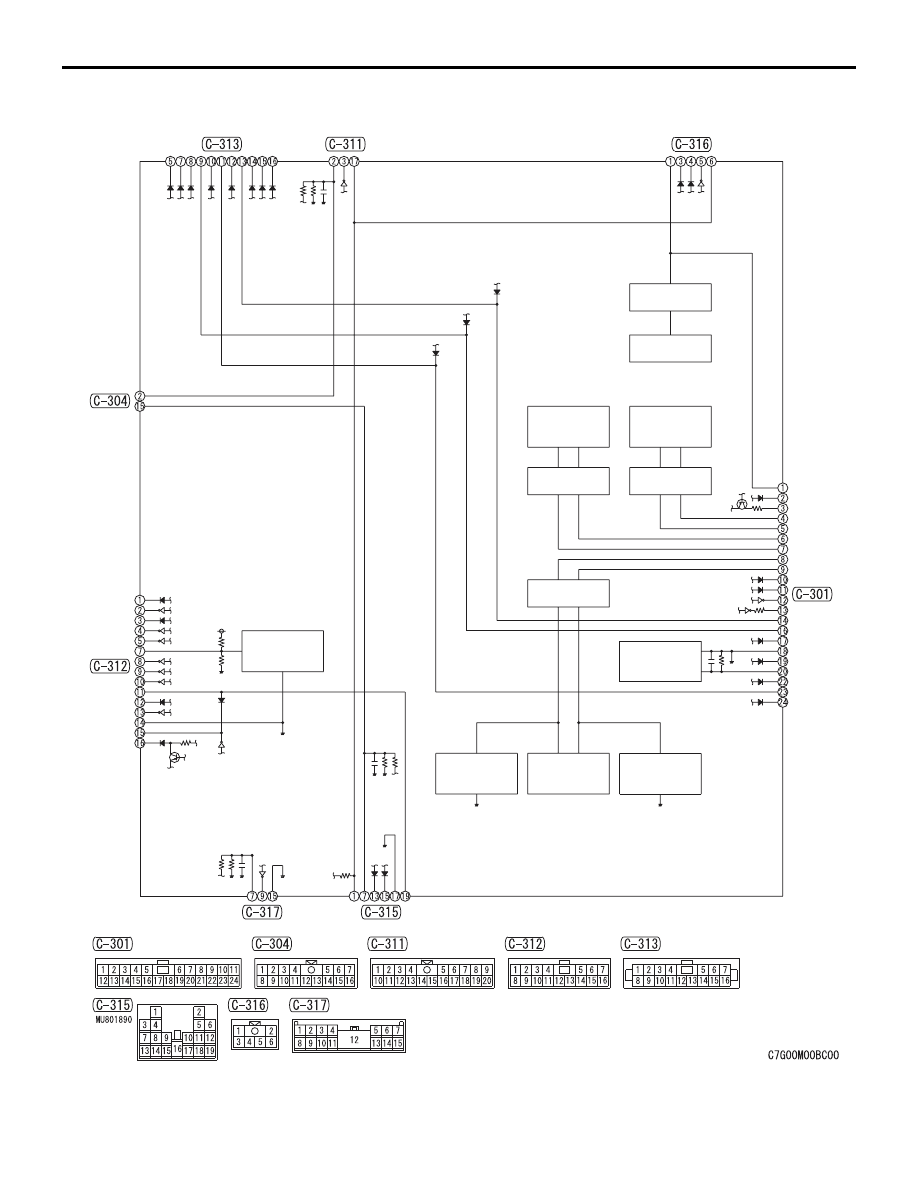

ETACS-ECU

CIRCUIT DIAGRAMS

90-9

WINDSHIELD
WASHER
RELAY

REAR
WINDOW
WASHER
RELAY

BLOWER
RELAY

LIFTGATE
LOCK
RELAY

REAR
WIPER
RELAY

PASSENGER'S
DOOR UNLOCK
RELAY

DOOR
LOCK
RELAY

DRIVER'S DOOR
UNLOCK RELAY

NO
CONNECTION

NO USED
RELAY

ETACS-ECU

CIRCUIT DIAGRAMS

90-10

ETACS-ECU (CONTINUED)

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CAN
DRIVE
CIRCUIT

CAN
DRIVE
CIRCUIT

INTERFACE
CIRCUIT

DRIVE
CIRCUIT

ETACS-ECU

CIRCUIT DIAGRAMS

90-11

ZC6004990000

UPPER VIEW

C-304

C-314

C-302

C-315

C-313

C-311

C-312

C-310

C-316

C-307

C-317

C-303

C-301

C-309

To instrument panel
wiring harness

To front wiring harness

FRONT VIEW

Blower relay

Fusible link

No connection

Fuses

No connection

Fusible link

To instrument panel
wiring harness

To roof wiring
harness

To instrument
panel wiring
harness

To floor wiring
harness

LOWER VIEW

To front wiring
harness

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-12

CENTRALIZED JUNCTION

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

No. Power supply circuit Name

Rated
capacity (A)

Housing
color

Load circuit

1

Fusible link No.36

Fuse

15

Blue

Fog light and fog light relay

2

7.5

Brown

Engine control module

3

20

Yellow

Input shaft speed sensor, output shaft
speed sensor and transmission
control module

4

10

Red

Horn and horn relay

5

7.5

Brown

Generator

6

−

−

−

7

10

Red

A/C compressor assembly and A/C
compressor clutch relay

8

15

Blue

Engine control module

9

20

Yellow

Theft-alarm horn and theft-alarm horn
relay

10

−

−

−

11

−

−

−

12

−

−

−

13

10

Red

Daytime running light and daytime
running light relay

14

Headlight relay (High)

10

Red

Headlight (High: LH)

15

10

Red

Headlight (High: RH)

16

Headlight relay (Low)

20

Yellow

Headlight assembly (LH)

17

20

Yellow

Headlight assembly (RH)

18

10

Red

Headlight assembly (LH) and
headlight automatic leveling-ECU

19

10

Red

Headlight assembly (RH)

20

MFI relay

20

Yellow

Center exhaust pipe heated oxygen
sensor and evaporative emission
ventilation solenoid

21

10

Red

Ignition coil No.1 to 4

22

20

Yellow

Engine control module, engine oil
control valve, evaporative emission
purge solenoid, exhaust gas
recirculation valve, injector No.1 to 4,
left bank heated oxygen sensor, mass
airflow sensor, radiator sensor, right
bank heated oxygen sensor, throttle
valve control servo relay and variable
intake air control solenoid valve

23

15

Blue

Fuel pump module
