Mitsubishi Outlander XL. Manual - part 10

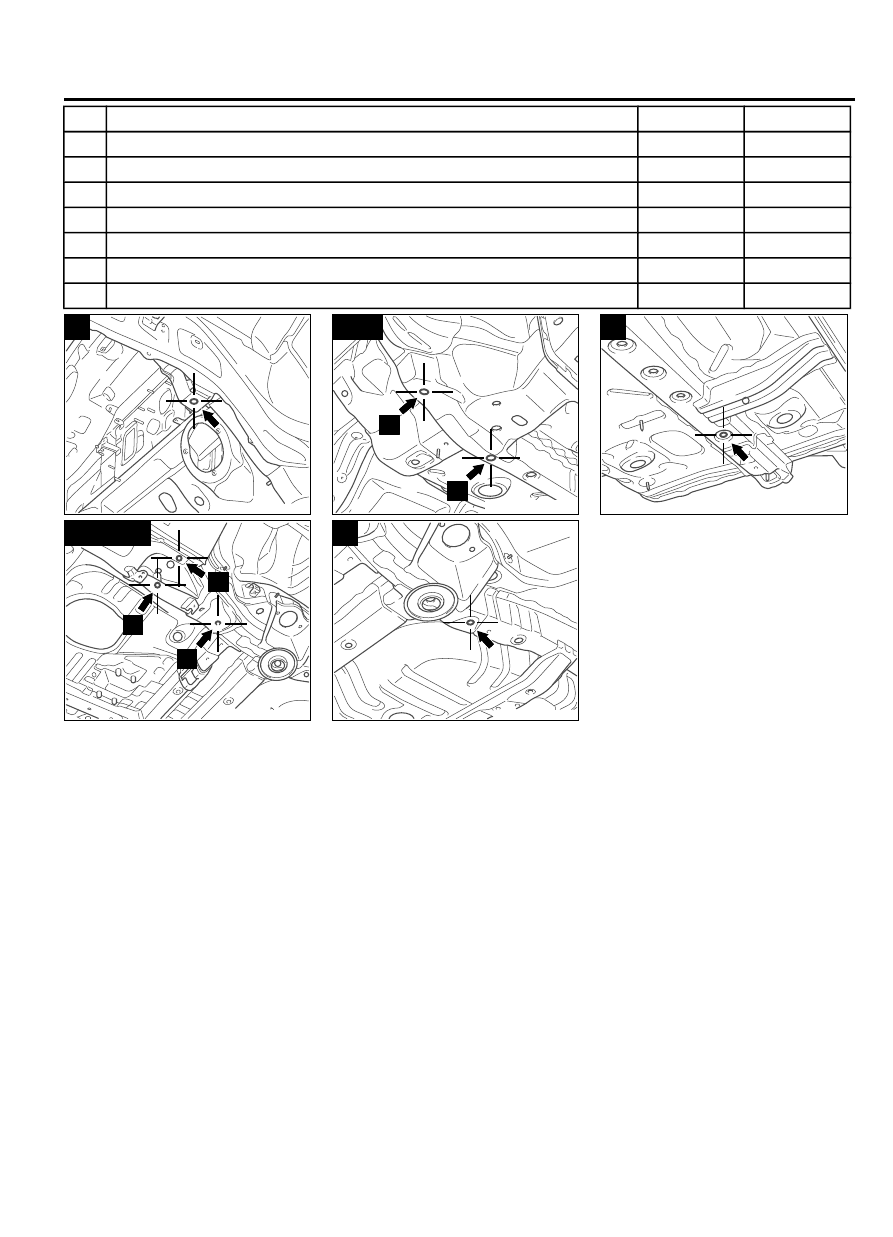

No. Standard measurement point

Hole
shape

Size mm (in)

1

Center of front end crossmember lower water draining hole (Left side)

Round 8 (0.3)

2

Center of front end crossmember lower water draining hole (Right side)

Round 8 (0.3)

3

Center of front sidemember inner positioning hole

Round 25 (1.0)

4

Center of front suspension crossmember mounting hole

Round 15.5 (0.6)

5

Center of front sidemember rear water draining hole

Round 16 (0.6)

6

Center of front floor sidemember front positioning hole

Round 16 (0.6)

7

Center of front floor sidemember front positioning hole

Round 16 (0.6)

8

Center of rear floor sidemember lower positioning hole

Oblong 33.9×18

(1.3×0.7)

9

Center of rear floor sidemember lower water draining hole

Round 18 (0.7)

10

Center of rear floor sidemember lower positioning hole

Round 25 (1.0)

11

Center of trailer hitch mounting hole

Round 15 (0.6)

12

Center of center bearing mounting hole

Round 11 (0.4)

13

Center of center bearing mounting hole

Round 11 (0.4)

AB501571

ZB5004360000

1

1, 2

2



AB501572

ZB5004370000

3



ZB5004380000

4

AB501574

ZB5004390000

5



AB501576

ZB500440

ZB5004400000

6



AB501577

ZB5004410000

7

AB501578

ZB5004520000

8



AB501584

ZB5004530000

9



AB501579

ZB5004540000

10

BODY DIMENSIONS

2-9

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

AB501580

ZB5004550000

11



AB501583

ZB5004560000

12

13

12, 13

SUSPENSION INSTALLATION DIMENSIONS

M40200000130USA0000010001

AB501335

ZB5004420001

16

17

4

18

19

20

5

7

mm (in)

98

(3.9)

  614

(24.2)

  446

(17.6)

  590

(23.2)

  322

(12.7)

  262

(10.3)

226

(8.9)

  727

(28.6)

  707

(27.8)

  295

(11.6)

  841

(33.1)

  546

(21.5)

  894

(35.2)

  903

(35.6)

  910

(35.8)

  886

(34.9)

  875

(34.4)

1,000

(39.4)

1,092

(43.0)

1,288

(50.7)

AB501336

ZB5004430001

16

17

4

18

19

20

5

7

mm (in)

  954

(37.6)

  909

(35.8)

1,151

(45.3)

1,237

(48.7)

1,265

(49.8)

1,173

(46.2)

1,077

(42.4)

1,300

(51.2)

1,219

(48.0)

1,050

(41.3)

1,046

(41.2)

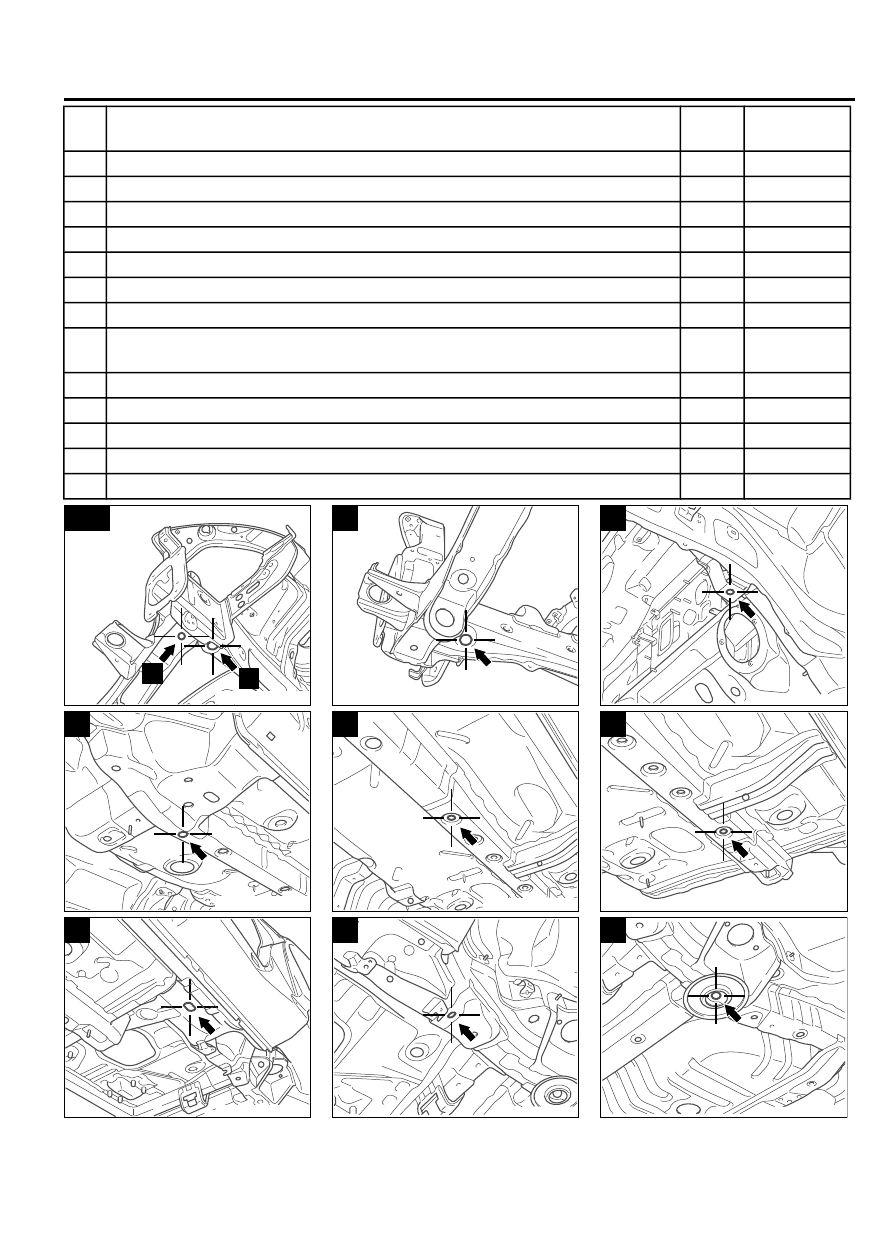

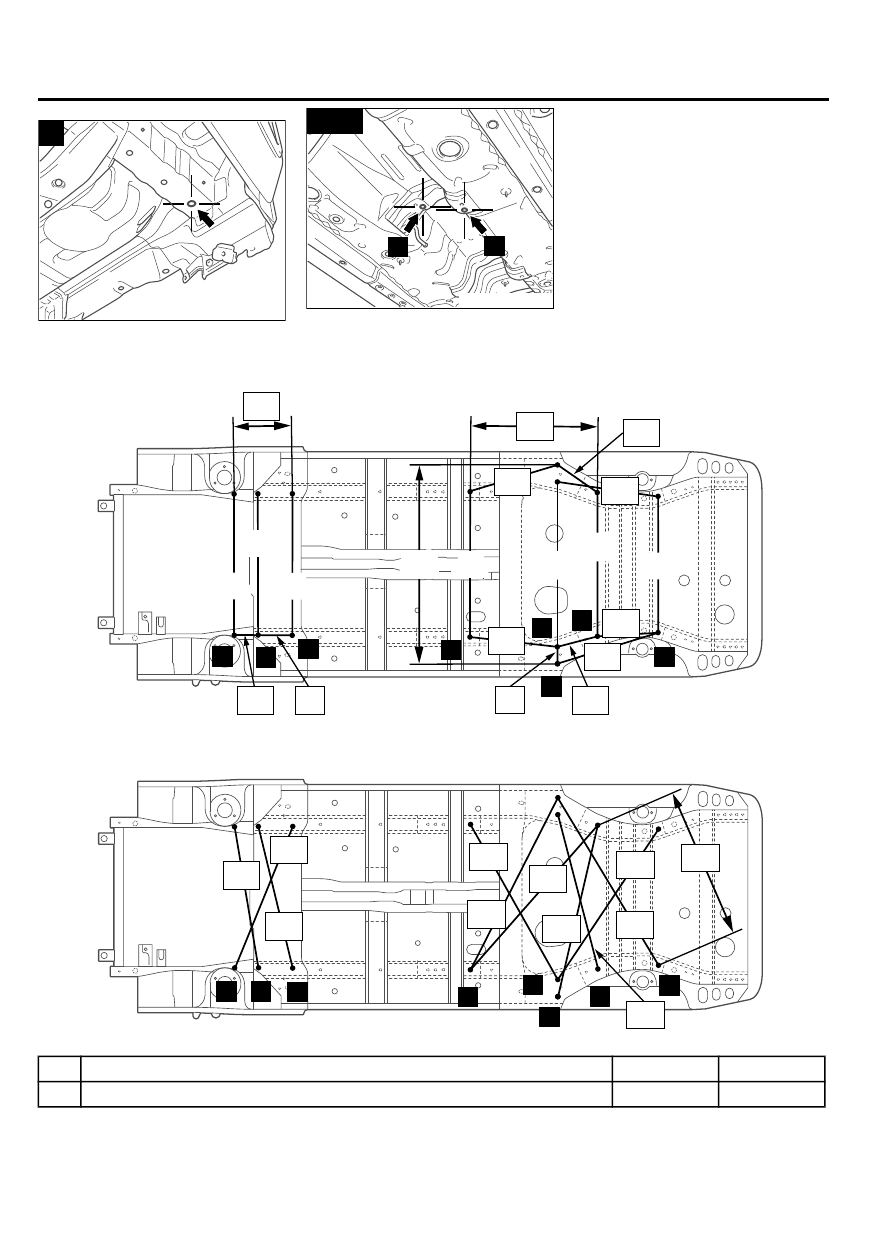

No. Standard measurement point

Hole shape Size mm (in)

4

Center of front suspension crossmember mounting hole

Round

15.5 (0.6)

2-10

BODY DIMENSIONS

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

No. Standard measurement point

Hole shape Size mm (in)

5

Center of front sidemember rear water draining hole

Round

16 (0.6)

7

Center of front floor sidemember front positioning hole

Round

16 (0.6)

16

Center of front suspension crossmember mounting hole

Round

15.5 (0.6)

17

Center of trailing arm mounting hole

Round

14 (0.6)

18

Center of trailing arm mounting hole

Round

14 (0.6)

19

Center of rear suspension crossmember mounting hole

Round

27 (1.1)

20

Center of rear suspension crossmember mounting hole

Round

15 (0.6)

ZB5004380000

4



AB501575

ZB5004470000

16

5, 16

5



AB501577

ZB5004410000

7

AB501582

ZB5004500000

18

19

17, 18, 19

17



AB501581

ZB5004510000

20

BODY DIMENSIONS

2-11

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

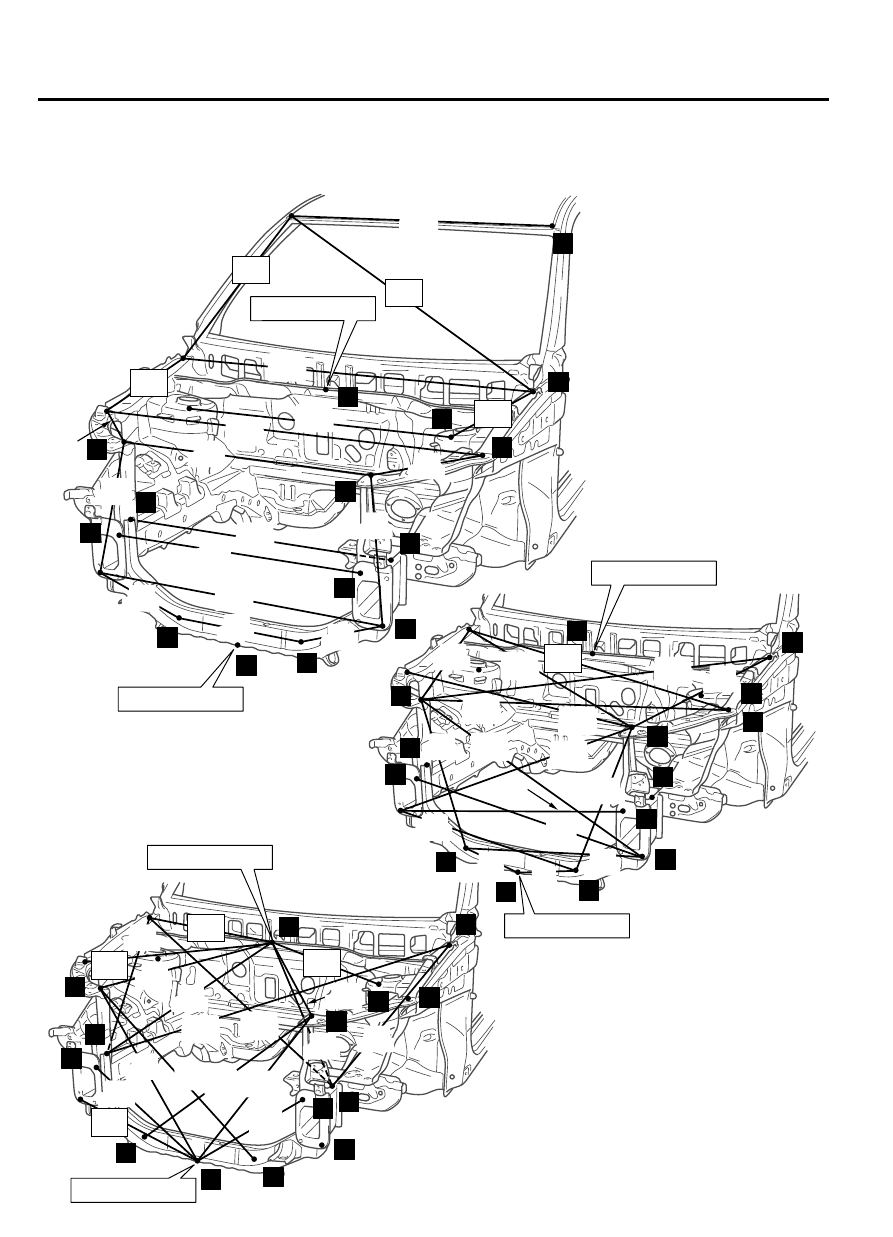

FRONT BODY

M40200000060USA0000010000

AB501479

ZB500457

21

23

24

25

26

27

28

29

32

30

33

31

22

34

35

21

23

24

25

26

27

28

29

32

30

33

31

22

34

21

23

24

25

26

27

28

29

32

30

33

31

22

34

0000

Body center point

Body center point

Body center point

Body center point

Body center point

Body center point

mm (in)

  561

(22.1)

  773

(30.4)

  789

(31.1)

  548

(21.6)

  576

(22.7)

  784

(30.9)

  826

(32.5)

  880

(34.6)

  737

(29.0)

  906

(35.7)

  906

(35.7)

  790

(31.1)

  820

(32.3)

  744

(29.3)

  883

(34.8)

  557

(21.9)

1,516

(59.7)

1,524

(60.0)

  935

(36.8)

  512

(20.2)

  369

(14.5)

  416

(16.4)

  470

(18.5)

  909

(35.8)

  896

(35.3)

  332

(13.1)

  450

(17.7)

  343

(13.5)

  472

(18.6)

  880

(34.6)

  884

(34.8)

  642

(25.3)

  999

(39.3)

  763

(30.0)

  641

(25.2)

  984

(38.7)

  775

(30.5)

  423

(16.7)

1,634

(64.3)

1,559

(61.4)

1,202

(47.3)

1,494

(58.8)

1,069

(42.1)

1,450

(57.1)

1,026

(40.4)

1,457

(57.4)

1,228

(48.3)

1,094

(43.1)

1,084

(42.7)

1,217

(47.9)

1,466

(57.7)

1,060

(41.7)

 235

(9.3)

 223

(8.8)

2-12

BODY DIMENSIONS

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)
