BODY DIMENSIONS AND MEASUREMENT

METHODS

M40200000010USA0000010000

ZB600171

Projected dimension

Height

Probe

0000

ZB6001720000

Actual-measured dimension

A

A'

ZB6001730000

Center of hole

ZB6001740000

｠

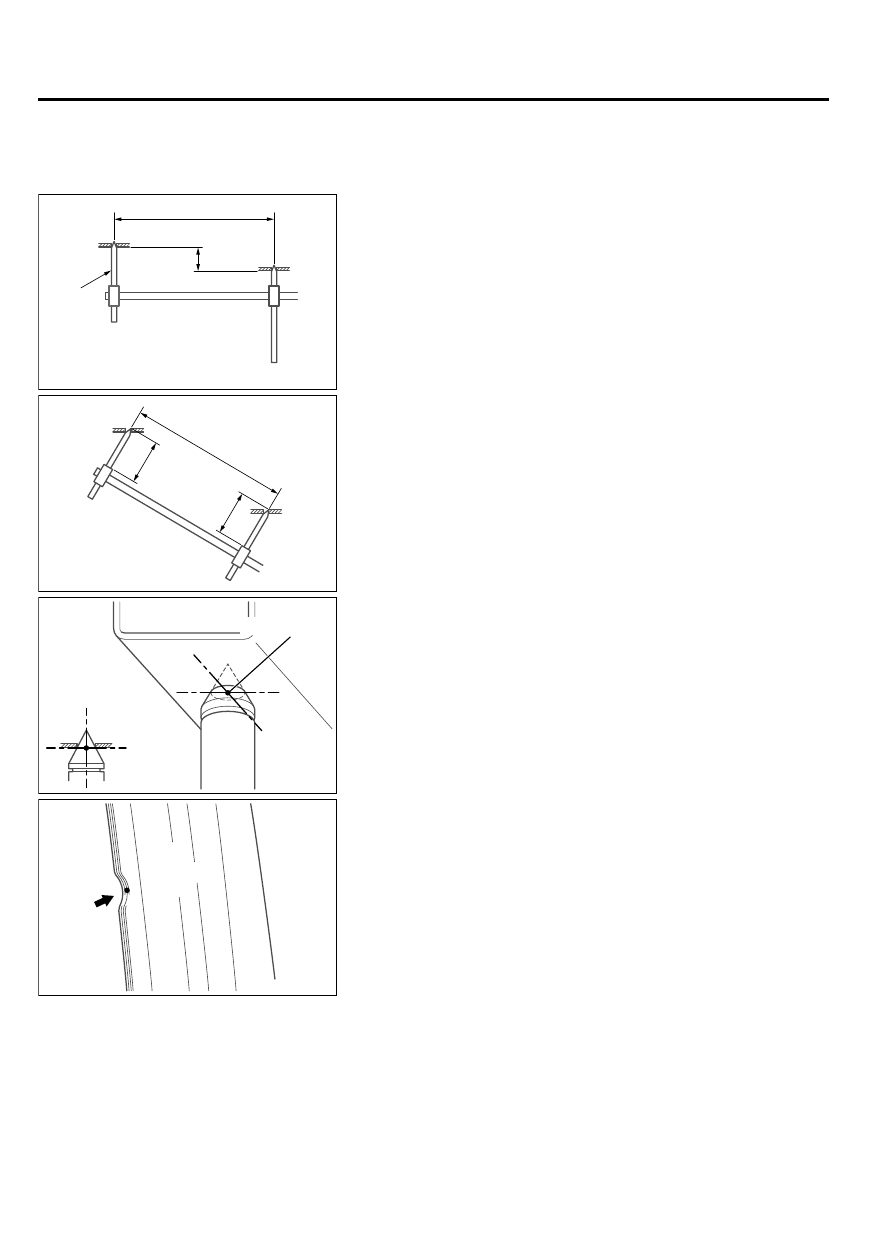

Type  A  (projected  dimensions)  is  the  dimension  when  a
measurement location is projected onto the plane.

NOTE:

The height indicates a distance from the assumed

standard line established 100 mm below the lowest
measurement point.

｠

Type  B  (actual-measurement  dimensions)  is  the  actual
distance between the measurement points. Measure using a
tracking gauge or a measuring tape, etc.

NOTE:

｠

Make the lengths of the tracking gauge probes the same
(A=A’).

｠

Do not bend or twist the measuring tape.

｠

Insert  the  tracking  gauge  probes  securely  into  the
measurement holes.

｠

When the standard dimensions in the illustration are enclosed
by rectangle, this indicates that the symmetrical left and right
positions have the same dimensions.

｠

When  using  a  notch  for  dimension  measurement,  set  the
measuring point at the center of the notch.

｠

When  measuring  the  suspension  mounting  arm,  or  link
mounting  position,  use  the  suspension  mounting  bolt,  etc.
(Type B only)

｠

The body center points are shown for the purpose of checking
the position of the left and right symmetry location.

2-2

BODY DIMENSIONS

BODY DIMENSIONS AND MEASUREMENT METHODS

ZB6001750000

Bolt

Measurement point

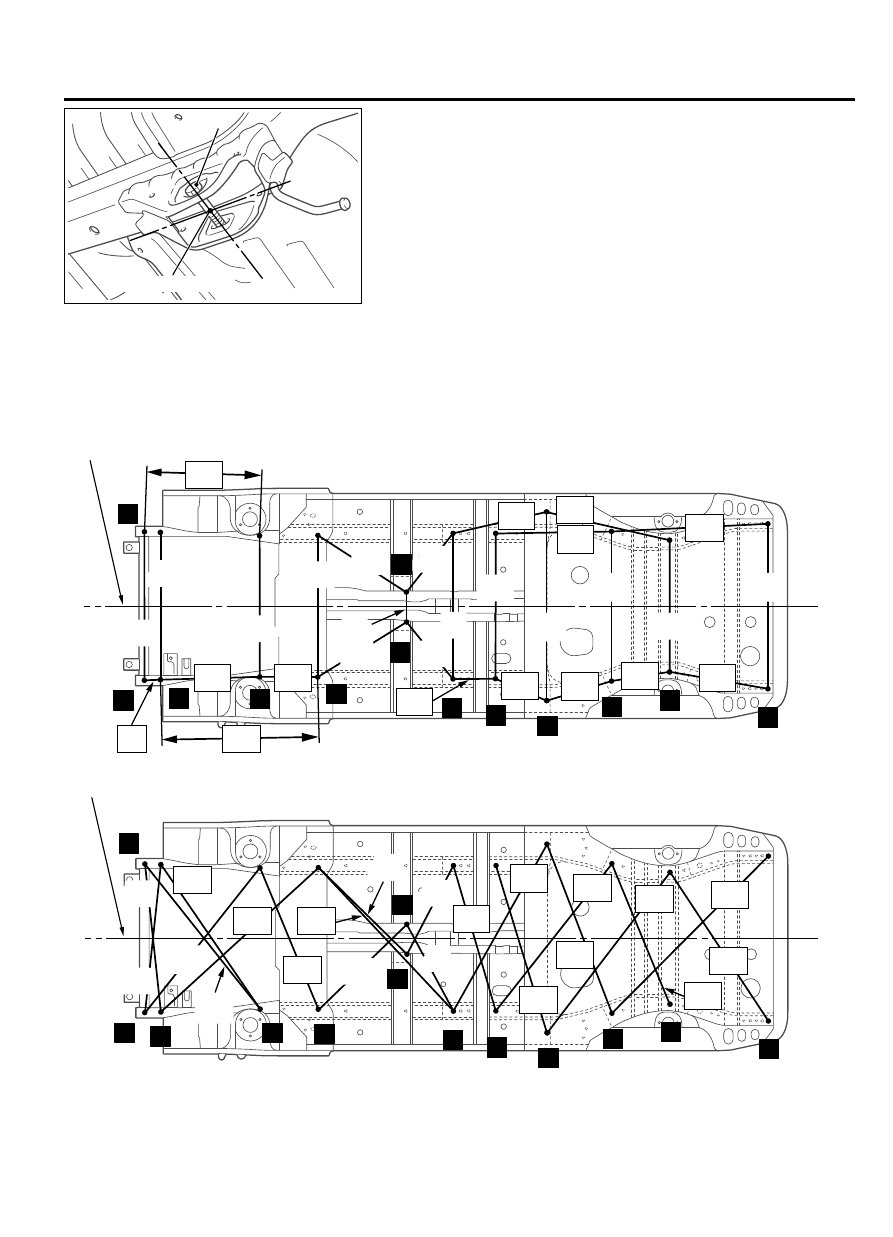

TYPE A (PROJECTED DIMENSIONS)

UNDER BODY

M40200000050USA0000010000

AB501333

ZB5004330000

2

1

5

3

4

7

6

8

9

10

11

12

13

Center line of the vehicle

mm (in)

  651

(25.6)

  540

(21.3)

 350

(13.8)

 374

(14.7)

 701

(27.6)

 752

(29.6)

 833

(32.8)

 440

(17.3)

 393

(15.5)

 628

(24.7)

111

(4.4)

  510

(20.0)

  960

(37.8)

  910

(35.8)

  564

(22.2)

  375

(14.8)

  624

(24.6)

  875

(

34.4

)

  462

(18.2)

  894

(35.2)

  894

(35.2)

  877

(34.5)

197

(7.8)

  967

(38.0)

1,050

(41.3)

1,009

(39.7)

1,022

(40.2)

1,056

(41.6)

1,262

(49.7)

ZB5004340000

2

1

5

3

4

7

6

8

9

10

11

12

13

mm (in)

Center line of the vehicle

  960

(37.8)

  641

(

25.2

)

  544

(

21.4

)

  763

(30.0)

  972

(38.3)

  967

(38.1)

  686

(

27.0

)

1,272

(50.1)

1,217

(47.9)

1,218

(48.0)

1,025

(40.4)

1,149

(45.2)

1,448

(57.0)

1,342

(52.8)

1,126

(44.3)

1,138

(44.8)

1,028

(40.5)

1,079

(42.5)

1,394

(54.9)

1,140

(44.9)

1,144

(45.0)

BODY DIMENSIONS

2-3

TYPE A (PROJECTED DIMENSIONS)

No. Standard measurement point

Hole
shape

Size mm (in)

1

Center of front end crossmember lower water draining hole (Left side)

Round 8 (0.3)

2

Center of front end crossmember lower water draining hole (Right side)

Round 8 (0.3)

3*

Center of front sidemember inner positioning hole

Round 25 (1.0)

4*

Center of front suspension crossmember mounting hole

Round 15.5 (0.6)

5*

Center of front sidemember rear water draining hole

Round 16 (0.6)

6*

Center of front floor sidemember front positioning hole

Round 16 (0.6)

7*

Center of front floor sidemember front positioning hole

Round 16 (0.6)

8*

Center of rear floor sidemember lower positioning hole

Oblong 33.9×18

(1.3×0.7)

9*

Center of rear floor sidemember lower water draining hole

Round 18 (0.7)

10* Center of rear floor sidemember lower positioning hole

Round 25 (1.0)

11* Center of trailer hitch mounting hole

Round 15 (0.6)

12

Center of center bearing mounting hole

Round 11 (0.4)

13

Center of center bearing mounting hole

Round 11 (0.4)

NOTE:

The * mark indicates the mounting position

for the frame centering gauge.

AB501337

ZB5004350000

2

1

5

3

4

7

6

8

9

10

12

11

13

mm (in)

Standard line

  280

(11.0)

  279

(11.0)

  347

(13.7)  294

(11.6)

  510

(20.1)

  716

(28.2)

  750

(29.5)

  286

(11.3)

  354

(13.9)

  357

(14.1)

  350

(13.8)

  326

(12.8)

  259

(10.2)

  486

(19.1)

 230

(9.1)

 100

(3.9)

 157

(6.2)

 105

(4.1)

 105

(4.1)

 154

(6.1)

1,049

(41.3)

1,136

(44.7)

1,758

(69.2)

1,160

(45.7)

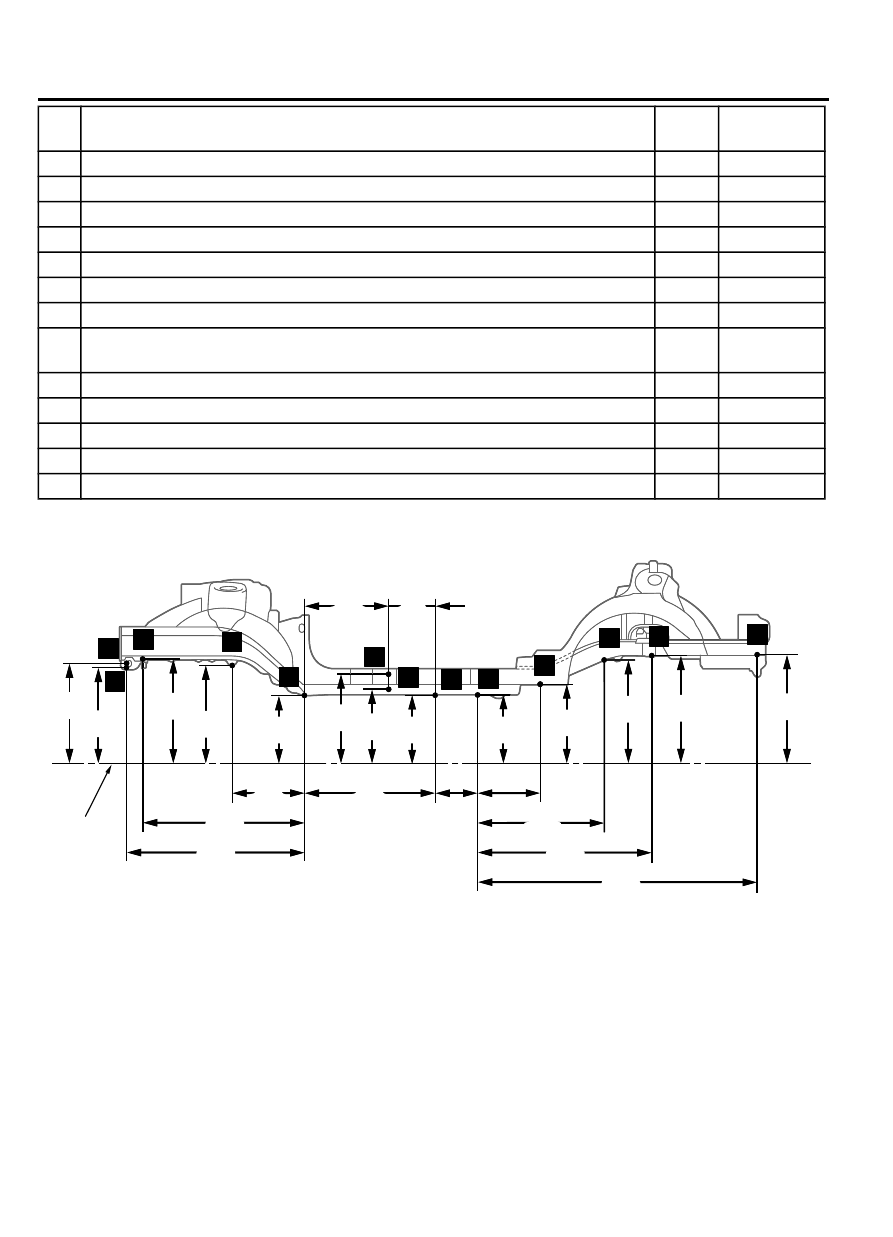

NOTE:

The assumed standard line is established

100 mm (3.9 inches) below the measurement point
No.5.

2-4

BODY DIMENSIONS

TYPE A (PROJECTED DIMENSIONS)
