Mitsubishi Outlander XL. Manual - part 6

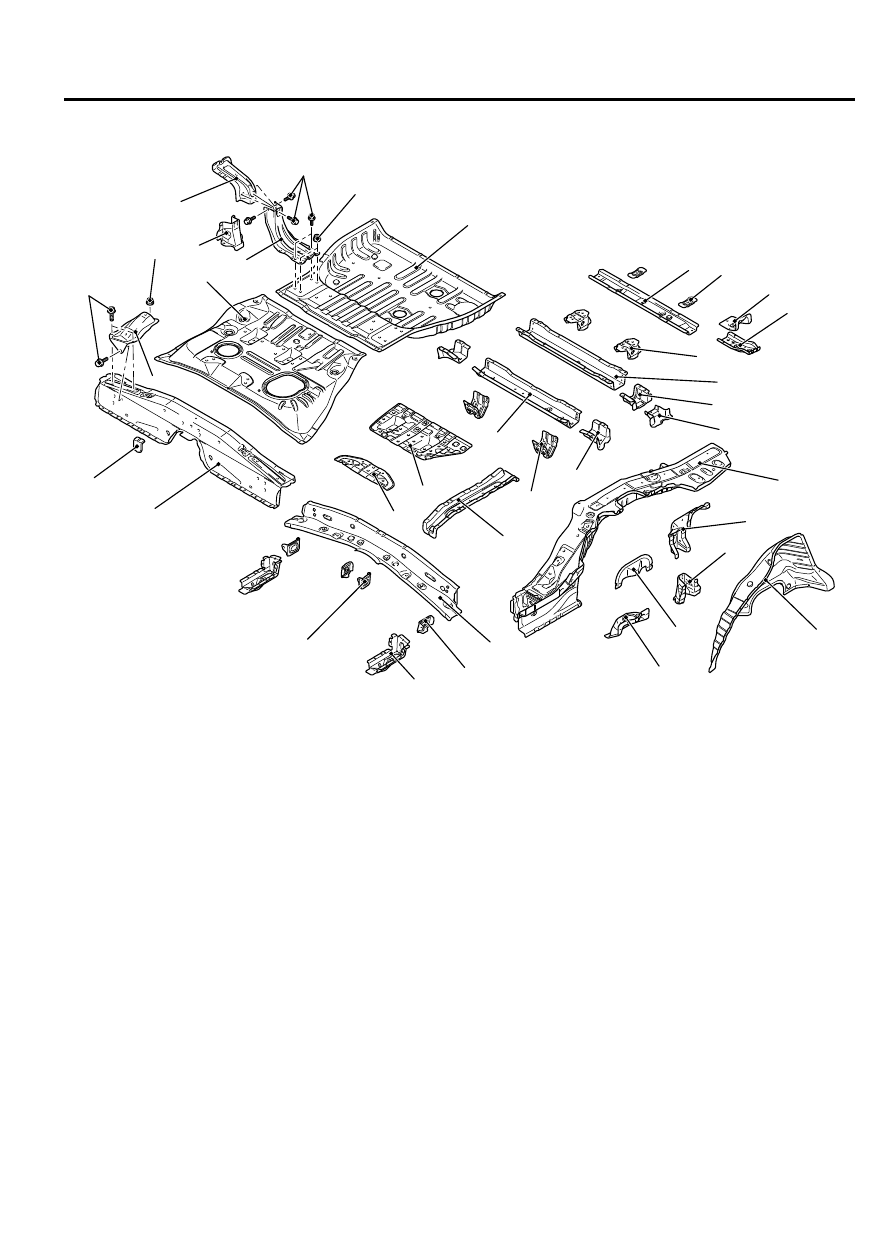

REAR FLOOR

ZB500410 0000

13

14

15

16

6

2

4

7

17

5

8

6

1

3

7

11

9

10

12

27

28

29

18

30

26

25

24

23

22

19

20

21

18 ± 7 N·m
13 ± 5 ft-lb

11 ± 4 N·m
98 ± 35 in-lb

25 ± 6 N·m
19 ± 4 ft-lb

41 ± 10 N·m
30 ± 8 ft-lb

1.

Rear floor extension

2.

Rear seat reinforcement front side

3.

Second seat hinge bracket side

4.

Rear floor pan front

5.

Rear floor crossmember upper extension

6.

Rear spring house reinforcement

7.

Rear wheel house reinforcement

8.

Rear floor pan rear

9.

Rear floor crossmember rear

10. Third seat bracket center
11. Rear floor crossmember extension rear upper
12. Rear floor crossmember extension rear
13. Third seat hinge front bracket
14. Rear floor crossmember center
15. Rear floor crossmember extension center

16. Rear floor crossmember center extension lower
17. Rear floor sidemember
18. Rear wheel house panel inner
19. Rear spring house panel
20. Rear spring house bracket
21. Rear seat crossmember
22. Rear seat crossmember bulkhead side
23. Sidemember front floor extension
24. Rear seat crossmember bulkhead inner
25. Second seat hinge reinforcement
26. Second seat striker center reinforcement
27. Rear floor crossmember front
28. Rear floor crossmember extension front
29. Fuel tank rear bracket
30. Front stringer



BODY CONSTRUCTION

1-21

BODY CONSTRUCTION CHARACTERISTICS

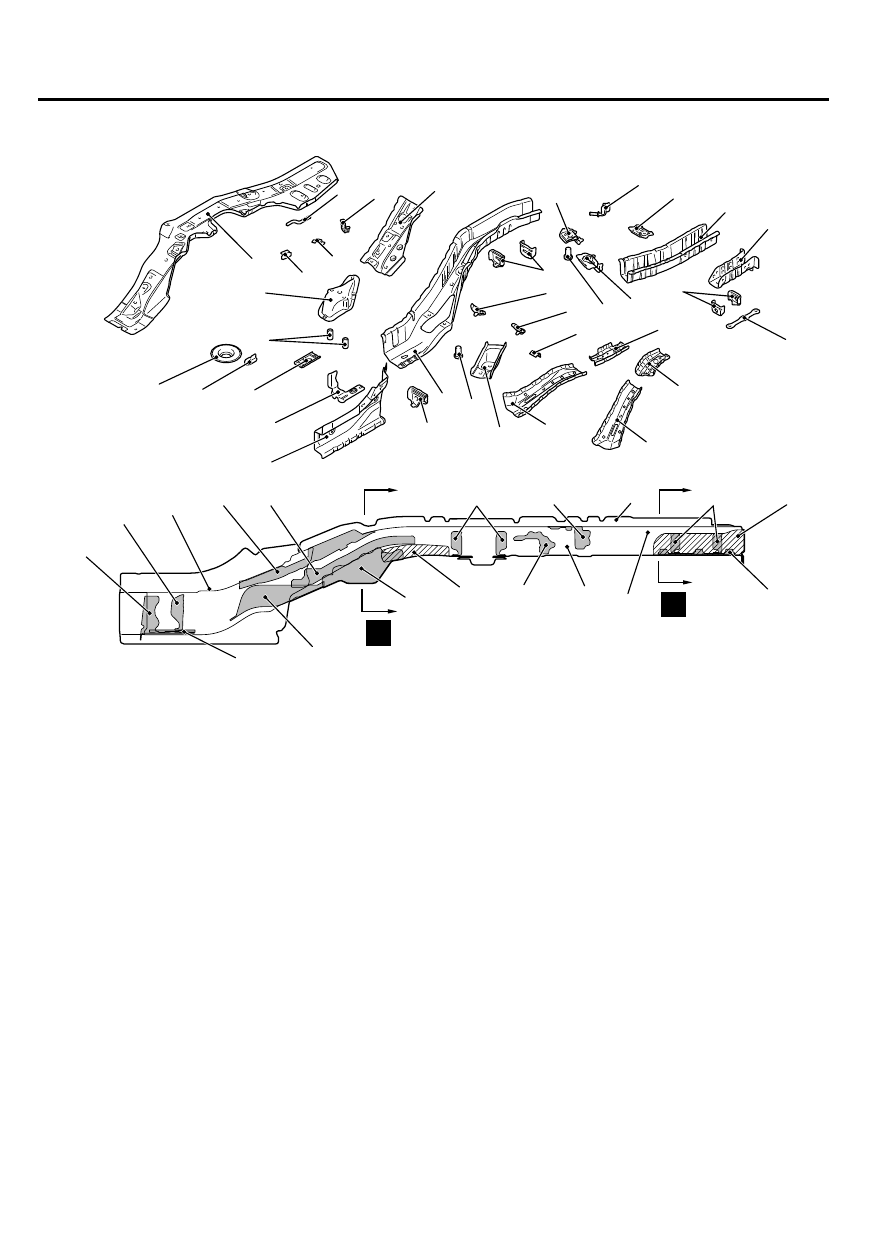

REAR FLOOR SIDEMEMBER REINFORCEMENT

ZB5004110000

1

2

3

5

6

4

7

8

13

9

12

30

16

33

17

18

19

20

14 22

21

23

28

24

25

26

27

34

10

11

29

31

32

15

ZB500412

A

B

0000

22

31

29

21

2

34

13

30

1

20

23

7

15

19

18

3

33

8

1.

Rear floor side sill inner

2.

Rear floor sidemember extension front

3.

Rear tie down plate

4.

Front No. 2 crossmember pipe

5.

Spring sheet support

6.

Spring sheet

7.

Trailing arm bracket

8.

Rear floor sidemember upper

9.

Muffler hanger hook (Right side)

10. Seat under frame reinforcement
11. Bracket
12. Canister bracket
13. Rear floor sidemember reinforcement
14. Pipe nut
15. Third seat anchor reinforcement
16. Muffler hanger rear (Right side)
17. Third seat hinge reinforcement

18. Rear floor sidemember extension
19. Rear floor sidemember extension bracket
20. Trailer hitch plate
21. Rear floor sidemember extension bulkhead
22. Rear suspension bracket rear
23. Rear floor sidemember bulkhead rear
24. Rear parking brake cable rear bracket (Right side)
25. Rear parking brake cable rear bracket (Left side)
26. Rear brake hose bracket
27. Rear floor sidemember rear reinforcement (Right side)
28. Rear floor sidemember front reinforcement (Right side)
29. Rear floor sidemember rear reinforcement (Left side)
30. Rear floor sidemember front reinforcement (Left side)
31. Rear suspension bracket front
32. Pipe nut
33. Rear floor sidemember lower
34. Rear floor sidemember bulkhead



1-22

BODY CONSTRUCTION

BODY CONSTRUCTION CHARACTERISTICS

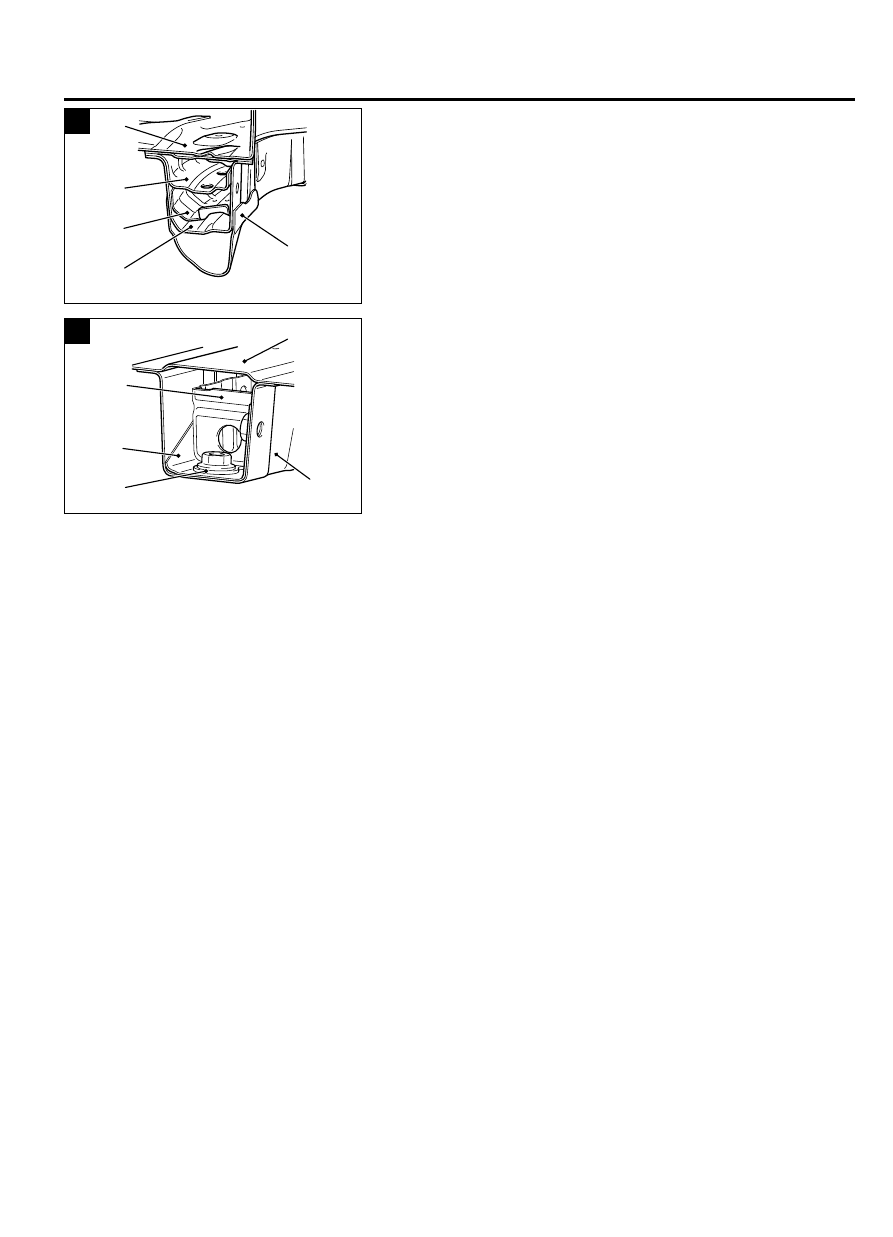

ZB500413

A

31

30

29

0000

8

33

ZB500414

B

0000

8

19

21

18

20



BODY CONSTRUCTION

1-23

BODY CONSTRUCTION CHARACTERISTICS

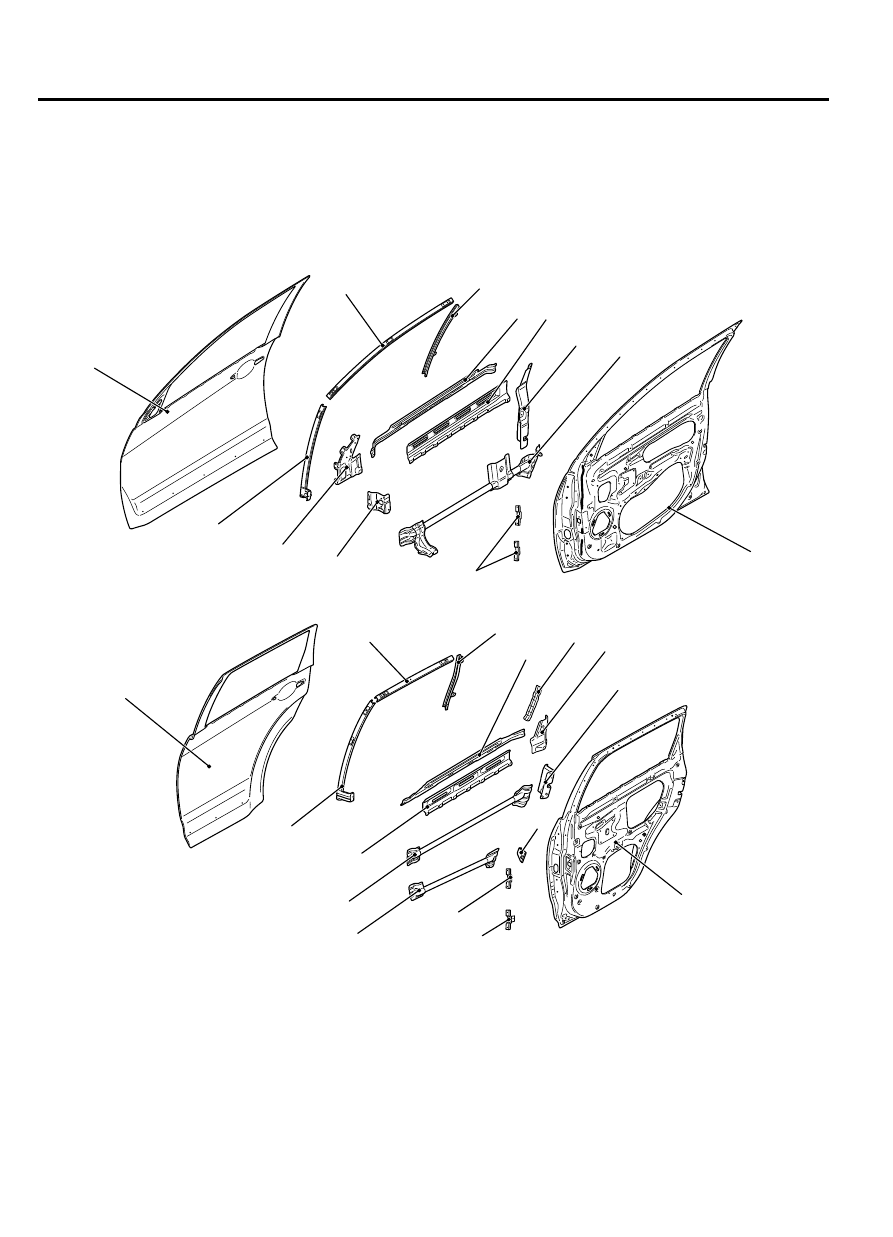

DOOR

M40100000150USA0000010000

An uneven thickness steel sheet* has been used for
the  front  and  rear  door  inner  panels  to  make  the

forward  part  of  the  vehicle  thicker  for  reduction  in
vehicle weight and higher rigidity.

NOTE:

*: A steel sheet of varying thickness that

is welded into one steel sheet.

ZB500415

6

1

11

9

3

0000

10

2

5

7

8

12

4

Front Door

ZB500416

20

16

18

24

25

26

17

0000

15

19

21

22

14

12

23

13

Rear Door

1.

Front door check reinforcement

2.

Front door mirror reinforcement

3.

Front door window sash front

4.

Front door outer panel

5.

Front door window sash upper

6.

Front door window sash rear

7.

Front door beltline outer reinforcement

8.

Front door beltline inner reinforcement

9.

Front door latch reinforcement

10. Front door side door beam
11. Front door inner panel
12. Nut plate
13. Nut plate
14. Nut plate
15. Rear door side door beam lower
16. Rear door side door beam upper

1-24

BODY CONSTRUCTION

BODY CONSTRUCTION CHARACTERISTICS
