Mitsubishi Outlander XL. Manual - part 2

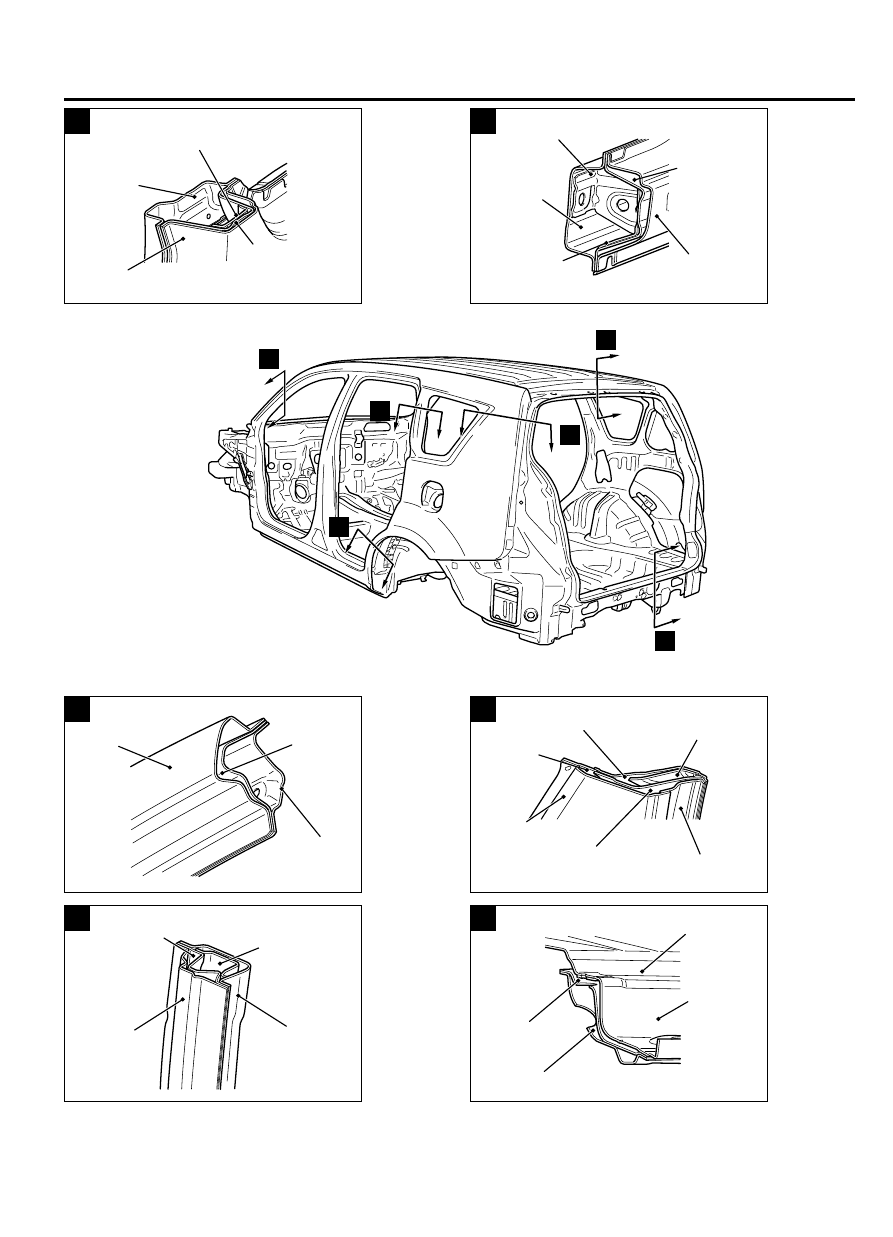

ZB5003770000

E

Front door hinge
reinforcement lower

Front pillar
reinforcement
lower

Front pillar
inner lower

Side outer panel

ZB5003780000

F

Side sill outer
reinforcement
front

Side outer panel

Side sill outer
reinforcement
rear

Front floor
side sill inner

Side sill
bulkhead A

ZB5003790000

G

H

I

J

K

L

ZB5003800000

G

Side outer panel

Front pillar
upper
reinforcement

Front pillar
inner upper

ZB5003810000

H

Quarter
inner
panel

Side outer
panel

Rear pillar
reinforcement
upper

Second seat belt
reinforcement upper

ZB5003820000

I

Side outer
panel

Gate pillar
inner upper

Side seat belt
reinforcement
upper

Quarter inner
panel

Quarter outer
extension

Gate pillar
reinforcement

ZB5003830000

J

Roof panel

Rear roof
rail outer

Rear roof
rail inner

Roof
extension
panel

BODY CONSTRUCTION

1-5

BODY MAIN CROSS-SECTIONAL VIEWS

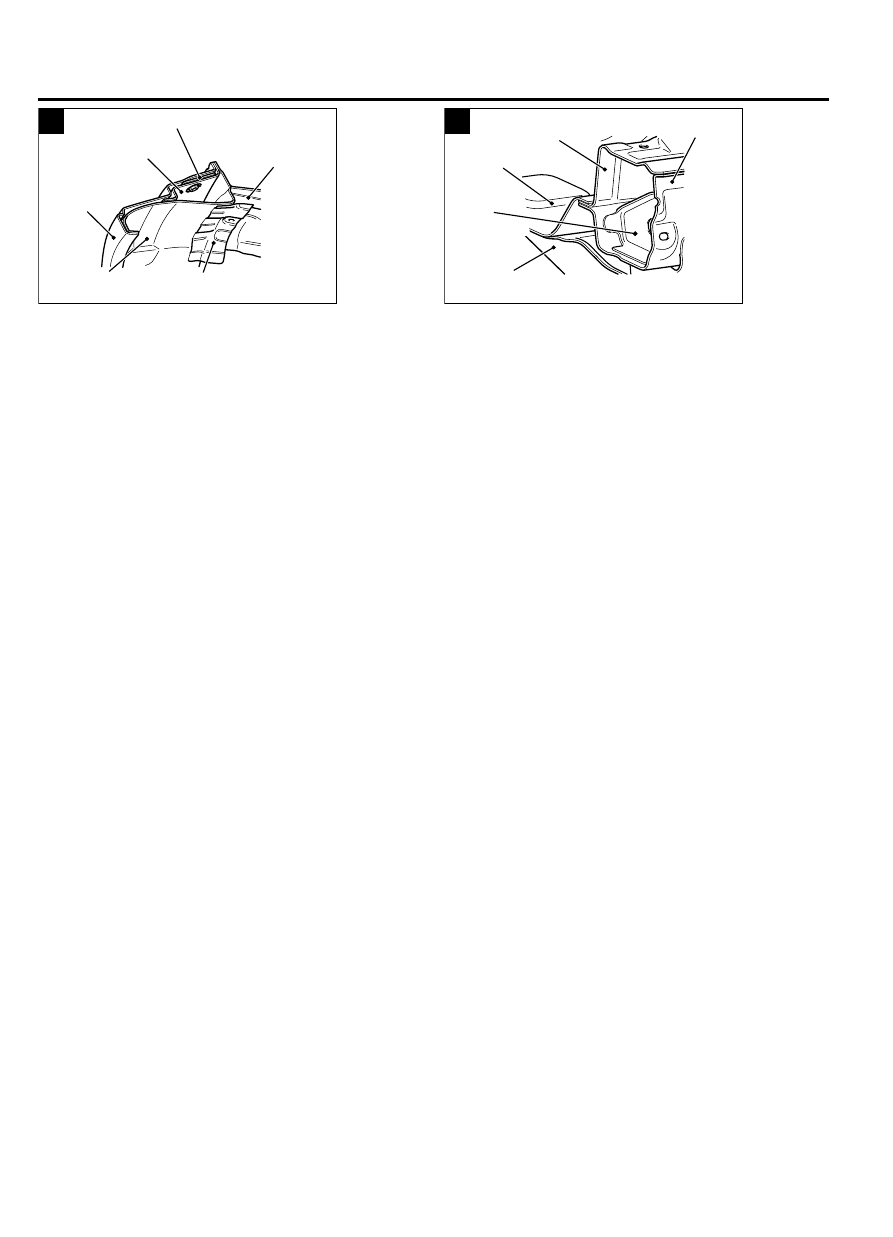

ZB6010270000

K

Rear door catch reinforcement

Rear pillar
reinforcement
lower

Rear wheel
house panel inner

Quarter inner
front extension

Quarter inner
plate front

Side outer
panel

ZB5003850000

L

Rear end
panel outer

Rear end
panel inner

Rear floor pan

Shipping
hook
bulkhead

Shipping hook
reinforcement

MAINTENANCE, SERVICEABILITY

M40100000030USA0000010000

FENDER SHIELD

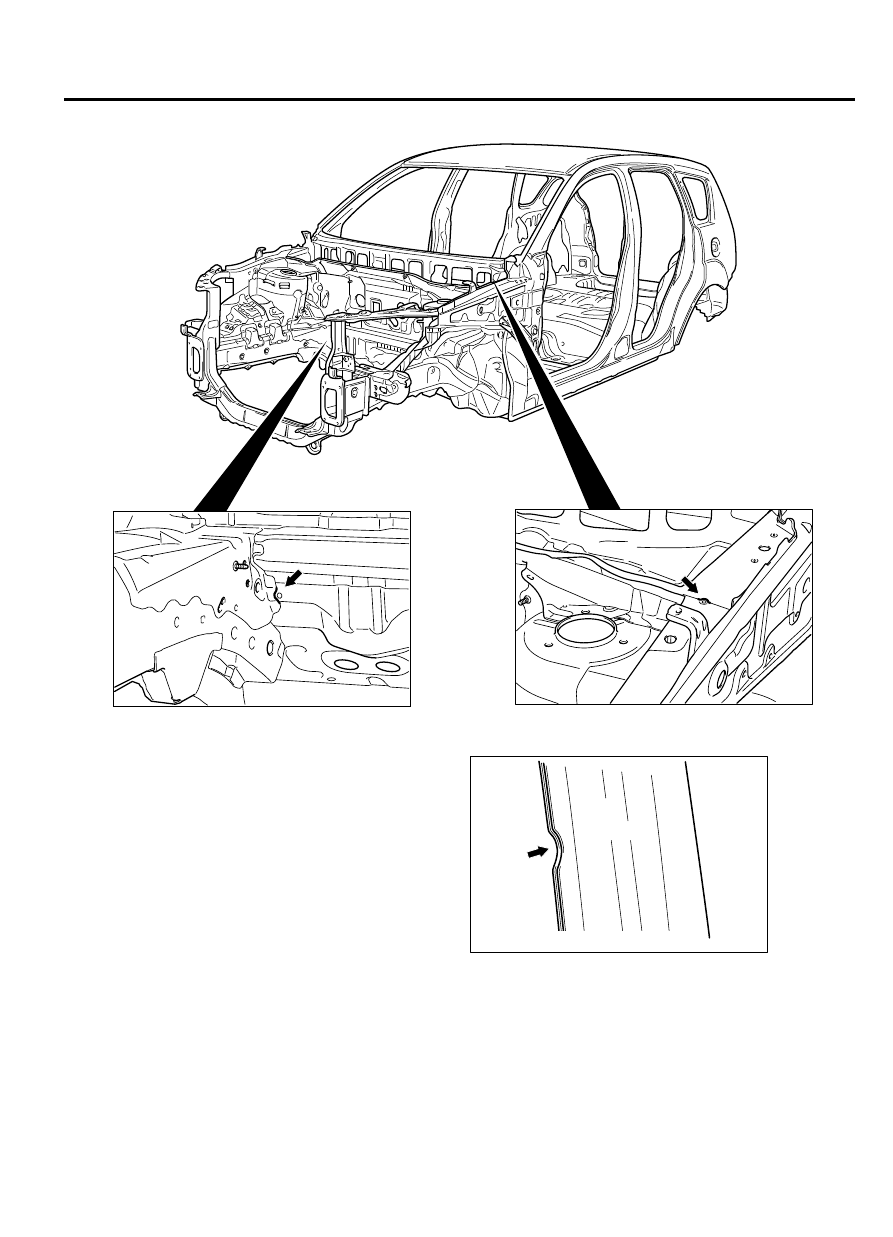

A  positioning  hole,  lug,  marking,  and  cut-out  have
been  added  on  the  front  side  member,  front  side
member rear, and headlight support panel to improve
assembling workability during panel replacement.

1-6

BODY CONSTRUCTION

MAINTENANCE, SERVICEABILITY

ZB5003880000

SIDE STRUCTURE

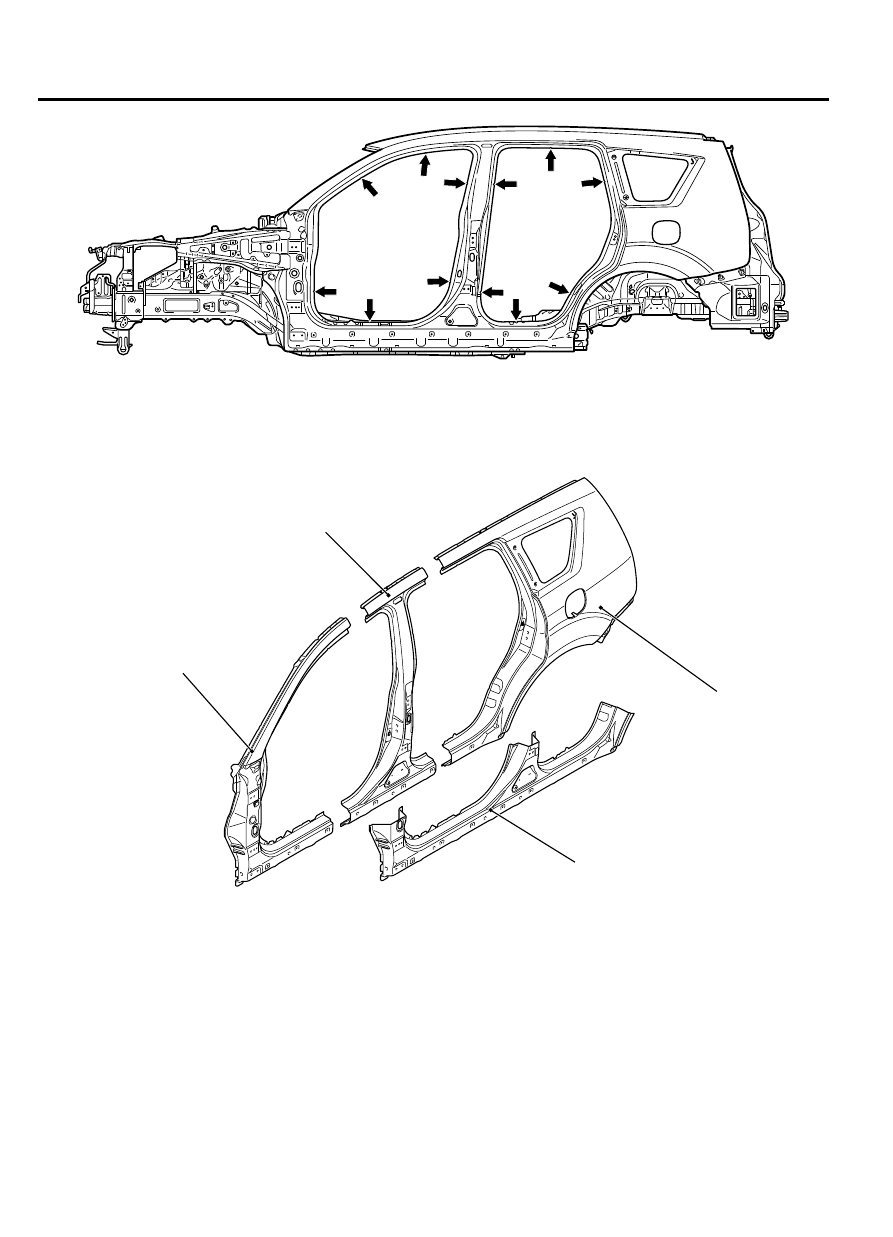

A panel positioning notch has been added on the door
opening  to  improve  assembling  workability  when
replacing the panel.

ZB5003890000

Panel positioning notch

BODY CONSTRUCTION

1-7

MAINTENANCE, SERVICEABILITY

ZB5003900000

SIDE OUTER PANEL

The extra parts are supplied in 4 different cut forms as
a result of employing the integrated side-frame side
outer panel.

ZB500391 0000

Center pillar outer

Front pillar outer

Rear quarter
outer panel

Floor side sill outer

BODY CONSTRUCTION CHARACTERISTICS

FRONT BODY

M40100000100USA0000010000

HEADLIGHT SUPPORT

｠

The crush box structure has been adopted to the
front  end  of  the  front  sidemember  to  improve  the

maintainability  at  a  minor  collision  and  the
characteristics at a minor frontal collision.

1-8

BODY CONSTRUCTION

BODY CONSTRUCTION CHARACTERISTICS
