INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-897

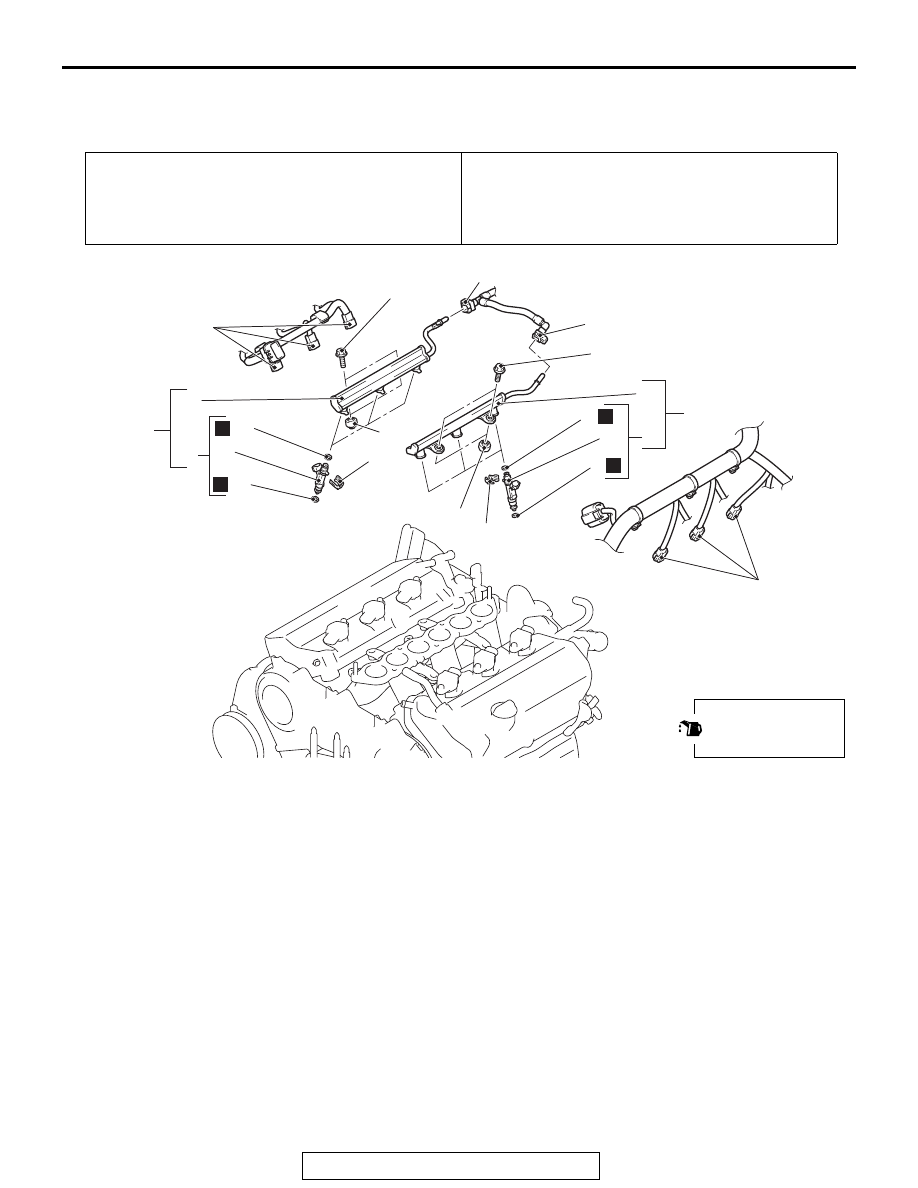

INJECTOR

REMOVAL AND INSTALLATION

M1131007103983

Required Special Tool:

• MB992106: O-ring installer

Pre-removal Operation
• Fuel Pump Connector Disconnection (How to Reduce

Pressurized Fuel Lines) (Refer to

P.13B-886

).

• Intake Manifold Plenum Removal (Refer to GROUP 15,

Intake Manifold Plenum

P.15-6

).

Post-installation Operation
• Intake Manifold Plenum Installation (Refer to GROUP 15,

Intake Manifold Plenum

P.15-6

).

• Fuel Leak Check

ACA01453

1

2

3

5

7

8

9

10

4

13

15

14

17

18

19

20

11

12

12 ± 1 N·m
106 ± 8 in-lb

12 ± 1 N·m
106 ± 8 in-lb

N

N

N

N

6

16

AB

Apply new engine oil
to the O-ring before
installation.

Removal steps

1.

Fuel injector connector connection
(Left bank)

<<

A

>>

>>

F

<<

2.

Fuel high-pressure hose
connection

<<

B

>>

>>

E

<<

3.

Fuel rail and fuel injector assembly
(Left bank)

4.

Insulator

>>

D

<<

5.

Fuel injector support

>>

C

<<

6.

Fuel injector assembly

>>

B

<<

7.

O-ring

>>

A

<<

8.

O-ring

9.

Fuel injector

10. Fuel rail (Left bank)

11. Fuel injector connector connection

(Right bank)

<<

A

>>

>>

F

<<

12. Fuel high-pressure hose

connection

<<

B

>>

13. Fuel rail and injector assembly

(Right bank)

14. Insulator

>>

D

<<

15. Fuel injector support

>>

C

<<

16. Fuel injector assembly

>>

B

<<

17. O-ring

>>

A

<<

18. O-ring
19. Fuel injector
20. Fuel rail (Right bank)

Removal steps (Continued)

INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-898

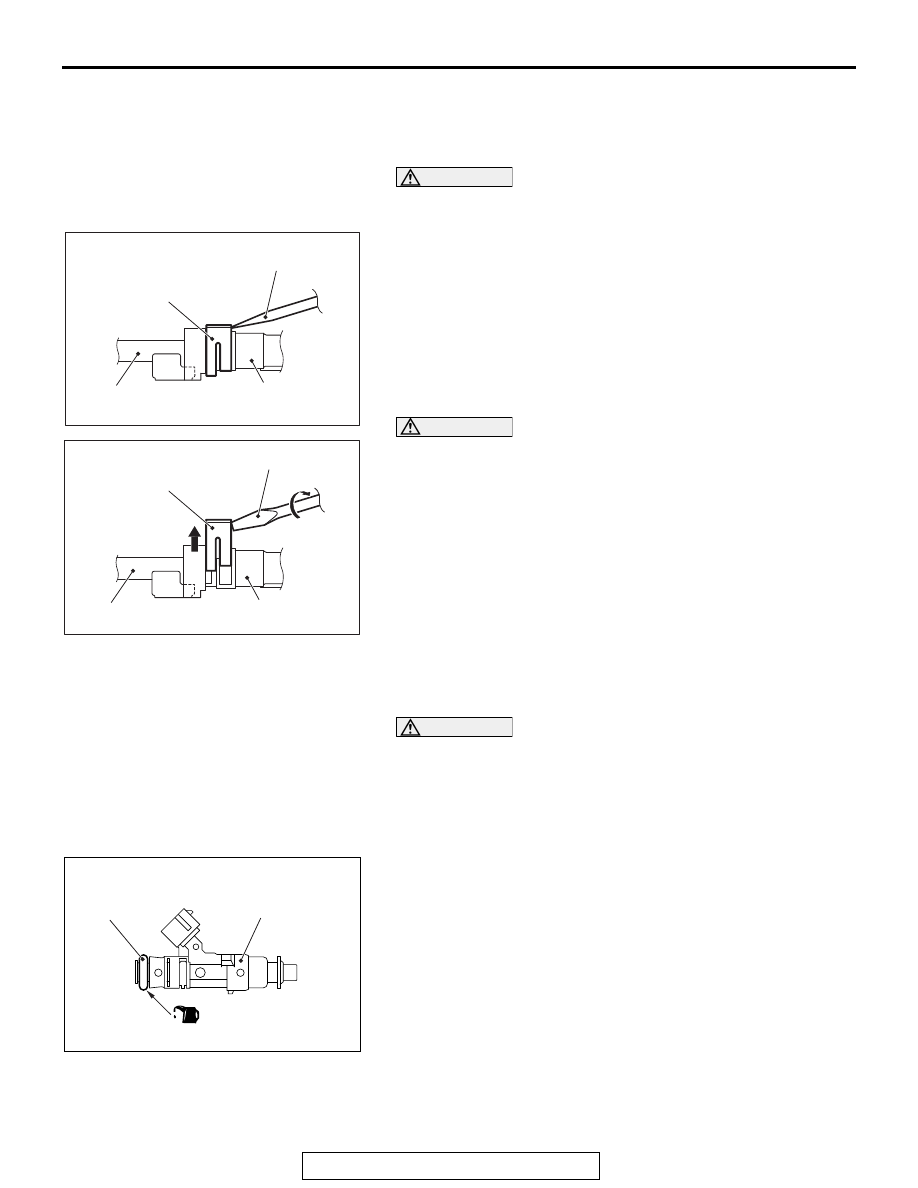

REMOVAL SERVICE POINTS

.

<<A>> FUEL HIGH-PRESSURE HOSE DISCON-
NECTION

CAUTION

Do not kink the fuel high-pressure hose as it is made of
plastics.
1. Insert a flat-tipped screwdriver [6 mm (0.24 inch) wide and 1

mm (0.04inch) thick] into the retainer of the fuel
high-pressure hose connector.

CAUTION

When pushing up the retainer of the fuel high-pressure
hose connector, pay attention to avoid damage to the
retainer.
2. Turn the flat-tipped screwdriver inserted into the retainer by

90 degrees to push up the retainer and unlock the fuel
high-pressure hose connector.

3. Disconnect the fuel high-pressure hose.

.

<<B>> FUEL RAIL AND INJECTOR ASSEMBLY
REMOVAL

CAUTION

Do not drop the fuel injector.
Remove the fuel rail with the fuel injectors attached to it.

INSTALLATION SERVICE POINTS

.

>>A<< O-RING INSTALLATION

1. Apply a small amount of new engine oil to the O-ring.
2. While turning the fuel injector to right and left, install the

O-ring to the fuel injector with care to avoid damage to the
O-ring.

.

>>B<< O-RING INSTALLATION

1. Apply a small amount of new engine oil to the O-ring.

AC703390

Fuel rail

Retainer

Fuel high-pressure
hose

Flat-tipped screw driver

AB

AC703391

Fuel rail

Retainer

Fuel high-pressure
hose

Flat-tipped screw driver

AB

AC703392

O-ring

Fuel injector

(Engine oil)

AB

INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-899

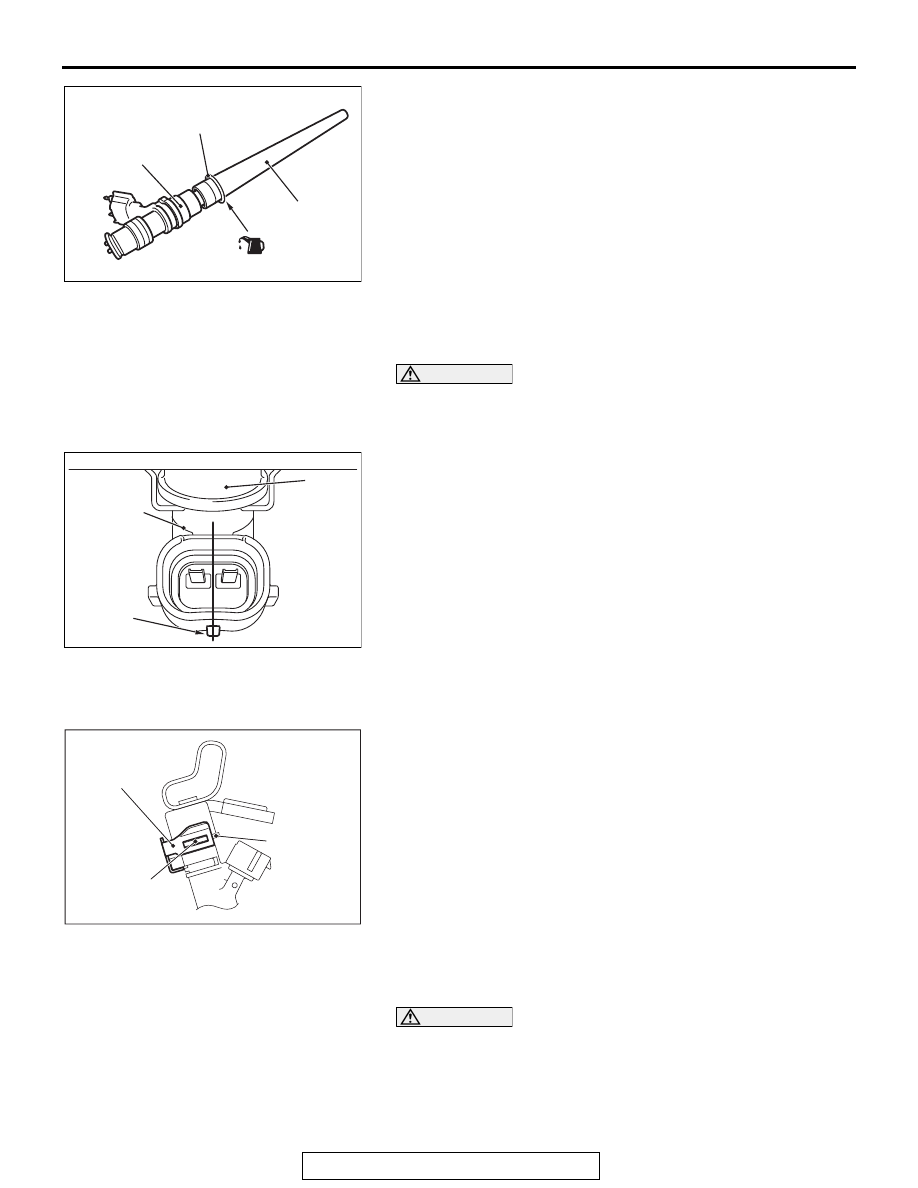

2. Using special tool MB992106, install the o-ring onto the fuel

injector paying attention to avoid damage to the O-ring.

.

>>C<< FUEL INJECTOR ASSEMBLY
INSTALLATION

CAUTION

When applying the engine oil, make sure not to allow the
engine oil to enter the fuel rail inside.
1. Apply a small amount of new engine oil to the O-ring.
2. Turning the fuel injector assembly to right and left, install it to

the fuel rail with care not to damage the O-ring. After the
installation, check for its smooth rotation. At this time, check
that the projection of the fuel injector assembly is in the
center.

3. If the rotation is not smooth, the O-ring may be caught.

Remove the fuel injector assembly and check the O-ring for
damage. After this, re-insert it to the fuel rail and check for
its smooth rotation.

.

>>D<< FUEL INJECTOR SUPPORT
INSTALLATION

Install the fuel injector support to the fuel injector groove and
fuel rail flange, and fix the fuel injector assembly and fuel rail.

.

>>E<< FUEL RAIL AND FUEL INJECTOR
ASSEMBLY INSTALLATION

CAUTION

When applying the engine oil, make sure not to allow the
engine oil to enter the intake manifold inside.
1. Apply a small amount of new engine oil to the O-ring at the

end of fuel injector assembly.

AC803115

AB

MB992106

Fuel injector

(Engine oil)

O-ring

AC506793

AE

Fuel rail

Projection

Fuel injector

AC703396

Fuel injector
support

Fuel injector
groove

Fuel rail brim

AB

INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-900

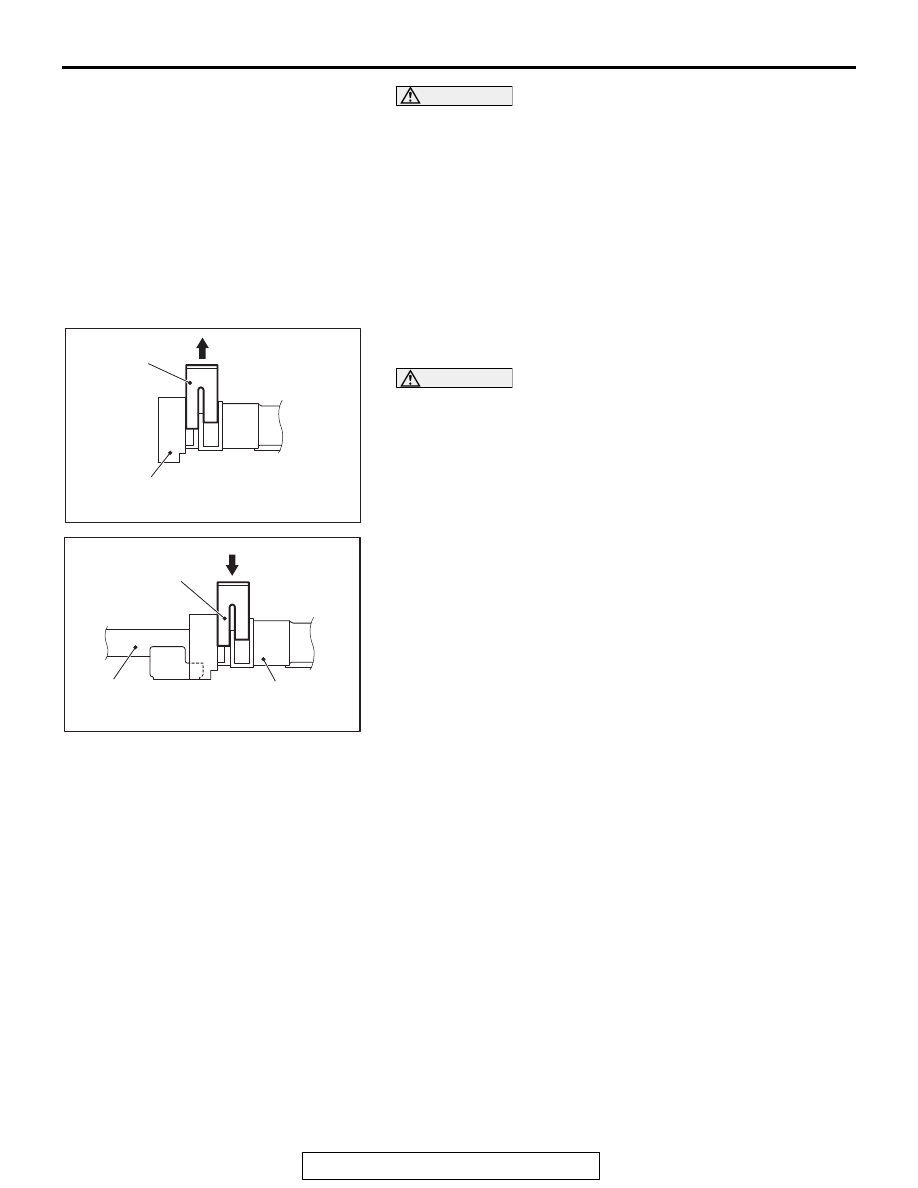

CAUTION

When installing the fuel rail and fuel injector assembly to
the intake manifold, pay attention to avoid damage to the
O-ring at the end of the fuel injector assembly.
2. Install the fuel rail and fuel injector assembly to the intake

manifold.

3. Tighten the fuel rail mounting bolts to the specified torque.

Tightening torque: 12

± 1 N⋅m (106 ± 8 in-lb)

.

>>F<< FUEL HIGH-PRESSURE HOSE
CONNECTION

1. Pull up the retainer of fuel high-pressure hose to unlock

before installing.

CAUTION

• When pushing in the retainer of the fuel high-pressure

hose connector, pay attention to avoid damage to the
retainer.

• After the installation of the fuel high-pressure hose,

slightly pull the fuel high-pressure hose to check that it
is connected securely. At this time, also check that
there is approximately 1 mm (0.04inch) play.

2. Install the fuel high-pressure hose to the fuel rail securely

and push retainer of the fuel high-pressure hose connector
downward and lock thoroughly.

AC703394

Retainer

Fuel high-pressure
hose

AB

AC703395

Fuel rail

Retainer

Fuel high-pressure
hose

AB
