MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-801

STEP 15. Check the purge control system.
Refer to GROUP 17, Emission Control

− Evaporative Emission

Control System

− Purge Control System Check (Purge Flow

Check)

P.17-77

.

Q: Is the purge control system normal?

YES : Go to Step 16.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 16. Check the following items.
(1) Check the following items.

a. Check the injectors for fuel leakage.
b. Check if the injectors are clogged.

Q: Are there any abnormalities?

YES : Replace it. Then confirm that the malfunction

symptom is eliminated. Then confirm that the
malfunction symptom is eliminated.

NO :  Replace the catalytic converter. Then confirm that the

malfunction symptom is eliminated.

INSPECTION PROCEDURE 19: Purge Flow Test of the Evaporative Emission Canister Failure.

.

COMMENT

• The test fails when the purge line or purge port is

clogged or if the evaporative emission purge
solenoid fails.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Purge line or purge port is clogged.

• Malfunction of the evaporative emission purge

solenoid.

• Evaporative emission canister is clogged.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-802

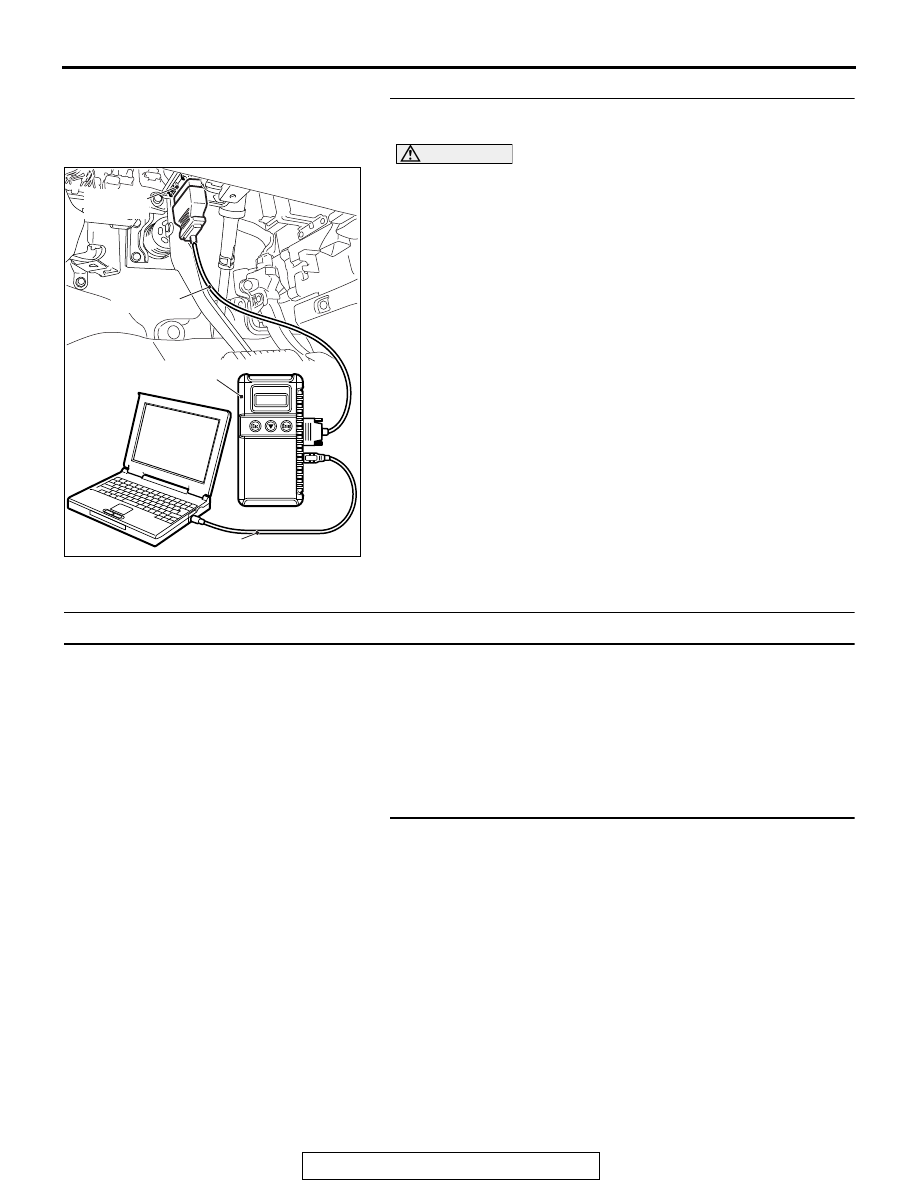

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Refer to GROUP 17, Emission Control

− Evaporative

Emission Control System

− Purge Control System

Check (Purge Flow Check)

P.17-77

.

INSPECTION PROCEDURE 20: Pressure Test of the Evaporative System Failure

.

COMMENT

• The test fails if there is a leak from the fuel tank or

vapor line.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Loose fuel tank filler tube cap.

• Broken seal in fuel tank, vapor line evaporative

emission canister.

DIAGNOSIS

STEP 1. Check the evaporative emission purge solenoid.
Refer to GROUP 17, Emission Control

− Evaporative Emission

Control System

− Evaporative Emission Purge Solenoid Check

P.17-78

.

Q: Is the evaporative emission purge solenoid normal?

YES : Go to Step 2.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-803

STEP 2. Check the evaporative emission ventilation
solenoid.
Refer to GROUP 17, Emission Control

− Evaporative Emission

Control System

− Evaporative Emission Ventilation Solenoid

Check

P.17-80

.

Q: Is the evaporative emission ventilation solenoid

normal?
YES :
Check the following items, and repair or replace the

defective items.

a. Check for leaks from the vapor line or

evaporative emission canister.

b. Check for leaks from the fuel tank.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-804

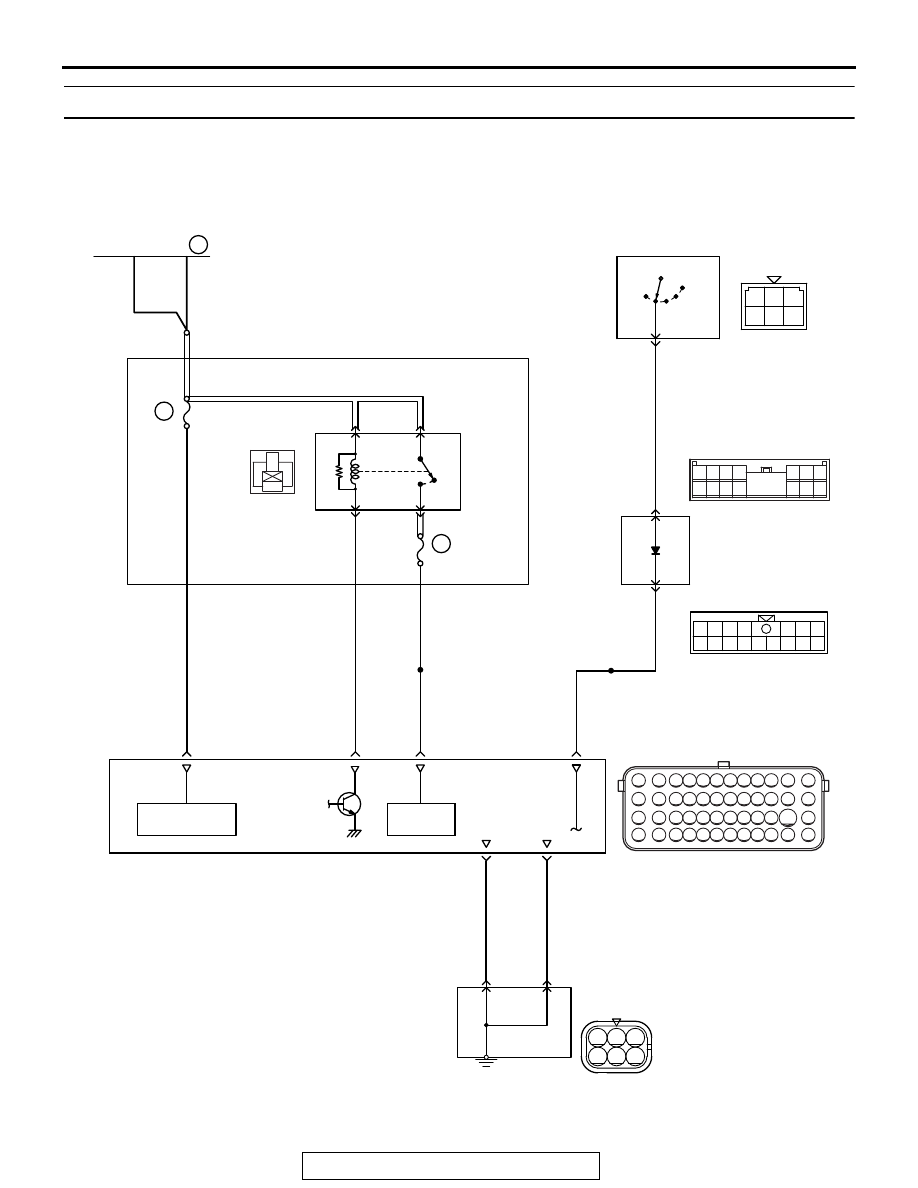

INSPECTION PROCEDURE 21: Power supply system and ignition switch - IG system.

1

3

2

4

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

AKA00832

1 2 3
4 5 6

1

6

4

5

9

8

10 11

13

15

14

12

16

7

2 3

1 2 3 4

5 6 7

15

14

13

12

11

10

9

8

1

2 3

4

5 6

93

81

5

6

IG2

ST

LOCK

ACC

IG1

20A

WHITE

WHITE

WHITE

A-33X

4

3

1

2

6

ETACS-ECU

C-304

C-317

10

22

7.5A

2

OFF

ON

POWER SUPPLY AND IGNITION SWITCH-IG CIRCUIT

WHITE

WHITE

WHITE-BLUE

RED-BLA

CK

73

104

82

GND

GND

92

B-11

IGNITION SWITCH

2

AB

C-210

FUSIBLE LINK

36

ENGINE CONTROL MODULE

MFI
RELAY

BATTERY
BACKUP

POWER
SOURCE

BLA

CK-RED

BLA

CK-WHITE

RELAY BOX
(ENGINE COMPARTMENT)

A-66

(MU802755)

GROUND
(FRONT: LH)

RED-WHITE

RED-WHITE
