MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-793

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

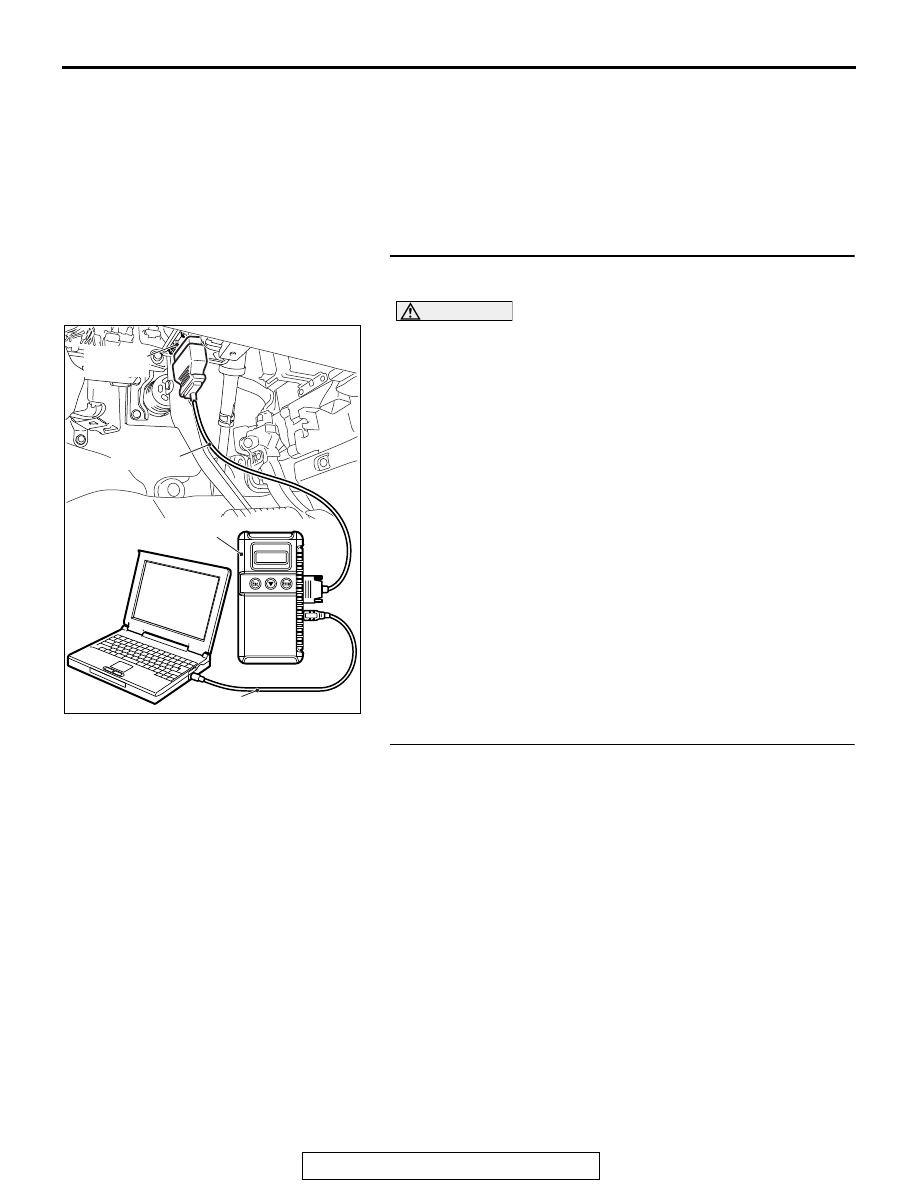

STEP 1. Using the scan tool MB991958, read the
diagnostic trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items of the data list. Refer to Data List

Reference Table

P.13B-836

.

a. Item 32: Knock retard.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 3.
NO :  Refer to DTC P0327

− Knock Sensor Circuit Low

(Bank 1)

P.13B-430

, DTC P0328

− Knock Sensor

Circuit High (Bank 1)

P.13B-433

, DTC P0332

− Knock

Sensor Circuit Low (Bank 2)

P.13B-437

, DTC P0333

− Knock Sensor Circuit High (Bank 2)

P.13B-441

.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-794

STEP 3. Check the spark plugs.
Refer to GROUP 16, Ignition System

− On-vehicle Service −

Spark Plug Check And Cleaning

P.16-45

.

Q: Are there any abnormalities?

YES : Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO :  Go to Step 4.

STEP 4. Check the compression pressure.
Refer to GROUP 11C, On-vehicle Service

− Compression

Pressure Check

P.11C-18

.

Q: Is the compression pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Check if fuel is contaminated.
b. Check if the foreign materials (water,

kerosene, etc.) got into fuel.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

INSPECTION PROCEDURE 17: Too high CO and HC concentration when idling

.

COMMENT

• Abnormal air/fuel ratio is suspected.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the fuel pump system.

• Malfunction of the ignition system.

• Poor compression.

• Malfunction of the EGR system.

• Improper operation of the PCV valve.

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check if the EGR valve sounds during
initialization.
Q: Is the initialization sound heard in the EGR valve?

YES : Go to Step 2.
NO :  Refer to GROUP 17, Emission Control

− Exhaust Gas

Recirculation (EGR) System

− EGR Valve (Stepper

Motor) Check

P.17-81

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-795

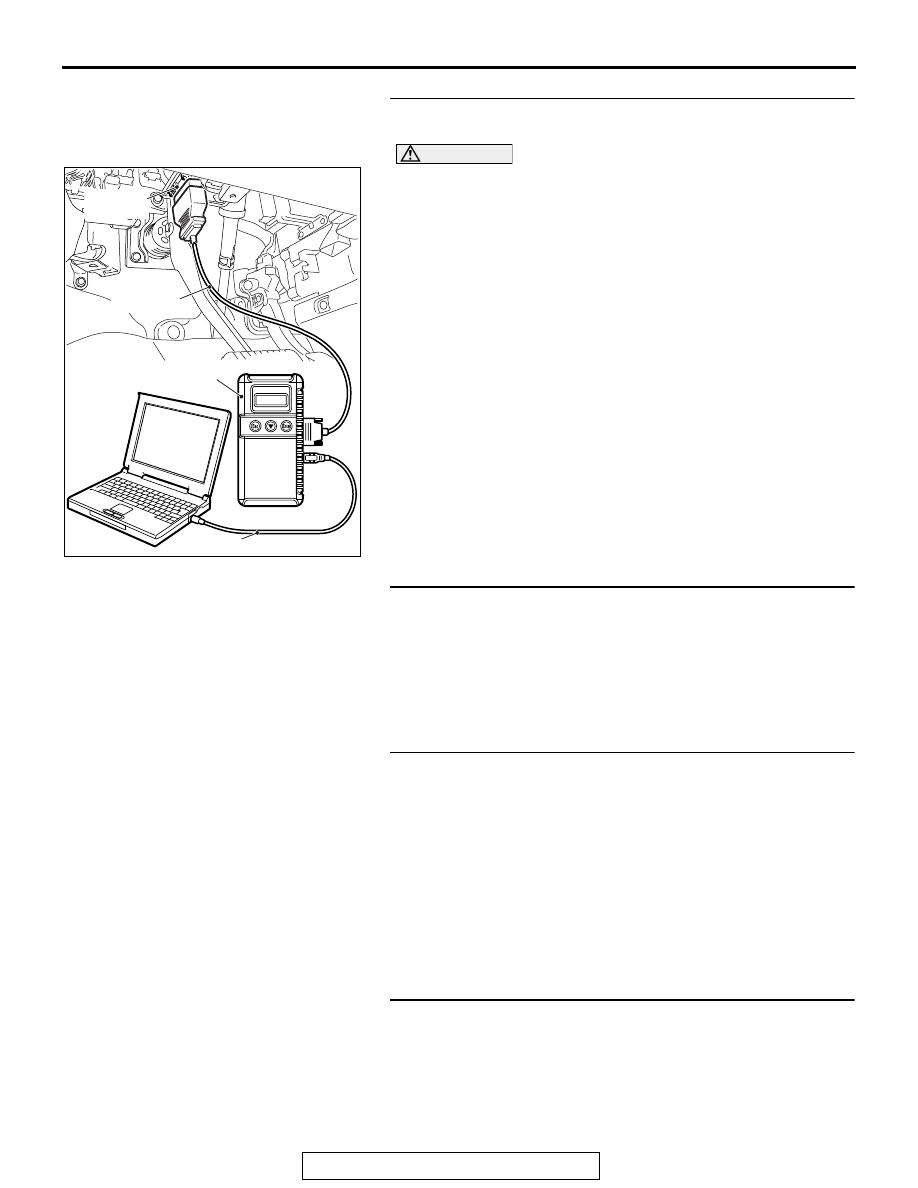

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Go to Step 3.

STEP 3. Check the ignition timing.
Refer to GROUP 11C, On-vehicle Service

− Ignition Timing

Check

P.11C-13

.

Q: Is the ignition timing normal?

YES : Go to Step 4.
NO :  Check for installed conditions of the timing belt. Then

confirm that the malfunction symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13B-836

.

a. Item 6: Engine Coolant Temperature Sensor.
b. Item 5: Intake Air Temperature Sensor.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 5.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 5. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13B-883

.

Q: Is the fuel pressure normal?

YES : Go to Step 6.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-796

STEP 6. Check the spark plugs.
Refer to GROUP 16, Ignition System

− On-vehicle Service −

Spark Plug Check And Cleaning

P.16-45

.

Q: Are there any abnormalities?

YES : Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO :  Go to Step 7.

STEP 7. Check the ignition coil.
(1) Remove the intake manifold.
(2) Refer to GROUP 16, Ignition System

− On-vehicle Service

− Ignition Coil Check

P.16-44

.

Q: Are there any abnormalities?

YES : Replace the ignition coil. Then confirm that the

malfunction symptom is eliminated.

NO :  Go to Step 8.

STEP 8. Check the compression pressure.
Refer to GROUP 11C, On-vehicle Service

− Compression

Pressure Check

P.11C-18

.

Q: Is the compression pressure normal?

YES : Go to Step 9.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 9. Check the positive crankcase ventilation valve.
Refer to GROUP 17, Emission Control

− Positive Crankcase

Ventilation System

− Positive Crankcase Ventilation System

Check

P.17-74

.

Q: Is the positive crankcase ventilation valve?

YES : Go to Step 10.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 10. Check the purge control system.
Refer to GROUP 17, Emission Control

− Evaporative Emission

Control System

− Purge Control System Check (Purge Flow

Check)

P.17-77

.

Q: Is the purge control system normal?

YES : Check the following items, and repair or replace the

defective items.

a. Check if the injectors are clogged.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.
