MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-785

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

NO : Go to Step 3.

STEP 3. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the actuator test. Refer to

Actuator Test Reference Table

P.13B-858

a. Item 10: Evaporative Emission Purge Solenoid.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 4.
NO : Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 4. Check the spark plugs.
Refer to GROUP 16, Ignition System

− On-vehicle Service −

Spark Plug Check And Cleaning

P.16-45

Q: Are there any abnormalities?

YES : Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO : Go to Step 5.

STEP 5. Check the ignition coil.
(1) Remove the intake manifold.
(2) Refer to GROUP 16, Ignition System

− On-vehicle Service

− Ignition Coil Check

P.16-44

Q: Are there any abnormalities?

YES : Replace the ignition coil. Then confirm that the

malfunction symptom is eliminated.

NO : Go to Step 6.

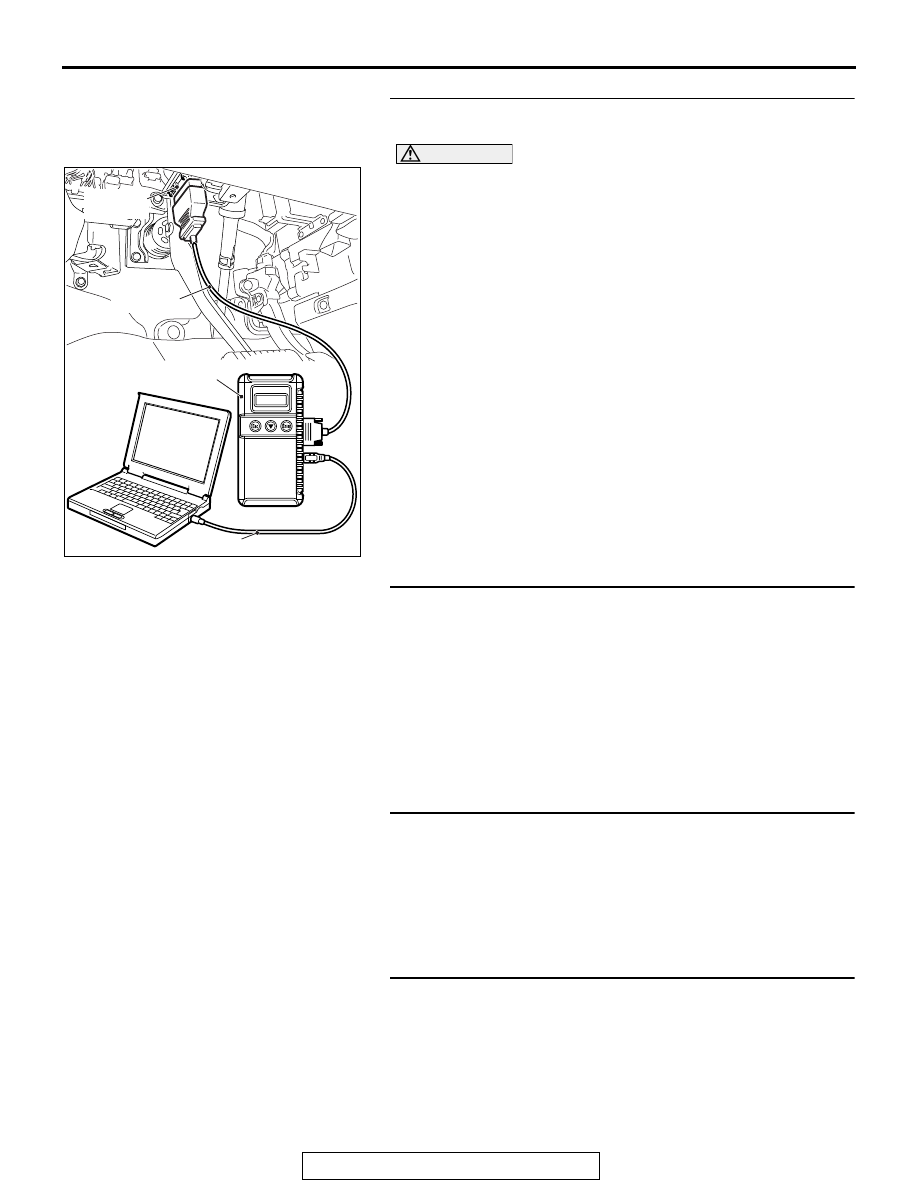

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-786

STEP 6. Check the positive crankcase ventilation valve.
Refer to GROUP 17, Emission Control

− Positive Crankcase

Ventilation System

− Positive Crankcase Ventilation System

Check

P.17-74

Q: Is the positive crankcase ventilation valve?

YES : Check the following items, and repair or replace the

defective items.

a. Vacuum leak.

Then confirm that the malfunction symptom is

eliminated.

NO : Repair it. Then confirm that the malfunction symptom

is eliminated.

INSPECTION PROCEDURE 13: The engine stalls when decelerating.

COMMENT

• Abnormal air/fuel ratio or other similar defects

due to insufficient intake air volume and defective
EGR system is suspected to be the causes.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the ignition system.

• Malfunction of the purge control system.

• Malfunction of the EGR system.

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check if the EGR valve sounds during
initialization.
Q: Is the initialization sound heard in the EGR valve?

YES : Go to Step 2.
NO : Refer to GROUP 17, Emission Control

− Exhaust Gas

Recirculation (EGR) System

− EGR Valve (Stepper

Motor) Check

P.17-81

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-787

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

NO : Go to Step 3.

STEP 3. Engine stall reproduction test.
Q: Does the engine stall during the decrease in engine

speed after running?
YES : Go to Step 5.
NO : Go to Step 4.

STEP 4. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the actuator test. Refer to

Actuator Test Reference Table

P.13B-858

a. Item 10: Evaporative Emission Purge Solenoid.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 5.
NO : Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-788

STEP 5. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13B-836

a. Item 13: Throttle Position Sensor (main).
b. Item 15: Throttle Position Sensor (sub).

c. Item 11: Accelerator Pedal Position Sensor (main).

d. Item 12: Accelerator Pedal Position Sensor (sub).

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 6.
NO : Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 6. Check the spark plugs.
Refer to GROUP 16, Ignition System

− On-vehicle Service −

Spark Plug Check And Cleaning

P.16-45

Q: Are there any abnormalities?

YES : Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO : Check the ignition coil. Refer to GROUP 16, Ignition

System

− Then confirm that the malfunction symptom

is eliminated.

INSPECTION PROCEDURE 14: Hesitation, sag, stumble, Poor acceleration or Surge.

COMMENT

• Defective ignition system, abnormal air/fuel ratio,

poor compression pressure, etc. are suspected.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the fuel pump system.

• Malfunction of the ignition system.

• Poor compression.

• Malfunction of the EGR system.

• Improper operation of the PCV valve.

• Vacuum leak.

• Clogged air cleaner.

• Clogged exhaust system.

• Increased resistance to the transmission drive

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A
