MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-149

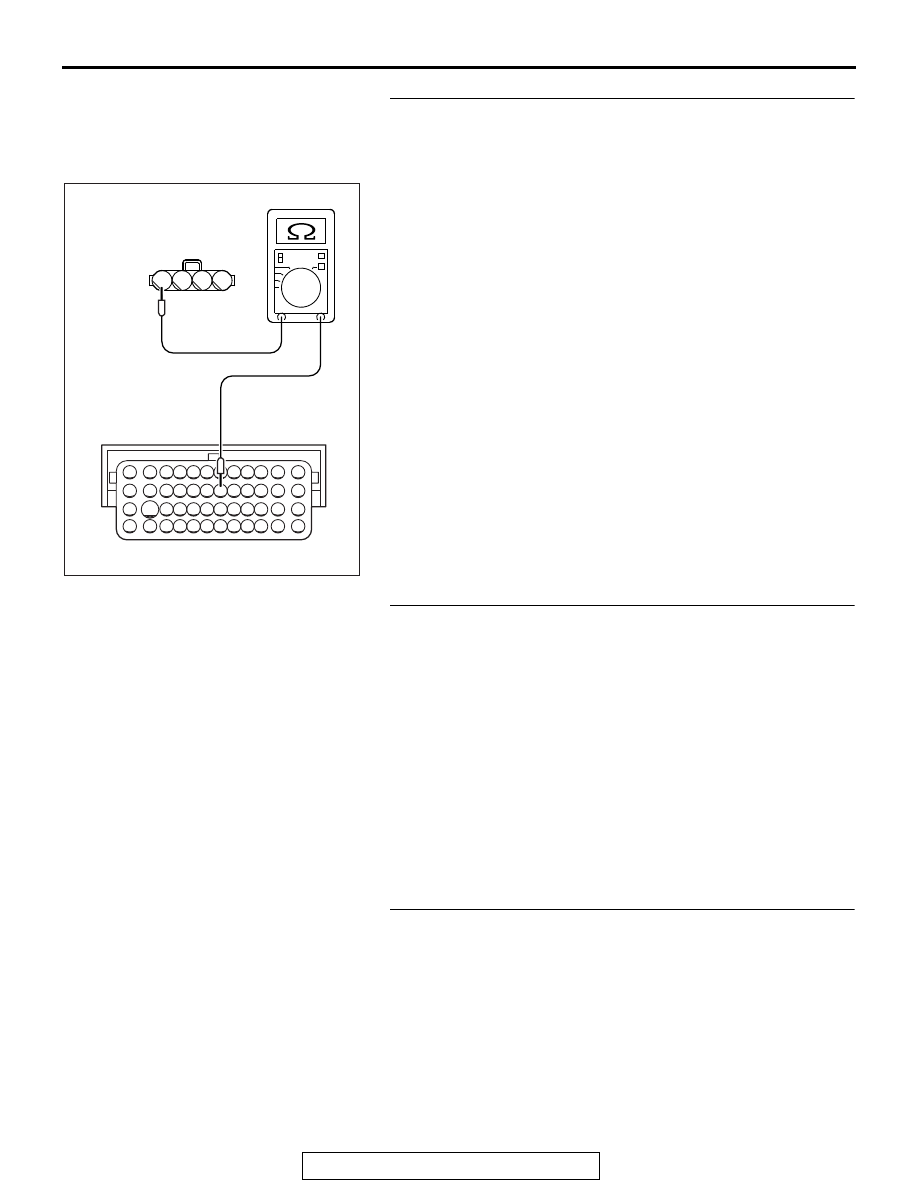

STEP 3. Check for the continuity between the mass airflow
sensor connector A-07 and the ECM connector B-11.
(1) Disconnect the mass airflow sensor connector A-07 and the

ECM connector B-11.

(2) Check for the continuity between the mass airflow sensor

connector A-07 (terminal No. 4) and the ECM connector
B-11 (terminal No. 88).

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 4.
NO :  Repair it. Then go to Step 5.

STEP 4. Replace the mass airflow sensor.
(1) Replace the mass airflow sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13B-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P0102 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 5.

NO :  The inspection is complete.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13B-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0103 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK700550

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

2

1

3

4

AB

A-07 harness connector:
component side

B-11 harness connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-150

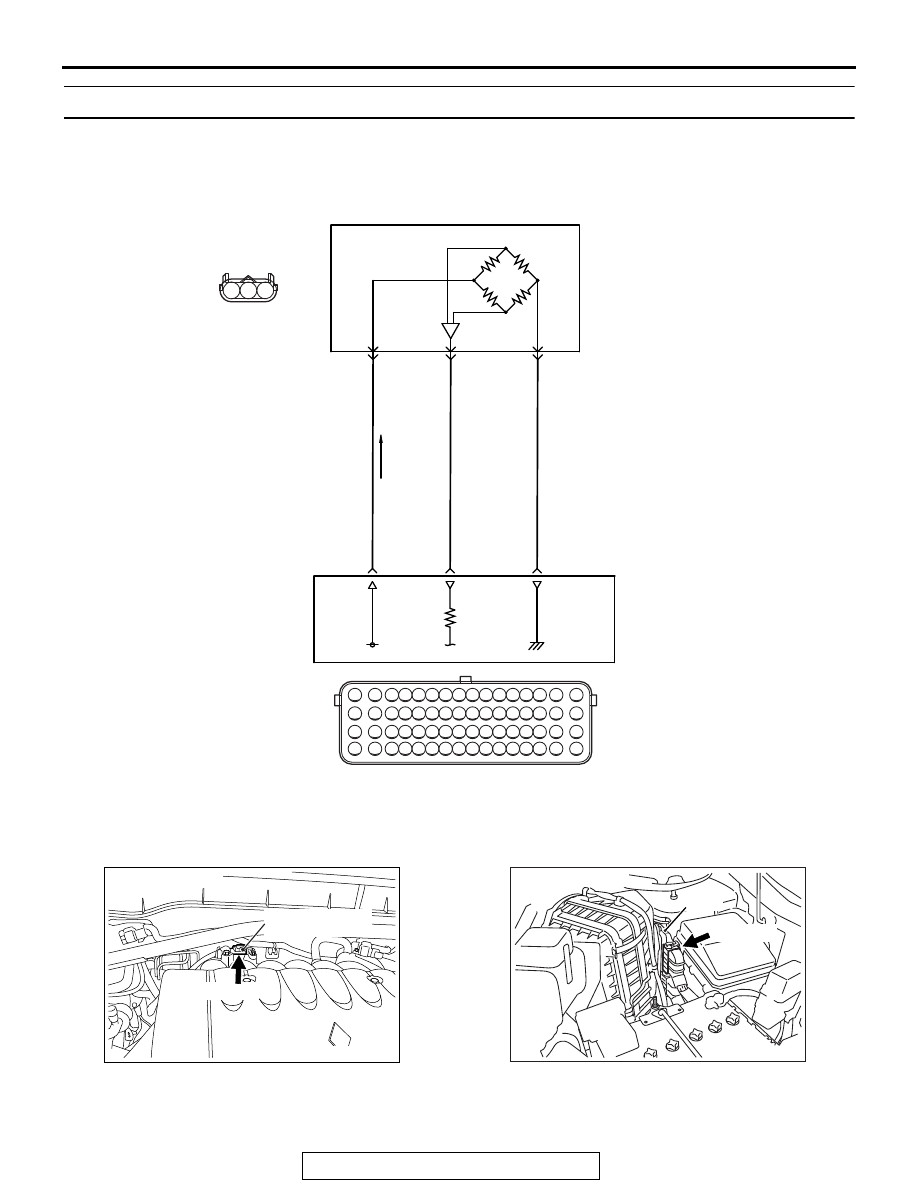

DTC P0106: Manifold Absolute Pressure Circuit Range/Performance Problem

.

AK900131

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2 3

AD

ENGINE
CONTROL
MODULE

5 V

MANIFOLD ABSOLUTE
PRESSURE SENSOR

BLUE

YELLO

W

-BLA

CK

GRA

Y

-BLUE

1

2

3

MANIFOLD ABSOLUTE PRESSURE SENSOR CIRCUIT

44

46

45

B-10

B-105

AK900132

AD

B-105 (B)

Connector: B-105

Manifold absolute
pressure sensor

AK700401AB

ECM

B-10 (GR)

Connector: B-10

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-151

CIRCUIT OPERATION

• A 5-volt voltage is supplied to the manifold abso-

lute pressure sensor power terminal (terminal No.
3) from the ECM (terminal No. 44). The ground
terminal (terminal No. 2) is grounded with ECM
(terminal No. 46).

• A voltage that is proportional to the intake mani-

fold pressure is sent to the ECM (terminal No. 45)
from the manifold absolute pressure sensor out-
put terminal (terminal No. 1).

.

TECHNICAL DESCRIPTION

• The manifold absolute pressure sensor outputs a

voltage which corresponds to the intake manifold
pressure.

• The ECM checks whether this voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS

Compare load value with manifold absolute pressure

sensor output voltage.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

• Throttle position sensor

• Mass airflow sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-152

DTC SET CONDITIONS <Range/Performance problem - low input>

Logic Flow Chart

.

Check Conditions

• 8 minutes or more have passed since the engine

starting sequence was completed, when the
engine coolant temperature at engine start is 0

°C

(32

°F) or lower.

• Engine speed is higher than 1,500 r/min.

• Throttle position sensor output voltage is higher

than 3.5 volts.

Judgement Criterion

• Manifold absolute pressure is 45 kPa (13.3 in.Hg)

or lower for 2 seconds.

.

Start

Yes

Yes

Yes

No

No

No

Pressure <

45kPa (13.3in.Hg)

Continuous

failure for 2secs

Malfunction

End

Good

Monitoring

conditions

AK604312
