MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-145

DTC P0103: Mass Airflow Circuit High Input

AK700133

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

1

3

2

4

3 4

2

1

AB

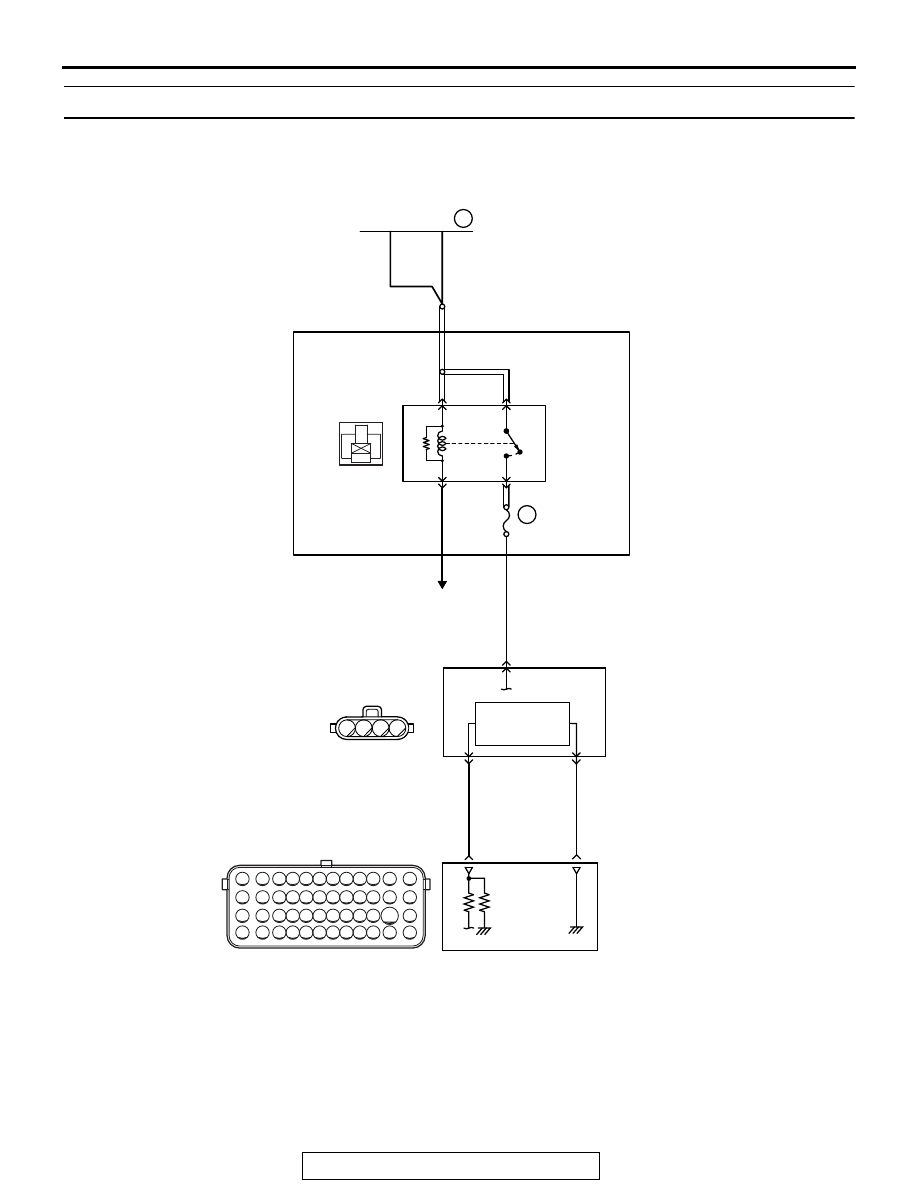

MASS AIRFLOW SENSOR CIRCUIT

87

88

MASS AIRFLOW SENSOR

3

2

HEAT
SENSITIZING
RESISTANCE

BLUE

A-07

(MU805110)

BLA

CK-WHITE

4

20A

WHITE

WHITE

WHITE

A-33X

4

3

1

2

22

B-11

36

FUSIBLE LINK

OFF

ON

RELAY BOX
(ENGINE COMPARTMENT)

TO ECM

ENGINE
CONTROL
MODULE

MFI
RELAY

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-146

.

CIRCUIT OPERATION

• The mass airflow sensor power is supplied from

the MFI relay (terminal No. 2), and the ground is
provided on the ECM (terminal No. 88).

• A voltage that is according to the mass airflow

rate is sent to the ECM (terminal No. 87) from the
mass airflow sensor output terminal (terminal No.
3).

.

TECHNICAL DESCRIPTION

• While the engine is running, the mass airflow

sensor outputs voltage which corresponds to the
mass airflow rate.

• The ECM checks whether the voltage output by

the mass airflow sensor while the engine is run-
ning is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS

Compare load value with mass airflow sensor output

voltage.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

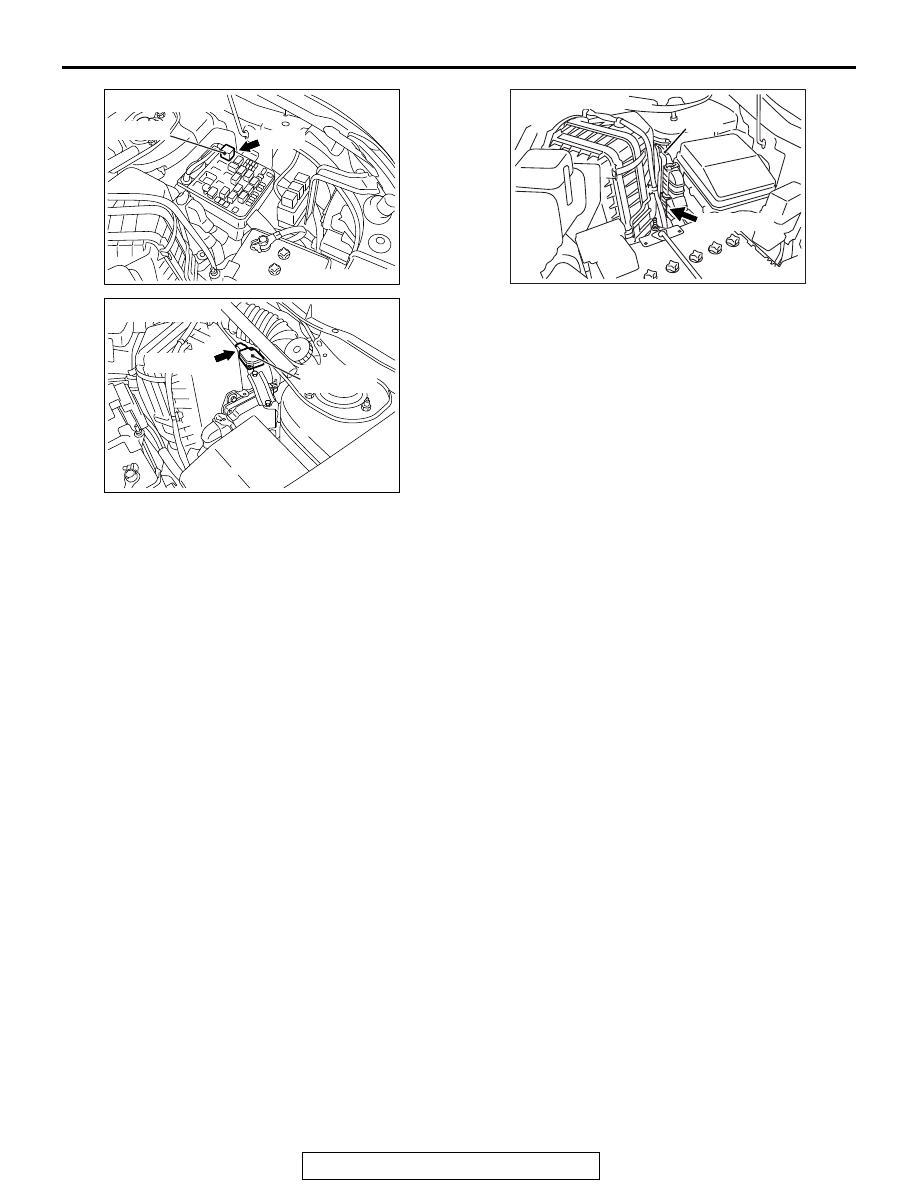

AK700399AB

MFI relay

A-33X

Connector: A-33X

AK700406

AB

Mass airflow
sensor

A-07 (GR)

Connector: A-07

AK700402AB

ECM

B-11 (GR)

Connector: B-11

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-147

DTC SET CONDITIONS

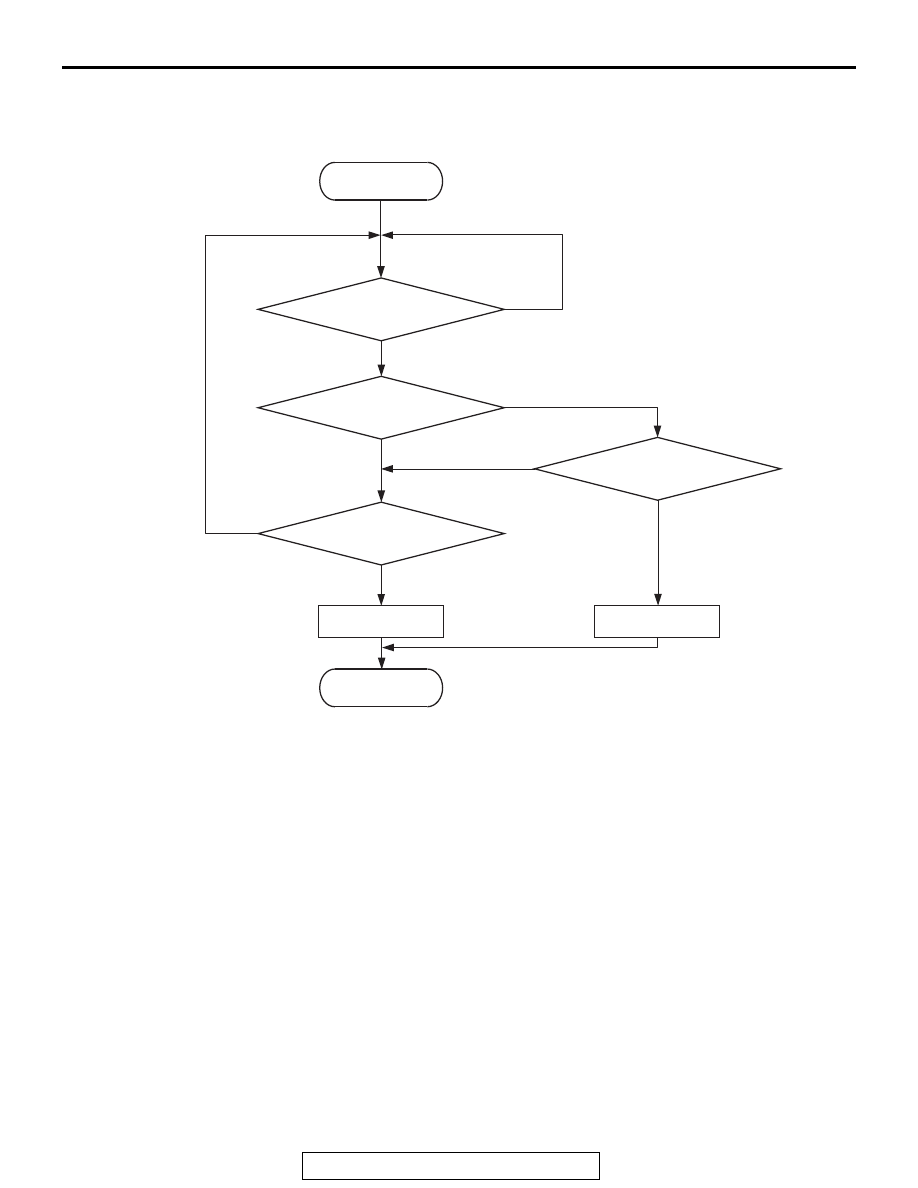

Logic Flow Chart

.

Check Conditions

• 3 seconds or more have passed since the ignition

switch was turned to "ON" position.

Judgement Criterion

• Mass airflow sensor output voltage has continued

to be higher than 4.9 volts for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 22

P.13B-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Mass airflow sensor failed.

• Connector damage

• Harness damage

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

End

Malfunction

Yes

Yes

Yes

No

No

No

Continuous

failure for 2secs

Output voltage

< 0.2V

Output voltage

> 4.9V

Monitoring
conditions

Good

Start

AK700459

Yes

No

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-148

STEP 1. Using scan tool MB991958, check data list item 10:
Mass Airflow Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

10, Mass Airflow Sensor.

(4) Warm up the engine to normal operating temperature: 80

°C

to 95

°C (176°F to 203°F).

• The standard value during idling should be between

1,350 and 1,670 millivolts.

• When the engine is revved, the mass airflow rate should

increase according to the increase in engine speed.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Go to Step 2.

STEP 2. Check harness connector A-07 at the mass airflow
sensor and harness connector B-11 at the ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 5.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector
