MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-839

Ignition
timing 5
BTDC

11*

Basic ignition
timing

Set to
ignition
timing
adjustment
mode.

• Engine: idling

• Connect

timing light

5

°BTDC

−

−

Injector stop 1

Injectors

Specified
injector is
stopped.

Engine: warm
up, idle. (cut the
fuel supply to
each injector in
turn and check
cylinders which
don't affect
idling)

Idle
condition is
changed by
stopping
selected
cylinder:
this can
cause an
unstable
condition
and the
engine may
stall.

Code No.
P0201,
Code No.
P0202,
Code No.
P0203,
Code No.
P0204

P.13A-292

,

P.13A-302

,

P.13A-312

,

P.13A-322

Oil control
valve

17

Intake engine
oil control
valve, exhaust
engine oil
control valve

Switch the
intake
engine oil
control
valve and
exhaust
engine oil
control
valve from
OFF to ON.

Ignition switch:
ON

When the
valve is
actuated,
operating
noise is
audible.

Code No.
P0010,
P0013

P.13A-58

,

P.13A-68

M.U.T.-III
SCAN TOOL
DISPLAY

ITEM
NO.

INSPECTION
ITEM

DRIVE
CONTENTS

INSPECTION
REQUIREMENT

NORMAL
CONDITION

INSPECTION
PROCEDURE
NO.

REFERENCE
PAGE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-840

CHECK AT THE ENGINE CONTROL MODULE (ECM)

M1131153502342

1. Disconnect the ECM connectors B-10 and B-11,

and connect check harness special tool
MB992110 between the ECM connectors.

2. Measure the voltage between each check

harness connector terminal and check harness
connector ground terminal (No. 81 or No. 93).

TERMINAL VOLTAGE CHECK CHART

NOTE: *

1

: The average voltage through an analog voltmeter is described in this service manual (because the

average voltage would be not constantly shown on a digital voltmeter).
NOTE: *

2

: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting switch is in "OFF"

position but is no problem for checks.
NOTE:

*

3: If the battery is fully charged, the output reading may be incorrect.

AK700419

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

B-10

B-11

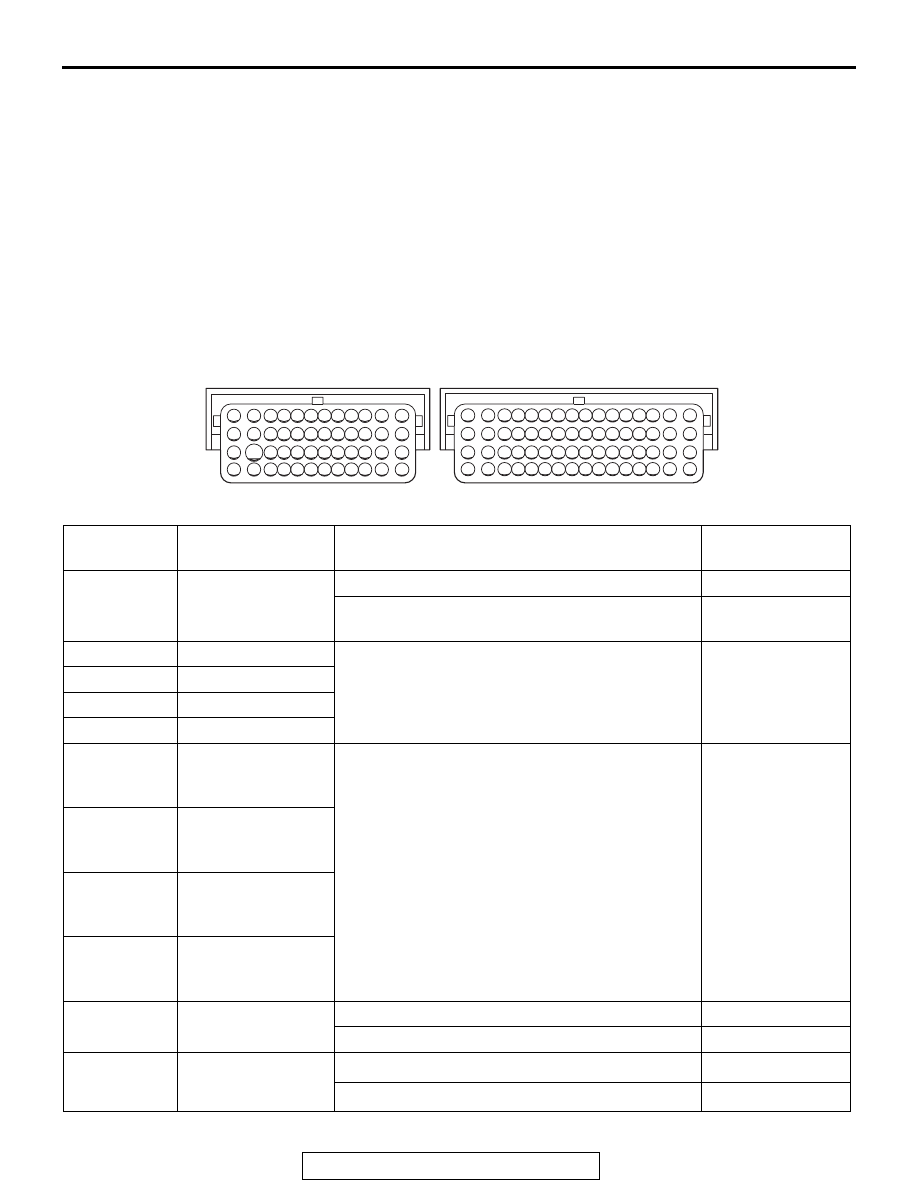

Check Harness Special Tool MB992110 Connector Terminal Arrangement

TERMINAL
NO.

INSPECTION ITEM INSPECTION CONDITION (ENGINE

CONDITION)

NORMAL
CONDITION

1

Intake engine oil
control valve

Engine: Warming up, idling

B+

Engine: Warming up, under the high load
operation.

4

− 10 V

*1

2

No. 1 injector

Engine: While engine is idling after having
warmed up, suddenly depress the accelerator
pedal.

From 9

− 15 V*

1

, it

is slightly reduced
temporarily.

3

No. 2 injector

18

No. 3 injector

19

No. 4 injector

4

Ignition coil No. 1
(ignition power
transistor

Engine: 3,000 r/min

0.3

− 3.0 V*

1

5

Ignition coil No. 2
(ignition power
transistor

20

Ignition coil No. 3
(ignition power
transistor

21

Ignition coil No. 4
(ignition power
transistor

6

Starter active signal Engine: cranking

B+

Engine: idling

1 V or less

7

Exhaust camshaft
position sensor

Engine: cranking

2.0

− 4.8 V*

1

Engine: idling

2.0

− 3.0 V*

1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-841

8

Crankshaft position
sensor

Engine: cranking

0.4

− 4.0 V*

1

Engine: idling

2.0

− 3.0 V*

1

9

Sensor supplied
voltage

Ignition switch: "ON"

B+

10

Throttle position
sensor (main)

• Remove the

intake air hose
at the throttle
body

• Disconnect the

throttle position
sensor
connector, and
then connect
terminal
numbers No. 3,
No. 4, No. 5
and No. 6 with
the use of the
special tool:
MB991658.

• Ignition switch:

"ON"

Fully close the throttle valve
with your finger

0.3

− 0.7 V

Fully open the throttle valve
with your finger

4.0 V or more

11

Throttle position
sensor (sub)

• Remove the

intake air hose
at the throttle
body

• Disconnect the

throttle position
sensor
connector, and
then connect
terminal
numbers No. 3,
No. 4, No. 5
and No. 6 with
the use of the
special tool:
MB991658.

• Ignition switch:

"ON"

Fully close the throttle valve
with your finger

4 V or more

Fully open the throttle valve
with your finger

1 V or less

12

Power supply
voltage applied to
throttle position
sensor

Ignition switch: "ON"

4.9

− 5.1 V

14

Intake camshaft
position sensor

Engine: cranking

2.0

− 4.8 V

Engine: idling

2.0

− 3.0 V

TERMINAL
NO.

INSPECTION ITEM INSPECTION CONDITION (ENGINE

CONDITION)

NORMAL
CONDITION

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-842

15

Throttle actuator
control motor (+)

Ignition switch: "ON"
Accelerator pedal: fully opened

→ fully closed

Decreases slightly
(Approximately 2
V) from battery
voltage.

16

Throttle actuator
control motor (

−)

Ignition switch: "ON"
Accelerator pedal: fully closed

→ fully opened

Decreases slightly
(Approximately 2
V) from battery
voltage.

17

Exhaust engine oil
control valve

Engine: warming up, idling

B+

Engine: Warming up, under the high load
operation.

4.0

− 10 V*

1

26

Engine coolant
temperature sensor

Ignition switch:
"ON"

When engine coolant
temperature is

−20°C (−4°F)

3.9

− 4.5 V

When engine coolant
temperature is 0

°C (32°F)

3.2

− 3.8 V

When engine coolant
temperature is 20

°C (68°F)

2.3

− 2.9 V

When engine coolant
temperature is 40

°C (104°F)

1.3

− 1.9 V

When engine coolant
temperature is 60

°C (140°F)

0.7

− 1.3 V

When engine coolant
temperature is 80

°C (176°F)

0.3

− 0.9 V

31

EGR valve [stepper
motor coil (A)]

Ignition switch: "LOCK" (OFF)

→ "ON"

5

− 8 V*

1

 (changes

about three
seconds
repeatedly)

32

EGR valve [stepper
motor coil (B)]

47

EGR valve [stepper
motor coil (C)]

48

EGR valve [stepper
motor coil (D)]

34

Linear air-fuel ratio
sensor heater

Engine: warming up, idling (1 minute after
starting engine)

8

− 11 V*

1

Engine: revving

From 8

− 11 V*

1

, it

is slightly reduced
temporarily.

35

Heated oxygen
sensor (rear) heater

Engine warming up, idling (20 seconds after
starting engine)

9

− 11 V*

1

Engine: revving

9

− 11 V*

1



→ B+

(momentarily)

36

Engine oil pressure
switch

Ignition switch: "ON"

0

− 0.1 V

Engine: idling

B+

TERMINAL
NO.

INSPECTION ITEM INSPECTION CONDITION (ENGINE

CONDITION)

NORMAL
CONDITION
