Mitsubishi Outlander GS45X. Manual - part 709





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-659

STEP 9. Check for harness damage between throttle
position sensor connector B-08 (terminal No. 6) and ECM
connector B-10 (terminal No. 11).
Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 11.

STEP 10. Replace the throttle body assembly.
(1) Replace the throttle body assembly.
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTC.
(4) Depress the throttle fully for a few seconds.
(5) Check the DTC.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2135 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 11.

NO :  The inspection is complete.

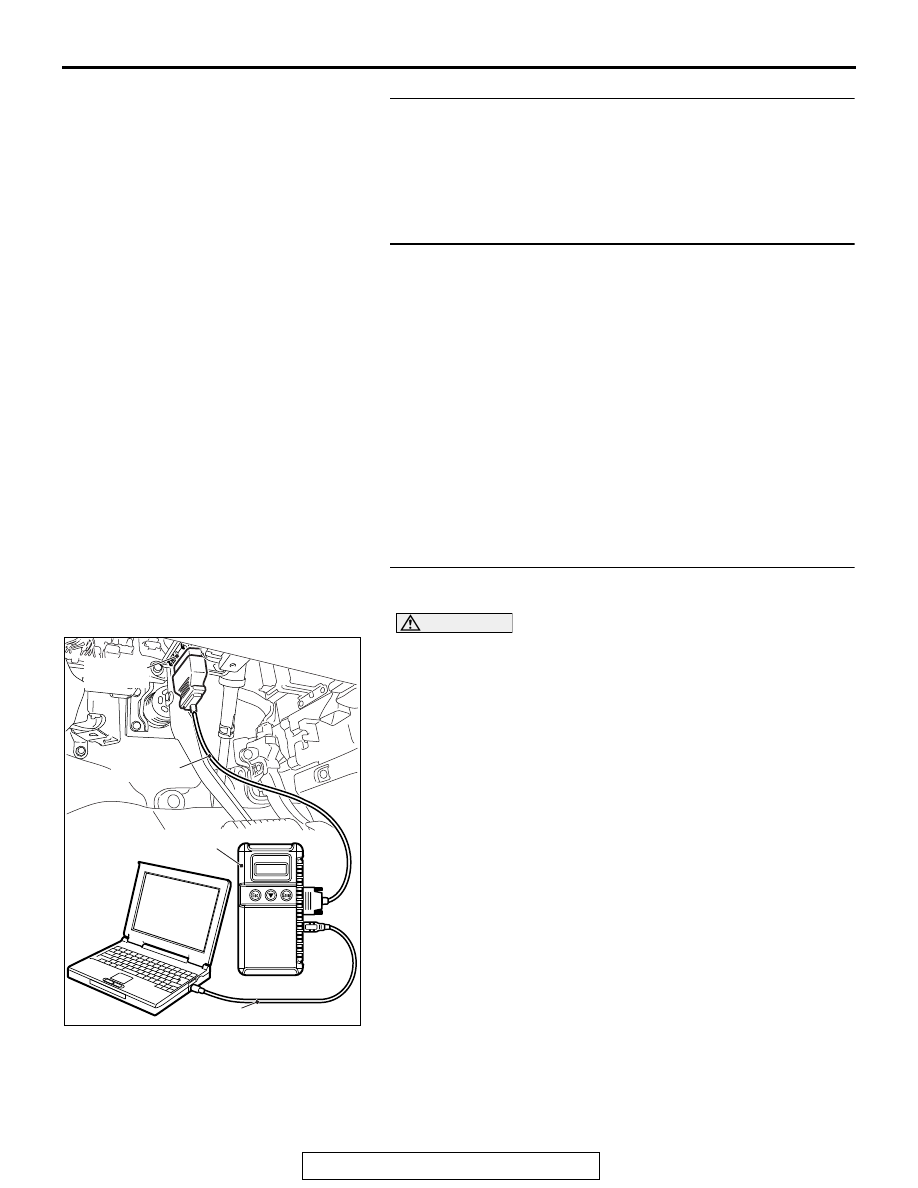

STEP 11. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTC.
(4) Depress the throttle fully for a few seconds.
(5) Check the DTC.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2135 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-660

DTC P2138: Accelerator Pedal Position Sensor (main and sub) Circuit Range/Performance Problem

.

ACCELERATOR PEDAL POSITION
SENSOR (main and sub)
RANGE/PERFORMANCE PROBLEM
CIRCUIT

• Refer to DTC P2122 − Accelerator Pedal Position

Sensor (main) Circuit Low Input

P.13A-633

.

• Refer to DTC P2127 − Accelerator Pedal Position

Sensor (sub) Circuit Low Input

P.13A-644

.

.

CIRCUIT OPERATION

• Refer to DTC P2122 − Accelerator Pedal Position

Sensor (main) Circuit Low Input

P.13A-633

.

• Refer to DTC P2127 − Accelerator Pedal Position

Sensor (sub) Circuit Low Input

P.13A-644

.

.

TECHNICAL DESCRIPTION

• ECM checks the accelerator pedal position sen-

sor output signal characteristics for abnormal
conditions.

.

DESCRIPTIONS OF MONITOR METHODS

Detect malfunction if the relation between accelera-

tor pedal position sensor (main) and accelerator
pedal position sensor (sub) is wrong.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AK704097AB

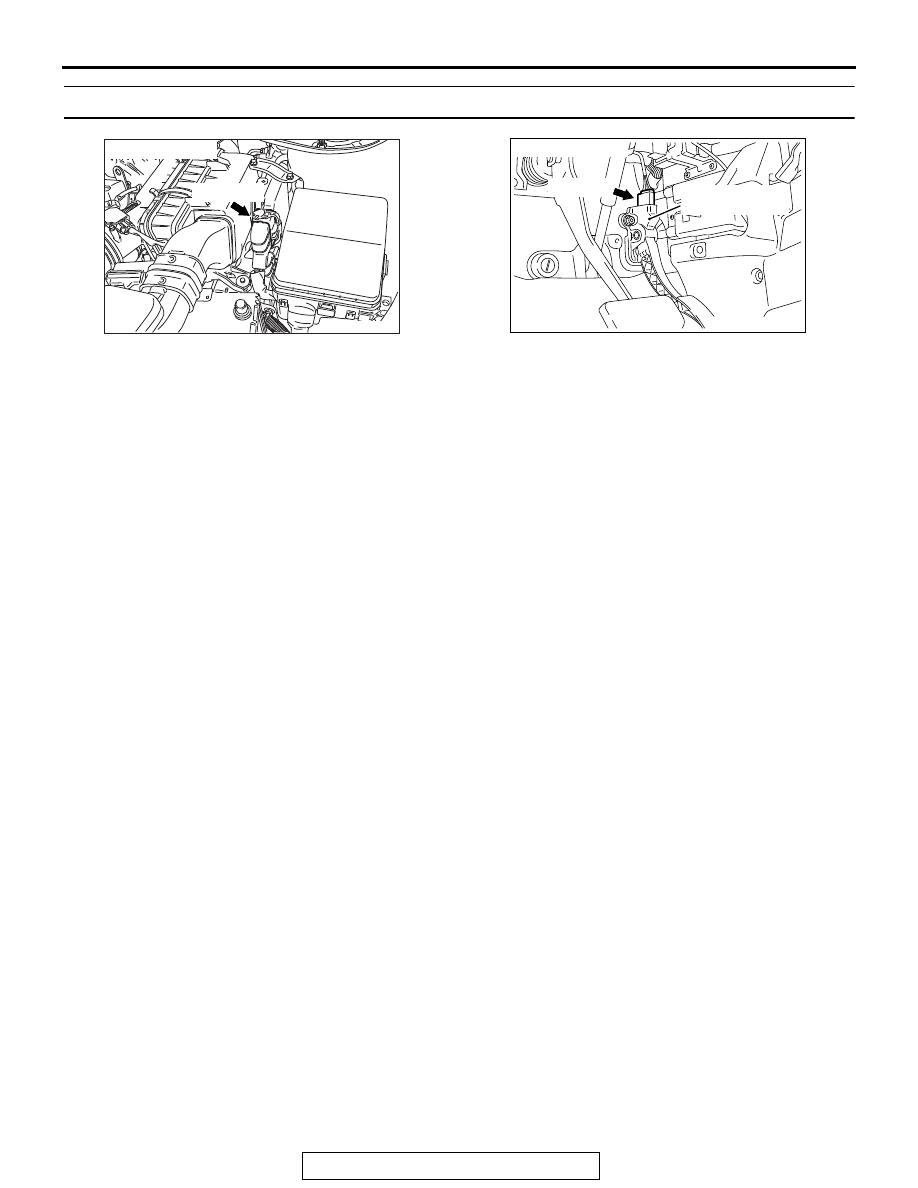

Connector: B-11

B-11 (GR)

AK704152

AB

Accelerator pedal
position sensor

Connector: C-123

C-123 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-661

DTC SET CONDITIONS <Range/Performance problem -relation between main and
sub>

Logic Flow Chart

.

Check Condition

• Change of accelerator pedal position sensor

(sub) output voltage per 25 milliseconds is lower
than 0.06 volt.

Judgement Criterion

• Voltage obtained with the formula given below is

0.4 volt or higher for 0.3 second: [accelerator
pedal position sensor (sub) voltage

− accelerator

pedal position sensor (main) voltage].

NOTE: The accelerator pedal position sensor
voltage used for the judgement is converted into
the accelerator pedal position sensor voltage for
the internal processing by the ECM.

.

AK604363

Start

Yes

Yes

Yes

No

No

No

{APS (sub) - APS (main)}

>= 0.4V

Continuous

failure for 0.3sec

Malfunction

End

Good

Monitoring
conditions

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-662

DTC SET CONDITIONS <Range/Performance problem -relation between main and
sub>

Logic Flow Chart

.

Check Condition

• Change of accelerator pedal position sensor

(sub) output voltage per 25 milliseconds is lower
than 0.06 volt.

Judgement Criterion

• Voltage obtained with the formula given below is

0.4 volt or higher for 0.2 second: [accelerator
pedal position sensor (main) voltage

− accelera-

tor pedal position sensor (sub) voltage].
NOTE: The accelerator pedal position sensor
voltage used for the judgement is converted into
the accelerator pedal position sensor voltage for
the internal processing by the ECM.

.

OBD-II DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Accelerator pedal position sensor failed.

• Accelerator pedal position sensor circuit harness

damage, or connector damage.

• ECM failed.

AK604364

Start

Yes

Yes

Yes

No

No

No

{APS (main) - APS (sub)}

>= 0.4V

Continuous

failure for 0.2sec

Malfunction

End

Good

Monitoring
conditions
