12-1

GROUP 12

ENGINE

LUBRICATION

CONTENTS

GENERAL INFORMATION . . . . . . . .

12-2

LUBRICANTS  . . . . . . . . . . . . . . . . . .

12-2

SERVICE SPECIFICATIONS. . . . . . .

12-3

SEALANT. . . . . . . . . . . . . . . . . . . . . .

12-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

12-4

ON-VEHICLE SERVICE. . . . . . . . . . .

12-4

ENGINE OIL CHECK  . . . . . . . . . . . . . . . . .

12-4

ENGINE OIL REPLACEMENT  . . . . . . . . . .

12-5

ENGINE OIL FILTER REPLACEMENT. . . .

12-6

OIL FILTER STUD REPLACEMENT



<3.0L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

12-7

ENGINE OIL PRESSURE CHECK . . . . . . .

12-8

ENGINE OIL PRESSURE SWITCH . .

12-9

REMOVAL AND INSTALLATION



<2.4L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

12-9

REMOVAL AND INSTALLATION



<3.0L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

12-11

GENERAL INFORMATION

TSB Revision

ENGINE LUBRICATION

12-2

GENERAL INFORMATION

M1121000101037

The lubrication method is a fully force-fed, full-flow fil-
tration type.

ENGINE OILS

WARNING

Prolonged and repeated contact with mineral
oil will result in the removal of natural fats
from the skin, leading to dryness, irritation
and dermatitis. In addition, used engine oil
contains potentially harmful contaminants
which may cause skin cancer. Adequate
means of skin protection and washing facili-
ties must be provided.

.

Recommended Precautions

The most effective precaution is to prevent, as far as
practical, the risk of skin contact with mineral oils i.e.
use enclosed systems for handling used engine oil
and degrease components, where practical, before
handling them.

.

Other precautions:

• Avoid prolonged and repeated contact with oil,

particularly used engine oil.

• Wear protective clothing, including impervious

gloves where practical.

• Avoid contaminating clothes with oil.

• Do not put oily rags in pockets.

• Do not wear heavily soiled clothing and

oil-soaked foot-wear. Overalls must be cleaned
regularly and kept separate from personal cloth-
ing.

• Where there is a risk of eye contact, eye protec-

tion should be worn i.e. chemical goggles or face
shields. In addition, an eye wash facility should
be provided.

• Obtain first aid treatment immediately for open

cuts and wounds.

• Wash regularly with soap and water to ensure all

oil is removed (skin cleansers and nail brushes
will help). After cleaning, apply lotion, etc., con-
taining lanolin to replace natural skin oils is
advised.

• Do not use gasoline, kerosene, diesel fuel, gas

oil, thinners or solvents for cleaning skin.

• Apply barrier creams before each work period.

• If skin disorders develop, obtain medical advice

immediately.

LUBRICANTS

M1121000402796

.

Item

Specification

Oil pump type

Trochoid type

Drive method

Crankshaft

Item

Engine oil

Quantity dm

3

 (qt)

Oil filter

Engine oils displaying ILSAC certification
symbol ("Starburst" symbol) or conforming
to the API classification SM.

0.3 (0.32)

Total quantity

2.4L ENGINE

4.6 (4.82)

3.0L ENGINE

4.3 (4.52)

SERVICE SPECIFICATIONS

TSB Revision

ENGINE LUBRICATION

12-3

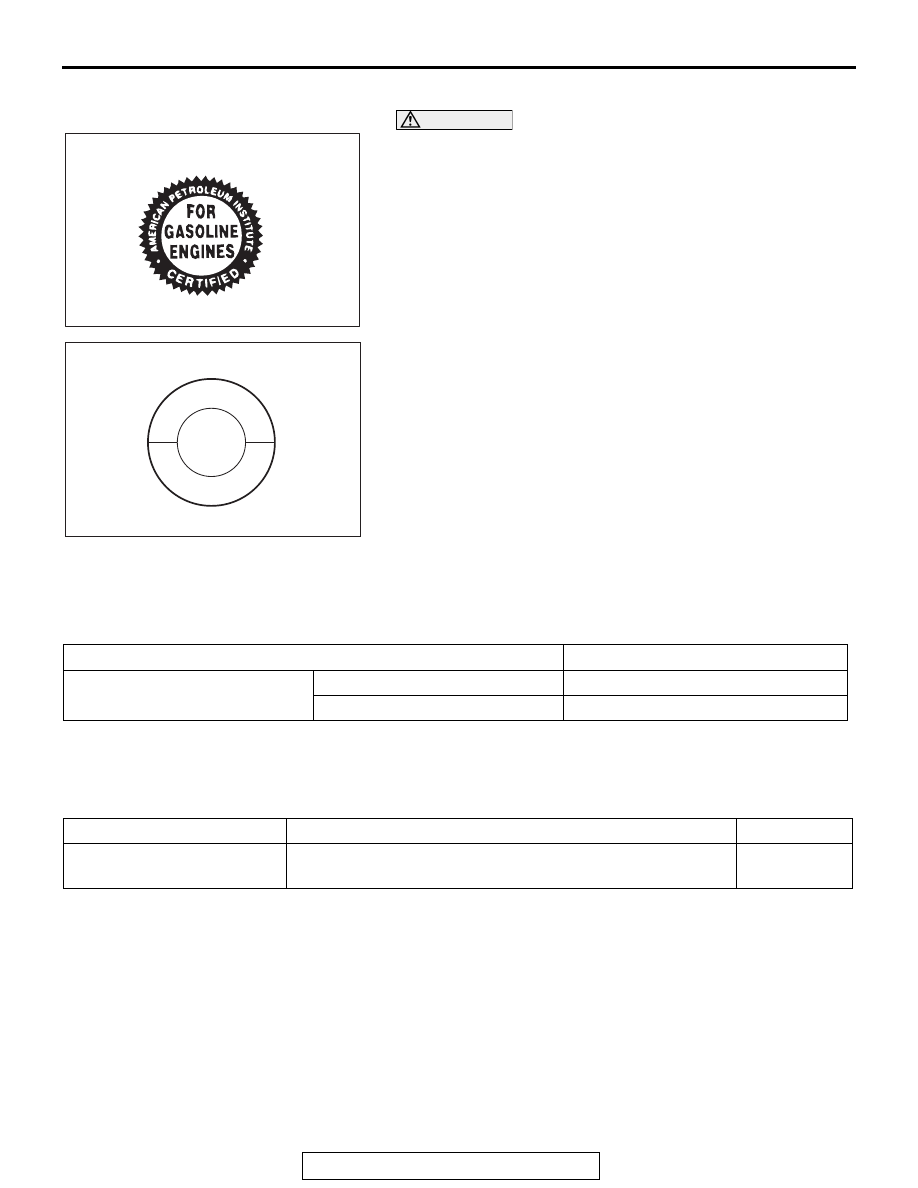

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.
Use only engine oils displaying the ILSAC certification symbol
("Starburst" symbol) on the container.

If these oils are not available, an API classification SM can be
used.

SERVICE SPECIFICATIONS

M1121000300630

SEALANT

M1121000501422

AC609011

ILSAC certification symbol
("Starburst" symbol)

AC

A

P

I

SE

RVICE

  S

M



SAE

0W-20

ACA01781

API service symbol

AD

ITEM

STANDARD VALUE

Engine oil pressure kPa (psi)

at idle

29 (4.2) or more

at 3,500 r/min

294

− 686 (43 − 100)

Item

Specified sealant

Remark

Engine oil pressure switch

ThreeBond 1141J, ThreeBond 1215, ThreeBond 1212D or
equivalent

Semi-drying
sealant

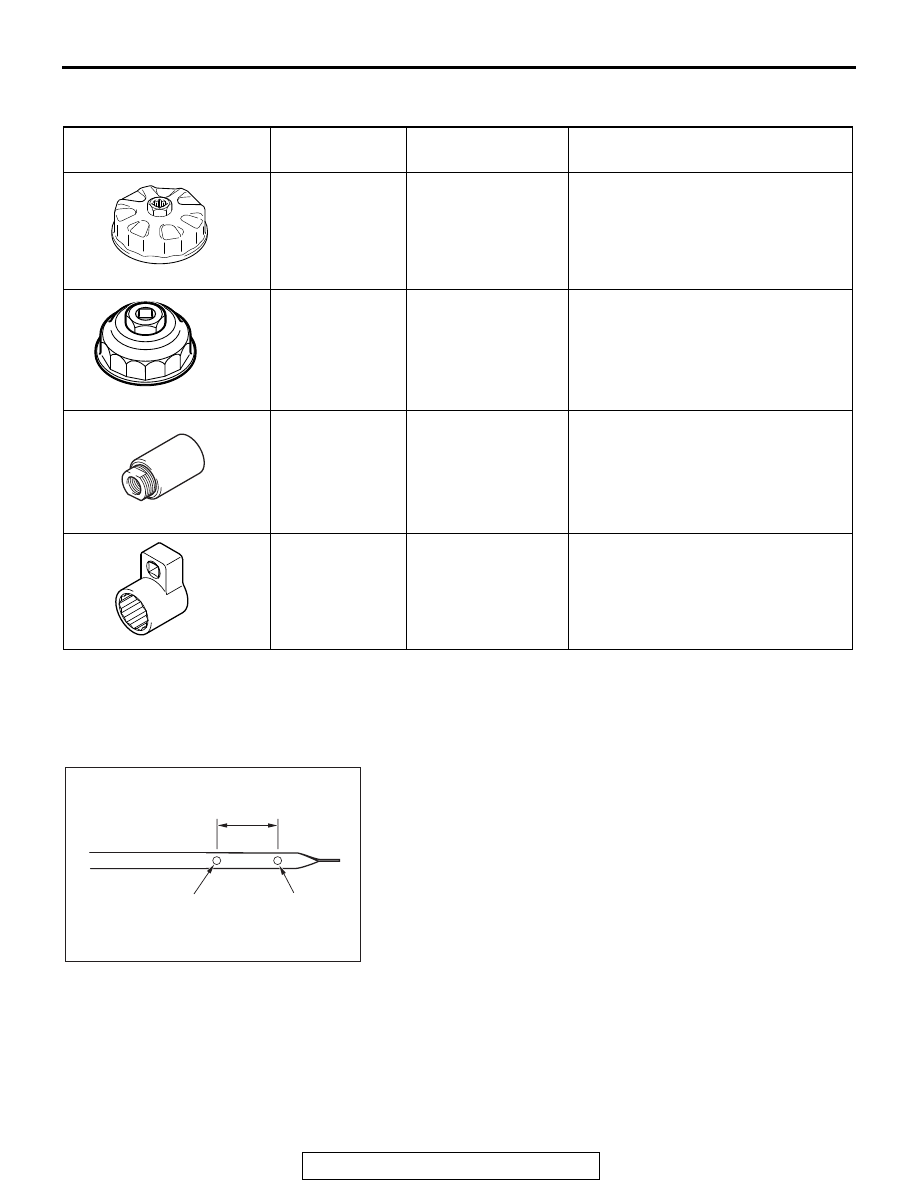

SPECIAL TOOLS

TSB Revision

ENGINE LUBRICATION

12-4

SPECIAL TOOLS

M1121000602400

ON-VEHICLE SERVICE

ENGINE OIL CHECK

M1121000901141

1. Pull out the engine oil dipstick, clean off the engine oil on the

engine oil dipstick, and then reinsert the engine oil dipstick.

2. Pull out the engine oil dipstick, and check the engine oil level

is within the marks on one side of the engine oil dipstick
(engine cover side.)
NOTE:

.

Checking the engine oil might be difficult shortly after
stopping the engine or engine oil replacement.

If difficult, take some time (approximately 30 seconds)
and try again.

Refer to the information label indicating the engine oil
check process on the rocker cover.

3. Check that the engine oil is not excessively dirty, that there

is no coolant or gasoline mixed in, and that it is sufficiently
thick and slippery.

Tool

Tool number
and name

Supersession

Application

MB991396
Oil filter wrench

General service tool
or MB991396-01

Removal and installation of engine oil
filter (when using oil filter MD360935)

MB991828
Oil filter wrench

General service tool Removal and installation of engine oil

filter (when using oil filter MD332687
or MD365876)

MB992676
Oil filter stud
setter

Installation of engine oil filter stud
<3.0L ENGINE>

MB992118
Oil pressure
switch wrench

Removal and installation of engine oil
pressure switch

B991396

MB991828

MB992676

MB992118

AC205268

Maximum

Minimum

Good

AE
