Mitsubishi Outlander GS45X. Manual - part 466

STEERING WHEEL SENSOR

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-291

STEERING WHEEL SENSOR

REMOVAL AND INSTALLATION

M1355005100674

CAUTION

• Always align the center of the clock spring before installing the steering wheel sensor. Otherwise,

the sensor can be damaged.

• If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully

or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or
operated incorrectly.

• Before removing the steering wheel/air bag module assembly, refer to GROUP 52B − Service Pre-

cautions

P.52B-25

 and Air Bag Module Clock Spring

P.52B-439

.

• When the steering wheel sensor is replaced or reinstalled, always carry out calibration to make

ASC-ECU learn the neutral point. (Refer to

P.35C-283

.)

REMOVAL SERVICE POINT

.

<<A>> STEERING WHEEL SENSOR REMOVAL

CAUTION

After removing the steering wheel sensor, do not rotate the
sensor rotating part by 360

° or more.

Pre-removal operation
• Air bag module assembly and steering wheel assembly

removal (Refer to GROUP 37

− Steering Wheel

P.37-31

).

Post-installation operation
• Airbag module assembly and steering wheel assembly

installation (Refer to GROUP 37

− Steering Wheel

P.37-31

).

• Perform steering wheel calibration. (Refer to

P.35C-283

).

ACA02951

2

AC

1

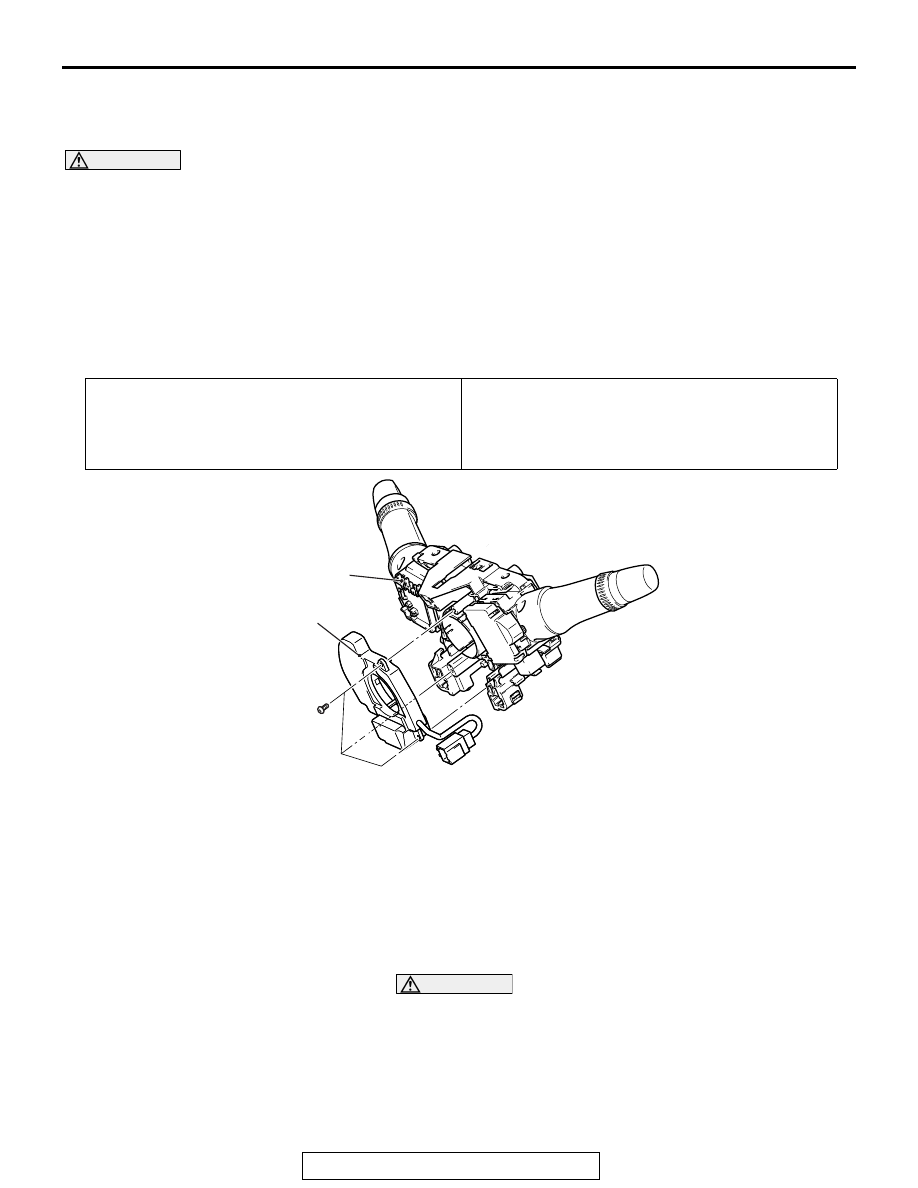

Removal steps

1. Clock spring/column switch

assembly (Refer to GROUP
54A

− Column Switch

P.54A-323

).

<<

A

>>

2. Steering wheel sensor
